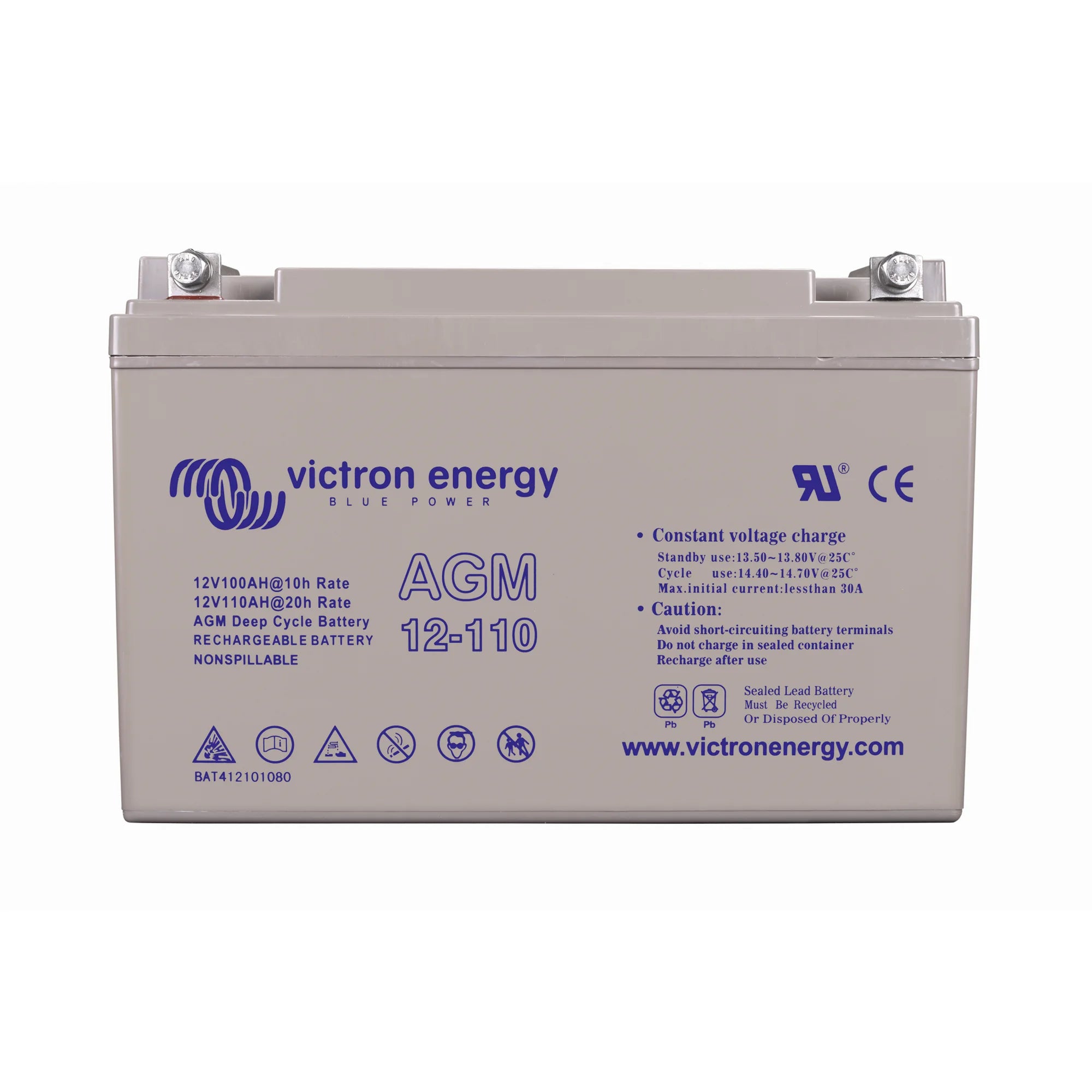

xVictron Energy 12V 110Ah AGM Deep Cycle Battery | BAT412101084
The Victron Energy 12V 110Ah AGM Deep Cycle Battery is a sealed, maintenance-free lead-acid battery rated at C20 capacity. It is suited to solar energy storage, off-grid systems, marine applications, and any installation where reliable deep cycle performance is required. At 30 kg, it is a substantial battery intended for permanent or semi-permanent installation rather than portable use.
Key Features
- 110Ah capacity rated at C20 discharge rate, providing a realistic usable capacity figure for solar and off-grid sizing calculations.
- Absorbed Glass Mat (AGM) construction eliminates free electrolyte, making the battery spill-proof and safe for installation in enclosed compartments.
- Deep cycle design supports repeated charge and discharge cycles, unlike standard starter batteries which are not suited to this duty.
- Sealed, valve-regulated (VRLA) construction requires no water topping-up and produces minimal gas under normal charging conditions.
- 12V nominal voltage allows straightforward series and parallel configuration for 24V or 48V battery banks.
- Manufactured by Victron Energy, with full compatibility with Victron chargers, inverter-chargers and battery monitors.
- GTIN: 8719076036968 | SKU: BAT412101084
Product Overview
AGM batteries use a glass mat separator to hold the electrolyte in place between the plates. This construction prevents acid stratification, reduces internal resistance compared to flooded lead-acid, and allows the battery to be installed in any orientation except inverted. For solar and off-grid applications, these properties translate to more consistent performance across varying temperatures and discharge rates, and lower maintenance overhead on site.
The C20 rating means the 110Ah capacity is measured over a 20-hour discharge period. In practice, drawing higher currents over shorter periods will reduce the available capacity, which is standard behaviour for all lead-acid chemistries. When sizing a battery bank, installers should account for a maximum depth of discharge of 50% for AGM to preserve cycle life. At 50% DoD, this battery delivers approximately 55Ah of usable energy per cycle.
Victron AGM Deep Cycle batteries are designed to work directly with Victron MPPT solar charge controllers, MultiPlus and Quattro inverter-chargers, and the full range of Victron battery chargers. Charge parameters for Victron AGM batteries are pre-programmed into Victron charging equipment, simplifying commissioning and reducing the risk of overcharging.
Technical Specifications
| Parameter | Value |
| SKU | BAT412101084 |
| Nominal Voltage | 12V |
| Capacity (C20) | 110Ah |
| Battery Type | AGM Deep Cycle, VRLA (Sealed) |
| Weight | 30 kg |
| Maintenance | Maintenance-free (sealed) |
| GTIN | 8719076036968 |
| Recommended Max. Depth of Discharge | 50% |
Applications
- Solar energy storage in off-grid and hybrid PV systems.
- Battery banks for narrowboats, canal boats, and leisure marine vessels.
- Motorhome and campervan auxiliary power systems.
- UPS and backup power for telecoms, security, and remote monitoring equipment.
- Mobile welfare units and site accommodation power.
- Wind and micro-hydro off-grid storage where a sealed, low-maintenance battery is required.
What Is Included
- 1 x Victron Energy 12V 110Ah AGM Deep Cycle Battery (BAT412101084)
Installation Notes
This battery weighs 30 kg and should be handled by two people or with appropriate lifting equipment. Installation in a solar PV or inverter system should be carried out by a qualified electrician or MCS-accredited installer. Ensure the charging source is set to the correct voltage profile for AGM batteries before connecting. Do not charge alongside flooded lead-acid or lithium batteries without appropriate battery management. The battery must not be installed in an inverted position. Adequate ventilation is recommended even for sealed VRLA batteries, as valve-regulated cells can vent gas under fault conditions or overcharge. Dispose of at end of life in accordance with the Waste Batteries and Accumulators Regulations.
