Description

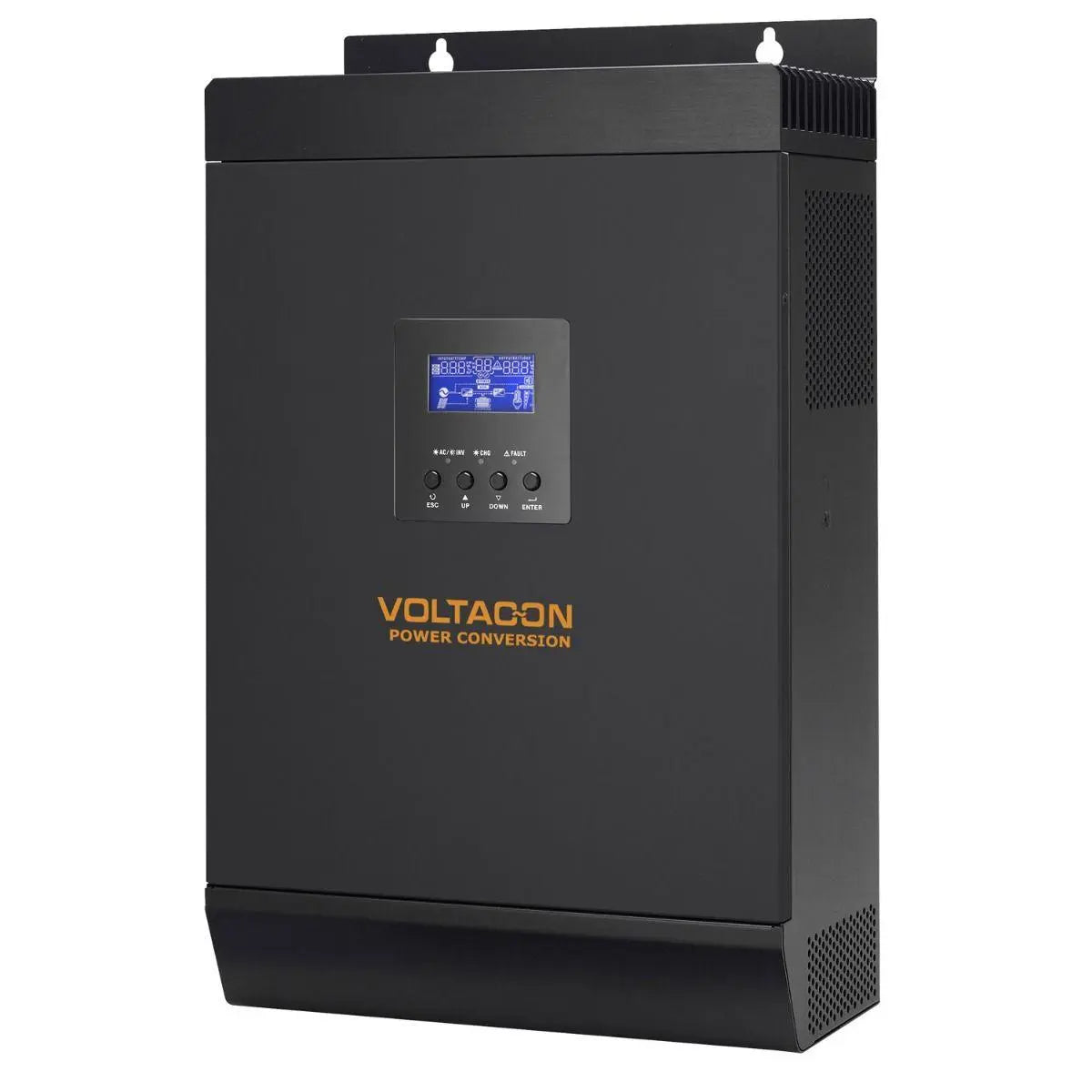

xItem: Voltacon Solar Conversol Off Grid Inverter (5kVA class)
Condition: Used, fully working unit (reliable model, previously one of our best sellers)
Warranty: 6 months warranty included
Delivery: Free UK delivery, 1 to 2 working days dispatch
Why buyers still love this inverter
This is one of Voltacon Solar’s most reliable off grid units, built for everyday use with strong surge capability for starting loads and efficient low no load consumption to help protect battery runtime.
Conversol is the most cost-effective, easy-to-use, and versatile solar inverter in the solar industry. With an integrated battery charger and an advanced microprocessor that allows for easy digital control implementation, Conversol provides reliable power conversion in a compact but robust unit. Thanks to its low “no load” current, the inverter offers a relatively long battery life that exceeds that of other products of its kind.
Extreme peak power capability enables high loads to start up easily without power dips or light flickering. What’s more, Conversol has been designed to operate in a wide range of temperature conditions, from -20°C to +50°C, which makes it a superior solar inverter that’s unmatched in the industry.
Our best seller, the 5kVA, comes with a powerful, ultra-fast charger and multiple MPPT tracking algorithms that deliver an even more impressive performance. The inverters come along with an unbeatable 1-year warranty, plus accessories.
The product can be configured for off-grid autonomous single and three-phase systems and can be directly connected to various motor-type loads like refrigerators, pumps, laser printers, and motors. Voltacon’s Conversol inverters include an unbeatable 1-year warranty, plus accessories. You can now generate your electricity and live a comfortable life without spending a fortune.
Extend the life of your batteries with EQUALIZATION
The equalization function is used for refreshing the capacity of the battery. It reverses the build-up of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition called sulfation, will reduce the overall capacity (Ah) of the battery. It is recommended to equalize the batteries periodically (at least once per year).
Product Unique Selling Points
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible with mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short-circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Parallel operation with up to 4 units only available for Conversol 5KVA*
Specifications
x| MODEL | CONVERSOL S1 | |
| Rated Power |
5000VA/5000W |
|
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 65-140 VAC or 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC ± 5% (User selectable) or 230VAC ± 5% | |
| Surge Power | 10000VA | |
| Efficiency (Peak) | 90% - 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage |
48 VDC |
|
| Floating Charge Voltage |
54 VDC |
|
| Overcharge Protection |
60 VDC |
|
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power |
4000 W |
|
| MPPT Range @ Operating Voltage |
60 VDC ~115 VDC |
|
| Maximum PV Array Open Circuit Voltage |
145 VDC |
|
| Maximum Solar Charge Current | 80 A | |
| Maximum AC Charge Current | 60 A | |
| Maximum Charge Current | 140A | |
| Maximum Efficiency | 98% | |
| Standby Power Consumption | 2W | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 140 x 295 x 540 | |
| Net Weight (kgs) | 13.5 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
* There are charging current selection only available for 230VAC system.
