Description
xComplete 5kW Off-Grid Solar Power Kit – Plug & Play Energy Solution with Lithium Batteries 5kWh
Our complete off-grid solar kit provides everything you need to generate, store, and use renewable energy independently. Designed for homes, workshops, holiday cabins, and remote buildings, this kit delivers up to 5000W continuous AC output power using premium components from JA Solar, Conversol, and Voltacon.
High Efficiency Solar Power Generation

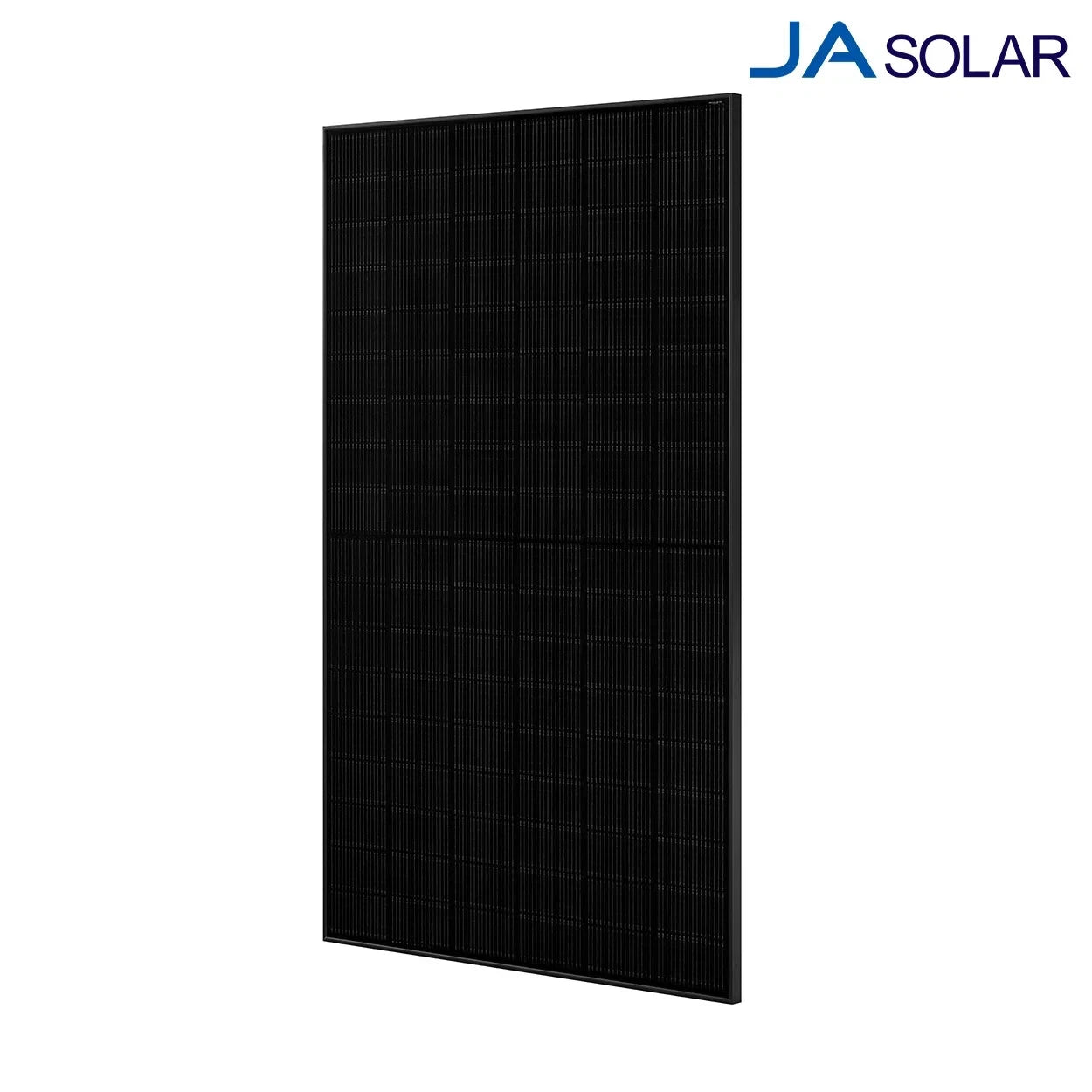

The solar PV panels are manufactured by JA Solar – one of the world’s leading producers of high-efficiency photovoltaic modules. Their proprietary N-Type cell technology achieves an impressive 26% cell efficiency, ensuring optimal performance even under low light conditions.
At the heart of the system is an All-in-One Conversol inverter that combines an advanced MPPT solar charger and pure sine wave inverter in one compact unit. This reduces wiring complexity and installation time, making it ideal for both DIY users and professionals.

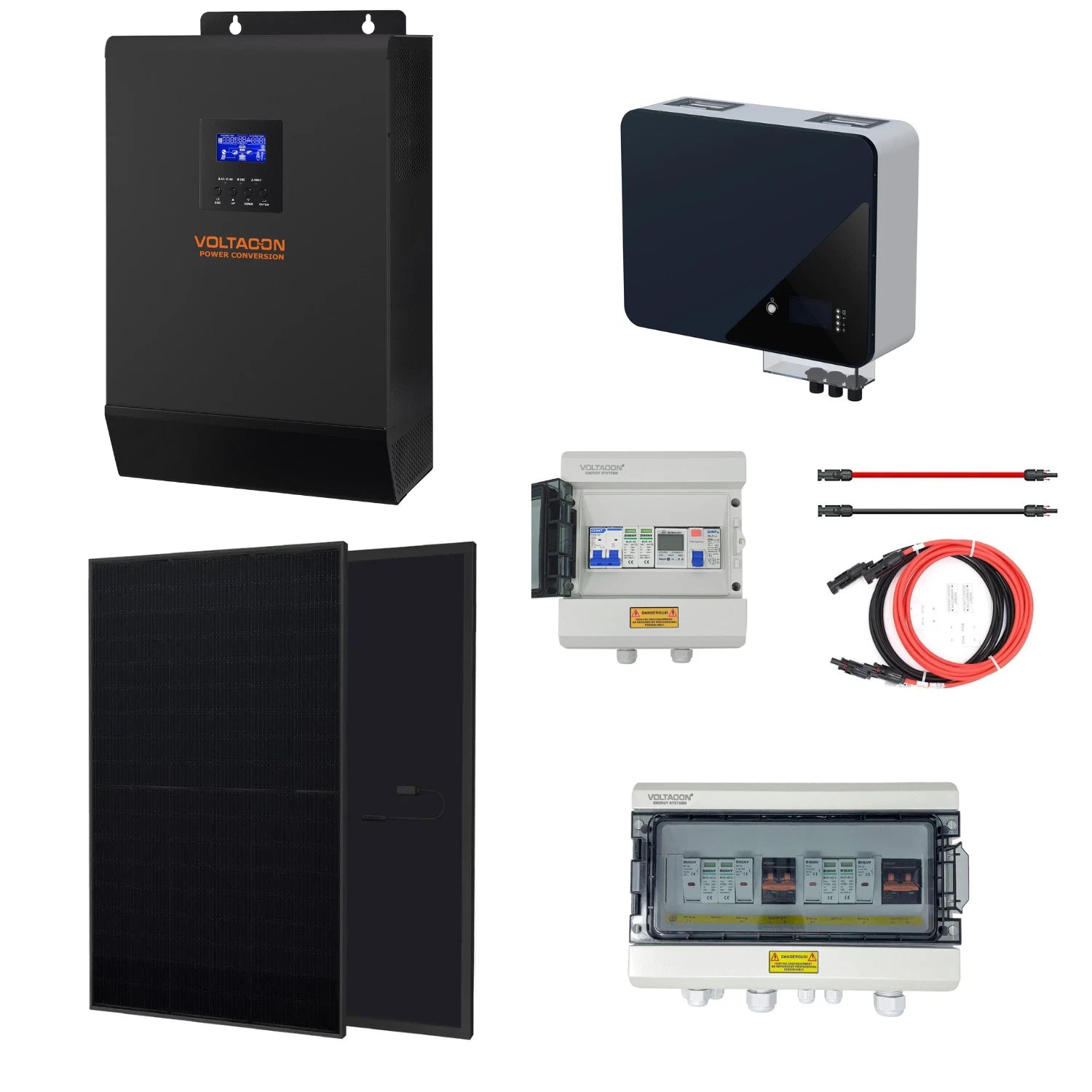

What’s Included in the 5kW Off-Grid Solar Kit
- 1 × 5000W Solar Inverter (Conversol M-5K-24)
- 6 × 450W JA Solar Monocrystalline Panels (Total 2700W)
- 2 × Lithium-ion Batteries 2.5kWh each (Total 5kWh) with active-ballancing
- 25 × Solar Panel Cables 6mm² Pair (Red/Black)
- DC Fuses 100A and Isolator Switch
- PV Combiner Box (2 Inputs / 1 Output)

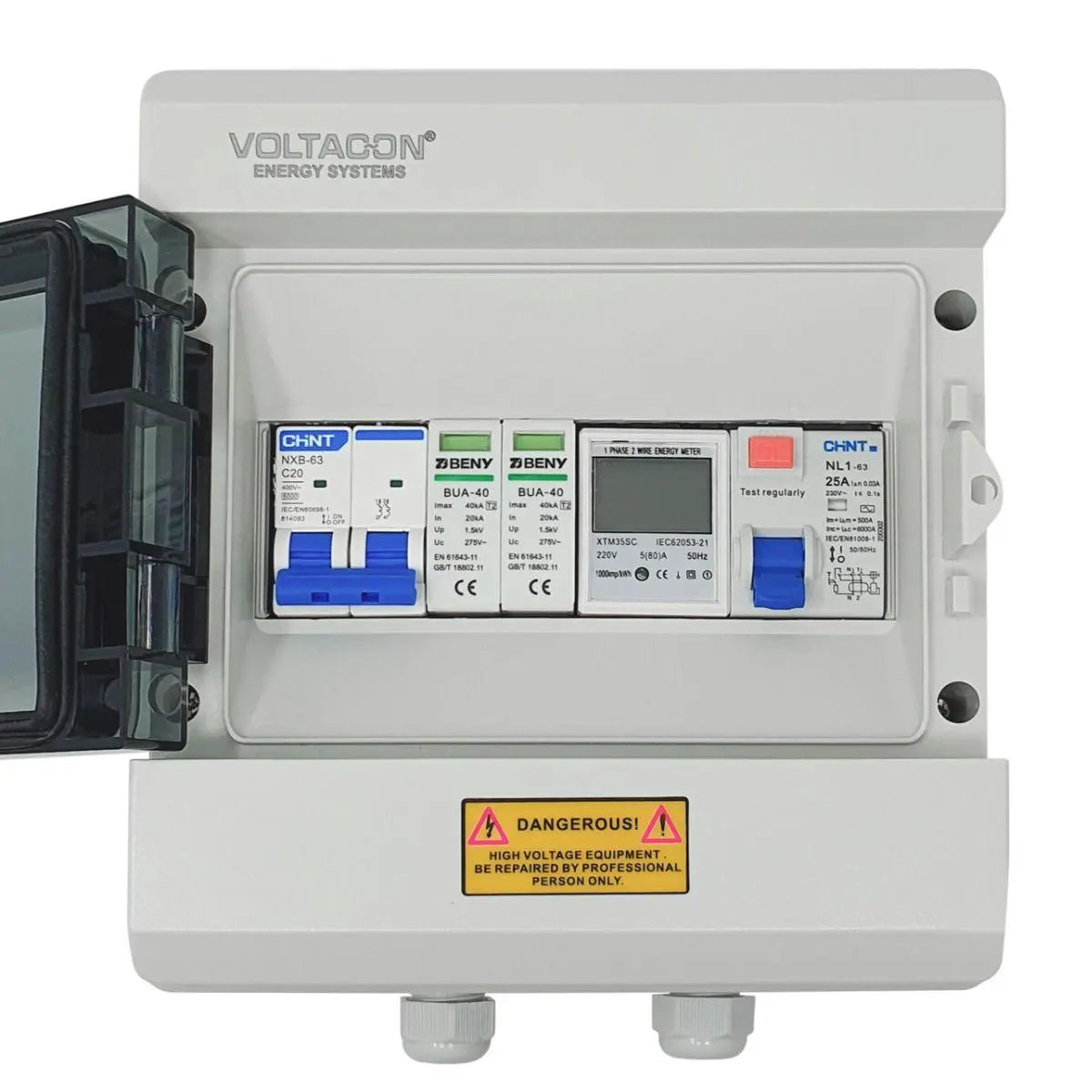

- Consumer Unit with Energy Meter and MCB Protection
- 5 Metres of AC Cable (3-Core)
-
Warranty Certificates:
- 1 Year – Inverter
- 5 Years – Batteries
- 35 Years – Solar Panels
- Comprehensive Wiring Diagram
Lithium-Ion Batteries with Active Cell Balancing
Our advanced lithium-ion battery modules are designed to deliver long-lasting and reliable energy storage for off-grid and hybrid applications. Each 2.5kWh (100Ah) unit features built-in active cell balancing, ensuring optimal performance, faster charging, and extended lifespan.
Key Features
- Rugged IP65 Metallic Enclosure: Suitable for indoor or outdoor installation.
- Active Cell Balancing: Maximises usable capacity, shortens charge times, and reduces heat buildup.
- Scalable Design: Connect up to 16 modules in parallel for large capacity storage.
- Built-in BMS: Provides protection and communication with compatible inverters.
Battery Specifications
| Specification | Details |
|---|---|
| Model | LIO-II-2410 |
| Nominal Capacity | 2.5kWh / 100Ah |
| Nominal Voltage | 25.6VDC |
| Continuous Discharge Current | 50A |
| Peak Discharge Current | 100A |
| Built-in BMS | Yes |
| Compatibility | 3000W–5500W Hybrid & Off-grid Inverters |
| Enclosure | IP65 Rated Aluminium Casing |
| Dimensions (mm) | 165 × 375 × 400 |
| Weight | 26kg |
| Scalability | Up to 16 Units in Parallel |
With robust design, modular scalability, and active balancing, these lithium-ion batteries form the heart of your off-grid power system — ensuring consistent performance, safety, and exceptional durability.
Specifications

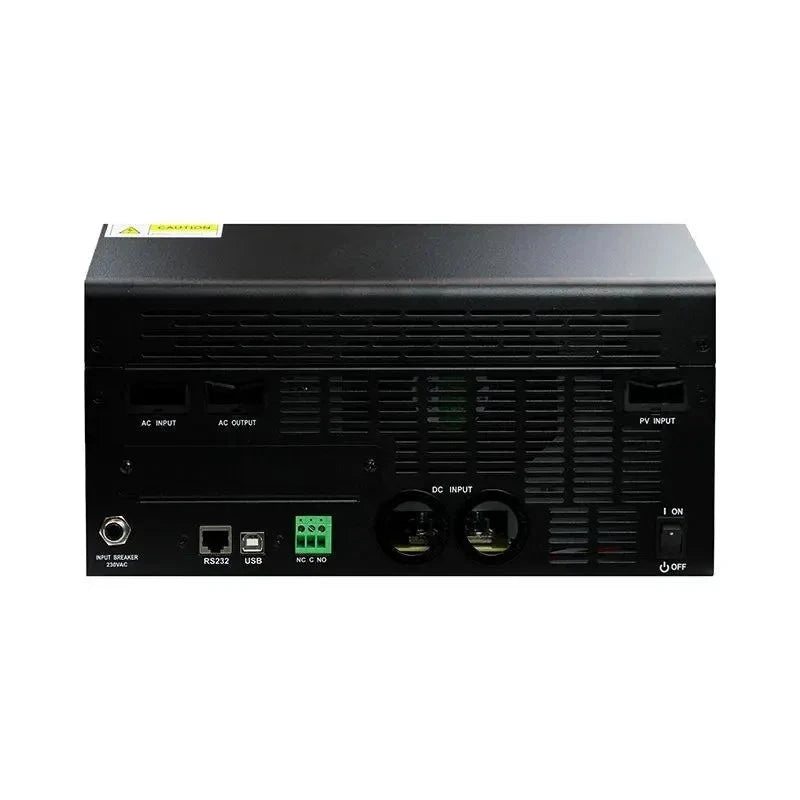

xInverter Specifications – Conversol M-5K-24
| Category | Specification |
|---|---|
| Model | CONVERSOL M-5K-24 |
| Rated Power | 5000VA / 5000W |
| Input Voltage | 120V or 230V AC |
| Selectable Range | 95–140V / 170–280V (PC Mode), 65–140V / 90–280V (Appliance Mode) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
| AC Voltage Regulation | 110/120V ±5% or 230V ±5% |
| Surge Power | 10,000VA |
| Efficiency (Peak) | 90–93% |
| Transfer Time | 10ms (PC) / 20ms (Appliance) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24VDC |
| Float Charge Voltage | 30VDC |
| Overcharge Protection | 40VDC |
| Max PV Array Power | 2000W |
| MPPT Voltage Range | 30–115VDC |
| Max PV Open Circuit Voltage | 145VDC |
| Max Solar Charge Current | 80A |
| Max AC Charge Current | 60A |
| Combined Max Charge Current | 140A |
| Solar Charger Efficiency | 98% |
| Standby Power Consumption | 2W |
| Dimensions (mm) | 180 × 310 × 475 |
| Net Weight | 12.5kg |
| Operating Temperature | 0°C – 55°C |
| Humidity | 5% – 95% (Non-condensing) |
| Storage Temperature | -15°C – 60°C |
