Description
x600W Plug In Solar Panel Kit with 625W Bifacial Solar Panel
Generate your own electricity from a balcony, garden, patio, terrace or other suitable outdoor space with this compact 600W plug in solar panel kit.
The system combines one high-efficiency Elite Solar 625W N-Type bifacial dual glass solar panel with the Voltacon BYM600 600W single MPPT microinverter. Simply position the solar panel in a suitable location, connect it to the microinverter and connect the supplied AC lead directly to a suitable fixed UK socket outlet.
Free Delivery on this kit - 2 days delivery time
With 625W of front-side solar panel capacity connected to a 600W microinverter, the system is designed to reach useful generating power earlier in the day and maintain stronger output during cloudy or lower-light conditions. The bifacial solar panel can also collect reflected sunlight through the rear surface when installed with suitable clearance above the ground or mounting surface.
Key Features
- 1 x Elite Solar 625W N-Type bifacial dual glass solar panel
- 600W rated AC microinverter output
- Single independent MPPT optimised for one high-power solar panel
- Integrated Wi-Fi monitoring and mobile monitoring platform
- G98 compliant and ENA registered microinverter
- ENA registration reference: ZHEJI/15702/V1/A1
- 230V single-phase AC output
- IP67 weather-resistant microinverter enclosure
- 96.5% peak inverter efficiency
- MPPT efficiency greater than 99.8%
- Low-voltage DC connection between solar panel and microinverter
- Anti-islanding grid protection
- No battery required
- Suitable for balconies, gardens, patios, terraces and suitable outbuildings
Why Use a 625W Panel with a 600W Microinverter?
Matching a 625W solar panel to a 600W microinverter is intentional. Solar panels only achieve their laboratory-rated output under specific Standard Test Conditions and will normally operate below their maximum rating during everyday UK weather.
The additional panel capacity helps the microinverter reach higher output earlier in the morning, maintain generation later in the afternoon and make better use of cloudy or partially overcast conditions.
During exceptionally strong sunlight, the microinverter automatically limits its AC output to its own maximum rating. This does not harm the panel or inverter.
Voltacon BYM600 600W Microinverter
The Voltacon BYM600 is designed specifically for high-power single-panel solar installations. Instead of using a large central string inverter, the microinverter is installed directly beside the solar panel and converts the panel's DC electricity into grid-compatible 230V AC electricity.
A dedicated MPPT continuously adjusts the operating point of the solar panel to maximise the available generation as sunlight and panel temperature change throughout the day.
The BYM600 includes integrated Wi-Fi monitoring, allowing solar production and operating status to be checked from a compatible mobile device without requiring a separate monitoring gateway.
Panel and Microinverter Compatibility
The Elite Solar 625W panel is particularly well matched to the BYM600 microinverter.
| Solar panel rated output | 625W |
| Panel maximum power voltage Vmp | 40.99V |
| Panel maximum power current Imp | 15.25A |
| Panel open circuit voltage Voc | 49.30V |
| Panel short circuit current Isc | 16.12A |
| BYM600 MPPT voltage range | 24V to 50V |
| BYM600 maximum continuous input current | 18A |
| BYM600 rated AC output | 600W |
The panel's operating voltage and current sit comfortably within the microinverter's operating range, providing a properly matched single-panel system.
How Plug In Solar Works
During daylight hours the solar panel generates DC electricity. The BYM600 microinverter immediately converts this electricity into 230V AC and synchronises it with your household electricity supply.
Your appliances automatically use the available solar electricity first. If your home is consuming more electricity than the solar system is producing, the additional power is taken from the electricity grid as normal.
For example, if your home is consuming 900W and your plug in solar kit is generating 500W, approximately 500W can be supplied by solar while the remaining 400W is imported from the grid.
No switching is required and there is no interruption to your electrical supply.
Designed for UK Daytime Electricity Consumption
A 600W plug in solar panel kit is particularly effective at covering the continuous electrical loads found in most homes throughout the day.
Typical loads can include:
- Fridges and freezers
- Internet routers and network equipment
- Computers and home offices
- TV and entertainment equipment
- Standby electrical loads
- Washing machines and dishwashers used during daylight hours
- Small pumps and ventilation equipment
- Garden offices and workshops
Every unit of solar electricity consumed directly within your property is electricity that does not need to be purchased from your energy supplier.
Plug In Solar in Great Britain
Plug in solar became legal for domestic use in Great Britain from 27 August 2026, allowing compliant systems to connect directly to a suitable standard mains socket.
This system uses a 600W microinverter and is comfortably below the maximum permitted plug in solar inverter output of 800W.
- The system must connect directly to a suitable fixed socket outlet.
- Do not use extension leads, cable reels, multi-way adaptors or overloaded sockets.
- The Distribution Network Operator should be notified following installation in accordance with the applicable G98 plug in solar procedure.
- Check whether landlord, freeholder, property management, planning or listed building permission is required before installation.
- Mounting must follow the panel and mounting-system manufacturer's instructions.
- The solar panel must not obstruct windows, walkways, shared balconies or emergency escape routes.
- If a new outdoor electrical socket is required, the electrical work should be completed by a suitably competent person.
- This is a solar generation system and is not designed for connecting plug in battery storage.
Suitable Applications
- Garden solar installations
- Patios and terraces
- Suitable balconies
- Ground-mounted solar installations
- Flat roof installations
- Garages and workshops connected to the household electrical supply
- Garden offices and outbuildings
- Homes where a conventional rooftop solar installation is impractical
- Rented properties where the appropriate permissions have been obtained

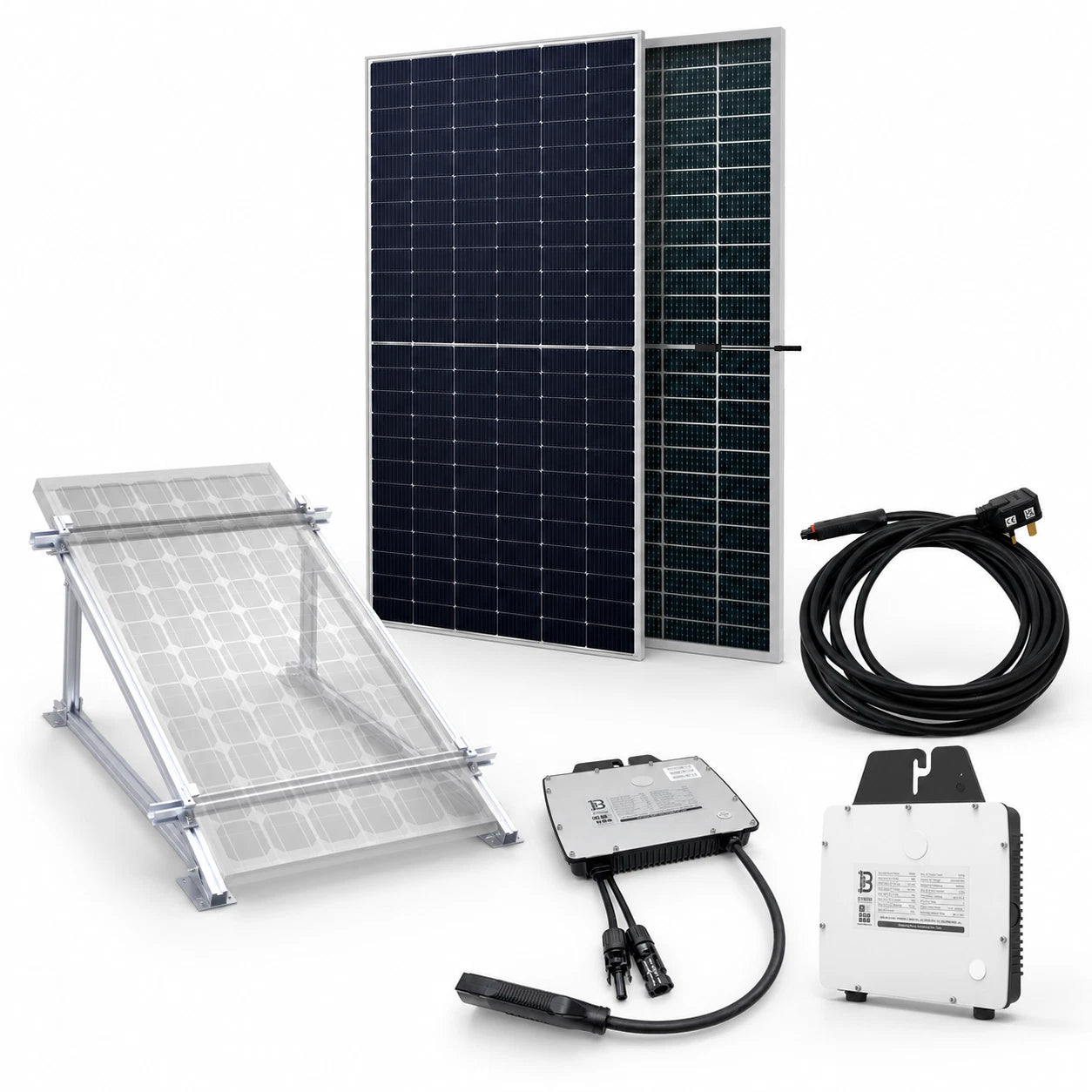

What is included
- 1 x Elite Solar 625W N-Type bifacial dual glass solar panel
- 1 x Voltacon BYM600 600W single MPPT microinverter
- 1 x UK AC connection lead with 13A plug
- DC connection components for solar panel to microinverter
- 1 x solar panel mounting bracket kit
- Integrated Wi-Fi monitoring
If you require a different mounting arrangement for a balcony, garden, patio, wall, flat roof or ground installation, please contact us before ordering so that the correct mounting components can be supplied.
Important Installation Information
The Elite Solar 625W panel is a large high-output module measuring 2382 x 1134mm and weighing approximately 33kg. Always confirm that the intended mounting location and structure are suitable for the panel size, weight and expected wind loading before installation.
Solar generation will vary according to geographical location, panel orientation, mounting angle, shading, weather, rear-surface reflectivity and household electricity consumption. Bifacial rear-side generation is dependent on installation conditions and should not be treated as a guaranteed additional output.
Specifications
xTechnical Specifications
| System type | Plug in solar PV system |
| Number of solar panels | 1 |
| Solar panel | Elite Solar ET-NR66TBH625GL |
| Solar panel technology | N-Type bifacial dual glass |
| Solar panel capacity | 625W DC |
| Solar panel efficiency | 23.1% |
| Panel dimensions | 2382 x 1134 x 30mm |
| Panel weight | 33kg |
| Microinverter | Voltacon BYM600 / VMI600 |
| Microinverter MPPT inputs | 1 |
| Rated AC output | 600W |
| Maximum AC output | 620VA |
| AC output voltage | 230V single phase |
| Maximum AC current | 2.73A |
| MPPT voltage range | 24V to 50V |
| Microinverter protection | IP67 |
| Monitoring | Integrated Wi-Fi |
| Grid compliance | G98 |
| ENA registration | ZHEJI/15702/V1/A1 |
| Microinverter warranty | 10 years standard, optional extended warranty available |
| Panel product warranty | 12 years |
| Panel performance warranty | 30-year linear power output warranty |
BYM600 Technical Features
- 600W rated AC output
- 620VA maximum output
- Single MPPT input
- Recommended solar panel input: 400W to 670W
- MPPT voltage range: 24V to 50V
- Operating voltage range: 16V to 60V
- Maximum DC input voltage: 60V
- Maximum continuous input current: 18A
- Maximum short-circuit input current: 20A
- Maximum continuous AC output current: 2.73A
- 230V AC nominal output
- Peak conversion efficiency: 96.5%
- MPPT efficiency: greater than 99.8%
- Power factor: greater than 0.99
- IP67 enclosure
- Integrated Wi-Fi monitoring
- G98 compliant
