xMulti Branch Solar Panel Connectors 3 Inputs Parallel PV Wiring
These multi branch solar connectors with three inputs are designed to create a safe and reliable parallel connection between solar panels. By connecting panels in parallel, the current rating of the PV string is increased while the voltage remains unchanged. The connectors are waterproof, durable, and suitable for outdoor use.
They are ideal for off grid, grid tie, and hybrid solar installations where a clean, safe, and professional parallel connection is required.
How Parallel Connection Works
When two solar panels operate in parallel, the positive cables are connected together and the negative cables are also connected together. This configuration increases the current at the maximum power point (Imp) while keeping the voltage (Vmp) the same.
Example: If each solar panel produces 8A Imp at 18V Vmp, two identical panels connected in parallel will produce 16A at 18V.
Why Use Multi Branch Connectors
When only two panels need to be connected in parallel, multi branch connectors are the easiest and safest solution. Standard MC4 leads cannot be connected positive to positive or negative to negative directly. These purpose built multi branch connectors complete the connection correctly and safely.

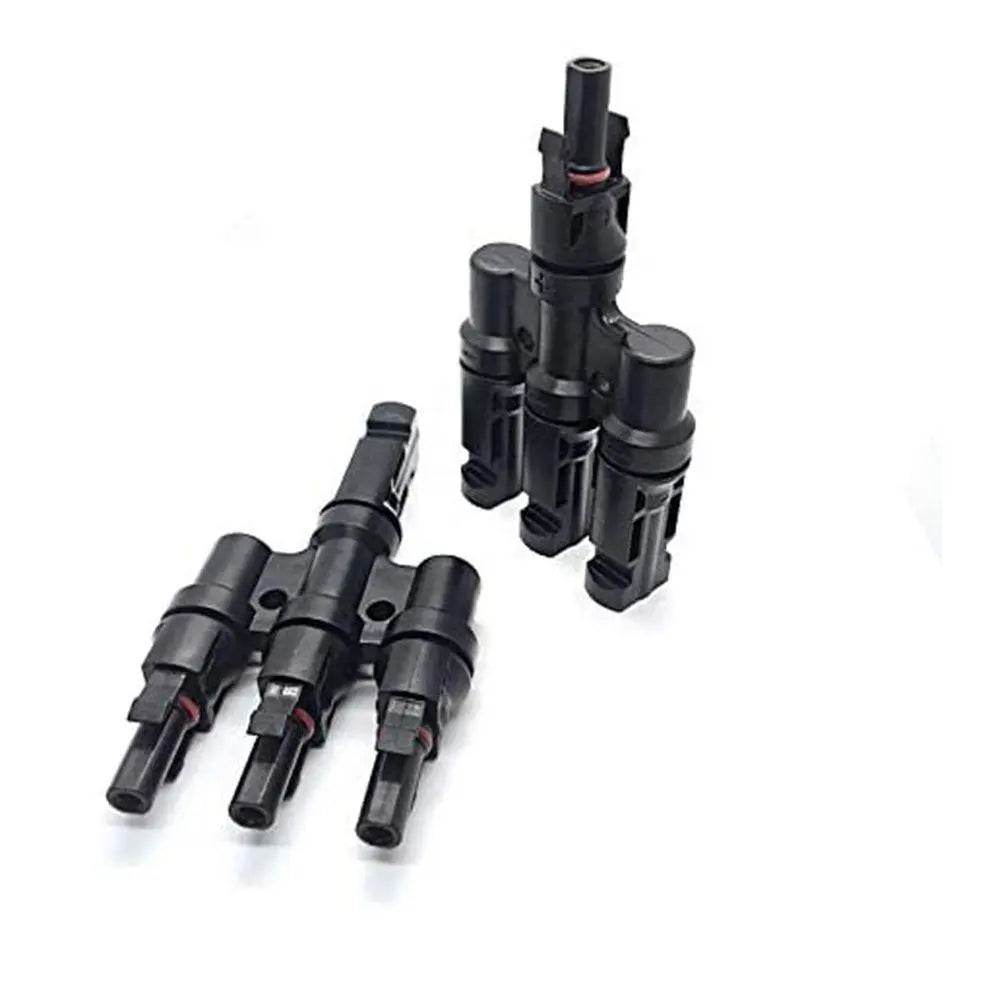

What Is Included
- One branch connector with three male inputs and one male output
- One branch connector with three female inputs and one female output
Key Advantages
- Creates a safe parallel connection between solar panels
- Increases PV string current while maintaining constant voltage
- Waterproof connectors suitable for outdoor installations
- Reduces cable runs from two positives to one and two negatives to one
- Ideal for off grid, grid tie, and hybrid solar systems
