Description

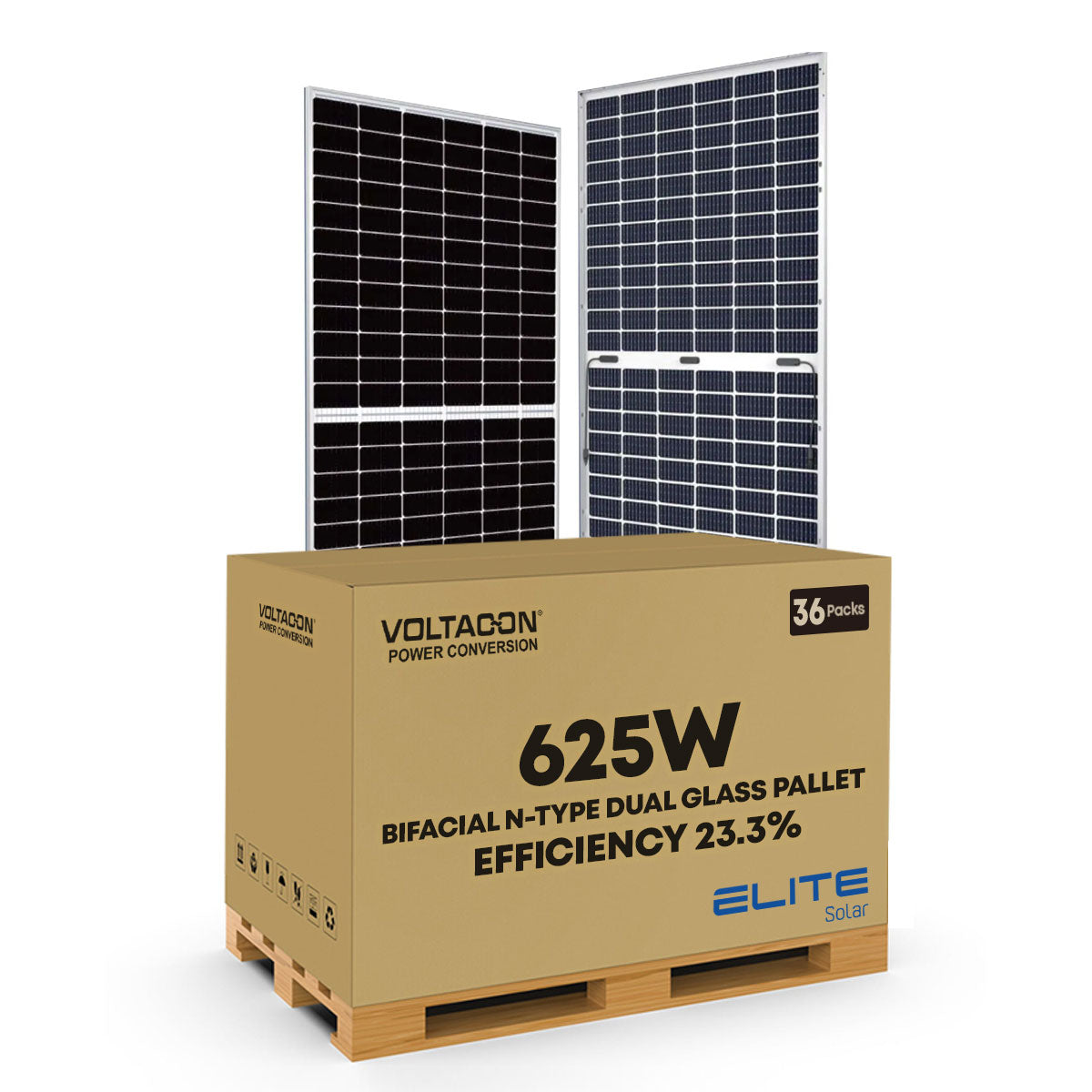

xElite Solar 625W Bifacial Dual Glass Solar Panels - Full Pallet Offer
Factory-made, brand new pallet of high-output Elite Solar 625W bifacial dual glass solar panels. This pallet offer is designed for installers, commercial projects, agricultural buildings, ground mount systems and large domestic solar installations where high power, strong efficiency and long-term durability are essential.
Each module delivers 625W front-side rated power with advanced N-Type bifacial cell technology. The rear side of the panel can also collect reflected light from suitable surfaces, helping increase total energy yield depending on the installation height, angle and ground reflectivity.
Special Pallet Price
Full pallet price: £3,570
Previous pallet price: £3,960
You save: £390 per pallet
This offer gives excellent value for a complete pallet of premium 625W solar panels, professionally packed and ready for transport.
Why Choose Elite Solar 625W Panels?
- 625W high power output for large solar PV systems
- 23.3% module efficiency across the entire PV panel
- N-Type bifacial technology for higher long-term energy generation
- Dual glass construction for improved strength, durability and heat resistance
- Rear-side energy gain from reflected sunlight in suitable conditions
- 35-year performance warranty for long-term confidence
- Factory-made pallet with brand new modules
- Ideal for commercial roofs, farms, ground mounts and large PV arrays
Built for High Energy Yield
The Elite Solar 625W bifacial panel is made for projects where every square metre matters. With high module efficiency, N-Type cell technology and bifacial energy production, the panel can generate more electricity from fewer modules compared with lower wattage panels.
The dual glass structure also improves mechanical strength and long-term reliability. Unlike conventional backsheet modules, the glass-glass design gives better protection against moisture, ageing and environmental stress, making it a strong choice for demanding outdoor installations.
Ideal Applications
- Commercial rooftop solar PV systems
- Agricultural buildings and farm installations
- Ground-mounted solar arrays
- Industrial and warehouse solar systems
- Large residential solar installations
- Hybrid solar and battery storage systems
- Off-grid and backup power projects
Pallet Offer Includes
| Included Product | Factory-made pallet of Elite Solar 625W bifacial dual glass solar panels |
| Pallet Price | £3,750 |
| Previous Price | £3,960 |
| Saving | £210 per pallet |
Electrical Specifications
| Brand | Elite Solar |
| Rated Maximum Power | 625W |
| Module Efficiency | 23.3% |
| Cell Technology | N-Type bifacial monocrystalline |
| Module Construction | Dual glass bifacial module |
| Maximum Power Voltage, Vmp | 40.99V |
| Maximum Power Current, Imp | 15.25A |
| Open Circuit Voltage, Voc | 49.30V |
| Short Circuit Current, Isc | 16.12A |
| Power Tolerance | 0 to +3% |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
Mechanical Specifications
| External Dimensions | 2465 x 1134 x 30mm |
| Weight | 35kg per panel |
| Front Glass | 2.0mm |
| Back Glass | 2.0mm |
| Frame | Anodised aluminium alloy |
| Junction Box | IP68 rated |
| Connector Type | MC4 compatible |
| Cable Size | 4mm² solar cable |
Temperature and Operating Data
| Operating Temperature Range | -40°C to +85°C |
| Temperature Coefficient of Pmax | -0.30%/°C |
| Temperature Coefficient of Voc | -0.22%/°C |
| Temperature Coefficient of Isc | +0.042%/°C |
Warranty
| Performance Warranty | 35 years |
| Product Support | Supplied with Voltacon Solar UK support |
Important Delivery Information
This listing is for a professionally packed pallet of brand new Elite Solar 625W bifacial dual glass panels. Due to the size and weight of high-power solar modules, pallet delivery is required for safe handling and transport.
Before installation, the system design must be checked by a qualified solar installer to confirm string voltage, inverter compatibility, mounting method and site conditions.
Specifications
xElite Solar 625W N-Type Bifacial Dual Glass Solar Panel Specifications
Electrical Specifications - 625W Model
| Specification | STC | NOCT |
|---|---|---|
| Module Type | ET-NR66TBH625GL | ET-NR66TBH625GL |
| Maximum Power - Pmax | 625W | 473W |
| Open Circuit Voltage - Voc | 49.30V | 46.93V |
| Short Circuit Current - Isc | 16.12A | 13.02A |
| Maximum Power Voltage - Vmp | 40.99V | 38.43V |
| Maximum Power Current - Imp | 15.25A | 12.32A |
| Module Efficiency | 23.1% | - |
Electrical Ratings and Temperature Coefficients
| Specification | Value |
|---|---|
| Power Tolerance | 0 to +3% |
| Pmax Temperature Coefficient | -0.30%/°C |
| Voc Temperature Coefficient | -0.22%/°C |
| Isc Temperature Coefficient | +0.042%/°C |
| Fire Performance | Type 29 UL |
| STC Conditions | AM1.5, 1000W/m², 25°C |
| NOCT Conditions | AM1.5, 800W/m², 20°C, 1m/s |
| Test Uncertainty for Pmax | ±3% |
Mechanical Specifications
| Specification | Value |
|---|---|
| External Dimensions | 2382 x 1134 x 30mm / 93.78 x 44.65 x 1.18 inch |
| Weight | 33kg / 72.75lbs |
| Solar Cells | N-Type mono-crystalline, 132 cells |
| Front Glass / Back Glass | 2.0mm / 2.0mm, 0.08 inch |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 diodes |
| Cable Length Including Connector | 4.0mm², 12AWG, portrait 200mm positive / 400mm negative, or customised |
| Connector | CD2 / MC4 compatible |
| Power Bifaciality | 80% ±10% |
Application Conditions
| Specification | Value |
|---|---|
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature | 45 ±2°C |
| Maximum Mechanical Load | 5400Pa / 2400Pa |
Warranty and Performance
| Warranty / Performance Item | Value |
|---|---|
| Product Material and Workmanship Warranty | 12 years |
| Linear Power Output Warranty | 30 years |
| First Year Degradation | ≤1% |
| Annual Degradation From Year 2 to Year 30 | ≤0.40% per year |
Technology Features
| Feature | Description |
|---|---|
| SMBB Technology | Uses advanced technology to improve light trapping and current collection, helping to enhance module power output and reliability. |
| PID Resistance | Designed for excellent anti-PID performance through optimised mass production processes and material control. |
| Increased Power Output | Module power can increase approximately 5% to 25% from bifacial gain, depending on installation conditions. |
Manufacturer Rear Side Power Gain Reference
The data sheet rear side power gain table is printed for ET-NR66TBH620L. It is included below as a manufacturer reference only.
| Power Gain | 10% | 15% | 20% | 25% |
|---|---|---|---|---|
| Maximum Power - Pmax | 682W | 713W | 744W | 755W |
| Open Circuit Voltage - Voc | 49.10V | 49.10V | 49.10V | 49.10V |
| Short Circuit Current - Isc | 17.84A | 18.66A | 19.47A | 20.28A |
| Maximum Power Voltage - Vmp | 40.82V | 40.82V | 40.82V | 40.82V |
| Maximum Power Current - Imp | 16.71A | 17.47A | 18.23A | 18.99A |
Packaging Information
| Specification | Value |
|---|---|
| Container | 40ft HQ |
| Pieces Per Pallet | 36 panels |
| Packing Size | 2400 x 1130 x 1264mm / 94.49 x 44.49 x 49.76 inch |
| Packing Weight | 1231kg / 2713.89lbs |
| Pieces Per Container |
