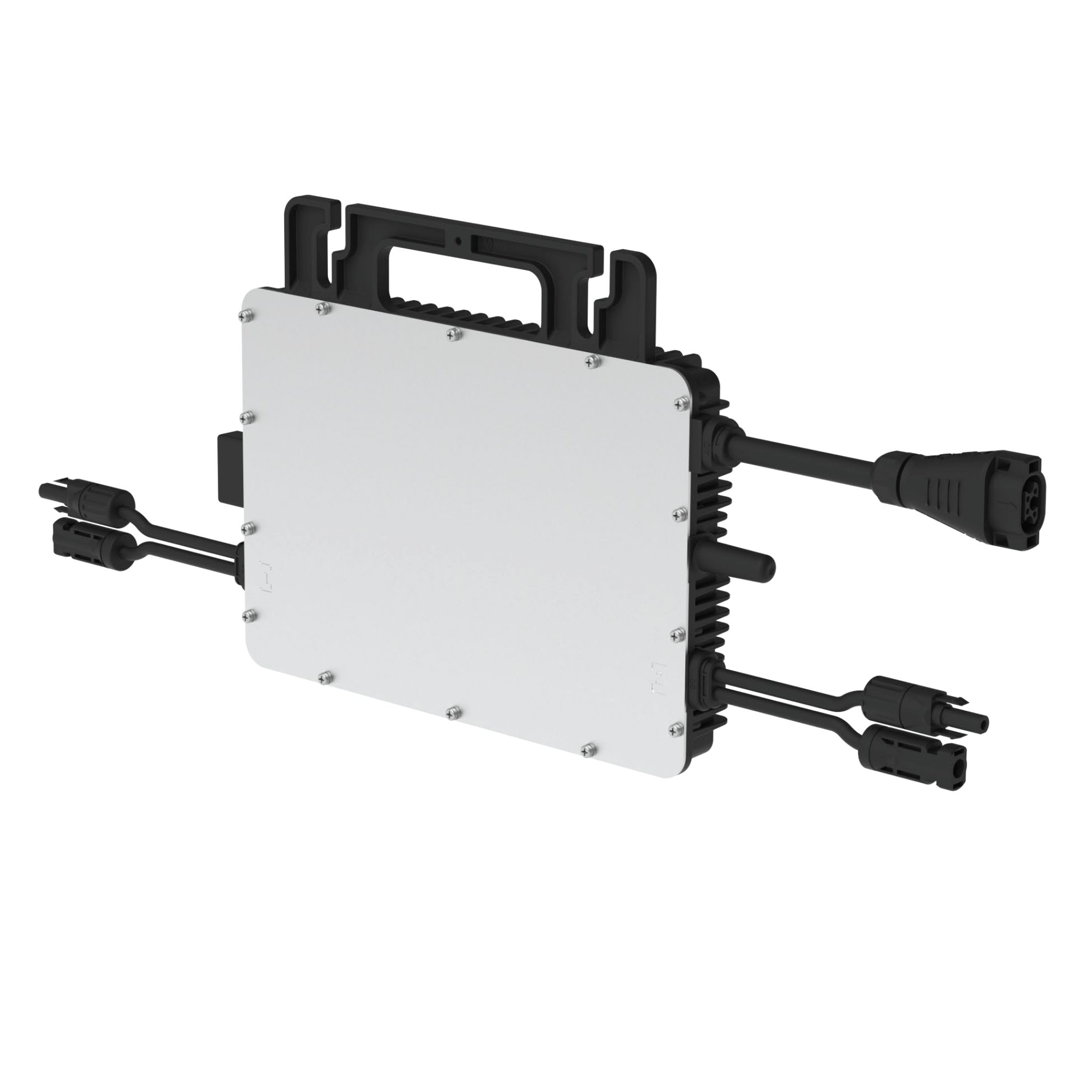

xHoymiles HMS-800-2WB 800W Dual MPPT Plug-In Solar Microinverter with WiFi and 5m UK Cable
The Hoymiles HMS-800-2WB is a single phase 800VA microinverter from the HiFlow Pro series, built to run two solar panels on two independent MPPT inputs. It is designed for small residential solar PV systems on balconies, terraces, garden structures and outbuildings.
Wi-Fi and Bluetooth are built in, so the inverter talks directly to the S-Miles Home app without a separate DTU gateway. It is supplied with a 5m plug and play cable fitted with a UK Type G plug.
Key Features
- Rated output of 800VA (3.48A) at 230V AC, single phase.
- Two independent MPPT inputs, one panel per input, suited to modules of 320 to 540W and above.
- MPPT voltage range of 16 to 60V, with a maximum input current of 14A per input.
- Peak efficiency of 96.7% and nominal MPPT efficiency of 99.8%.
- Built-in 2.4GHz Wi-Fi and Bluetooth for cloud monitoring and local commissioning, with no DTU required.
- IP67 outdoor enclosure with natural convection cooling and no fans.
- Galvanically isolated high frequency transformer and integrated rapid shutdown.
- Meets the ETSI EN 303 645 cybersecurity standard for connected devices.
Product Overview
Each input has its own MPPT tracker, so the two panels are optimised separately. This matters where the panels face different directions or one is shaded for part of the day: the weaker panel does not drag down the output of the other.
The inverter converts the DC from both panels into 230V AC at 50Hz and delivers it to the property's AC supply through the 5m Flex-S3 plug and play cable. Night consumption is below 50mW, and the unit is rated to operate in ambient temperatures from -40°C to +65°C.
Through the S-Miles Home app you can watch real-time output, configure system settings and manage the system from your smartphone. The enclosure measures 261 x 180 x 35.1mm and weighs 3.2kg, so it can be mounted close to the panels on the same frame or structure.
Applications
- Balcony and terrace solar systems with two panels
- Garden, shed and garage roof installations
- Small residential systems where the two panels face different directions
- Grid-connected homes looking to reduce daytime electricity use
What Is Included
- 1 x Hoymiles HMS-800-2WB 800W dual MPPT microinverter
- 1 x 5m plug and play AC cable with UK Type G plug
Installation and Safety Notes
Although the HMS-800-2WB is designed for plug and play connection, any solar generator connected to a UK property's electrical supply must meet BS 7671 (IET Wiring Regulations) and the requirements of the local Distribution Network Operator (DNO). We recommend installation by a qualified electrician or MCS certified installer, who can check the circuit, earthing and protection, and handle any DNO notification that applies.
Connect only PV modules within the DC ratings: maximum input voltage 65V, maximum input current 14A and maximum short circuit current 25A per input. Check that the open circuit voltage of each panel at the lowest expected temperature stays below 65V.
The enclosure is rated IP67 and is suitable for outdoor mounting. Fit it in a ventilated position with space around it for natural cooling, keep the AC plug and socket protected from rain, and never connect the inverter through an extension lead or multi-way adaptor. This is a grid-connected PV microinverter; it is not designed for off-grid systems or direct battery connection.
Specifications
xModel Information
| Parameter | Value |
| Model | HMS-800-2WB-PVKIT |
| Brand | VOLTACON Power |
| System type | Plug in solar kit, grid connected, no battery |
| ENA certificate number | VOLTD/21572/V1/A2 |
| Total panel capacity | 930Wp (2x 465W) |
| Rated AC output | 800VA, 230V AC, single phase |
Solar Panels
| Parameter | Value |
| Panels | 2x JA Solar 465W all black |
| Model | JAM54D41-465/LR |
| Cell type | N-type monocrystalline, 108 half cut cells |
| Construction | Double glass, all black |
| Maximum power (Pmax) | 465W |
| Open circuit voltage (Voc) | 40.70V |
| Short circuit current (Isc) | 14.46A |
| Maximum power voltage (Vmp) | 34.02V |
| Maximum power current (Imp) | 13.68A |
| Module efficiency | 23.3% |
| Dimensions | 1762 x 1134 x 30mm |
| Weight | 22kg per panel |
Microinverter: Input (DC)
| Parameter | Value |
| Model | Hoymiles HiFlow Pro HMS-800-2WB |
| Commonly used module power | 320W to 540W+ |
| Maximum input voltage | 65V |
| MPPT voltage range | 16V to 60V |
| Start up voltage | 22V |
| Maximum input current | 2x 14A |
| Maximum input short circuit current | 2x 25A |
| Number of MPPTs | 2 |
| Inputs per MPPT | 1 |
Microinverter: Output (AC)
| Parameter | Value |
| Rated output power | 800VA |
| Rated output current | 3.48A |
| Nominal grid voltage | 230V (180V to 275V) |
| Nominal frequency | 50Hz (45Hz to 55Hz) |
| Power factor | Greater than 0.99 default, adjustable 0.8 leading to 0.8 lagging |
| Total harmonic distortion | Less than 3% at nominal power |
Microinverter: Efficiency
| Parameter | Value |
| Peak efficiency | 96.7% |
| Nominal MPPT efficiency | 99.8% |
| Night power consumption | Less than 50mW |
Microinverter: Mechanical and Features
| Parameter | Value |
| Dimensions (W x H x D) | 261 x 180 x 35.1mm |
| Weight | 3.2kg |
| Enclosure rating | IP67, outdoor |
| Cooling | Natural convection, no fans |
| Ambient operating temperature | Minus 40°C to plus 65°C |
| Communication | 2.4GHz Wi-Fi (cloud) and Bluetooth (local app) |
| Monitoring | LED indicator and S-Miles app |
| Isolation | Galvanically isolated high frequency transformer |
Certifications
| Parameter | Value |
| UK grid connection | ENA Type Test Register, certificate VOLTD/21572/V1/A2 |
| Microinverter grid and safety standards | EN 50549-1:2019, VDE-AR-N 4105:2018, IEC/EN 62109-1/-2 |
| EMC standards | IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000-3-2/-3 |
| Cybersecurity | ETSI EN 303 645 |
Cables and Mounting
| Parameter | Value |
| AC connection | 5m cable with UK 3 pin plug |
| DC extension | 2m solar panel extension leads |
| Mounting | Ground mounting frame, suitable for flat roofs |
