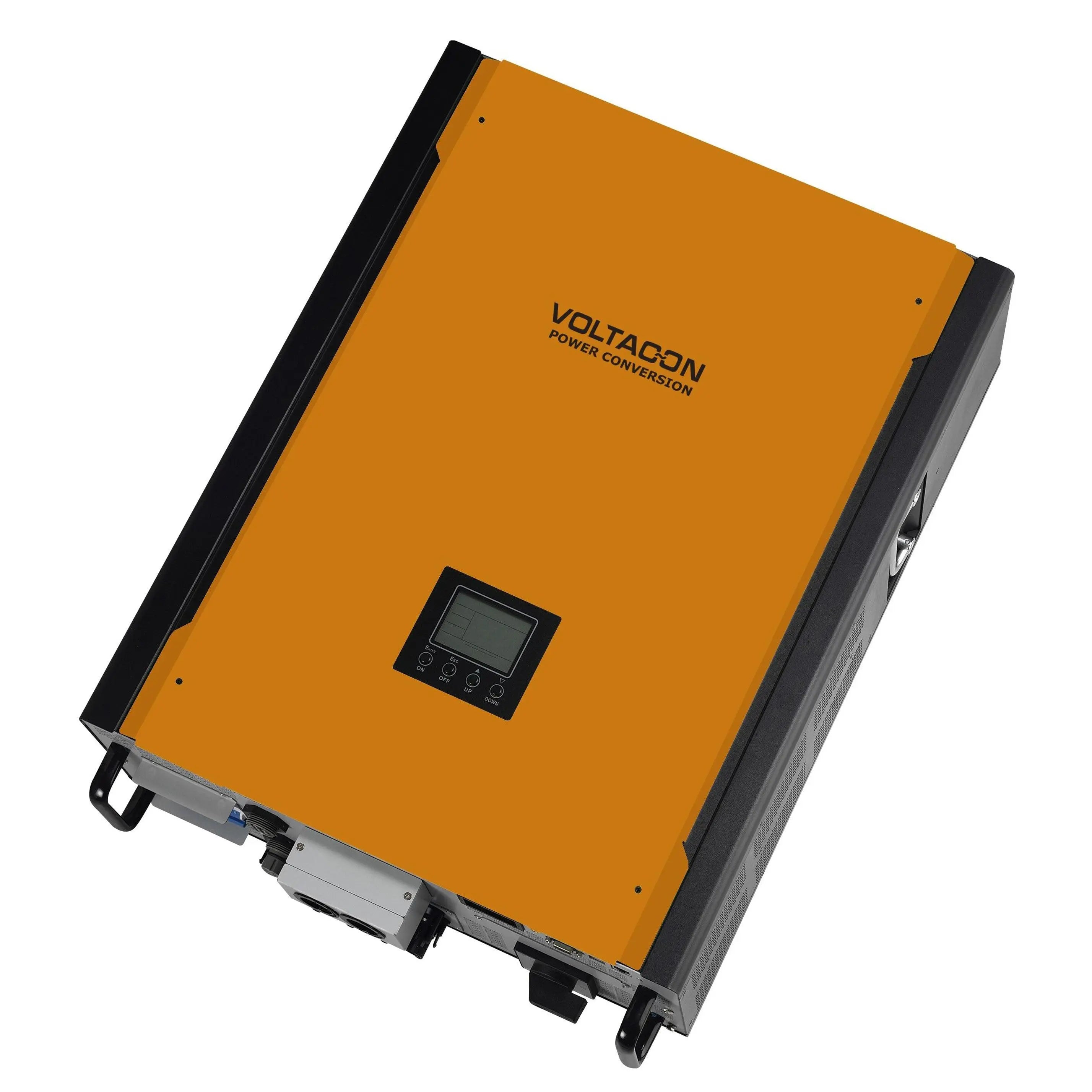

xVoltasol 15kW Three-Phase Hybrid Solar Inverter | 48V | Pylontech Compatible
The Voltasol 15kW is a three-phase hybrid solar inverter for on-grid and off-grid operation with battery energy storage. 48V DC battery input, dual MPPT with up to 22.5kW PV input, and support for Pylontech lithium and lead-acid batteries. Supplied with a three-phase energy meter, Wi-Fi card, and Modbus card. Expandable to 90kW in parallel. Manufactured and supported by Voltacon.
Key Features
- 15kW three-phase output: on-grid, off-grid, and grid-tie with backup
- Dual MPPT with up to 22.5kW maximum PV input across 4 inputs
- 48V DC battery input: compatible with Pylontech US2000C, US3000C, US5000C and lead-acid batteries
- BMS communication via RS485 for Pylontech battery management
- Pure sine wave output
- Programmable supply priority: PV, Battery, or Grid
- User-adjustable battery charging current up to 300A
- Parallel operation: up to 6 units (90kW total output)
- Built-in timer for programmable on/off scheduling
- Multiple communications: USB, RS-232, Modbus, SNMP
- Wi-Fi monitoring card included
- Three-phase energy meter included
- Modbus card pre-installed
Product Overview
The Voltasol 15kW three-phase hybrid inverter is designed for commercial and large residential installations that require a high-output hybrid system with battery backup. By combining solar generation, battery storage, and grid connection in a single unit, the system maximises self-consumption and provides backup power during grid failures.
The 22.5kW maximum PV input gives headroom for oversizing the solar array relative to the inverter output, which improves generation during low-irradiance conditions. The 300A maximum charging current allows a large Pylontech or lead-acid battery bank to be charged rapidly from the solar array or grid.
Parallel operation with up to 6 units is supported, enabling three-phase systems to be scaled to 90kW without the need for a larger single unit. The communication boards required for parallel operation are included.
For 0% VAT supply and installation enquiries, please contact us.
Technical Specifications
| Parameter | Value |
| Rated Output Power | 15000W (15kW) three-phase |
| Max PV Input Power | 22500W across 4 inputs, 2x MPPT |
| Battery Voltage | 48V DC |
| Max Charge Current | 300A |
| Battery Compatibility | Pylontech lithium (BMS), lithium-ion, GEL, AGM |
| Output Waveform | Pure sine wave |
| Operating Modes | Grid-tie, off-grid, grid-tie with backup |
| Parallel Units | Up to 6 (90kW total) |
| Communications | USB, RS-232, Modbus, SNMP, Wi-Fi |
| Included Accessories | 3-phase energy meter, Wi-Fi card, Modbus card |
| SKU | 9990210 |
Applications
- Large residential and commercial three-phase hybrid solar PV and battery storage systems
- On-grid installations with battery backup for power outage resilience
- Off-grid commercial and agricultural sites requiring three-phase power
- Scalable installations where future expansion beyond 15kW is anticipated
Installation and Safety Notes
Must be designed and installed by a qualified electrician or MCS-accredited solar installer. Battery storage systems must be installed in accordance with BS EN 62619 and local building regulations. Three-phase grid connection requires G99 application and DNO approval. Correct cable sizing, fusing, isolators, surge protection, and earthing are essential. Do not attempt DIY installation of three-phase hybrid inverter and battery systems.
Specifications
x| MODEL | InfiniSolar Three Phase 15KW |
| PHASE | 3-phase in / 3-phase out |
| Maximum PV Input Power | 22500 W |
| RATED OUTPUT POWER | 15000 W |
| MAXIMUM CHARGING POWER | 15000 W |
| GRID-TIE OPERATION | |
| Nominal DC Voltage / Maximum DC Voltage | 720 VDC / 900 VDC |
| Start-up Voltage / Initial Feeding Voltage | 320 VDC / 350 VDC |
| MPP Voltage Range | 350 VDC ~ 850 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / A: 37.65A; B: 18.6A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Voltage Range | 184-264.5 VAC Per phase |
| Nominal Output Current | 21.7 A Per phase |
| Power Factor | > 0.99 |
| Maximum Conversion Efficiency (DC/AC) | > 96% |
| OFF-GRID OPERATION | |
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Max. Output Current | 21.7 A Per phase |
| Power Factor | > 0.99 |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Charging Current | Default 60A, 5A - 300A (Adjustable) |
| Charging Curve | 3 Stage |
| PHYSICAL | |
| Dimension, D X W X H (mm) | 219 x 650 x 820 |
| Net Weight (kgs) | 62 |
| Communication Port | RS-232/USB and CAN Interface |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 to 55°C |
| Relative Humidity | 5% to 95% RH (Non-condensing) |
| Altitude | 0 ~ 1000 m* |
*Power derating 1% every 100 m when altitude is over 1000m
** Product specifications are subject to change without further notice.
