Description

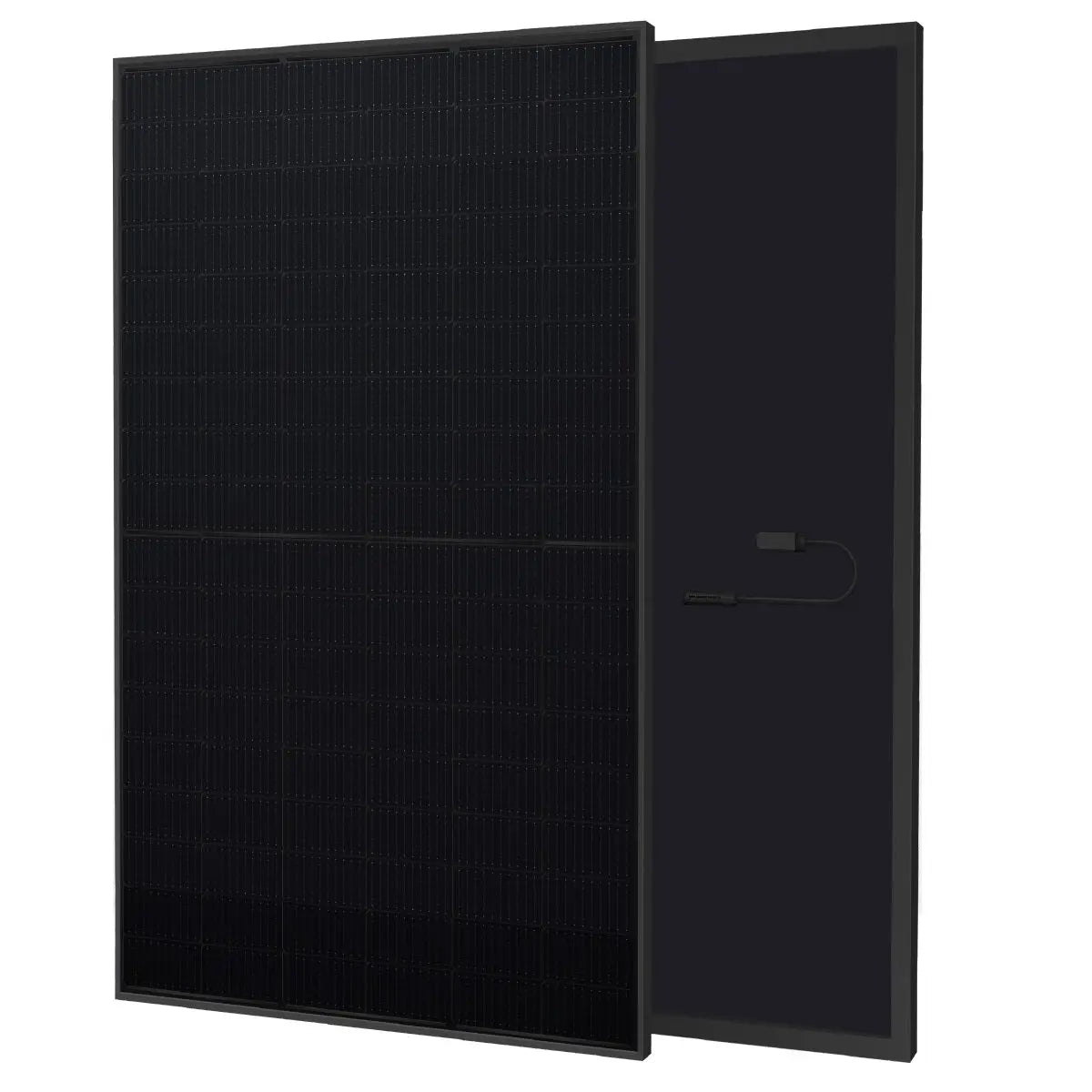

xA palletised pack of 10 Solar Panels from Elite, we picked the best technology of laf-cut N-Type cells with an efficiency 22%. The panel frame and cells are fully black. The bifacial panels are made with sandwich-type glass that allows the reflective light to penetrate the back side of the panel and generate up to 90 watts of additional power.
State-of-the-art appearance
Full black photovoltaic panels have a better aesthetic appearance, it is the preferred solution for most buildings including houses in conservation areas.
High Module Efficiency
The efficiency of the PV module reached 22% due to advanced cell technology and an optimised manufacturing process.
ZERO LID
Light-Induced Degradation - N-type solar cells have no LID which can increase power generation.
High Power Output in Cloudy Conditions.
Even in low light conditions, significant levels of energy production is possible, up to 1/3 of nominal power is generated.
Better Temperature Coefficient.
The reduced resistance between the cells and the use of glass on both sides of the panel, has reduced the losses.
Specifications
x430W ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS
| Maximum power Pmax | 430Watt |
| Power Tolerance | 0- + 5Watt |
| Module Efficiency | 21.76% |
| Maximum Power Current | 13.30A |
| Maximum Power Voltage | 32.33V |
| Short Circuit Current Isc | 14.25A |
| Open Circuit Current Voc | 38.72V |
ELECTRICAL CHARACTERISTICS WITH 21% REAR SIDE POWER GAIN
| Maximum Power | 525Watt |
| Maximum Power Current Imp | 16.43A |
| Maximum Power Voltacon Vmp | 31.96V |
| Short Circuit Current Isc | 17.42A |
| Open Circuit Voltacon Voc | 38.46V |
MECHANICAL CHARACTERISTICS
| Cell Type | Mono N-Type, 182x91mm, 108 (6x18) Half Cut Cells |
| Glass | 2mm+2mm, High Transmission , Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 Rated, with Bypass diodes |
| Dimensions | 1772 x 1134 x 30mm |
| Output cable | 4mm2 |
| Weight | 24kg |
| Installation Hole Location | See drawing in downloads |
Temperature Coefficient of Voc: -0.25%/C
Temperature Coefficient of Isc: +0.046%/C
Temperature Coefficient of Pmax: -0.30%C
Nominal Operating Cell Temperature: 45 deg C
Maximum Series Fuse Rating : 30A
Maximum System Voltage : 1500VDC
