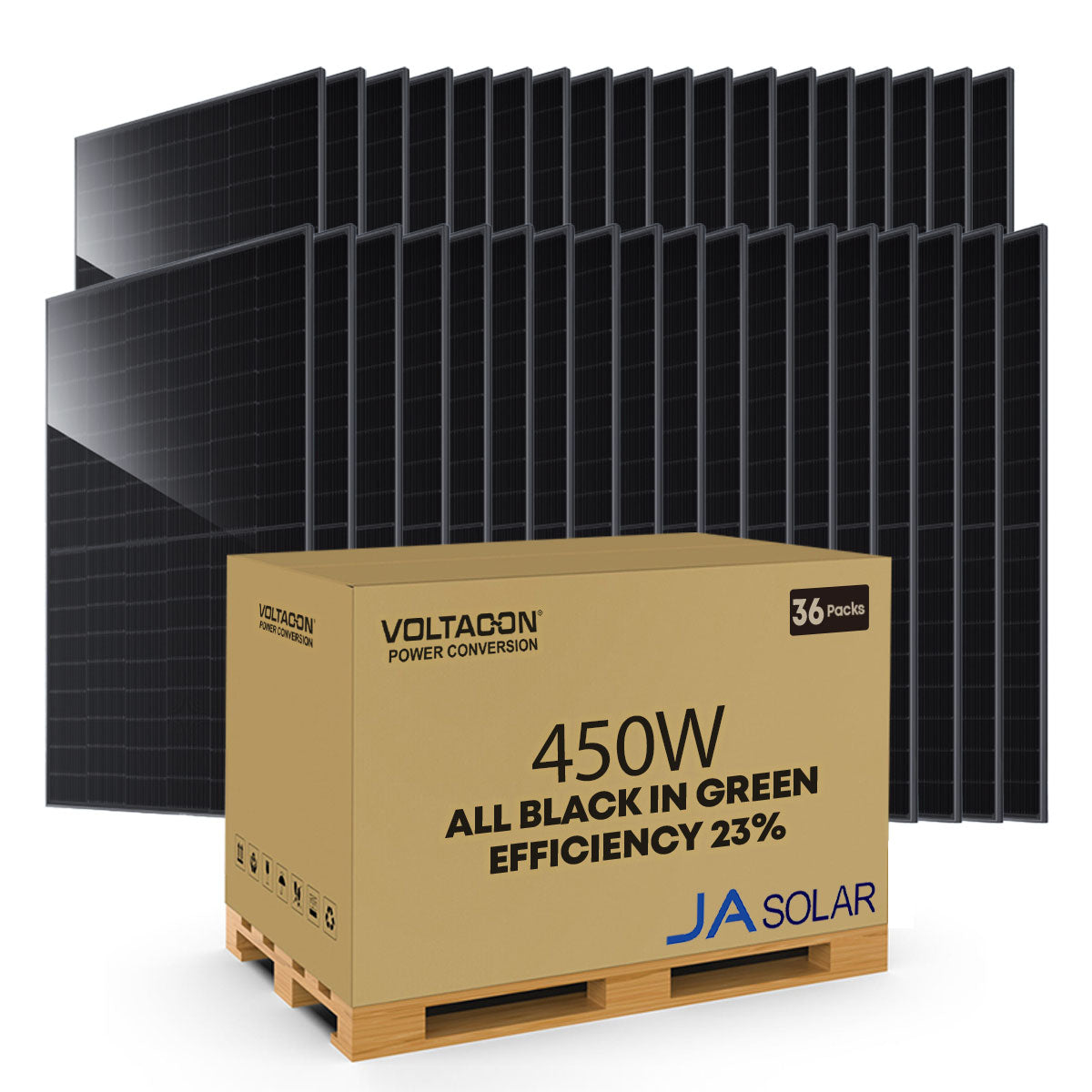

xFactory Pallet - JA Solar JAM54D41-450/LB 450W Full Black Bifacial Double Glass Solar Panel - Trade / Project Prices
The JA Solar JAM54D41-450/LB 450W Full Black N-type Bifacial Double Glass Solar Panel is a high-efficiency solution for both residential and commercial solar installations. Its sleek, modern design and advanced bifacial technology combine durability and style for optimal solar energy generation. Whether purchased as a single unit or part of a bundle with inverters and batteries, this panel offers unmatched value for those seeking sustainable energy solutions.
MCS Certificate: BABT 8515 R37
Directly from the factory with all the serial numbers printed on the pallet, it is easier to track the warranty of the modules. We make it safer transport the products to your project.
High Efficiency and Long-Term Performance
With a power output of 450W and an impressive module efficiency of 22%, the JAM54D41-450/LB maximises energy generation from each ray of sunlight. The advanced N-type bifacial technology allows for power generation on both sides of the panel, enhancing energy yield and efficiency, especially when placed over reflective surfaces. Backed by a 30-year linear power output guarantee, this solar panel is designed for long-term reliability and performance.
Durable and Weather-Resistant
This solar panel is engineered to withstand extreme weather conditions, with a snow load tolerance of up to 5400 Pa and a wind load tolerance of 2400 Pa. Whether you're dealing with heavy snow or high winds, the JAM54D41-440/LB is built to last and perform reliably in any environment. With a robust weight of 22 kg and dimensions of 1762 mm × 1134 mm × 30 mm, it combines durability and compact design for easier handling during installation.
Seamless Installation
Installation is made easier with Stäubli MC4-EVO2 connectors, providing a reliable and secure connection. The panel features a 300mm positive cable and a 400mm negative cable, ensuring flexibility during installation.
Industry Certifications
The JA Solar JAM54D41-440/LB panel is certified to meet global quality and safety standards, including:
- IEC 61215 and IEC 61730 – ensuring safety, performance, and durability.
- UL 61215 and UL 61730 – meeting stringent U.S. safety standards.
- IEC 62941 – for enhanced reliability and quality control in manufacturing.
- ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety).
- UL Type 38/Class C Fire Rating – providing fire safety compliance for both residential and commercial installations.
Superior Warranty – Generates More for Longer
Backed by a 30-year linear power output warranty, the JA Solar JAM54D41-450/LB 450W Full Black N-Type Bifacial Double Glass Solar Panel ensures long-term, reliable energy generation. Designed to maximise solar output for longer, this panel provides peace of mind and sustained performance even in harsh conditions. Invest in durable, high-efficiency solar technology that offers exceptional value and long-lasting results for your energy needs.
Specifications
xElectrical Characteristics (STC)
| Parameter | Details |
|---|---|
| Rated Maximum Power (Pmax) | 450 W |
| Open Circuit Voltage (Voc) | 39.30 V |
| Maximum Power Voltage (Vmp) | 32.82 V |
| Short Circuit Current (Isc) | 14.48 A |
| Maximum Power Current (Imp) | 13.71 A |
| Module Efficiency | 22.5% |
| Power Tolerance | 0~+3% 0- +5watt |
| Temperature Coefficient of Isc | +0.046%/°C |
| Temperature Coefficient of Voc | -0.260%/°C |
| Temperature Coefficient of Pmax | -0.300%/°C |
| Standard Test Conditions (STC) | 1000 W/m², AM1.5, cell temperature 25°C |
Electrical Characteristics with 10% Solar Irradiation Ratio
| Parameter | Details |
|---|---|
| Rated Maximum Power (Pmax) | 486 W |
| Open Circuit Voltage (Voc) | 39.30 V |
| Maximum Power Voltage (Vmp) | 32.82 V |
| Short Circuit Current (Isc) | 15.64 A |
| Maximum Power Current (Imp) | 14.81 A |
| Irradiation Ratio (Rear/Front) | 10% |
Mechanical Parameters
| Mechanical Specification | Details |
|---|---|
| Cell Type | Mono n-type |
| Weight | 22 kg |
| Dimensions | 1762 ± 2 mm × 1134 ± 2 mm × 30 ± 1 mm |
| No. of Cells | 108 (6 × 18) |
| Cable Cross Section Size | 4 mm² (IEC), 12 AWG (UL) |
| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-35/MC4-EVO2 |
| Cable Length (Including Connector) | Portrait: 400 mm | Landscape: 1200 mm |
| Front Glass/Back Glass | 1.6 mm/1.6 mm |
