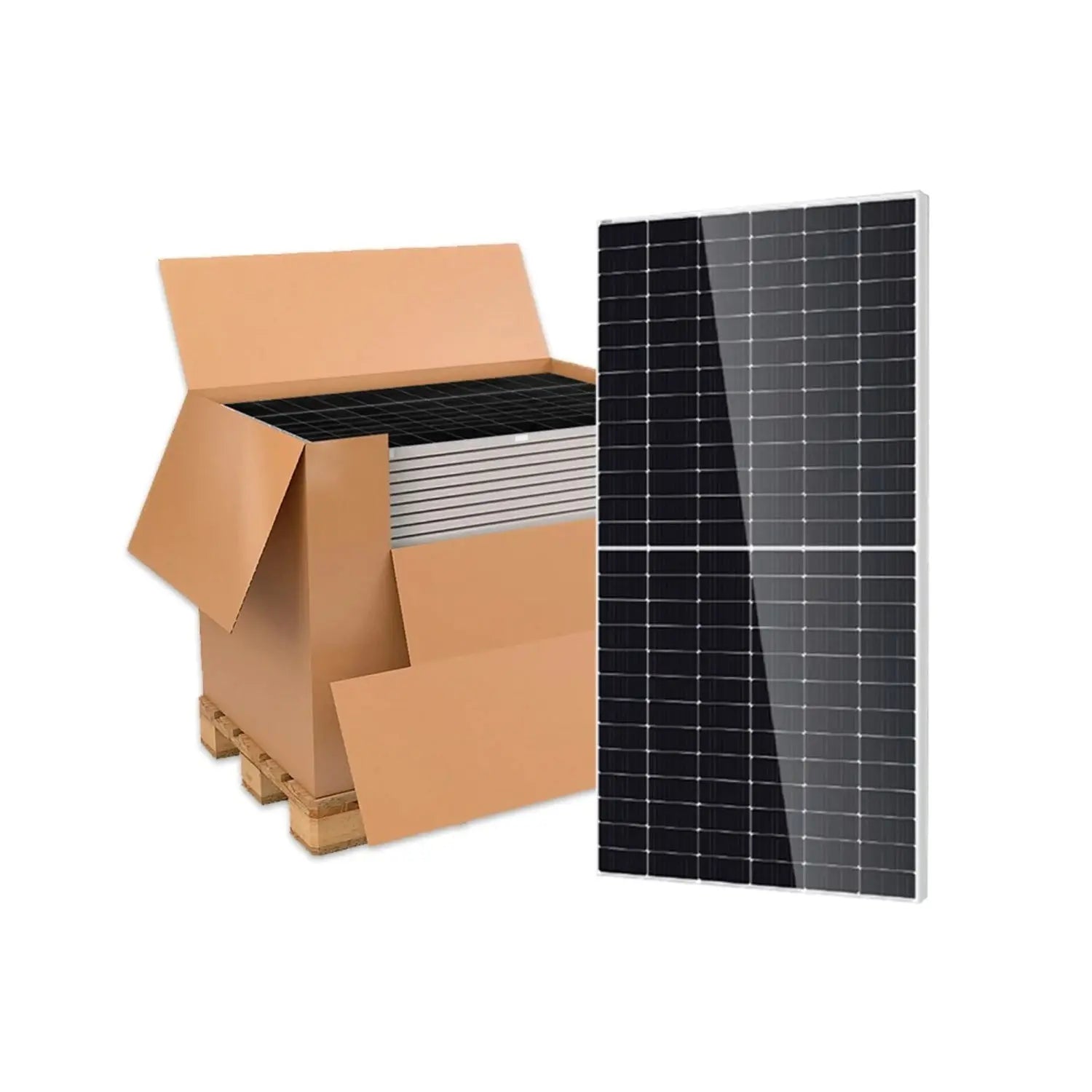

xA factory pallet of 36 solar panels, full black with glass-to-glass bifacial cells.
Elite Solar. More power from 108cell frame, N-Type, 10-30% additional power generation, 30 years life span, from Tier-1 Bloomberg Supplier ET-Solar (Elite)
N Type half cut technology is the most efficient solar panel for the year 2024, which means we can get more energy from a standard 108-cell panel, in this case, we reached a peak power of 430 watts. If the back side is used, this panel will generate an extra 90 watts from reflected light, bringing the total energy to 520 watts from a 1722x1134mm frame.
Voltacon is the exclusive partner of ET-Solar in the UK, we co-developed large-scale solar plants worldwide.
Total peak power for all 36 solar panels: 15,480Watt
How Important the Tier 1 certification is:
This is a classification system for photovoltaic module manufacturers, created to indicate to banks and investors the most reliable and stable manufacturers offering high-quality products
Your solar investment is meant to last
- 12-year warranty on product material and workmanship
- 30-year linear output power
Let's see how we protect the energy yield of your solar panel over the year. This is an important graph that shows the performance of solar panels after 30 years. It is impressive to know that your solar installation will still produce 89% of the nominal power after 25 years.
ADVANTAGES OF ELITE 430W BIFACIAL PANELS
- Bifacial technology enables additional energy production from the rear side of the panel by up to 30%
- Glass-to-glass lamination extends the product life to 30 years with annual power degradation of less than 0.4%
- The hot spot risk is reduced which is the main cause for early failures.
- The power and heat are evenly distributed on both sides of the panel.
- Half-cut solar panels have 50% shorter internal wiring, hence 50% lower resistance losses.
- Thinner inter-cell busbars mean more sunlight can be absorbed.
- Can be installed at different angles even 90 degrees vertically, but it must always face the equator.
EAN Code: 0604947940131
Specifications
x430W ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS
| Maximum power Pmax | 430Watt |
| Power Tolerance | 0- + 5Watt |
| Module Efficiency | 21.76% |
| Maximum Power Current | 13.30A |
| Maximum Power Voltage | 32.33V |
| Short Circuit Current Isc | 14.25A |
| Open Circuit Current Voc | 38.72V |
ELECTRICAL CHARACTERISTICS WITH 21% REAR SIDE POWER GAIN
| Maximum Power | 525Watt |
| Maximum Power Current Imp | 16.43A |
| Maximum Power Voltacon Vmp | 31.96V |
| Short Circuit Current Isc | 17.42A |
| Open Circuit Voltacon Voc | 38.46V |
MECHANICAL CHARACTERISTICS
| Cell Type | Mono N-Type, 182x91mm, 108 (6x18) Half Cut Cells |
| Glass | 2mm+2mm, High Transmission , Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 Rated, with Bypass diodes |
| Dimensions | 1772 x 1134 x 30mm |
| Output cable | 4mm2 |
| Weight | 24kg |
| Installation Hole Location | See drawing in downloads |
Temperature Coefficient of Voc: -0.25%/C
Temperature Coefficient of Isc: +0.046%/C
Temperature Coefficient of Pmax: -0.30%C
Nominal Operating Cell Temperature: 45 deg C
Maximum Series Fuse Rating : 30A
Maximum System Voltage : 1500VDC
