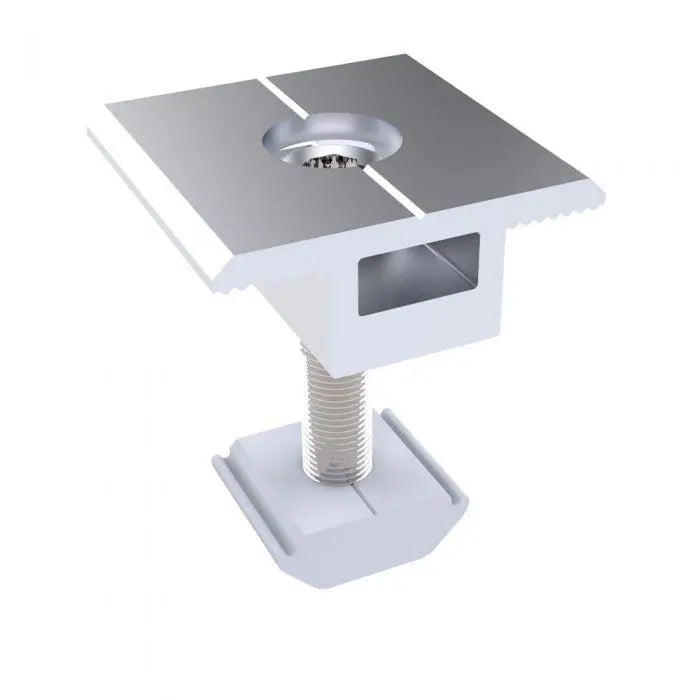

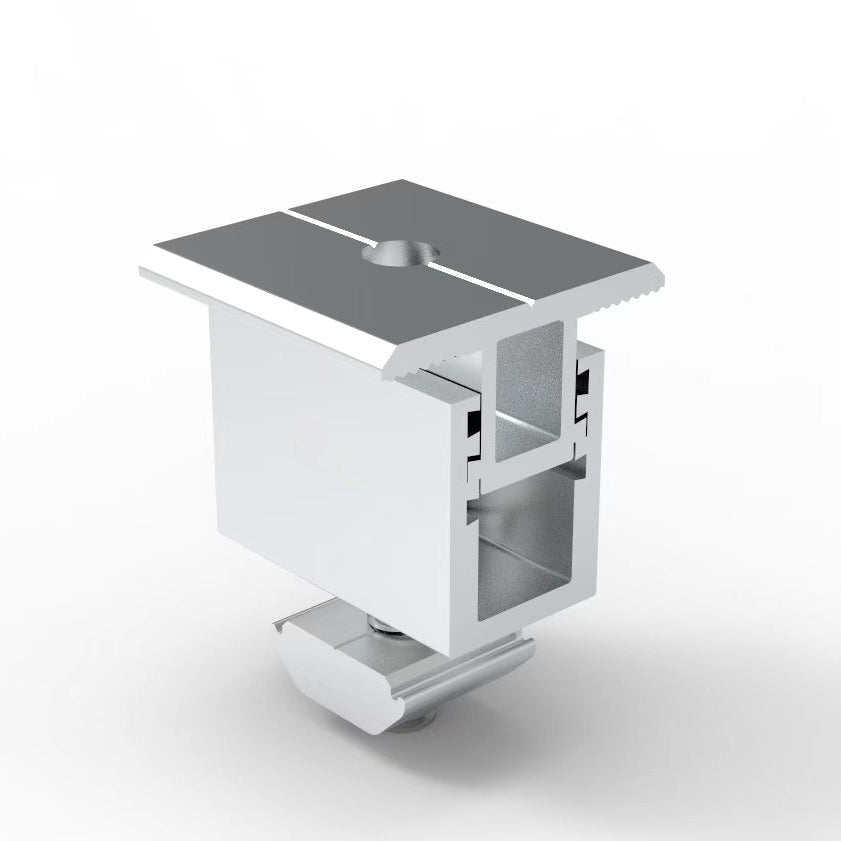

xAdjustable Middle Clamp 30-45mm for Solar Panel Mounting Rails
An adjustable aluminium middle clamp for securing adjacent solar panels to mounting rails at their shared inner edge. Fits panel frames from 30mm to 45mm. Stainless steel Allen bolt included. Sold per unit.
Key Features
- Adjustable clamping range: 30mm to 45mm panel frame thickness
- Fits all standard aluminium-framed solar panels within this range
- Symmetrical clamping design applies equal force to both adjacent panels
- Minimum 2 clamps required between any two panels
- Stainless steel A2 Allen bolt and washer included
- SKU: ING-ASMC
- Sold per unit
Product Overview
Middle clamps are placed between two adjacent panels in a row, securing both panels to the rail at their shared inner edges simultaneously. The symmetrical clamping profile distributes the holding force evenly across both panel frames, preventing uneven loading or frame distortion.
The adjustable design accommodates the full range of standard panel frame thicknesses from 30mm to 45mm, making it suitable for use with virtually any aluminium-framed PV module on the market. A minimum of two middle clamps should be used between any two panels to ensure a stable and safe installation.
Technical Specifications
| Parameter | Value |
| Clamp Type | Middle clamp (between adjacent panels) |
| Adjustable Range | 30mm to 45mm frame thickness |
| Clamping Action | Symmetrical (equal force to both panels) |
| Minimum per panel pair | 2 clamps |
| Hardware Included | Stainless steel A2 Allen bolt and washer |
| SKU | ING-ASMC |
| Sold as | Per unit |
Applications
- Residential and commercial rooftop solar PV installations
- Between all adjacent panels in portrait or landscape orientation rows
- Compatible with standard aluminium PV mounting rail systems
Installation and Safety Notes
Solar panel mounting components must be installed by a qualified solar installer. A minimum of two middle clamps must be used between each pair of adjacent panels. Apply correct torque to all fixings as specified by the mounting system manufacturer. Confirm panel frame thickness before ordering.
