xPylontech US5000C Lithium Ion Battery 4.8kWh 48V 100Ah
Special Offer – Fully Tested & Functioning Unit with Cosmetic Dent

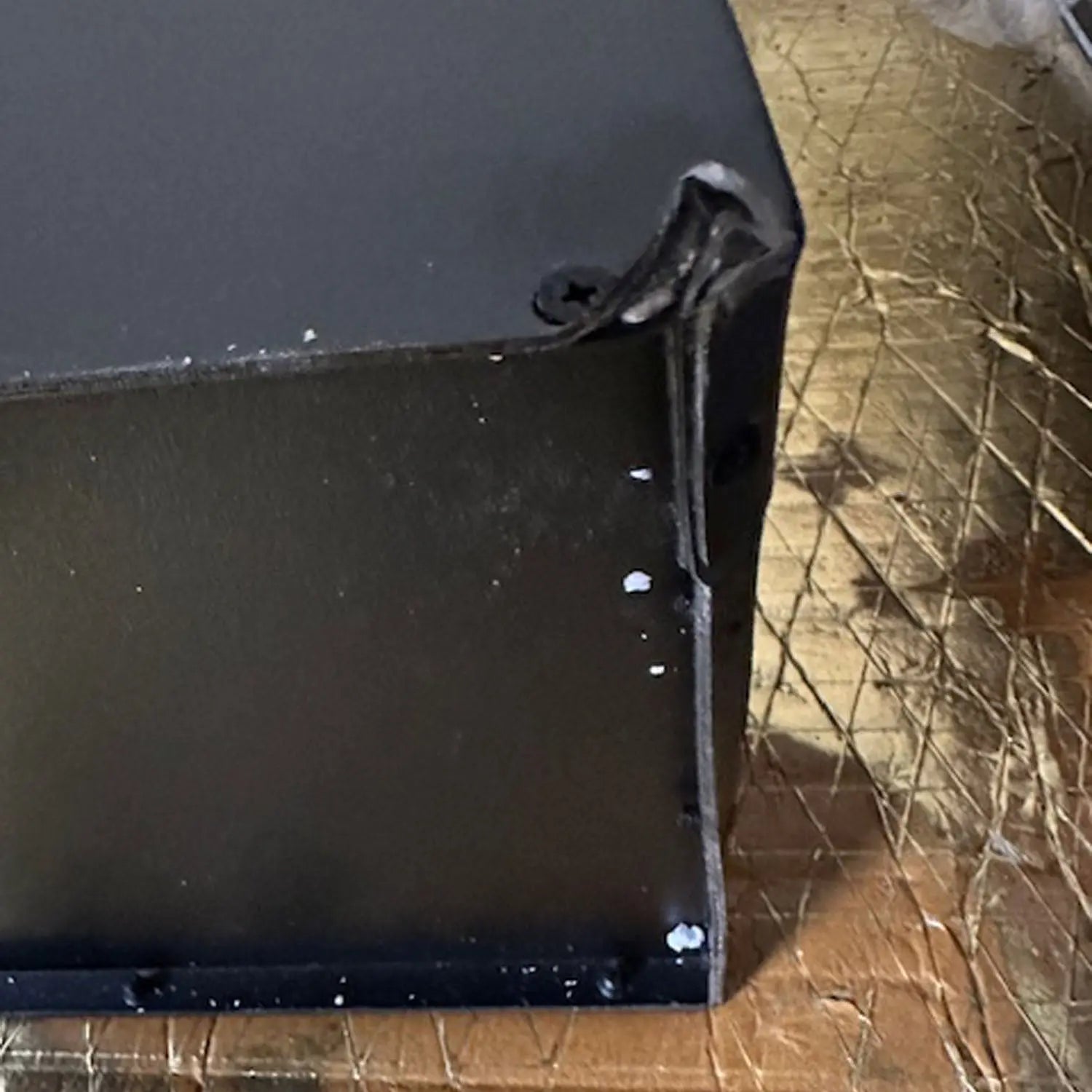

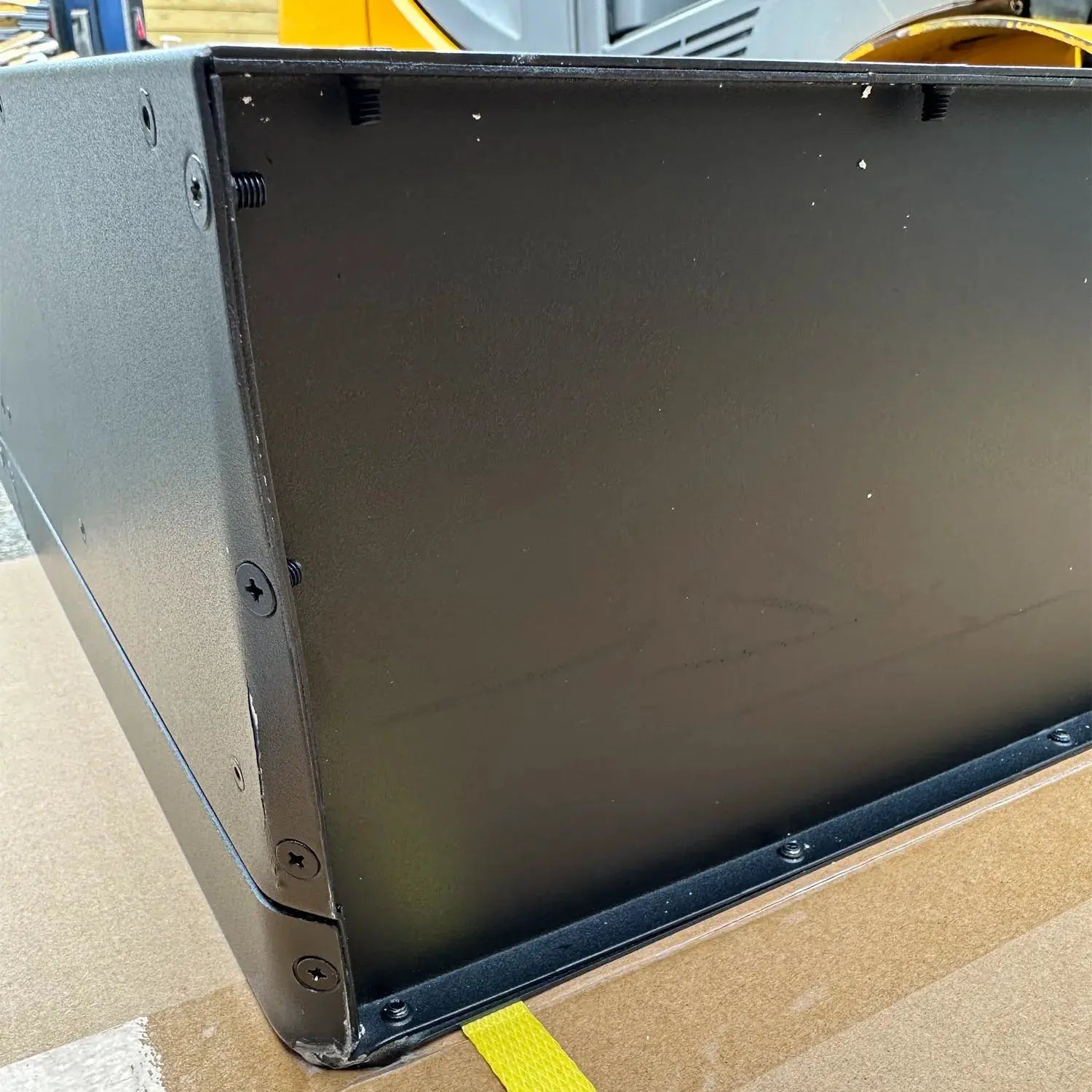

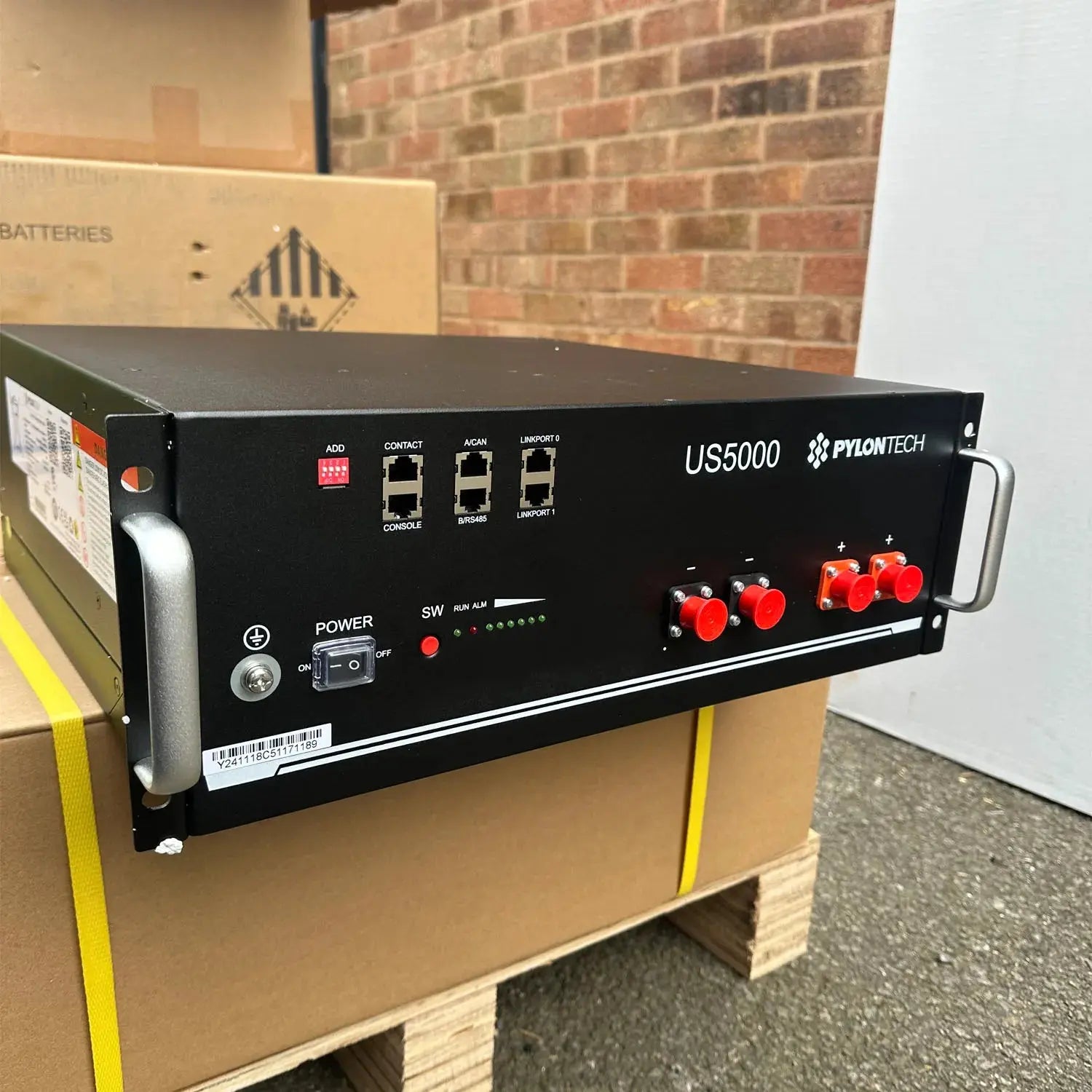

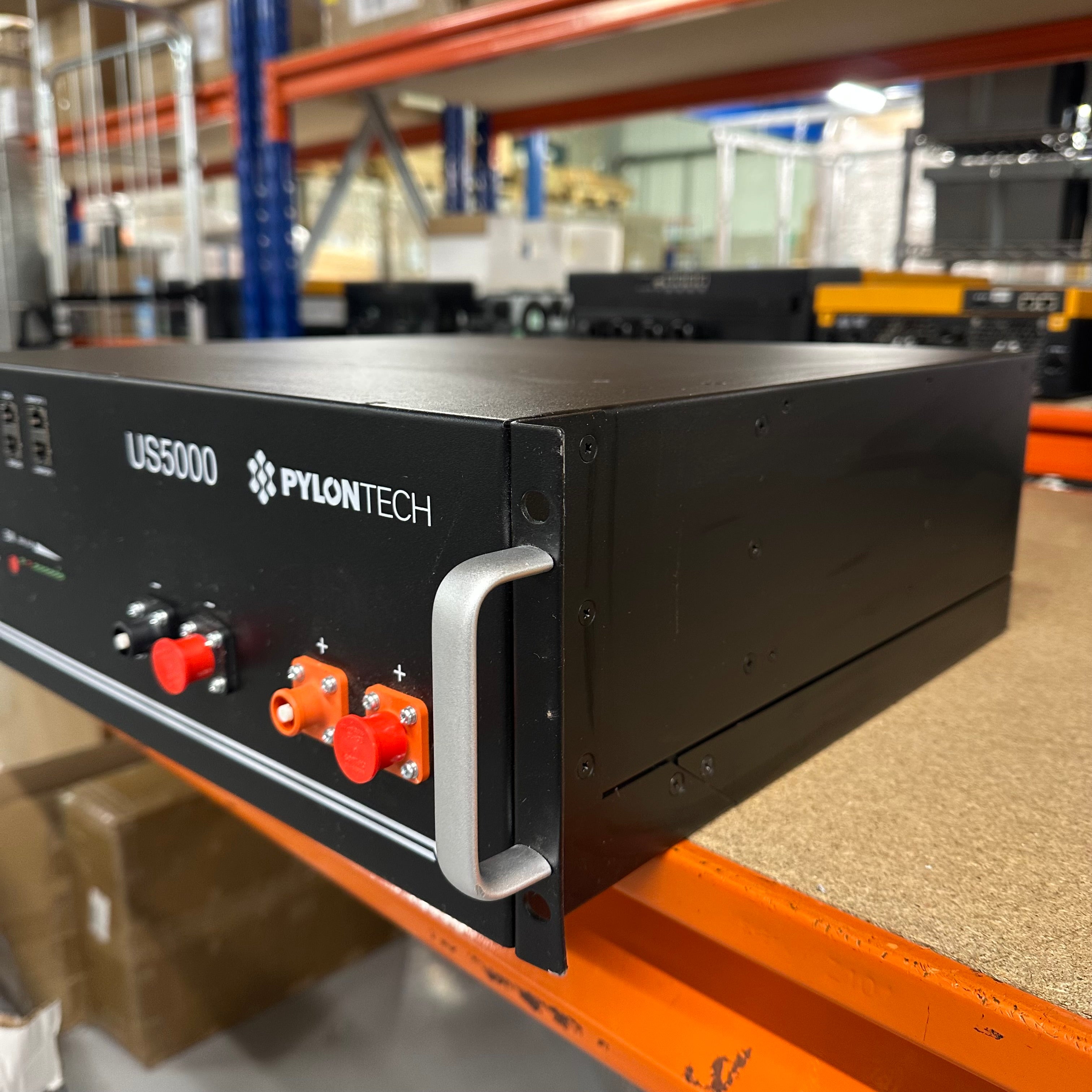

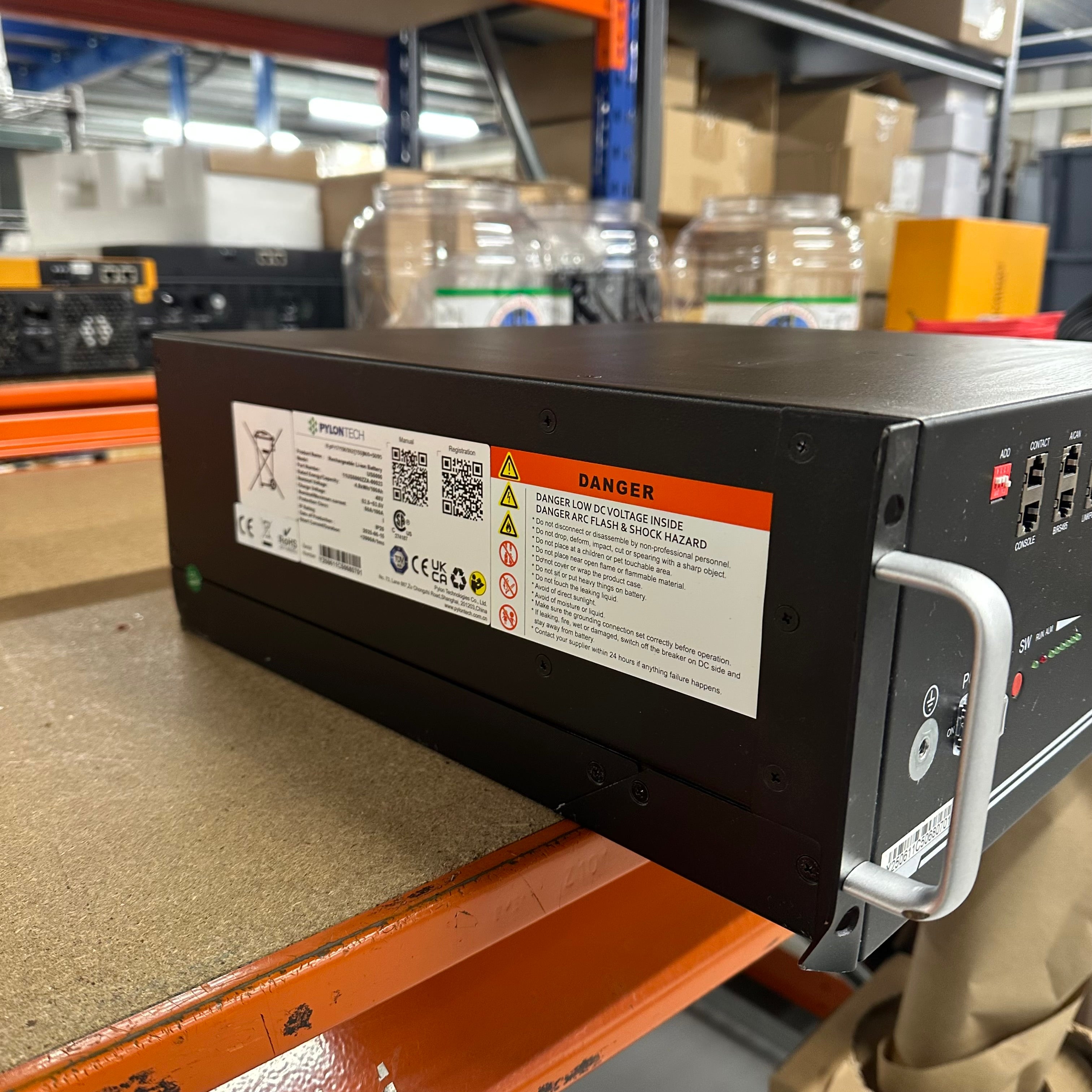

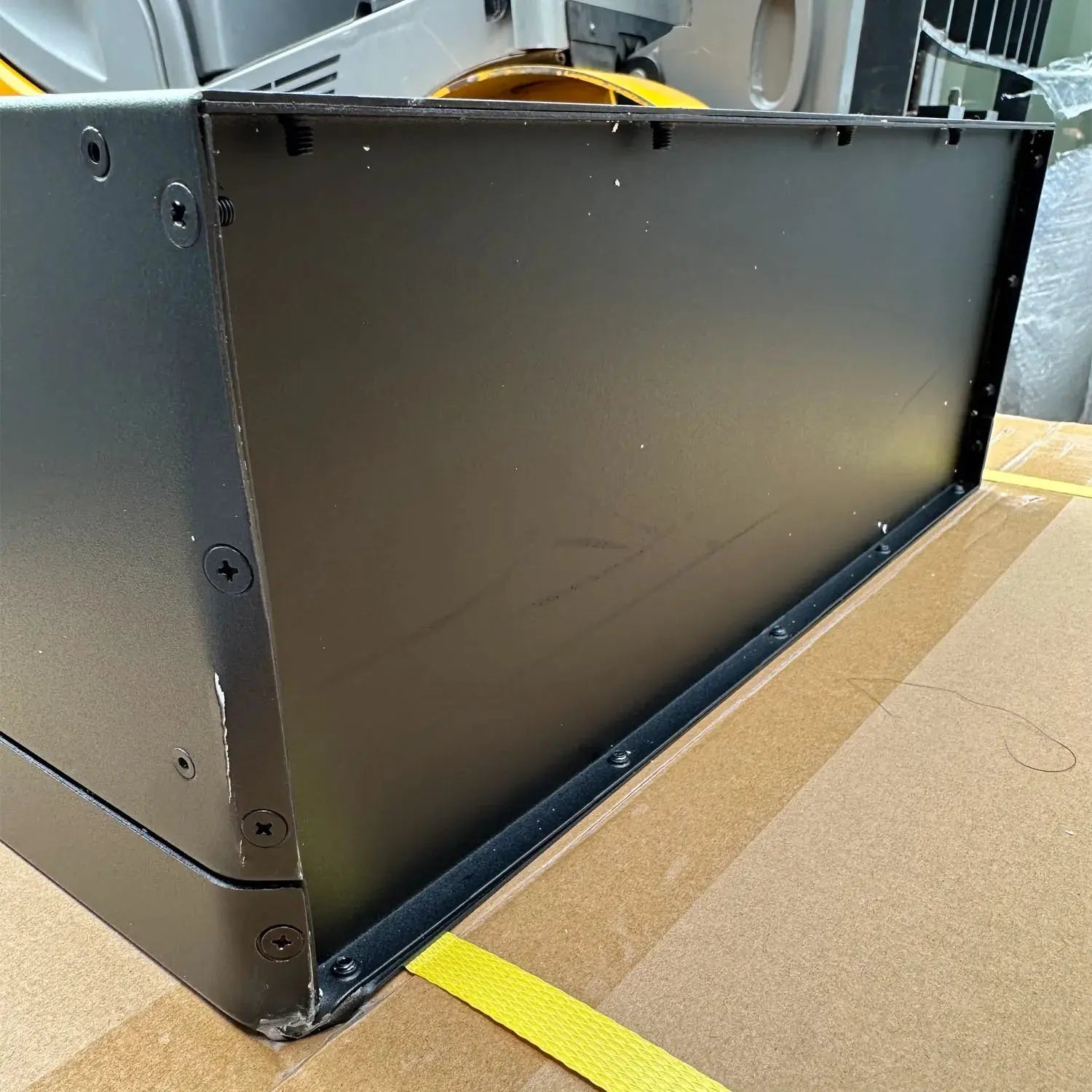

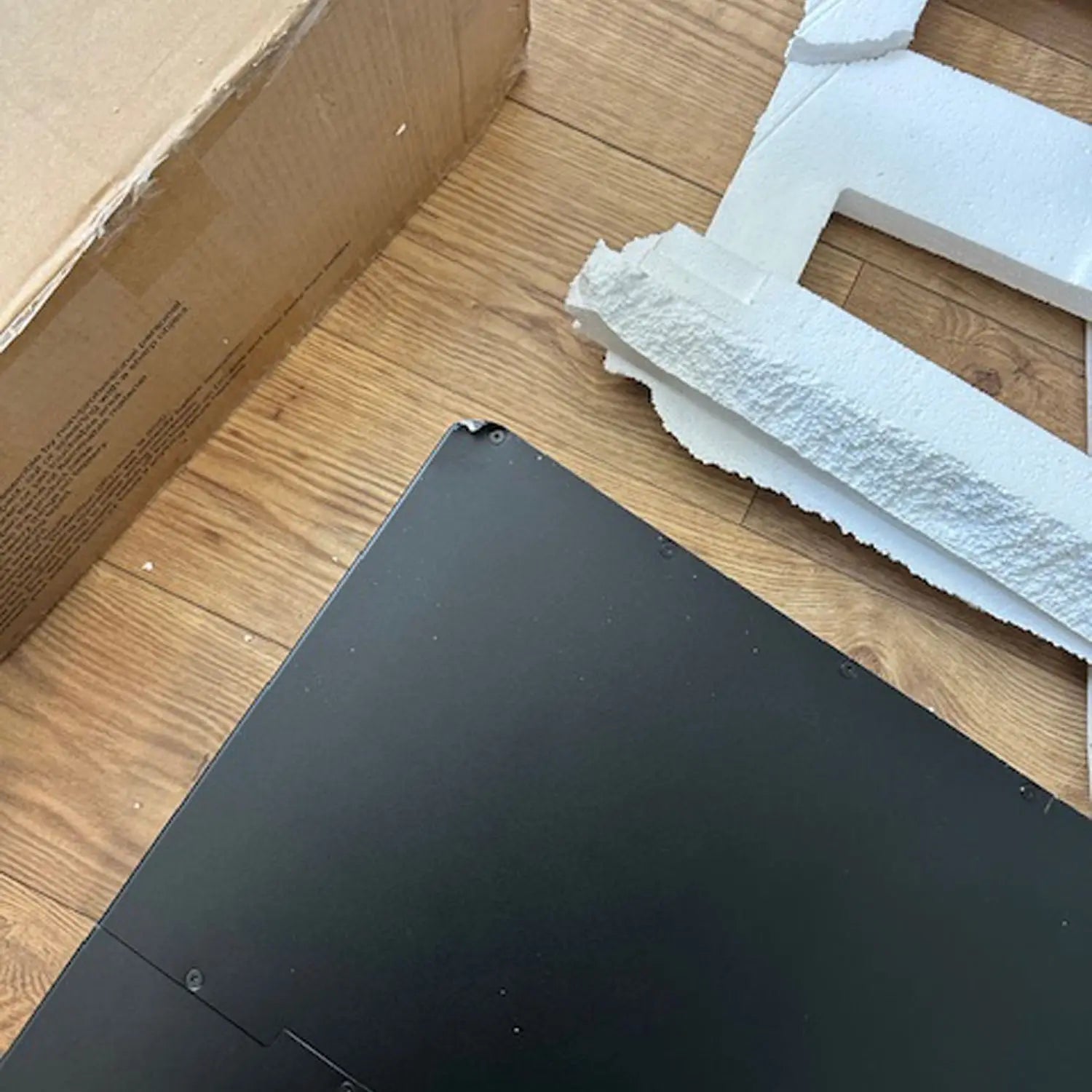

This Pylontech US5000C unit is offered at a discounted price due to a minor dent on the casing, visible in the product photos. The battery has been fully tested by our technicians and is in perfect working condition, with no impact on safety, performance, or reliability. A great opportunity to save on a premium lithium battery for your solar energy system.
The Pylontech US5000C is a state-of-the-art lithium-ion battery designed to provide 4.8kWh of energy storage, offering exceptional performance for solar and off-grid systems. Featuring an upgraded C rate, this model enables faster charge and discharge times, fully discharging in just 1 hour at 1C or 2 hours at 0.5C. The advanced BMS software enhances the battery's efficiency while maintaining full compatibility with the original Pylontech US5000 model.
95% Depth of Discharge – 4.56kWh Usable Energy
This advanced lithium iron phosphate (LFP) battery offers a 95% Depth of Discharge (DoD), ensuring maximum usable energy. Its modular design allows for easy scalability—daisy-chaining multiple units for larger installations. Our largest installation to date reached 300kWh using 64 battery units, demonstrating the system’s reliability and scalability.
Key Features of the Pylontech US5000C
► Remote firmware upgrades (internet connection required).
► Supports up to 16 units per communication string; expandable to 480 batteries with LV Hub.
► 80A continuous charge/discharge rate; 100A for 15 minutes; 200A for 15 seconds.
► Built-in protections: Charging/discharging MOS, dual passive/active fuses, and pre-charge circuit.
► Modular design for easy expansion—up to 72.96kWh without LV Hub.

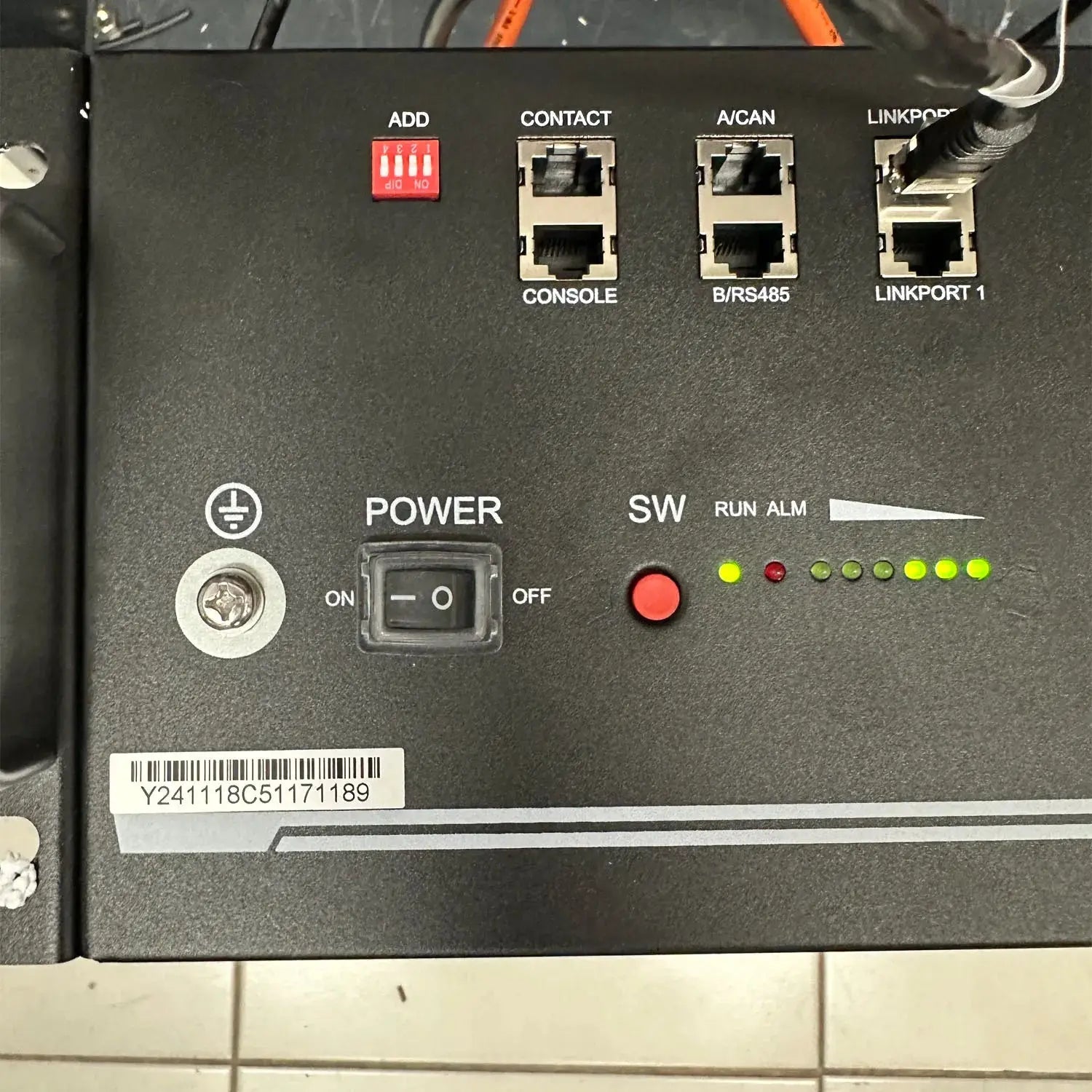

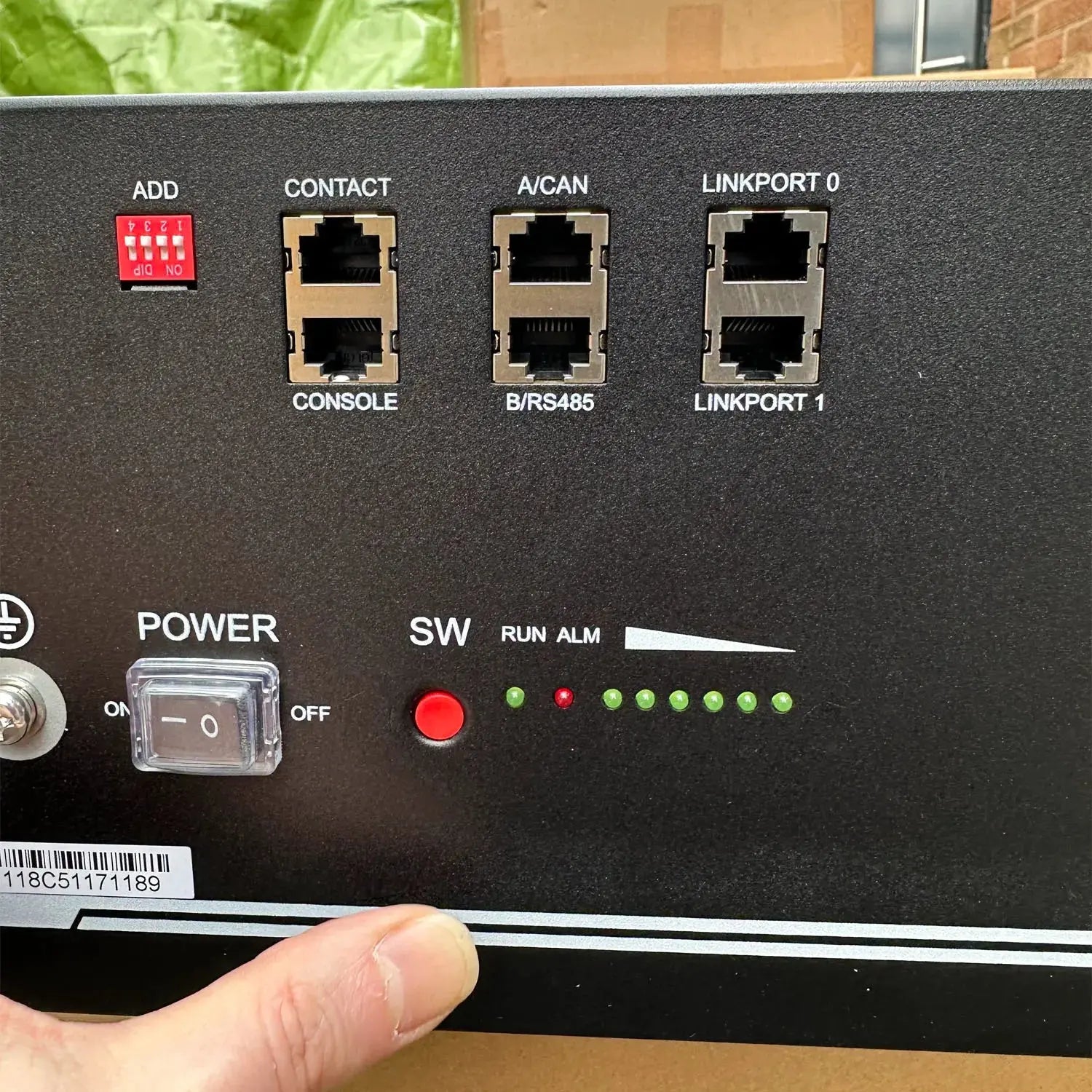

► Intelligent BMS with RS485 and CAN compatibility for enhanced cell protection.
► 95% Depth of Discharge (DoD) for higher usable capacity.
► 7-year standard warranty, extendable to 10 years. (Read Warranty Information below)
► Life expectancy of over 8,000 cycles at 25°C ambient temperature.
Power Ratings and Specifications
► Nominal Energy: 4.8kWh (4800Wh).
► Continuous Discharge Rate: 2400W.
► Maximum Discharge Rate (5 minutes): 4800W.
► Surge Discharge Rate (15 seconds): 5808W.
► Depth of Discharge (DoD): 95% (4.56kWh usable).
► Weight: 39kg.
► Voltage: 48V.
► Dimensions: 560 x 510 x 260mm.
► Battery Type: Lithium Iron Phosphate (LFP).
► Supplier Part No: US5000C.
Why Choose the Pylontech US5000C?
The Pylontech US5000C stands out as one of the most reliable lithium batteries available, making it perfect for off-grid, hybrid, and self-consumption solar systems. With seamless integration with over 35 inverters, it offers efficient and scalable energy storage solutions. Whether expanding an existing system or building a new one, the US5000C provides unrivalled performance, longevity, and value at the best price in the UK.
Check out our installation projects and see why homeowners and businesses trust Pylontech for their energy storage needs. Need a custom solution or installation advice? Contact us today for expert support tailored to your requirements.
Warranty Information
To extend the warranty period to ten (10) years at no additional cost, simply register your product on the Pylontech website: Pylontech Registration. Please note that the minimum remaining capacity at the end of the warranty period must not fall below 60% of the nominal capacity.
