Description
xUSED CONVERSOL 8KW WATERPROOF OFF-GRID INVERTER
This powerful 8kW off-grid inverter provides up to 8,000W of continuous pure sine wave AC power from a 48V battery bank. It is ideal for large homes, workshops, farms, remote buildings, commercial installations and high-demand off-grid solar systems.
The inverter can use the mains grid as a backup AC supply when solar and battery power are insufficient. A compatible diesel or petrol generator can also be connected to provide backup power and battery charging.
NOTE TO BUYER: Expect some cosmetic signs on the metal frame, all the functions are working and the latest firmware has been installed - Fully tested by Voltacon
USED INVERTER AT A BARGAIN PRICE

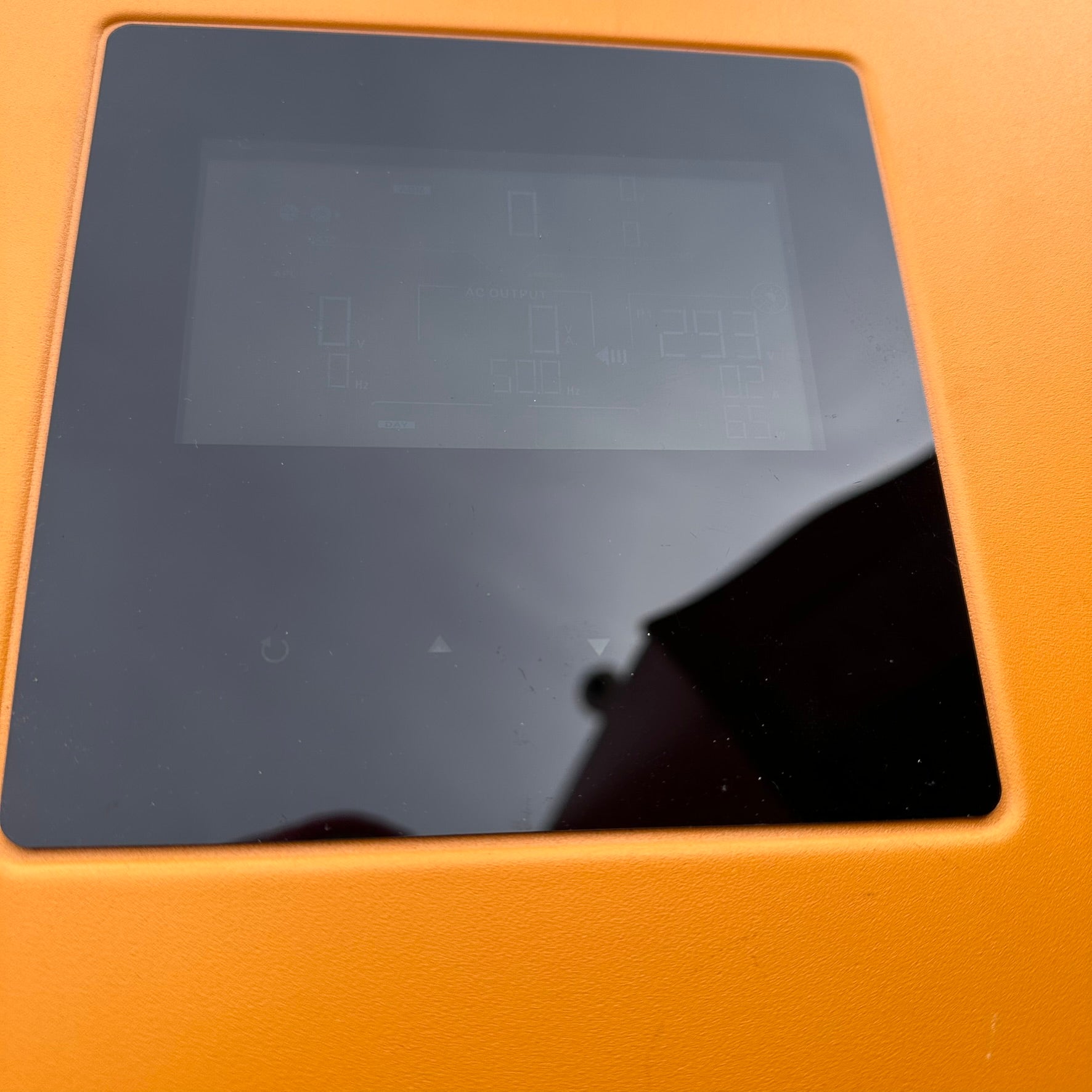

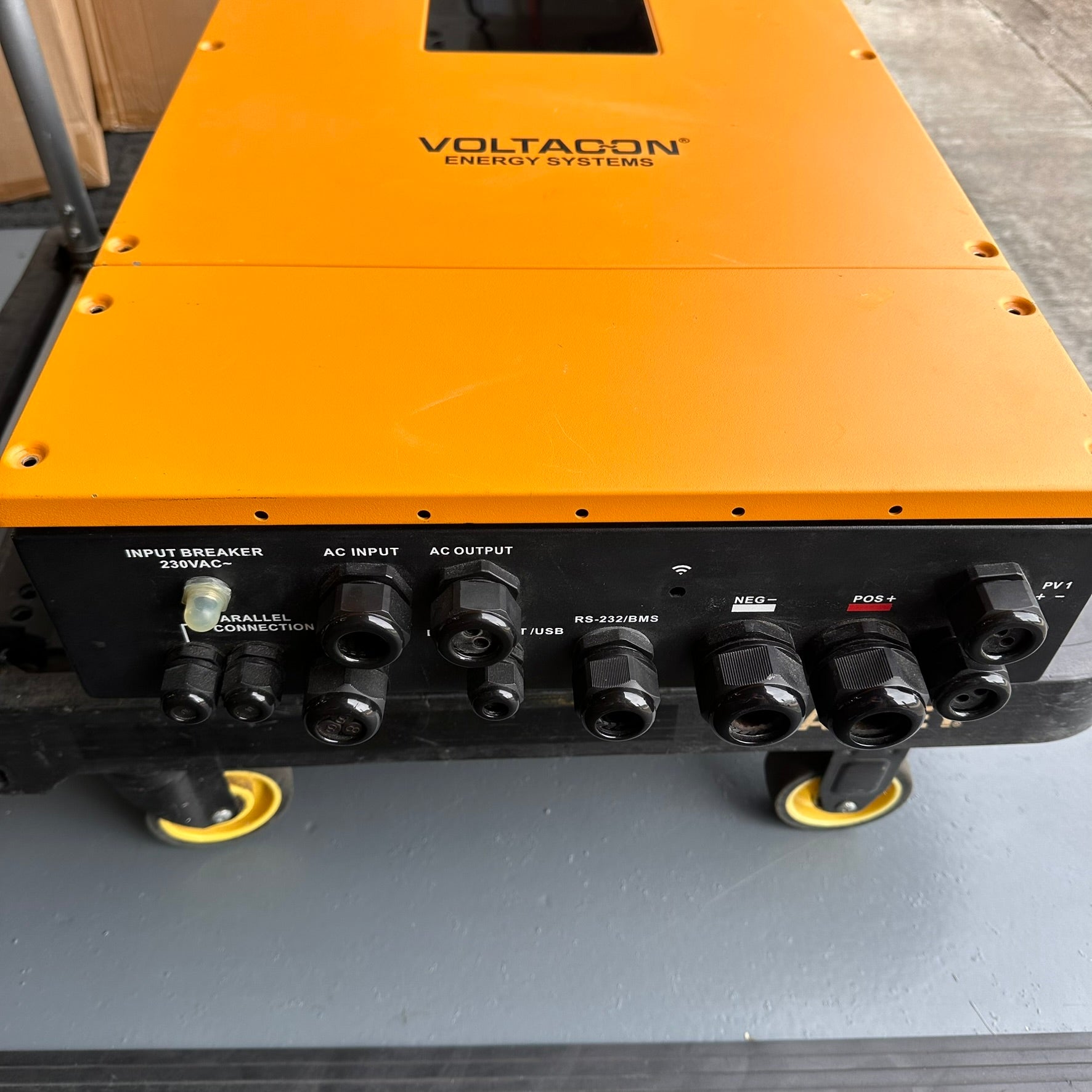

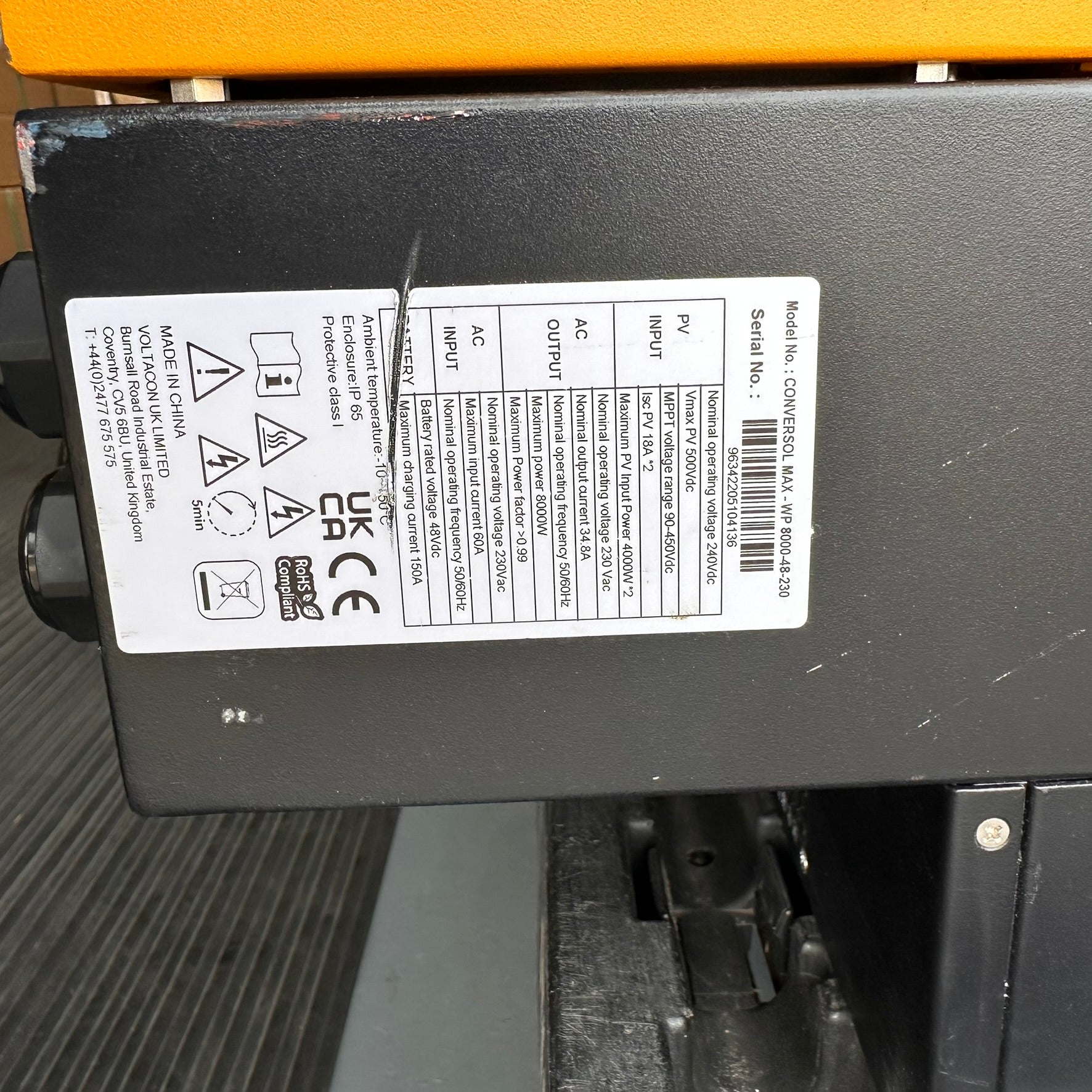

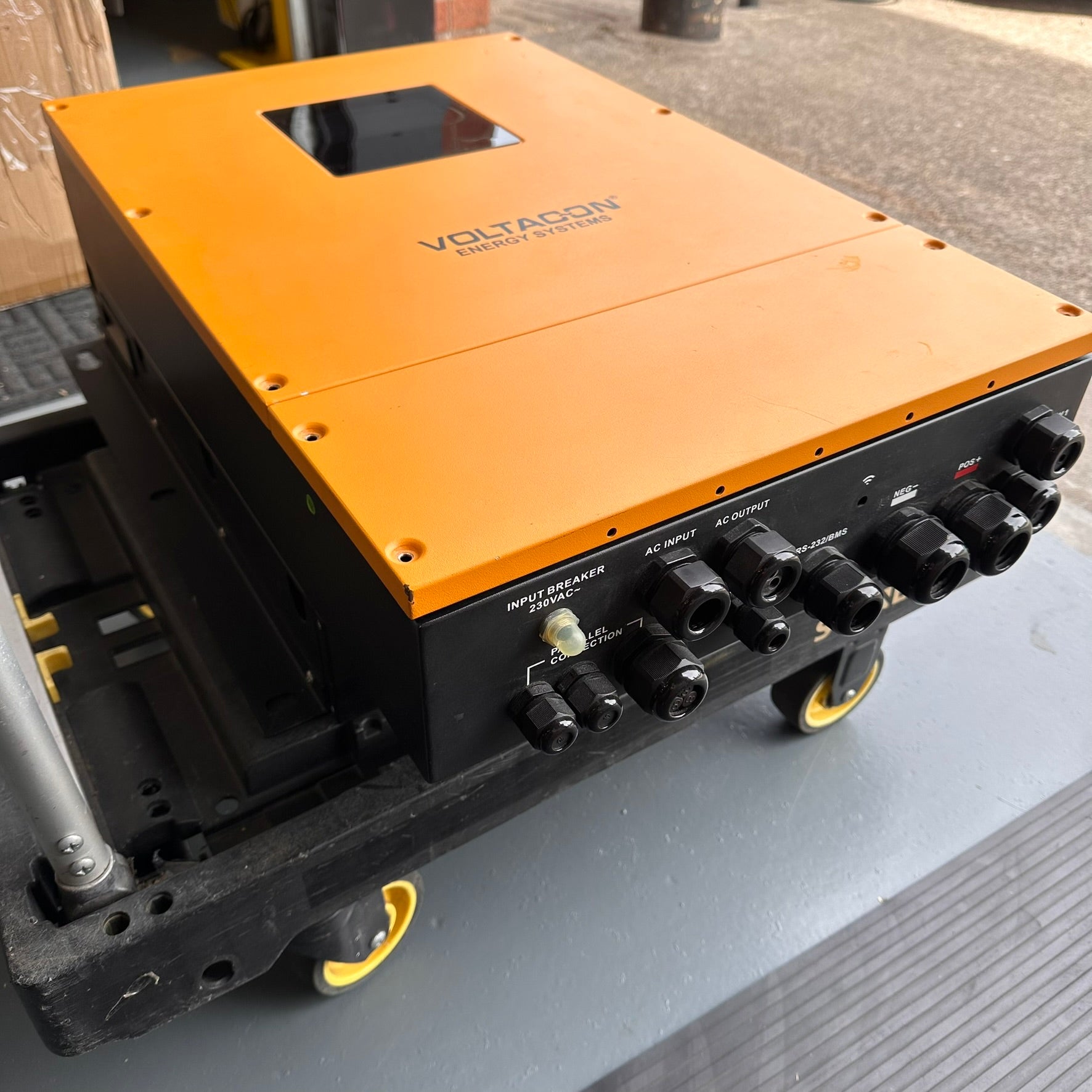

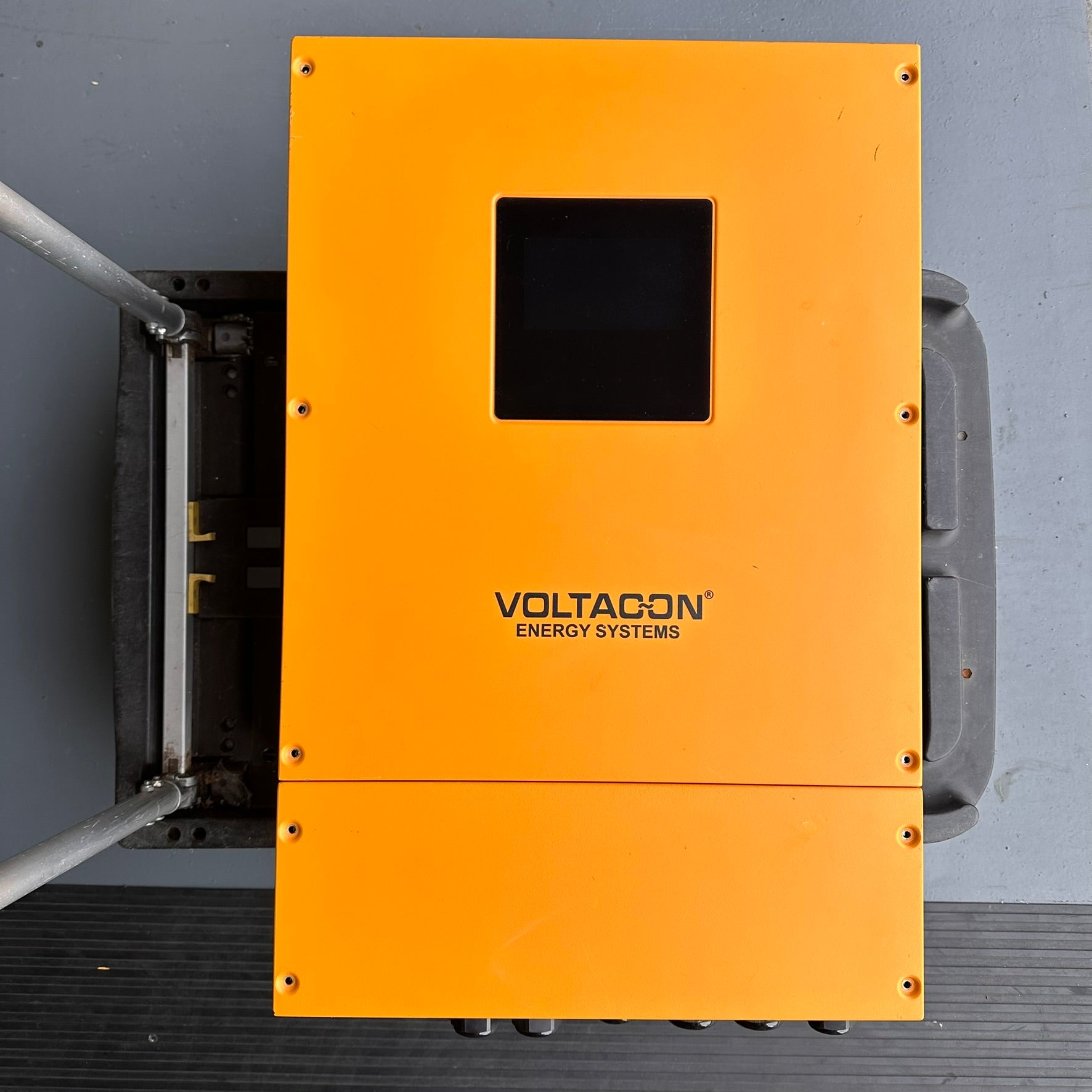

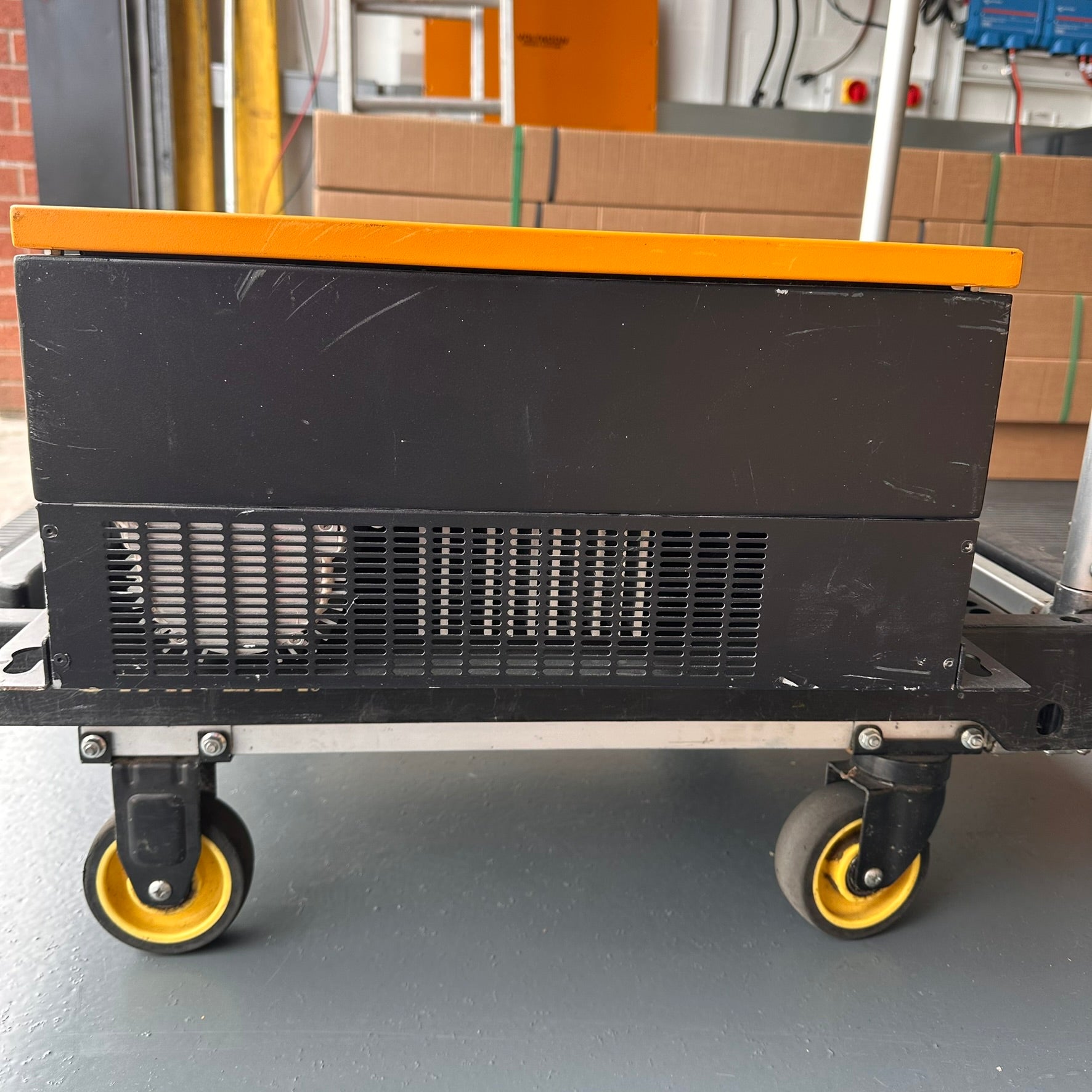

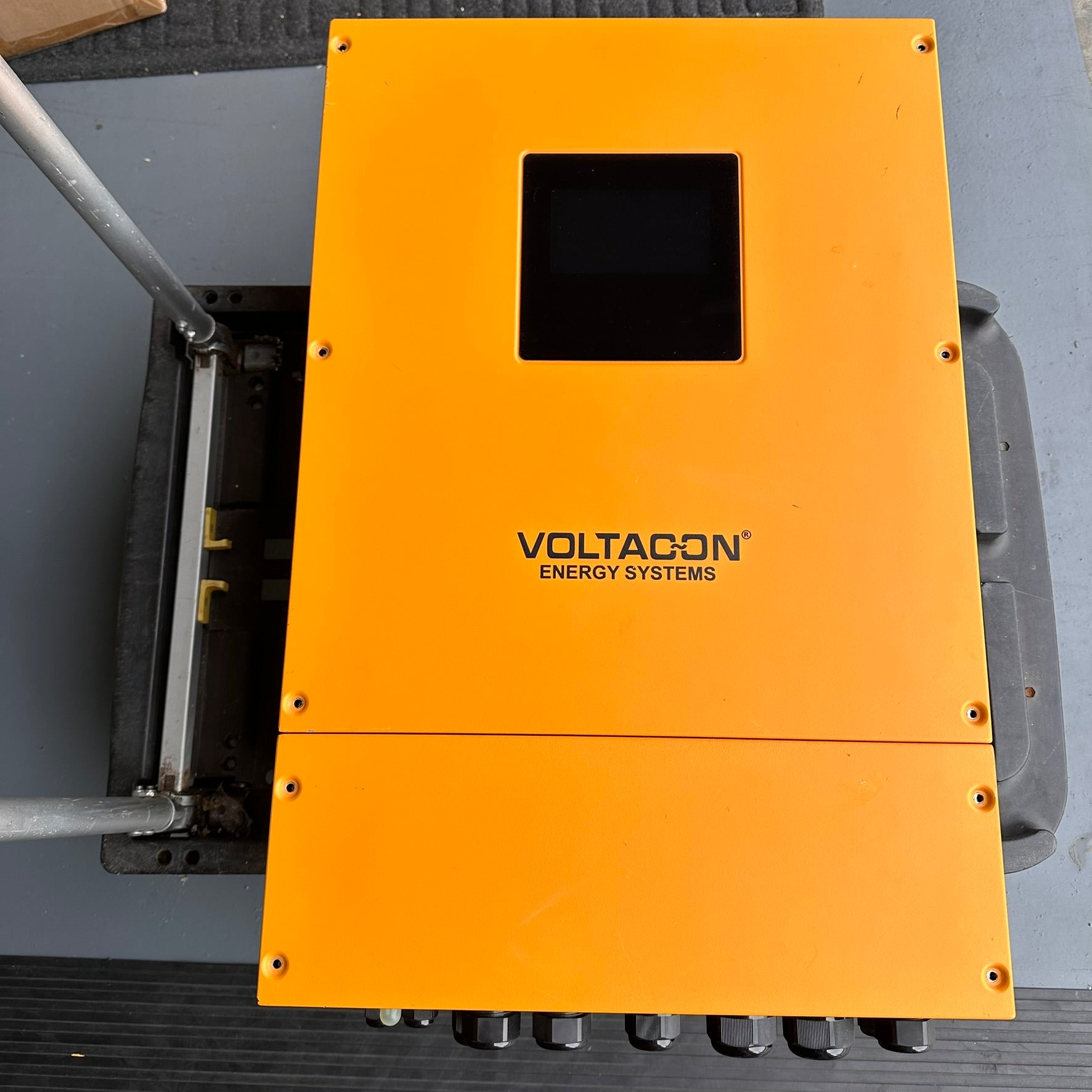

This listing is for a used Conversol 8kW MAX-II waterproof inverter.
ONLY £699 INCLUDING VAT Reduced from £1250
FREE DELIVERY
A cost-effective opportunity to purchase a powerful 8kW inverter for considerably less than the price of a new unit.
As this is a used product, the inverter may show cosmetic marks, scratches or signs of previous installation. These do not necessarily affect its operation. Please examine all listing photographs carefully before purchasing. The inverter will be supplied as shown in the photographs.
MAIN FEATURES
- 8,000W continuous inverter output
- 16,000VA surge capacity for starting demanding loads
- Pure sine wave 230V AC output
- IP65 waterproof and dust-resistant enclosure
- Designed for 48V battery banks
- Dual MPPT solar charge controllers
- Supports up to 8,000W of solar panels
- Maximum solar charging current of 150A
- Mains grid AC backup input
- Compatible generator backup input
- Maximum AC battery charging current of 120A
- Automatic changeover between AC input and battery power
- Suitable for lithium and lead-acid battery systems when configured correctly
- Can operate in parallel with up to six compatible units
- USB, RS232, RS485, Wi-Fi and dry-contact communication
IP65 WATERPROOF DESIGN
The IP65-rated enclosure provides protection against dust and water, making this inverter suitable for demanding environments such as workshops, agricultural buildings, plant rooms, garages and properly installed outdoor locations.
Correct waterproof cable glands and sealed cable entries must be used to maintain the IP65 protection rating.
DUAL MPPT SOLAR INPUT
The inverter includes two MPPT solar inputs, allowing up to 8,000W of photovoltaic panels to be connected across two separate solar arrays.
Each MPPT supports up to 4,000W of solar panels. The wide 90V to 450V DC operating range provides flexibility when designing solar panel strings.
SUITABLE APPLICATIONS
- Off-grid homes and properties
- Solar battery storage systems
- Workshops and garages
- Farms and agricultural buildings
- Remote commercial sites
- Backup power installations
- Plant rooms and outbuildings
- Marine and waterside installations
IMPORTANT INSTALLATION INFORMATION
This inverter must be installed and configured by a qualified electrician or experienced solar installer.
Correctly rated battery cables, DC fuses, isolators, solar protection devices and AC circuit protection must be installed. Battery voltage, battery charging settings and solar panel string voltages must be checked before the inverter is switched on.
This is primarily an off-grid inverter. The mains grid or a generator can be connected as a backup AC input and battery charging source. It is not intended to export surplus solar electricity to the public electricity grid.
Specifications
xTECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Conversol MAX WP 8000 |
| Rated Power | 8000VA / 8000W |
| Parallel Capability | Yes, up to 6 units |
| AC Input | |
| Input Voltage | 230V AC |
| Selectable Voltage Range | 170-280V AC for computers / 90-280V AC for home appliances |
| Frequency Range | 50Hz / 60Hz, automatic sensing |
| AC Output | |
| AC Voltage Regulation in Battery Mode | 230V AC ±5% |
| Surge Power | 16,000VA |
| Peak Efficiency | 93% |
| Transfer Time | 15ms for computers / 20ms for home appliances |
| Output Waveform | Pure sine wave |
| No-Load Power Consumption | Less than 75W |
| Battery | |
| Battery Voltage | 48V DC |
| Floating Charge Voltage | 54V DC |
| Overcharge Protection | 66V DC |
| Solar Charger and AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W total, 4000W × 2 |
| MPPT Operating Voltage Range | 90-450V DC |
| Maximum PV Open-Circuit Voltage | 500V DC |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Combined Charge Current | 150A |
| Physical Details | |
| Dimensions, D × W × H | 665x 435 x 210mm |
| Net Weight | 33kg |
| Protection Rating | IP65 |
| Communication Interfaces | USB, RS232, RS485, Wi-Fi and dry contact |
| Operating Environment | |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Compliance | CE |
