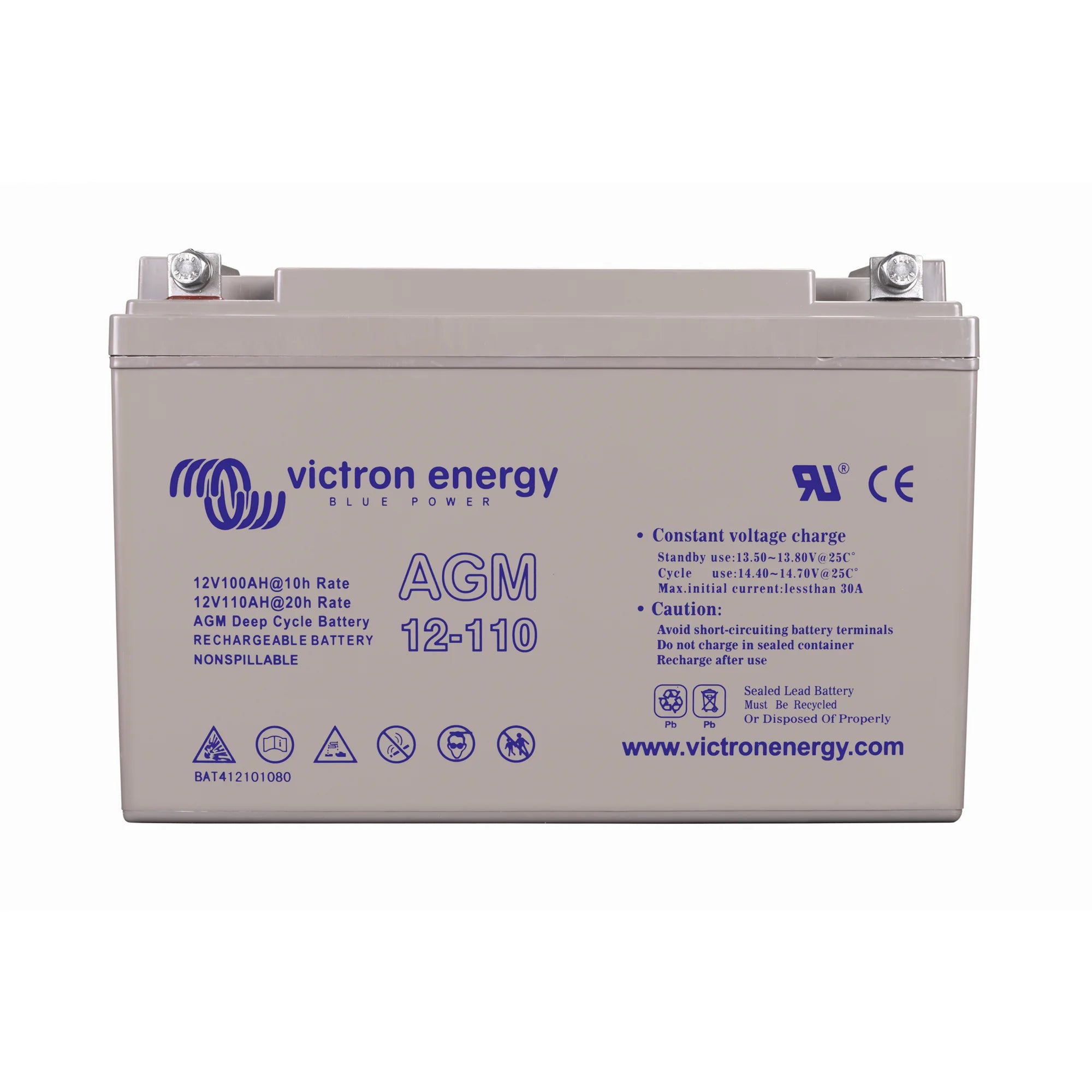

xVictron Energy 12V 110Ah AGM Deep Cycle Battery (M8 Terminals)
The Victron Energy 12V 110Ah AGM Deep Cycle Battery is a sealed, maintenance-free lead-acid battery designed for cyclic applications in solar, off-grid and marine systems. With M8 threaded insert terminals, it is suited to professional installations where secure, bolt-on connections are required. At 30kg, it is a substantial battery intended for fixed installations rather than portable use.
Key Features
- 12V nominal voltage with 110Ah capacity, suitable for a wide range of off-grid and backup power applications.
- AGM (Absorbent Glass Mat) construction: sealed, valve-regulated, and maintenance-free with no requirement to top up electrolyte.
- M8 threaded insert terminals provide a secure, vibration-resistant bolted connection, preferred in professional and marine installations.
- Deep cycle design rated for repeated charge and discharge cycles, unlike standard standby or starter batteries.
- Victron Energy manufacture, with consistent quality control and broad compatibility with Victron charge controllers, inverter/chargers and battery monitors.
- Sealed construction means no acid spillage risk and no requirement for a dedicated ventilated battery room, though adequate ventilation is still recommended.
Product Overview
AGM deep cycle batteries use a glass mat separator to hold the electrolyte in place, making them spill-proof and suitable for installation in orientations other than strictly upright. The sealed valve-regulated design means hydrogen gas emission is minimal under normal operating conditions, though some ventilation is still advisable in enclosed spaces. This distinguishes them from flooded lead-acid batteries, which require regular water top-ups and more stringent ventilation.
The 110Ah capacity at 12V gives approximately 1.32kWh of stored energy. In practice, for deep cycle use, a discharge depth of 50% is commonly recommended to preserve cycle life, giving around 660Wh of usable energy per cycle. This battery is well matched to Victron MPPT charge controllers and MultiPlus or Phoenix inverter/chargers, which can be configured with the correct AGM charge profile via VictronConnect or Venus OS.
The M8 threaded insert terminals are a practical advantage over standard post terminals in fixed installations. They accept M8 bolts directly, allowing the use of ring-terminal cables without relying on clamp-style connectors. This results in a lower-resistance, more reliable connection, particularly important in high-current applications such as inverter loads.
Specifications
- SKU: BAT412101085
- Nominal Voltage: 12V
- Capacity: 110Ah
- Battery Type: AGM Deep Cycle, Sealed VRLA
- Terminal Type: M8 threaded insert
- Weight: 30kg
- GTIN: 8719076036975
Applications
- Solar off-grid systems with MPPT charge controllers and standalone inverters.
- Narrowboat, canal boat and marine house battery banks.
- Motorhome and campervan leisure battery installations.
- UPS and backup power systems for telecoms or critical equipment.
- Multi-battery banks wired in series or parallel for higher voltage or capacity systems.
- Remote monitoring stations, agricultural equipment and other fixed off-grid installations.
What Is Included
- 1 x Victron Energy 12V 110Ah AGM Deep Cycle Battery (M8 terminals)
Installation Notes
This battery weighs 30kg and should be handled by two people or with appropriate lifting equipment. Install in a stable, fixed location away from heat sources and direct sunlight. Although sealed AGM batteries produce minimal gas under normal conditions, install in a ventilated space and never in a fully airtight enclosure. Use correctly rated cables with M8 ring terminals and torque fasteners to the manufacturer's specification. Ensure your charger or inverter/charger is set to an AGM-compatible charge profile. For integration into solar PV or mains-connected systems, installation by a qualified electrician is recommended. In the UK, any work on grid-connected systems must comply with relevant wiring regulations and DNO requirements.
