Description

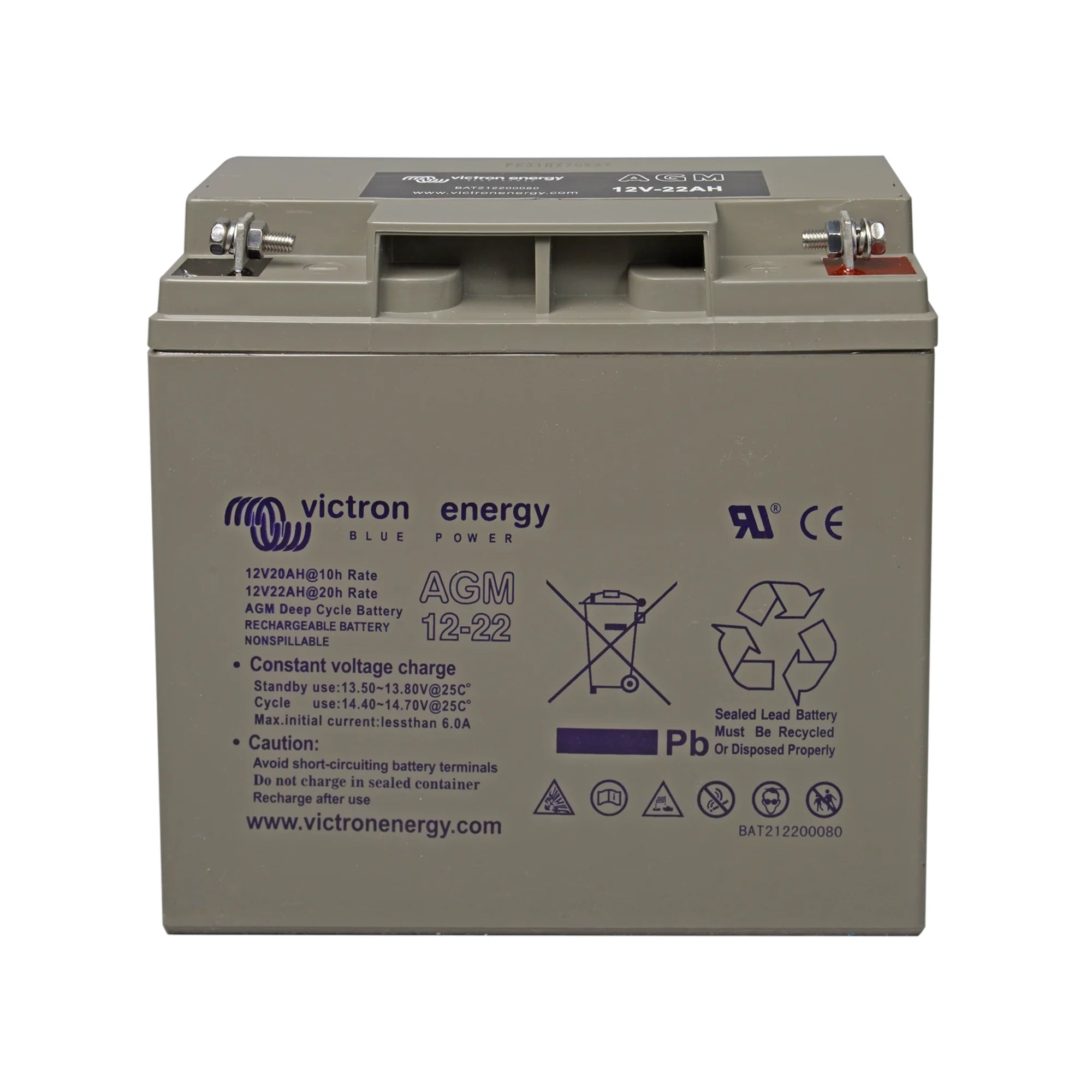

xVictron Energy 12V 22Ah AGM Deep Cycle Battery
The Victron Energy 12V 22Ah AGM Deep Cycle Battery is a sealed, maintenance-free lead-acid battery rated at C20 capacity. It is suited to solar energy storage, UPS systems, and off-grid applications where reliable deep cycle performance is required in a compact, spill-proof format.
Key Features
- 12V nominal voltage with 22Ah capacity rated at C20 discharge rate.
- AGM (Absorbent Glass Mat) construction: sealed, valve-regulated, and maintenance-free.
- Deep cycle design allows repeated discharge and recharge cycles without significant capacity loss.
- Spill-proof and leak-proof construction permits installation in any orientation.
- Weighs 5.9 kg, making it practical for installations with space or weight constraints.
- Compatible with Victron chargers, solar charge controllers and inverter/charger systems.
Product Overview
AGM batteries use a glass mat separator to hold the electrolyte in place, eliminating free liquid inside the cell. This makes them safe to install in enclosed spaces, vehicles, and cabinets where a flooded battery would not be appropriate. The valve-regulated design means no topping up with distilled water and no venting of hydrogen under normal operating conditions.
The C20 capacity rating means the 22Ah figure is measured over a 20-hour discharge period. In practice, drawing higher currents over shorter periods will reduce the available capacity, which is standard behaviour for lead-acid chemistry. For solar and backup applications with moderate, sustained loads, the C20 rating is a reliable reference point for system sizing.
Victron's AGM Deep Cycle range is built for cyclic use rather than standby float duty alone. The plate construction is optimised to handle regular deep discharges, which distinguishes it from standard AGM starter or standby batteries. Pairing this battery with a Victron MPPT charge controller or Blue Smart charger will ensure correct charge profiles are applied, protecting cycle life.
Specifications
- SKU: BAT212200084
- Nominal Voltage: 12V
- Capacity: 22Ah (C20)
- Chemistry: AGM (Absorbent Glass Mat), VRLA
- Weight: 5.9 kg
- GTIN: 8719076036944
Applications
- Small off-grid solar systems and solar lighting installations.
- UPS and backup power supplies for alarm systems, telecoms and control panels.
- Marine auxiliary power for instruments, lighting and small accessories.
- Motorhome and caravan leisure battery applications.
- Portable power stations and trolley-mounted equipment.
- Electric mobility aids and small electric vehicles.
What Is Included
- 1 x Victron Energy 12V 22Ah AGM Deep Cycle Battery
Installation Notes
Although AGM batteries are sealed and maintenance-free, correct charge voltage settings are essential to avoid overcharging, which permanently reduces capacity. Always configure your charger or charge controller to the AGM voltage profile specified by Victron. For integration into a solar or inverter system, installation by a qualified electrician is recommended. Ensure adequate ventilation in the installation space as a precaution, even though gas emission under normal conditions is minimal.
