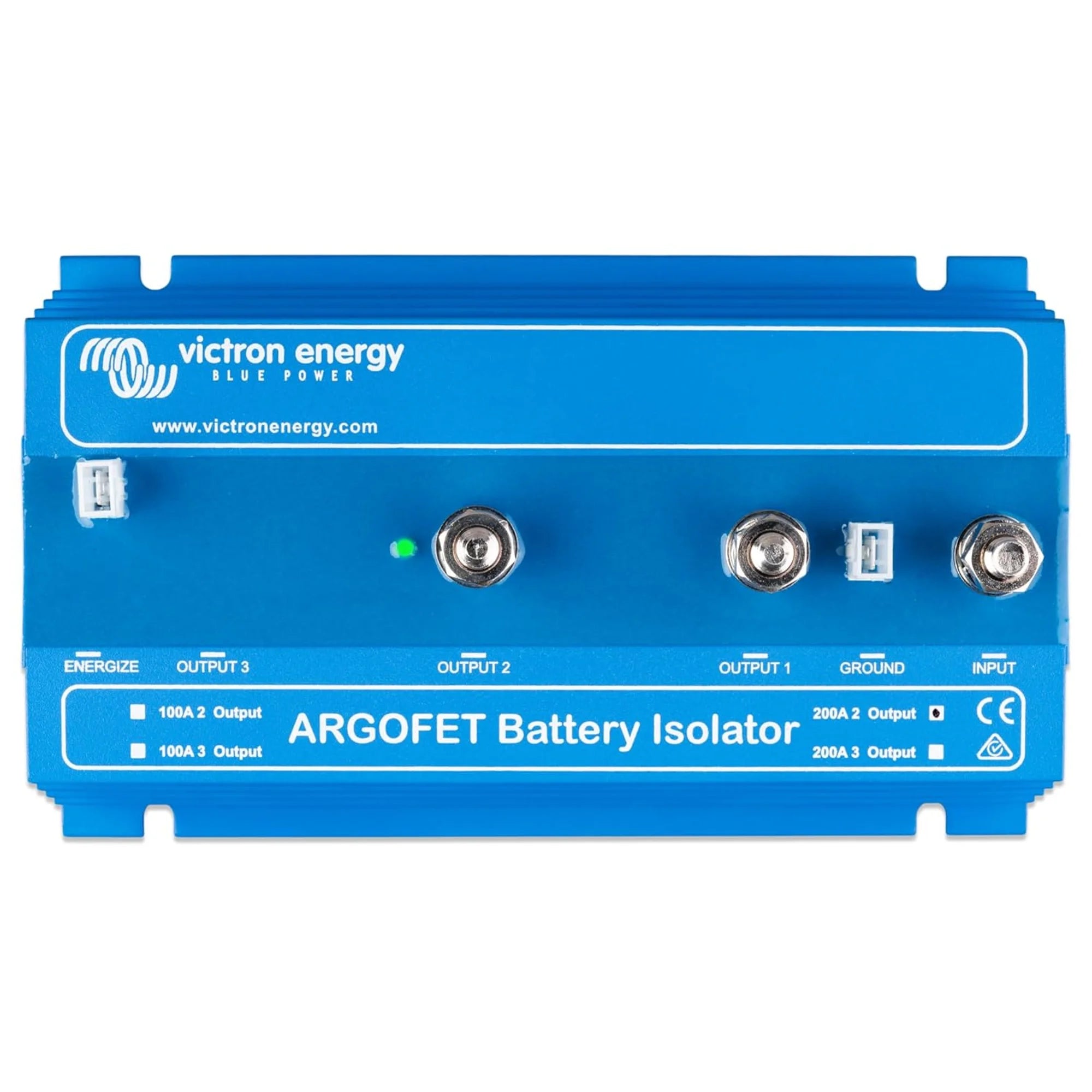

xVictron Argofet 200-2 Battery Isolator, Two Batteries, 200A
The Victron Argofet 200-2 is a FET-based battery isolator designed to charge two separate battery banks simultaneously from a single alternator or charger, without the voltage drop associated with traditional diode isolators. It is suited to marine, vehicle and off-grid applications where independent battery banks must be kept isolated from one another during discharge while still being charged from a common source.
Key Features
- 200A continuous current rating supports high-capacity alternators and charging systems.
- FET (Field Effect Transistor) technology eliminates the typical 0.6V to 0.7V voltage drop of diode-based isolators, allowing the full alternator or charger voltage to reach each battery bank.
- Two output channels allow simultaneous, isolated charging of two independent battery banks from one input source.
- Automatic operation with no manual switching required during normal use.
- Compact and robust aluminium housing suitable for engine bay and marine installations.
- Compatible with standard alternators and external battery chargers as the input source.
Product Overview
Conventional diode isolators introduce a voltage drop of around 0.6V to 0.7V between the alternator and the battery. In practice, this means batteries receive a lower charge voltage than the alternator or regulator is set to deliver, which can result in chronic undercharging. The Argofet 200-2 uses MOSFET technology to reduce this drop to near zero, so each battery bank receives the full output voltage of the charging source.
The isolator works by allowing current to flow from the input to both output banks during charging, while preventing current from flowing between the two battery banks. This means a starter battery and a leisure or service battery can be charged together without the risk of the service bank draining the starter bank when the engine is off. The 200A rating makes it suitable for larger installations with high-output alternators or multiple chargers feeding into the system.
The unit requires no active control during normal operation. An alternator excitation connection is provided to ensure the MOSFET switches correctly when the alternator is running. Installers should verify that the alternator's voltage regulator is set appropriately, as the near-zero voltage drop means the regulator sees a more accurate battery voltage than it would with a diode isolator.
Specifications
- SKU: ARG200201020
- Input channels: 1
- Output channels: 2 (two battery banks)
- Maximum continuous current: 200A
- Technology: FET (MOSFET) isolator
- Weight: 1.3 kg
- GTIN: 8719076019138
Applications
- Marine vessels with separate starter and service battery banks charged from a single alternator.
- Motorhomes and campervans requiring isolation between the vehicle starter battery and the habitation battery bank.
- Trucks and commercial vehicles with auxiliary battery systems.
- Off-grid installations where a single charger must feed two independent battery banks.
- Any dual-battery system where voltage drop from a diode isolator is causing undercharging issues.
What Is Included
- Victron Argofet 200-2 FET battery isolator unit
Installation Notes
Installation should be carried out by a qualified electrician or marine electrical engineer familiar with high-current DC systems. The unit must be mounted in a ventilated location as it will generate heat under load. Ensure all cabling is rated for 200A continuous use and that appropriate fusing is fitted on the input and output connections. The alternator excitation wire must be connected correctly for the MOSFET to operate. Do not install in sealed or unventilated enclosures.
