Description

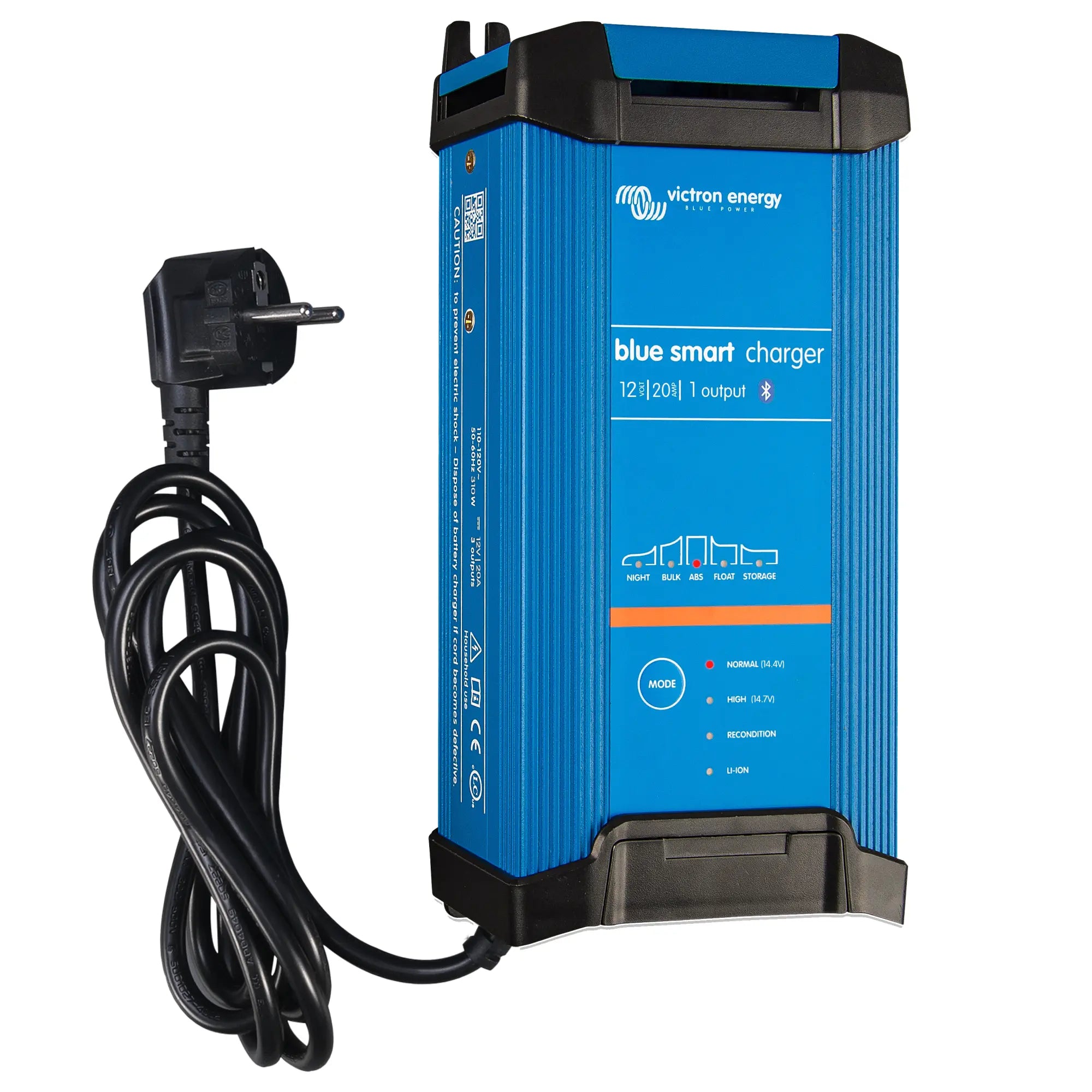

xVictron Blue Smart IP22 Charger 12V 20A Single Output 230V CEE 7/7
The Victron Blue Smart IP22 12/20(1) is a single-output 12V, 20A battery charger designed for professional and trade use. It connects via a standard CEE 7/7 (Schuko/French) 230V plug and includes Bluetooth built in, allowing full monitoring and control through the Victron Connect app. It suits workshops, marine, automotive and off-grid installations where a reliable, programmable charger is needed.
Key Features
- 12V output at 20A charge current, suitable for lead-acid and lithium battery banks up to approximately 200Ah.
- Built-in Bluetooth with Victron Connect app support for real-time monitoring, charge history and settings adjustment from a smartphone or tablet.
- IP22 ingress protection rating, suitable for indoor and sheltered outdoor installations where splash resistance is required.
- Single output (1) configuration, providing one dedicated charge circuit from a single unit.
- CEE 7/7 mains plug (Schuko/French standard) for direct connection to 230V AC supplies across the UK and EU.
- Adaptive seven-stage charge algorithm covering bulk, absorption, float and storage phases, with automatic battery type detection.
- Compatible with gel, AGM, flooded lead-acid and lithium iron phosphate (LiFePO4) battery chemistries, selectable via the app.
Product Overview
The Blue Smart IP22 range uses a microprocessor-controlled adaptive charge algorithm. The charger monitors battery response during the bulk phase and adjusts absorption time accordingly, which reduces overcharging on batteries that are only partially discharged. This matters in practice because fixed-time chargers frequently overcharge partially depleted batteries, shortening service life. The storage mode maintains batteries at an optimal voltage during long periods of inactivity without continuous gassing.
Bluetooth connectivity is integrated directly into the unit, not added via an external dongle. Through Victron Connect, an installer or end user can select battery chemistry, adjust charge voltages, view charge state and access a charge history log. This makes commissioning and fault-finding straightforward without needing a laptop or additional hardware. The IP22 rating means the unit can be mounted in an engine bay, locker or sheltered outbuilding, though it should not be exposed to direct rain or submersion.
The CEE 7/7 plug is the standard two-pin-with-earth format used across continental Europe and is also widely used in UK installations with appropriate socket adapters. The single-output version (1) provides one charge circuit. Victron also offers two-output and three-output variants of this model for multi-bank applications.
Specifications
- SKU: BPC122042002
- Battery voltage: 12V
- Charge current: 20A
- Number of outputs: 1
- Input voltage: 230V AC
- Mains plug: CEE 7/7 (Schuko/French)
- Ingress protection: IP22
- Weight: 1.3 kg
- GTIN: 8719076037439
Applications
- Charging and maintaining 12V lead-acid or LiFePO4 battery banks in marine vessels, motorhomes and caravans.
- Workshop battery maintenance for automotive, agricultural and plant machinery batteries.
- Off-grid cabin or outbuilding battery charging where a 230V AC supply is available.
- Standby and backup power systems requiring regular battery conditioning and storage maintenance.
- Leisure vehicle installations where Bluetooth monitoring is needed without additional hardware.
What Is Included
- Victron Blue Smart IP22 12/20(1) charger unit
- CEE 7/7 mains cable (230V)
- DC output cable with ring terminals
Installation Notes
This charger connects to a standard 230V AC supply via the supplied CEE 7/7 plug. Ensure the mains circuit is protected by an appropriately rated fuse or MCB. DC connections should be made to the battery terminals with correct polarity; the unit includes reverse polarity protection. For lithium battery installations, confirm that the battery BMS is compatible with the charger's lithium charge profile before use. Installation in enclosed spaces should allow adequate ventilation around the unit. For permanent fixed installations in vehicles or vessels, a qualified auto-electrician or marine electrician should carry out the wiring.
