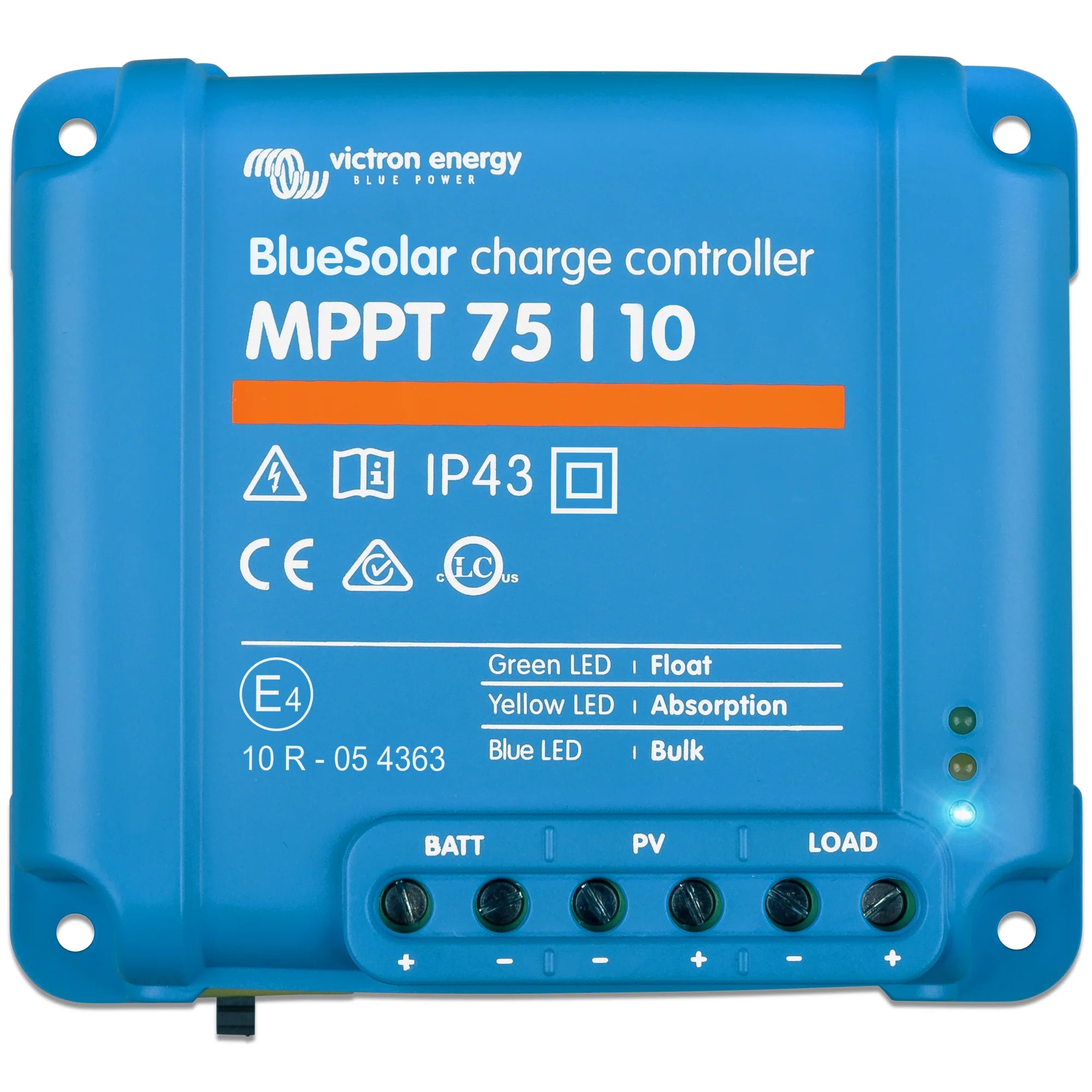

xVictron BlueSolar MPPT 75/10 Charge Controller
The Victron BlueSolar MPPT 75/10 is a solar charge controller designed for small 12V and 24V battery systems. It accepts a maximum PV open-circuit voltage of 75V and delivers up to 10A of charge current, making it suited to compact off-grid setups, caravans, boats and remote power installations. The MPPT algorithm extracts more usable energy from a solar panel than a conventional PWM controller, particularly in cold or overcast conditions.
Key Features
- Maximum PV open-circuit voltage of 75V, compatible with a range of 12V and 24V panel configurations.
- Maximum charge current of 10A, suitable for small battery banks in mobile and off-grid applications.
- True MPPT tracking algorithm continuously finds the peak power point of the connected solar array.
- Automatic battery voltage detection for 12V and 24V systems, simplifying initial setup.
- Compact and lightweight at 0.36kg, straightforward to mount in confined spaces.
- Load output with low-voltage disconnect protects the battery from deep discharge.
- Compatible with Victron VictronConnect app via optional VE.Direct Bluetooth Smart dongle for monitoring and configuration.
Product Overview
MPPT (Maximum Power Point Tracking) controllers differ from PWM units by actively matching the controller's input impedance to the solar panel's peak power point. In practice, this means more charge current reaches the battery, especially when panel voltage is significantly higher than battery voltage or when irradiance is low. For a small system, the efficiency gain over PWM can meaningfully extend the usable hours of stored energy.
The 75/10 rating means the controller will handle PV arrays with an open-circuit voltage up to 75V and deliver up to 10A to the battery. On a 12V system this equates to a maximum of around 145W of solar input; on a 24V system, approximately 290W. The unit automatically detects battery voltage on first connection, so no manual voltage selection is required. Charge algorithm settings can be adjusted using the VE.Direct interface with the optional Bluetooth dongle or USB cable accessory.
The built-in load output allows direct connection of DC loads. The controller monitors battery voltage and disconnects the load at a configurable low-voltage threshold, preventing the battery from being discharged to a damaging level. This is particularly useful in unattended installations such as remote monitoring stations or lighting systems.
Specifications
- SKU: SCC010010050R
- Maximum PV open-circuit voltage: 75V
- Maximum charge current: 10A
- Battery voltage: 12V / 24V (auto-detect)
- Weight: 0.36kg
- GTIN: 8719076025306
Applications
- Caravans and motorhomes with a single rooftop panel and leisure battery.
- Narrowboats and small sailing vessels with a 12V or 24V house bank.
- Remote off-grid cabins, garden buildings or outbuildings with modest power requirements.
- Telecommunications or monitoring equipment powered by a small solar array.
- Educational or demonstration solar installations requiring a compact, reliable controller.
What Is Included
- Victron BlueSolar MPPT 75/10 charge controller (retail pack)
Installation Notes
Installation should be carried out by a competent person familiar with 12V and 24V DC wiring practices. Ensure the PV array open-circuit voltage does not exceed 75V under any conditions, including cold temperatures, which raise panel Voc. Connect the battery before connecting the solar panels. For marine installations, verify that wiring and enclosure placement meet the relevant standards for the vessel type. This controller is not intended for grid-connected systems and does not require G98 or G99 compliance. If you are unsure about any aspect of the installation, consult a qualified electrician or accredited solar installer.
