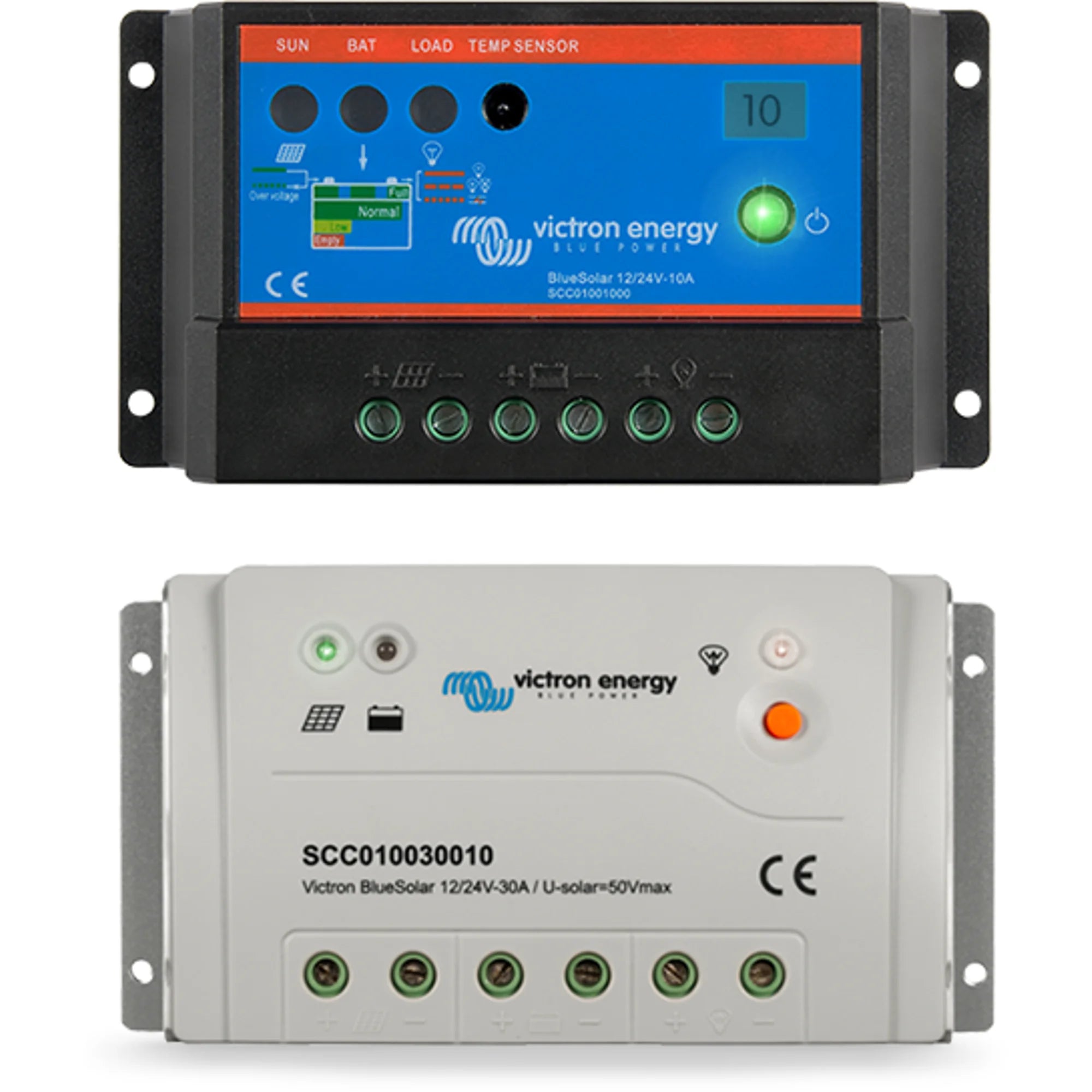

xVictron BlueSolar PWM-Light Charge Controller 12/24V 10A
The Victron BlueSolar PWM-Light is a compact, entry-level PWM solar charge controller rated at 10A for 12V and 24V battery systems. It is designed for small off-grid installations where simplicity and low cost are the priority. Automatic voltage detection means it will work with either a 12V or 24V battery without manual configuration.
Key Features
- 10A charge current rating, compatible with 12V and 24V battery systems with automatic voltage detection.
- PWM (Pulse Width Modulation) charge algorithm reduces battery stress and extends battery service life compared to basic on/off controllers.
- Compact and lightweight at 0.13kg, suitable for installations with limited space.
- Load output with low voltage disconnect protects the battery from deep discharge.
- LED indicators provide basic status information on charging and load state.
- Designed for sealed, gel and flooded lead-acid battery types.
Product Overview
PWM charge controllers work by connecting the solar panel directly to the battery and modulating the connection to maintain the correct charge voltage. This approach is straightforward and well-suited to small systems where the panel voltage is closely matched to the battery voltage. The BlueSolar PWM-Light is the most compact option in Victron's PWM range, stripped back to the essentials for cost-sensitive applications.
At 10A, this controller suits panels up to approximately 130W on a 12V system or 260W on a 24V system, though the actual usable panel wattage depends on the panel's open-circuit voltage and the ambient conditions. The automatic 12V/24V detection removes the need for manual voltage selection, reducing the risk of configuration errors during installation.
This controller does not include Bluetooth connectivity or VictronConnect compatibility. For installations requiring remote monitoring or programmable charge profiles, Victron's MPPT range is more appropriate. The PWM-Light is best suited to straightforward, small-scale systems such as caravans, boats, garden buildings and small off-grid cabins.
Specifications
- SKU: SCC010010000
- Charge current: 10A
- System voltage: 12V / 24V (automatic detection)
- Weight: 0.13kg
- GTIN: 8719076025276
Applications
- Small 12V or 24V off-grid systems in caravans, motorhomes and campervans.
- Leisure marine applications with modest solar input requirements.
- Garden buildings, sheds and outbuildings with basic lighting or low-power loads.
- Remote monitoring stations or small telecoms enclosures with a single panel.
- Educational or demonstration solar setups.
What Is Included
- 1x Victron BlueSolar PWM-Light Charge Controller 12/24V 10A
Installation Notes
This controller should be installed by a competent person familiar with 12V and 24V DC wiring. Ensure the solar panel's open-circuit voltage does not exceed the controller's maximum PV input voltage rating. Connect the battery before connecting the solar panel, and disconnect in reverse order. For any installation on a vessel or vehicle, follow the relevant wiring regulations for that application. This controller is not suitable for lithium battery chemistries unless confirmed compatible by Victron documentation.
