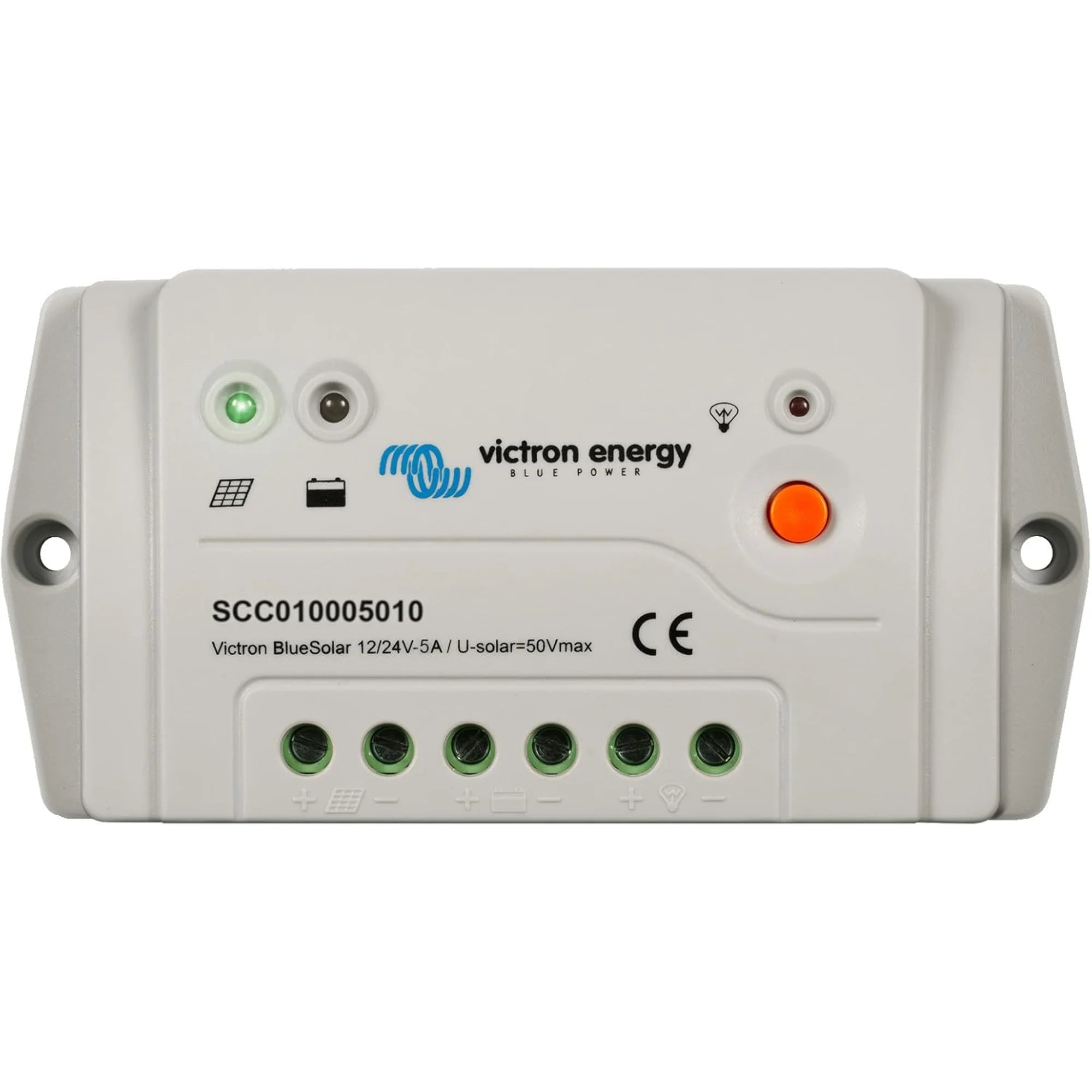

xVictron BlueSolar PWM-Pro Charge Controller 12/24V-5A
The Victron BlueSolar PWM-Pro is a pulse-width modulation solar charge controller rated at 5A for 12V and 24V battery systems. It is designed for small off-grid installations where reliable, low-cost solar charging is required. The PWM-Pro adds a programmable load output and a VictronConnect-compatible interface over the standard BlueSolar PWM range.
Key Features
- Compatible with 12V and 24V battery systems, with automatic voltage detection.
- 5A maximum charge current, suitable for small panels and compact off-grid setups.
- PWM charge algorithm with absorption, float and equalisation stages for proper battery conditioning.
- Programmable load output with multiple load control algorithms, including light and timer functions.
- Battery type selection covers sealed, gel, flooded and lithium (LiFePO4) chemistries.
- Built-in streetlight function with configurable on/off times based on sunset and sunrise.
- VictronConnect compatible via optional Bluetooth dongle for monitoring and configuration.
Product Overview
The BlueSolar PWM-Pro uses a pulse-width modulation charging method, which directly connects the solar panel to the battery during the bulk phase and then modulates the connection to maintain the correct absorption and float voltages. This approach is straightforward and well-suited to smaller systems where the cost and complexity of MPPT technology is not justified by the panel size or budget.
The "Pro" designation over the standard BlueSolar PWM range refers to the programmable load output. This output can be configured to control a DC load, such as lighting, using built-in algorithms that respond to day/night detection, fixed timers, or a combination of both. This makes the controller practical for solar-powered lighting, remote monitoring stations, or small cabins where automated load switching is useful without additional hardware.
Battery chemistry selection is done manually via a rotary switch or through VictronConnect when a Bluetooth dongle is connected. Correct chemistry selection is important: the charge voltages differ between sealed lead-acid, gel, flooded and LiFePO4 batteries, and using the wrong setting will affect battery life and performance. The controller weighs 0.16 kg and is compact enough for panel-mounting in tight enclosures.
Specifications
- SKU: SCC010005010
- Battery voltage: 12V / 24V (auto-detect)
- Maximum charge current: 5A
- Weight: 0.16 kg
- GTIN: 8719076025252
Applications
- Small off-grid cabins and garden buildings with a single solar panel.
- Solar-powered LED lighting systems with automated dusk-to-dawn or timer control.
- Remote monitoring or telemetry stations with low power consumption.
- Caravans, campervans and boats with modest 12V or 24V solar charging requirements.
- Educational or demonstration solar installations.
What Is Included
- 1x Victron BlueSolar PWM-Pro Charge Controller 12/24V-5A
Installation Notes
This controller is intended for small 12V or 24V DC systems only. Ensure the solar panel open-circuit voltage does not exceed the controller's rated input limits before connecting. Select the correct battery chemistry using the rotary switch before commissioning. For LiFePO4 batteries, confirm the battery's own BMS is compatible with the charge profile applied. While this is a low-voltage DC device, all wiring should be carried out by a competent person familiar with DC solar installations. Fuse the battery connection close to the battery terminal in line with standard DC wiring practice.
