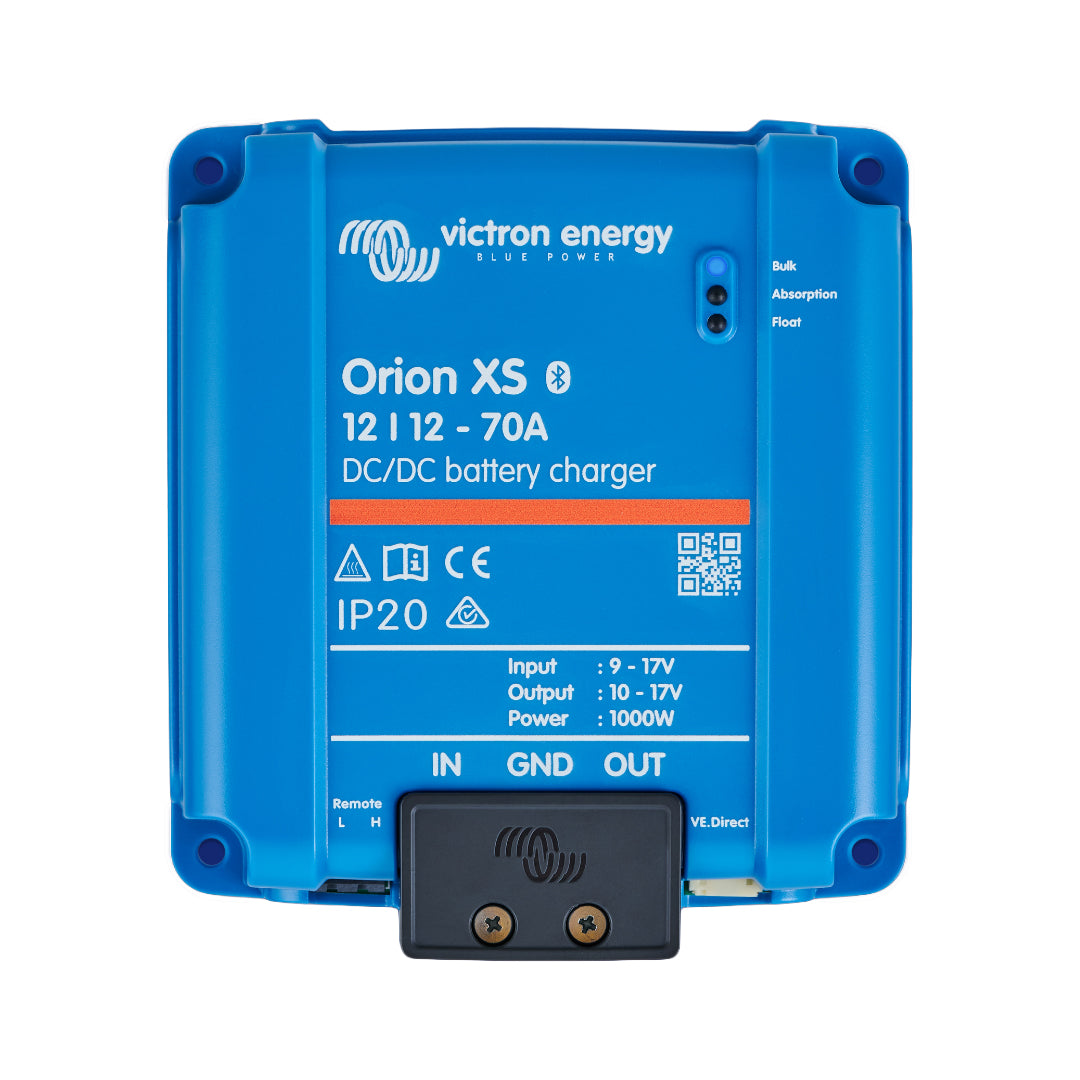

xVictron Orion XS 12/12-70A DC-DC Battery Charger
The Victron Orion XS 12/12-70A is a non-isolated DC-DC battery charger designed to charge a 12V service or leisure battery from a 12V alternator or starter battery. It is suited to professional vehicle, marine and off-grid installations where a dedicated, controlled charge source is required for a secondary battery bank.
Key Features
- 70A output current provides a high charge rate suitable for large lithium or AGM service battery banks.
- Non-isolated design allows direct integration into 12V to 12V systems without galvanic separation requirements.
- Compatible with lithium (LiFePO4), AGM, gel and flooded lead-acid battery chemistries on the output side.
- Protects the vehicle alternator by regulating input current draw, reducing the risk of alternator overload.
- Compact and lightweight at 0.379 kg, making it practical for installations with limited space.
- Part of the Victron Orion XS range, which supports configuration and monitoring via the VictronConnect app over Bluetooth.
- IP20 rated: for dry indoor installation only.
- Firmware v1.15 adds an emergency reverse charge: it can charge a flat starter battery from the auxiliary battery at up to 35A.
Product Overview
The Orion XS 12/12-70A takes power from the vehicle's starter battery circuit and delivers a controlled, algorithm-driven charge to a secondary battery. Unlike a simple voltage-sensitive relay, a DC-DC charger applies a proper multi-stage charge profile, which matters particularly when charging lithium batteries that require precise voltage and current management. At 70A output, this unit can meaningfully charge large battery banks during normal driving cycles.
The non-isolated topology means the input and output share a common ground. This is appropriate for the majority of single-vehicle installations. Where galvanic isolation is required, for example in certain marine applications or dual-battery systems with separate chassis grounds, an isolated variant should be selected instead. Installers should confirm the grounding arrangement before specifying this unit.
VictronConnect app support allows charge algorithm selection, input voltage thresholds and other parameters to be configured wirelessly. This removes the need for DIP switches or manual wiring changes during commissioning and simplifies fault-finding in the field.
Specifications
- SKU: ORI121221040
- Input voltage: 12V DC
- Output voltage: 12V DC
- Output current: 70A
- Isolation: Non-isolated
- Protection: IP20, dry indoor installation only
- Weight: 0.379 kg
- GTIN: 8719076075257
Applications
- Charging a 12V lithium or lead-acid leisure battery from a 12V vehicle alternator in campervans and motorhomes.
- Secondary battery charging in commercial vehicles, emergency service vehicles and specialist conversions.
- Marine dual-battery systems where the engine start battery feeds a separate house bank (non-isolated installations).
- Off-grid mobile installations requiring reliable, regulated battery charging from a running engine.
- Truck and HGV auxiliary battery systems where high charge current is needed to recover large battery banks quickly.
What Is Included
- Victron Orion XS 12/12-70A DC-DC battery charger unit
Installation Notes
Unlike the IP65 Orion XS 12/12-50A and 1400, the 70A is rated IP20 and is for dry indoor installation only. Mount it inside the living area, a locker or a cabinet, never in an engine bay, under the chassis or on an open deck. Installation should be carried out by a qualified auto-electrician or electrical installer with experience in DC vehicle or marine systems. The non-isolated design requires a shared common ground between input and output circuits. Correct cable sizing and fusing at both the input and output is essential given the 70A output rating. For lithium battery installations, confirm that the battery management system (BMS) is compatible with the charge profile applied by the Orion XS. Configuration via VictronConnect requires a Bluetooth-enabled device. This product is not for grid-connected use and G98/G99 compliance is not applicable.
