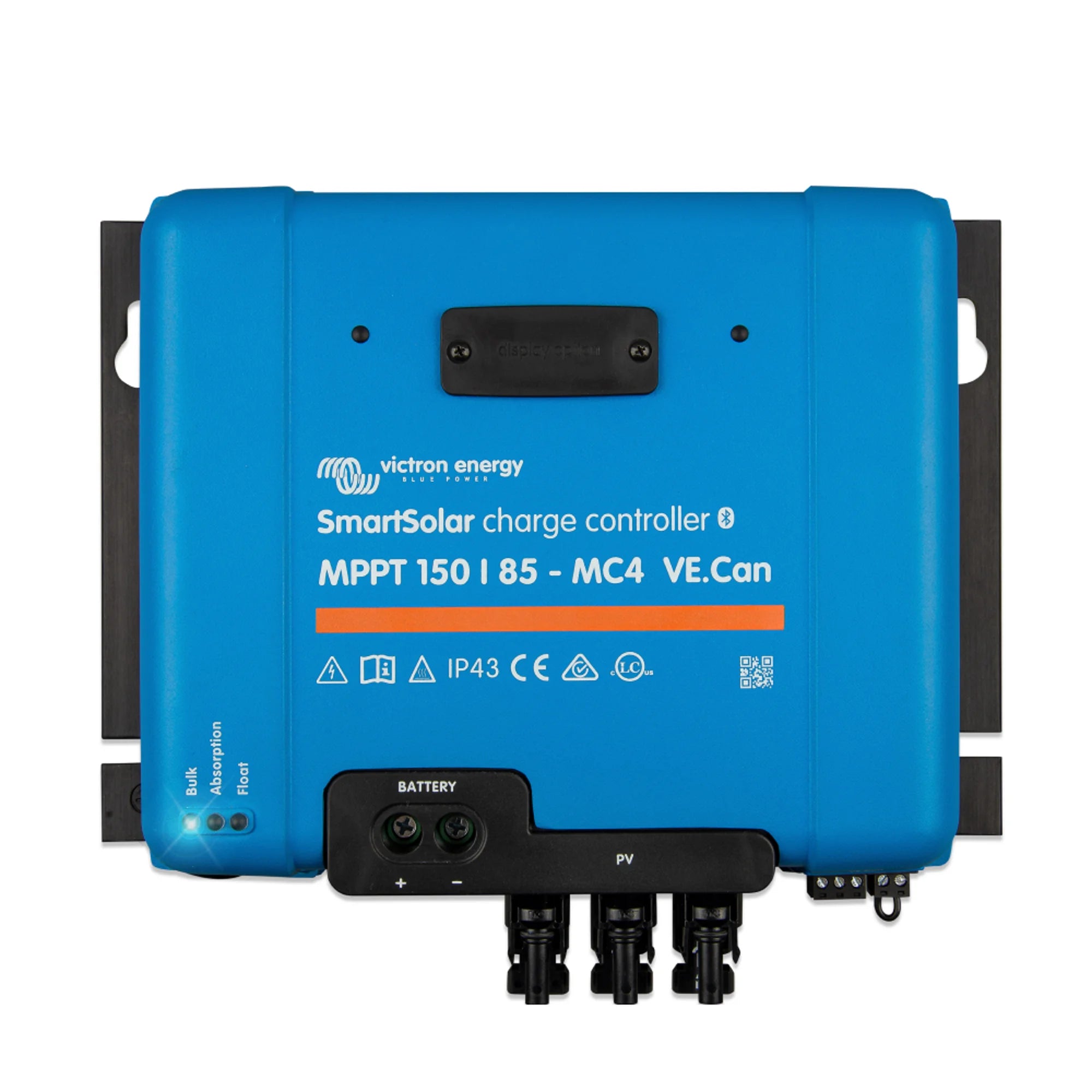

xVictron SmartSolar MPPT 150/85-MC4 VE.Can Solar Charge Controller
The Victron SmartSolar MPPT 150/85-MC4 VE.Can is a high-current solar charge controller designed for professional off-grid, marine and large residential installations. It accepts a maximum PV open-circuit voltage of 150V and delivers up to 85A of charge current, with integrated MC4 connectors for direct panel string connection and VE.Can for system-level communication.
Key Features
- Maximum PV open-circuit voltage of 150V with an 85A maximum charge current output.
- Integrated MC4 connectors allow direct connection to PV strings without additional adaptors.
- VE.Can bus interface enables integration with Victron GX devices, Cerbo GX and other VE.Can-compatible equipment for full system monitoring and control.
- Built-in Bluetooth via the VictronConnect app for wireless configuration, monitoring and firmware updates from a smartphone or tablet.
- Advanced MPPT algorithm with ultra-fast maximum power point tracking, suitable for partial shading and variable irradiance conditions.
- Supports lithium-ion, AGM, gel, flooded and other battery chemistries with fully programmable charge algorithms.
- Integrated load output with programmable street lighting and battery protection functions.
- Remote on/off and programmable relay output for system automation.
Product Overview
The SmartSolar MPPT 150/85-MC4 VE.Can operates across a battery voltage range of 12V, 24V and 48V, auto-selecting on first connection. The 150V maximum PV input voltage allows for longer string configurations, reducing cable losses and simplifying array wiring on larger installations. The 85A charge current makes it suitable for battery banks where high charge rates are required to minimise downtime between discharge cycles.
The VE.Can interface is the key differentiator in this variant. Unlike the standard SmartSolar 150/85, this model connects directly to the VE.Can network used in Victron system architectures, allowing the charge controller to appear as a managed device within Venus OS on a Cerbo GX or CCGX. This enables coordinated charging, DVCC (Distributed Voltage and Current Control) support, and full data logging through the VRM portal. For installations with multiple charge controllers or where a BMS is managing charge parameters, VE.Can communication is the correct choice over Bluetooth-only variants.
The integrated MC4 connectors remove the need for separate MC4-to-terminal adaptors at the controller, keeping the installation tidy and reducing potential connection points. The unit includes a programmable relay and a dedicated load output, both of which can be configured through VictronConnect or the GX device interface.
Technical Specifications
| Parameter | Value |
| SKU | SCC115085511 |
| Maximum PV Open-Circuit Voltage | 150V |
| Maximum Charge Current | 85A |
| Battery Voltage (auto-select) | 12V / 24V / 48V |
| PV Connector Type | MC4 (integrated) |
| Communication Interface | VE.Can, Bluetooth (built-in) |
| Weight | 4.5 kg |
| GTIN | 8719076050346 |
Applications
- Large off-grid solar systems with 48V battery banks requiring high charge current.
- Marine and narrowboat installations integrated into a Victron VE.Can network.
- Mobile and vehicle-based systems (expedition vehicles, large motorhomes) with Cerbo GX monitoring.
- Remote telecoms, pumping or monitoring stations with automated load control requirements.
- Multi-device Victron installations where DVCC and coordinated charging across controllers is needed.
What Is Included
- 1x Victron SmartSolar MPPT 150/85-MC4 VE.Can charge controller
- VE.Can RJ45 terminator (where supplied by Victron as standard)
Installation Notes
This charge controller should be installed by a qualified electrician or accredited solar installer. The PV input must not exceed 150V open-circuit under any conditions, including cold-temperature Voc calculations. Ensure the battery bank and cabling are rated for the full 85A charge current. VE.Can network wiring requires correct termination at both ends of the bus using RJ45 terminators. For off-grid systems incorporating a BMS, verify DVCC compatibility with your GX device firmware version before commissioning. Do not connect to a grid-tied inverter output without appropriate system design review.
