Description

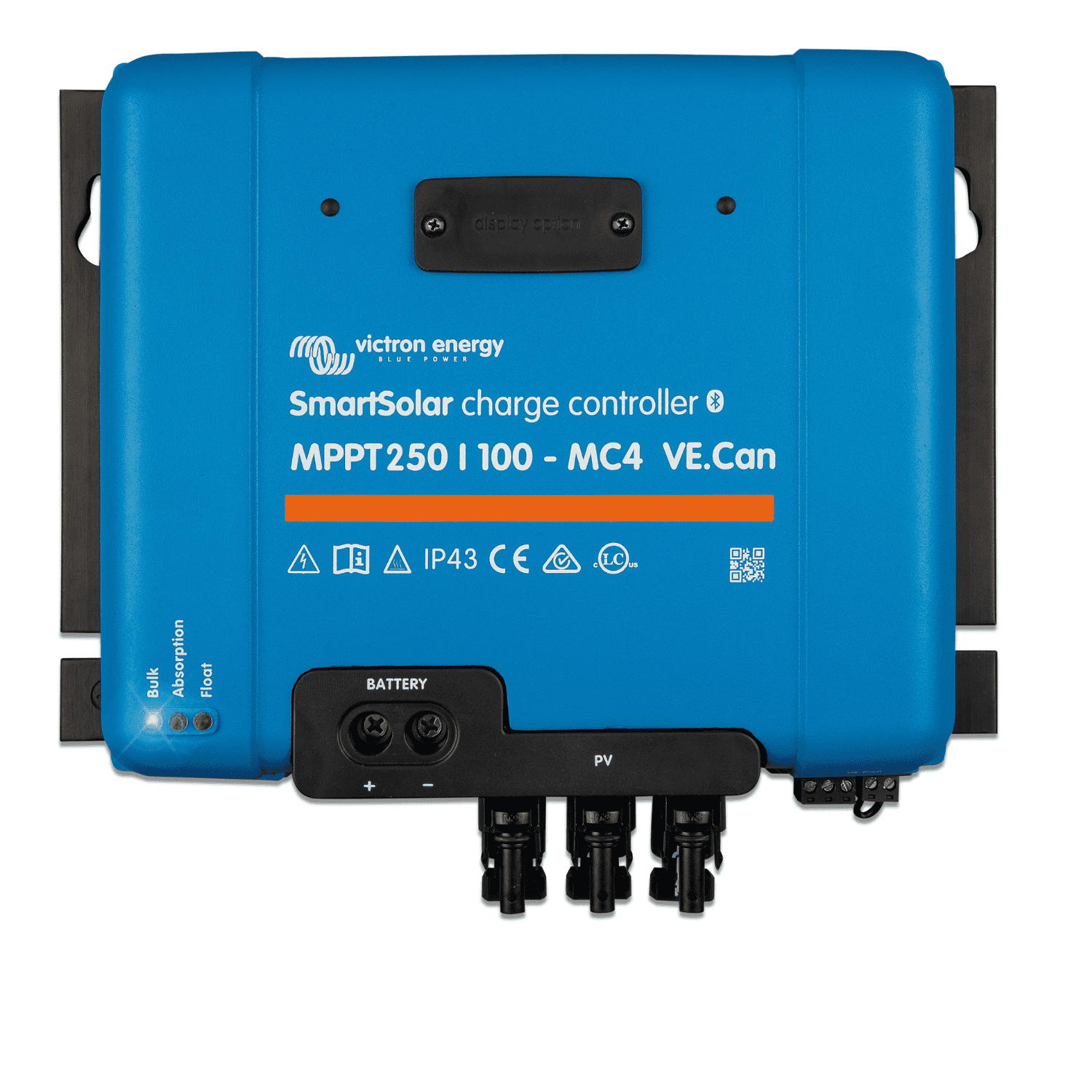

xVictron SmartSolar MPPT 250/100 VE.Can Bluetooth Solar Charge Controller – MC4 PV Inputs
The Victron SmartSolar MPPT 250/100 VE.Can is a professional-grade solar charge controller engineered for high-performance off-grid, hybrid, and energy storage systems. Using ultra-fast MPPT technology, it continuously tracks the optimal operating point of your solar array to maximise energy harvest throughout the day.
This upgraded version features MC4 PV input connectors instead of traditional screw terminals. MC4 connectors provide a significantly safer, more secure, and vibration-resistant connection, eliminating the risk of loose cables and overheating commonly associated with string-type terminals. For added convenience, two pairs of MC4 connectors is included free of charge.
Note: Optional LCD display is not included.
Key Product Features
- Safer MC4 PV Connections: Locking MC4 connectors ensure a stable, professional-grade solar connection, reducing installation errors and preventing cable loosening over time.
- Ultra-Fast MPPT Charging: Delivers up to 100A charging current with up to 99% efficiency, maximising solar yield even in variable light conditions.
- Wide Voltage & Battery Compatibility: Supports PV open circuit voltages up to 250V and automatically adapts to 12V, 24V, or 48V battery systems including lithium, AGM, GEL, and lead-acid.
- Smart Bluetooth Monitoring: Built-in Bluetooth enables real-time monitoring and configuration via the VictronConnect app, with access to live and historical performance data.
- VE.Can Networking & Scalability: Daisy-chain multiple SmartSolar VE.Can units for synchronised charging and seamless integration with Victron GX monitoring systems.
Advanced MPPT Performance
With support for PV open circuit voltages up to 250V and a powerful 100A charge output, the SmartSolar MPPT 250/100 efficiently charges large battery banks while minimising losses over long cable runs. All charging parameters are fully programmable to match specific battery manufacturer requirements.
Remote Monitoring & System Control
Built-in Bluetooth allows direct access from a smartphone or tablet using the VictronConnect app. When connected to a GX device, system data can be accessed remotely via the Victron Remote Management (VRM) portal. For installations without local internet, compatibility with GlobalLink 520 enables long-range monitoring.
VE.Can Networking & Expansion
The integrated VE.Can interface allows multiple SmartSolar VE.Can chargers to be connected using a single RJ45 cable. All units synchronise their charge stages, improving system efficiency and simplifying large-scale solar installations.
Smart Control, I/O & Integration
In addition to VE.Can, the controller features a VE.Direct port for monitoring or lighting control, a remote on/off input for third-party control (including lithium BMS systems), and support for an optional plug-in LCD display for local system visibility.
Ideal Applications
- Off-grid and hybrid solar systems
- High-voltage PV arrays with long cable runs
- Professional energy storage installations
- Marine, mobile, and industrial power systems
Specifications
x
| Model | SmartSolar MPPT 250/100-Tr VE.Can |
| Part number | SCC125110512 |
| Battery voltage | 12 / 24 / 48 V auto select (36 V manual) |
| Rated charge current | 100 A |
| Nominal PV power (12 V) | 1450 W |
| Nominal PV power (24 V) | 2900 W |
| Nominal PV power (36 V) | 4350 W |
| Nominal PV power (48 V) | 5800 W |
| Max PV short circuit current | 70 A (max 30 A per MC4 connector) |
| Maximum PV open circuit voltage (absolute max) | 250 V (coldest conditions) |
| PV start-up and operating maximum | 245 V |
| Maximum efficiency | 99 % |
| Self consumption | Less than 35 mA at 12 V / 20 mA at 48 V |
| Charge voltage (absorption) default | 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage (float) default | 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge voltage (equalisation) default | 16.2 / 32.4 / 48.6 / 64.8 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (8 pre-programmed) or user defined |
| Temperature compensation | -16 mV / -32 mV / -64 mV per °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 5000 m (full rated output up to 2000 m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication | VE.Can, VE.Direct and Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST. AC: 240 VAC / 4 A. DC: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel operation | Yes, synchronised with VE.Can (max 25 units) or Bluetooth (max 10 units) |
| Enclosure colour | Blue (RAL 5012) |
| PV terminals (Tr models) | 35 mm² / AWG2 |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (h x w x d) Tr model | 216 x 295 x 103 mm |
| Safety standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Stored trends | Battery voltage, current, temperature, load output current, PV voltage, PV current |
| Days of trends stored | 46 |
Notes: If more PV power is connected, the controller will limit input power. PV voltage must exceed Vbat + 5 V to start, thereafter minimum PV voltage is Vbat + 1 V. A PV array with a higher short circuit current may damage the controller.
