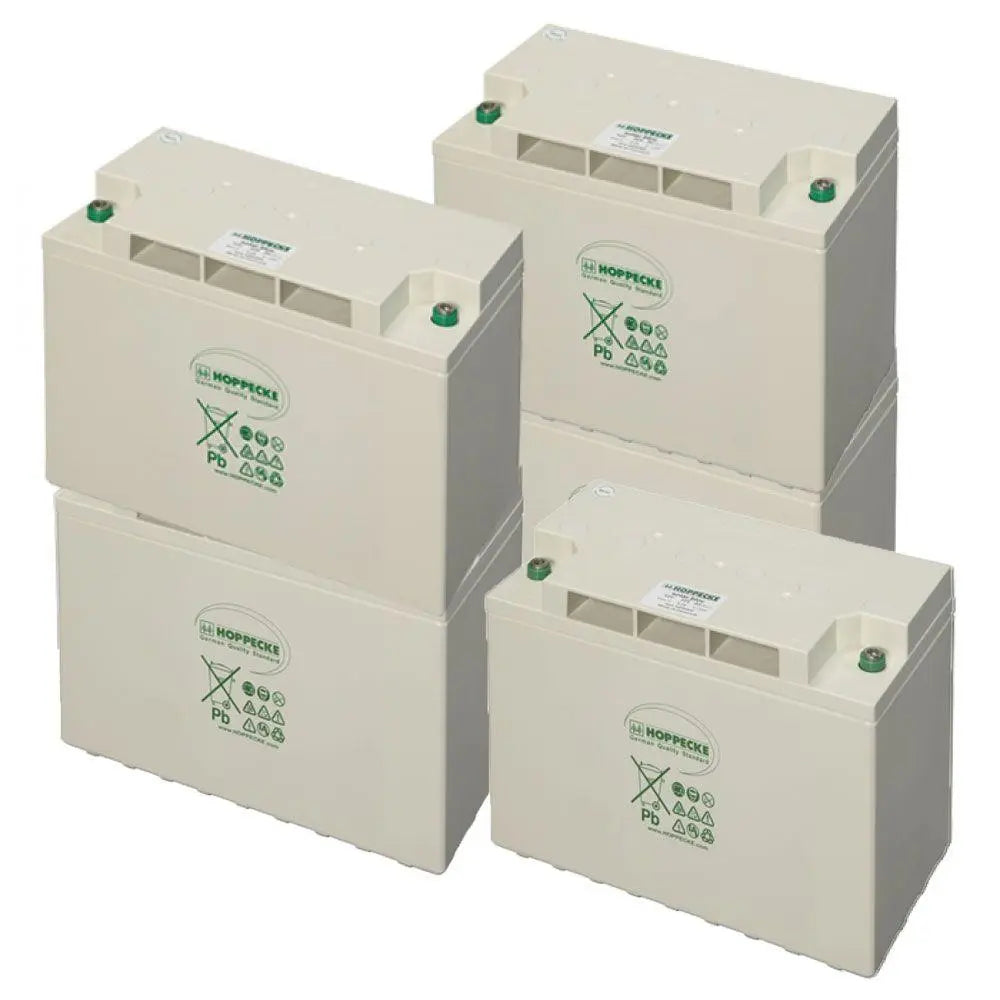

5 Year Extended WarrantyGEL BATTERY (AGM) Bank 16kWh 48V. 200Ah 16pcs 6V CELLS
AGM Battery Bank. 16kWh Energy Storage
Voltacon offers the safest and easiest solution for energy storage which comes in a high quality rack with metal enclosure. All the necessary cables , a dc isolator and fuses are available in the package.
In this listing you will find a complete energy storage package at 48V. The battery banks are delivered with link cables (fully insulated 35mm) and 2 meter link cable from the batteries to the inverter/charger input terminals.
The technology of our energy storage devices is made of valve-regulated lead acid batteries suitable for deep-clying operation.
Dimensions and Weight of the battery bloc
242x170x275mm. 32kg
We have also added two (2) battery disconnectors with 160A fuses in an enclosure. The purspose of this kit is to parallel the battery banks into a 16kWh energy storage
Pre-sized energy packs - Interconnection cables included
- Sunpower pack 16kWh - 48V
|
Type |
Number and Type of VR M blocs |
C10 / 1,80 V per bloc |
|
sun powerpack 16/48V |
16 pcs.sun.power VR M 6V200 |
167Ah |
|
* In parallel connection of 2 racks the dimensions have to be multiplied by 2. |
Typical applications:
- Energy storage system for photovoltaic systems from 3kWp
- Engery supply in case of power failures*
- Energy storage for off-grid power supplies
- Industrial applications (standby and cycle use)
- On- and Off-grid Storage of PV Energy (residential and small commercial)
Your Benefits
- Increase economic of your PV-systems by optimization of grid purchase costs
- Uninterrupted service with autonomous power supply – even in case of power failure*
- Simple handling & operation – components ready for connection
- H ighest reliability – the used components are approved in industrial applications
- Highest flexibility – can be combined with various battery inverters
- 16kWh gross energy content VRLA technology 2.500 cycles at 50% dod
- Suitable 48V Solar off grid and hybrid inverters
Data sheet of GEL VR-M Batteries
Download the technical specification sheet|
Product |
Energy(kWh) |
Nominal(V) |
Racks(Nr.) |
Length(L/mm) |
Width(B/mm) |
Height(H/mm) |
Weight(kg) |
|
sun | powerpack classic 5.5/24 |
5.5 |
24 |
1 |
829 | 385 | 567 | 195 |
|
sun | powerpack classic 6.4/48 |
6.4 |
48 |
1 | 857 | 355 | 724 | 253 |
|
sun | powerpack classic 8.0/24 |
8.0 |
24 |
1 |
829 | 385 | 767 | 295 |
|
sun | powerpack classic 8.0/48 |
8.0 |
48 |
1 |
829 | 385 | 767 | 295 |
|
sun | powerpack classic 11.0/24 |
11.0 |
24 |
1 |
829 | 385 | 899 | 370 |
|
sun | powerpack classic 11.0/48 |
11.0 |
48 |
1 |
829 | 385 | 899 | 370 |
|
sun | powerpack classic 16.0/48 |
16.0 |
48 |
2, parallel |
829* | 385 | 767 | 590 |
|
sun | powerpack classic 22.0/48 |
22.0 |
48 |
2, parallel |
829* | 385 | 899 | 740 |
Recommended use of sun power pack classic - Lead Acid
| Battery size in kWh | 5.5kWh | 6.4kWh | 8.0kWh | 11.0kWh | 16kWh | 22kWh |
|
Annual energy requirement |
< 3,000 kWh | < 3,600 kWh | 3,600 - 4,500 kWh | 4,500 - 6,700 kWh | 6,700 - 9,000 kWh | > 9,000 kWh |
|
Minimum |
2.5 kWp | 3 kWp | 4 kWp | 5.5 kWp | 8 kWp | 10 kWp |
