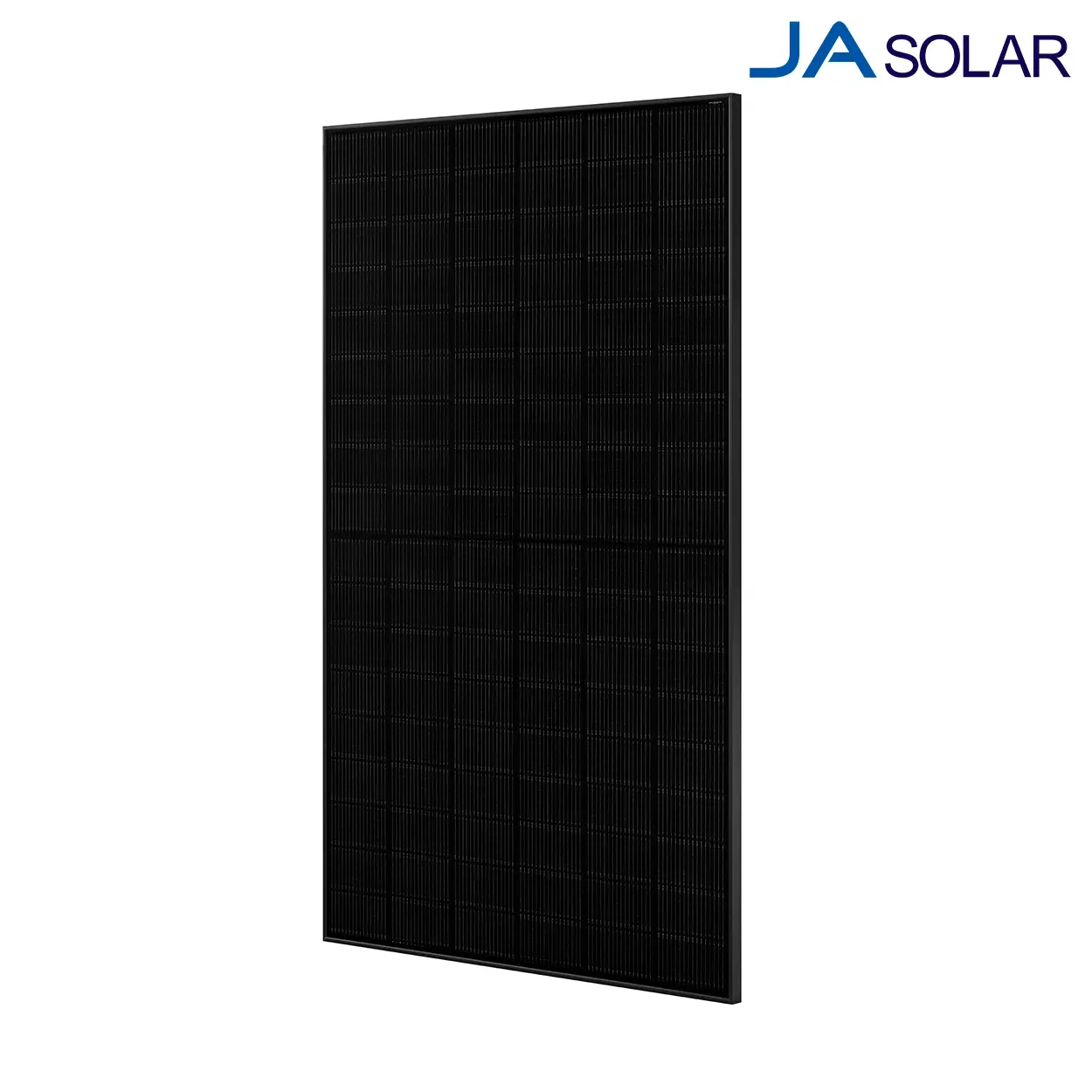

xJA Solar Panel 465W Full Black N-Type Double Glass, JAM54D41-465/LR All Black Traceable
The JA Solar JAM54D41-465/LR (mono-facial) is a premium 465W full black solar panel designed for high performance, long life and a clean modern look. It is suitable for residential and commercial solar systems, including rooftop, hybrid and off-grid installations.
With 465W rated power and 23.3% module efficiency, this panel is a strong choice for residential and commercial rooftop systems where space, appearance and long-term reliability all matter.
Built with advanced n-type cells and double-glass construction, this JA Solar panel offers excellent durability, strong low-light performance and improved long-term power retention. It is ideal for installers and end users looking for a modern solar module from one of the most recognised names in the solar industry.
It includes a 1200mm positive cable and a 1200mm negative cable t
Dimensions : 1762mm x 1134mm x 30mm and a weight of 22k
Produces More Energy for Longer - Investing in Solar Matters
Low degradation profile with 1% first-year degradation and 0.4% annual degradation over 30 years
MCS Certificate: BABT 8515 R37
Strong and Durable Double-Glass Design
This solar panel is built to handle demanding weather conditions. The double-glass design improves strength and helps protect the cells over the long term. It is rated for snow loads up to 5400 Pa and wind loads up to 2400 Pa.
Easy Installation
The panel comes fitted with Stäubli MC4-EVO2 connectors for a safe, durable, watertight connection.
Why choose the JA Solar JAM54D41-465/LR?
- High 465W output for strong energy generation
- 23.3% module efficiency for better use of roof space
- Modern n-type cell technology for strong long-term performance
- Double-glass construction for added durability and product lifespan
- Premium all-black appearance for smart residential installations
- Low temperature coefficient for better performance in warm conditions
- Excellent low-irradiance response for more consistent generation
- 25-year product warranty for long-term peace of mind
- 30-year linear power output warranty
Premium N-type solar technology
The JAM54D41-465/LR uses advanced n-type solar cell technology, which is recognised for improved long-term stability and lower annual degradation compared with older panel generations. This helps maintain stronger output over the life of the system and supports better long-term value for the customer.
High efficiency with a sleek all-black design
With module efficiency of 23.3%, this JA Solar 465W mono solar panel delivers excellent power from a compact residential-friendly format. The all-black finish also makes it a very attractive option for visible roof installations where appearance matters as much as performance.
Double-glass durability for long service life
This module uses double-glass construction to support strength, weather resistance and long-term durability. It is built for dependable operation in demanding outdoor conditions and is well suited to modern rooftop solar systems that require proven performance over many years.
Strong warranties and long-term confidence
JA Solar backs this module with a 25-year product warranty and a 30-year linear power warranty. This makes the panel a strong choice for buyers who want a premium module with reliable performance and manufacturer-backed reassurance.
Applications
- Residential rooftop solar systems
- Commercial rooftop installations
- Premium all-black solar arrays
- Projects requiring high efficiency monofacial panels
Certified Quality
The JA Solar JAM54D41-465/LR is manufactured to recognised international standards for quality, safety and reliability. These include IEC 61215, IEC 61730, IEC 62941, ISO 9001, ISO 14001 and ISO 45001.
Specifications
xTechnical specification
| Manufacturer | JA Solar |
| Model | JAM54D41-465/LR |
| Panel type | Monofacial, double glass, all black |
| Cell technology | N-type monocrystalline |
| Maximum power (Pmax) | 465W |
| Module efficiency | 23.3% |
| Power tolerance | 0 to +5W |
| Open circuit voltage (Voc) | 40.70V |
| Maximum power voltage (Vmp) | 34.02V |
| Short circuit current (Isc) | 14.46A |
| Maximum power current (Imp) | 13.68A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 30A |
| Cell configuration | 108 cells |
| Dimensions | 1762 x 1134 x 30mm |
| Weight | 22kg |
| Front glass | 1.6mm tempered glass |
| Rear glass | 1.6mm tempered glass |
| Junction box | IP68 rated |
| Output cable | 4mm², portrait installation 300mm / landscape installation 1200mm |
| Connector | QC 4.10-35I or MC4-EVO2A |
| Operating temperature | -40°C to +85°C |
| Temperature coefficient of Pmax | -0.290% / °C |
| Temperature coefficient of Voc | -0.250% / °C |
| Temperature coefficient of Isc | 0.045% / °C |
| Product warranty | 25 years |
| Linear power warranty | 30 years |
| First year degradation | 1% |
| Annual degradation from year 2 to 30 | 0.4% |
