Description
xPytes Lithium Ion LPF Batteries - Pack of 2 With Wall Mount Cabinet - Slightly Used

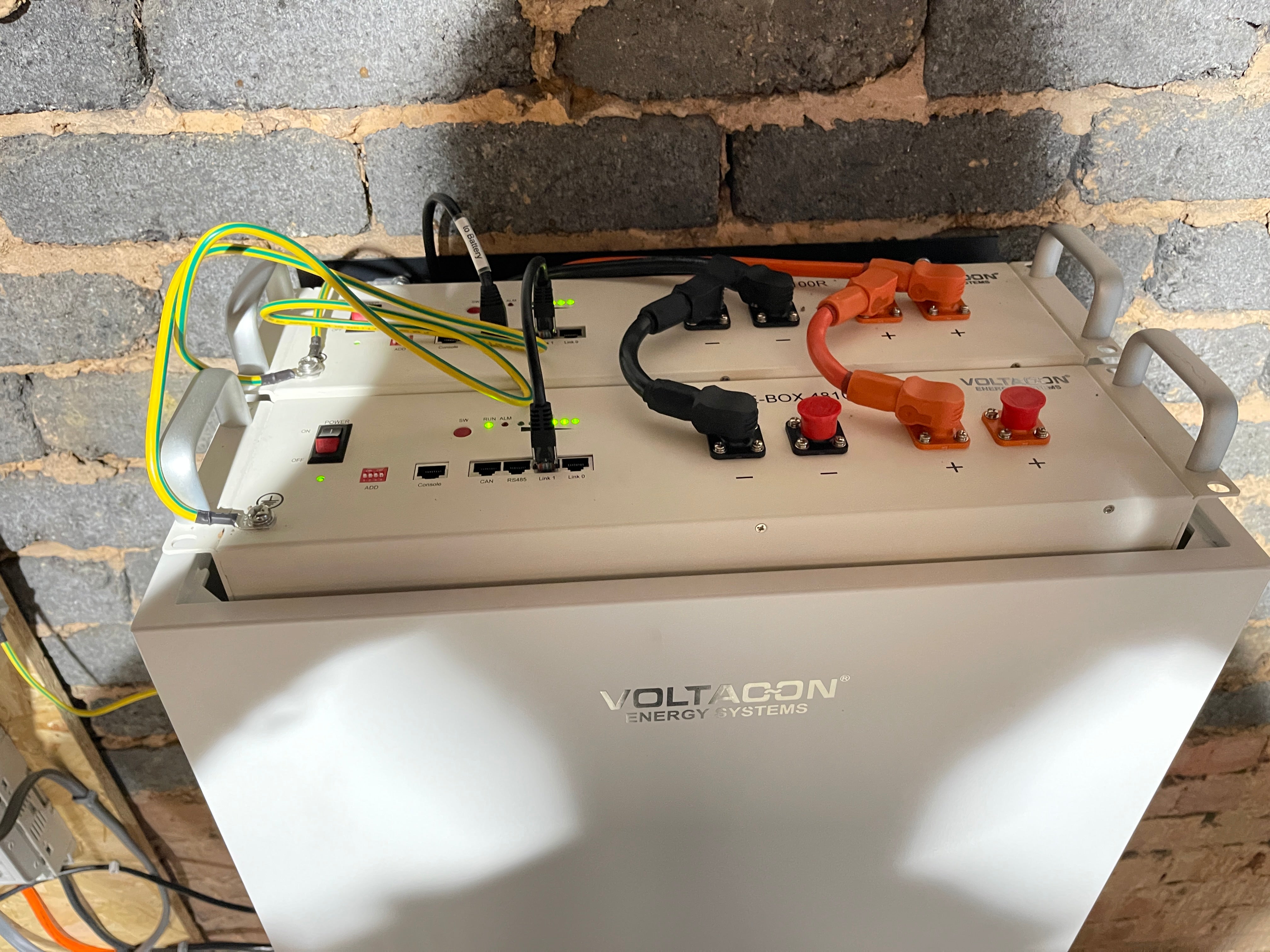

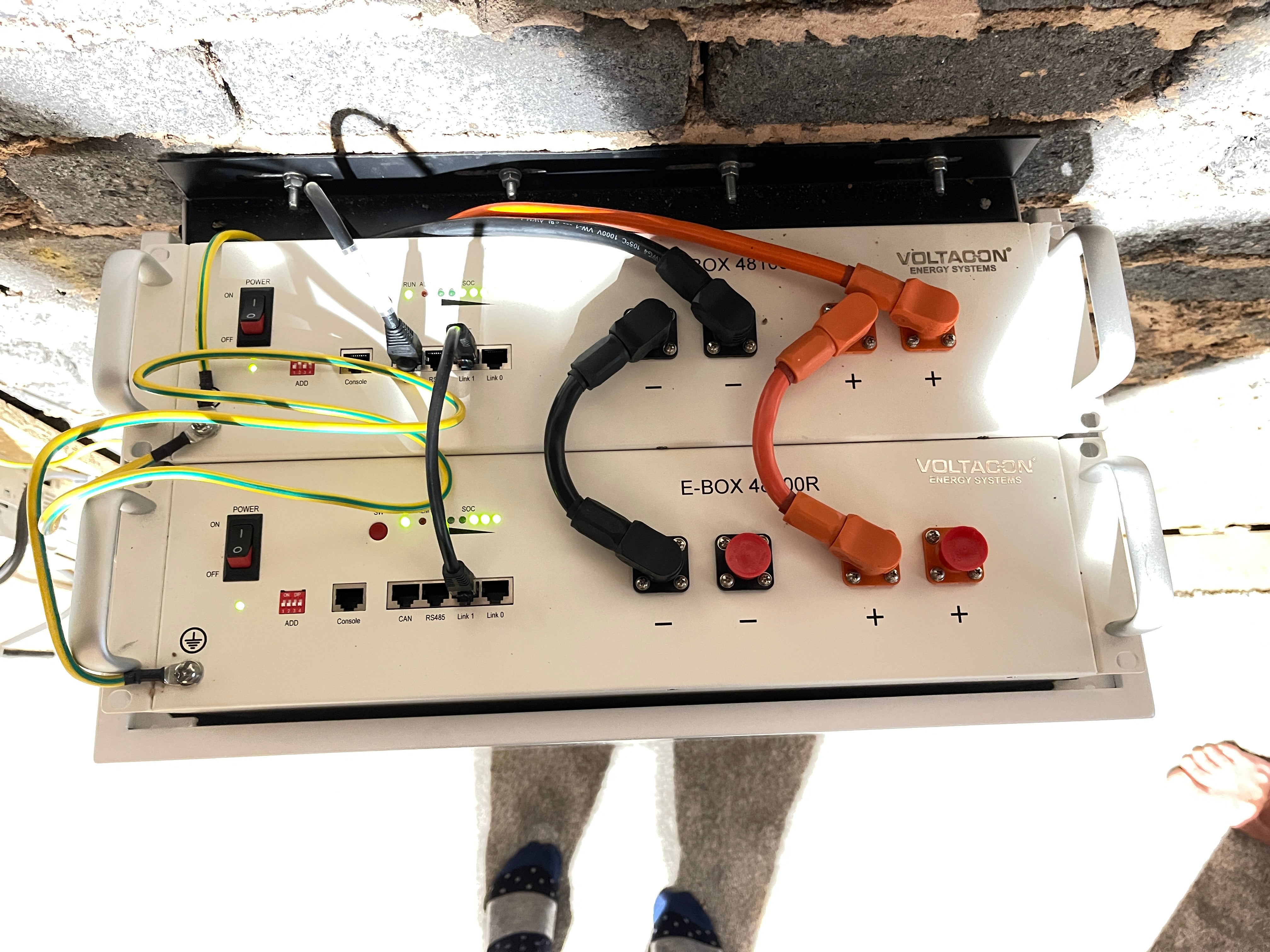

In this listing, a pack of 2 batteries with cables and a wall mount bracket
Perfect working condition, fault-free, for sale due to a relocation of an old customer.

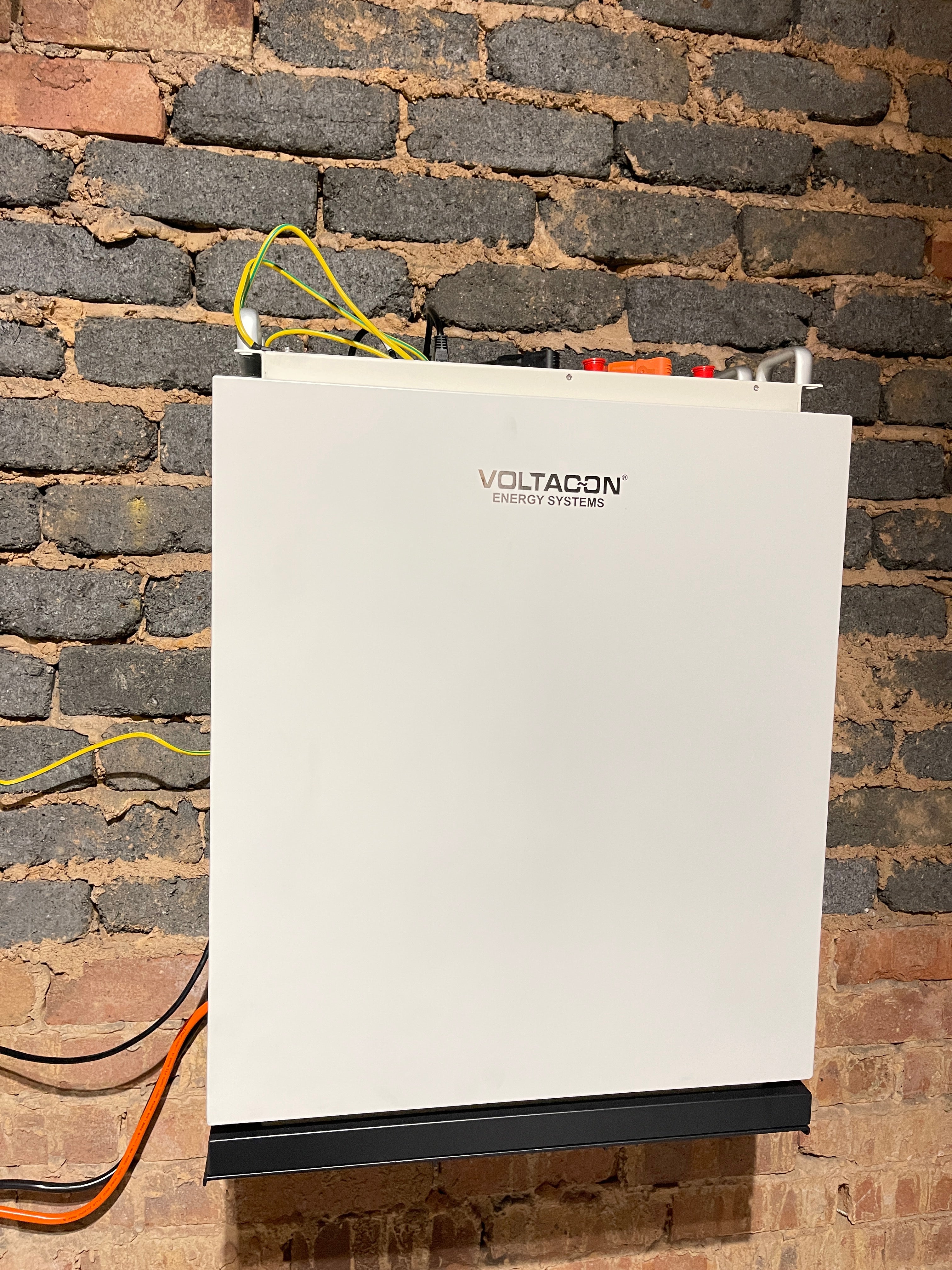

Total storage 10kWh - Free Wall Mounting Box and Brackets Included
Lithium-iron-phosphate (LiFePO4 or LFP) is the safest li-ion battery, more energy efficient, and ideal for off-grid solar and wind applications. Round trip efficiency 92%. Ultra compact and energy-intensive, a single console stores 5.12kWh.
You can create energy storage towers with these 5.12kWh 100Ah batteries that are strong enough to power anything from a camper van to a big house, either in connection with a public grid or entirely off-grid. Power and communication cables are included, so you can easily stack up to 3 batteries with inexpensive metal brackets or up to 8 in a server cabinet. It’s possible to reach up to 125kWh by connecting multiple stacks in parallel, and they are compatible with 20 different solar inverters.
Safety features include built-battery fuses to prevent short-circuiting, thermal management to drain excess heat, a cell balancing algorithm and a battery management system to avoid and protect against over/under voltage. Given the cost of electricity, the batteries and solar panels can pay for themselves within three to five years.
BATTERY IDENTIFICATION
- Nominal voltage: 51.2V
- Voltage range 47.5-57.6V
- Nominal Capacity: 100Ah
- Nominal Energy: 5.12kWh
- Recommended Charge: 50A (2.56kW)
- Discharge Current Max: 50A (2.56kW)
- Peak Discharge Current 102A (5.22@15s)
- Model: 48V100Ah LFP battery
- Size: L440mm* W620mm * H117mm (2.6U)
- Weight: 51kg
- Cycle life: above 6000 cycles
- Warranty 10 years.
THE MAIN ADVANTAGES OF LITHIUM-ION BATTERIES
- Extremely high efficiency, round trip efficiency 95%
- Very low standby consumption of less than 0.5Watt
- Higher discharge and starting current compared to lead-acid
- Energy density 100-200Wh/kg
- Power density 1500-2000W/kg
- Recharge time 1 hour to 100%
- Operating temperature from 0°C to 45°C
KEY FEATURES
-
We offer 48V 100Ah batteries with sophisticated & reliable BMS.
-
You can connect them in parallel to make a 3.5kwh to 120kWh system.
-
Easy to install and free of maintenance
-
Long-lasting (up to 6000cycles)
-
Can be used on-grid and off-grid
-
IEC62619 & UN38.3 certificates.
-
Compatible inverters: Voltacon, Kelong, Goodwe, Sermatec(SMT), Studer, Victron, Deye, TBB Power, Schneider, Voltronic, LuxPower, Afore, Megarevo, Solis.
Specifications
x| Nominal Voltage | 51.2V |
| Nominal Capacity (Wh) | 5120Wh |
| Usable Capacity (Wh) | 4250Wh |
| Dimensions (mm) | L440mm x W620mm x H117mm |
| Weight (kg) | 51kg |
| Discharge Voltage (V) | 45~54V |
| Charge Voltage (V) | 57.6V |
| Charge / Discharge Current (A) | 50A (Recommended) / 70A (Max) / 100A (Peak @2s) |
| Communication Port | RS232, RS485, CAN |
| Working Temperature (°C) | 0 to 50°C |
| Storage Temperature (°C) | -20 to 60°C |
| Certifications | IEC62619 / UN38.3 |
| Design Life | 10+ Years at 25°C |
| Cycle Life | >6600 cycles at 22°C |
