x11kW Professional Off Grid Solar Power Kit With Battery Storage
This professional 11kW off grid solar power kit is designed for users who need reliable, high output energy generation with full independence from the grid. It is ideal for homes, farms, workshops, remote properties, and commercial sites where consistent power, scalability, and uninterruptible power supply is required.
The system delivers a powerful 11kW AC output and is paired with 15kWh of lithium energy storage, allowing you to run demanding electrical loads while maintaining stable power day and night. High-efficiency solar generation is provided by 10 premium JA Solar 450W panels, ensuring excellent performance even in challenging weather conditions.
All components in this kit are professionally selected to work seamlessly together. The system is pre engineered to reduce installation complexity, minimise losses, and maximise overall system efficiency. This is not a basic DIY setup but a complete, professional grade energy solution.
Notice: A wiring diagram is supplied with every solar kit
Designed for True Energy Independence
This off grid system operates independently from the national grid, giving you full control over your electricity supply. Solar energy is used first to power your loads, with excess energy stored in the battery bank for use during the evening or periods of low sunlight.
The system also supports optional grid connection and backup generator input, offering maximum flexibility. If required, the batteries can be charged from the grid during low cost night tariffs or from a generator in extended low solar conditions.
Premium Solar Panels and Reliable Energy Storage
The kit includes 10 high quality JA Solar 450W panels, known for their excellent efficiency, durability, and long service life. These panels deliver strong performance across a wide range of light conditions, making them suitable for year round operation in the UK and Europe.
Energy storage is provided by a 15kWh lithium battery system, delivering fast charging, deep discharge capability, and long cycle life. This ensures stable power delivery and reduced reliance on backup sources.
Expandable and Future Ready System
This solar power kit is designed with future expansion in mind. Additional battery storage or solar panels can be added later if your energy requirements increase. This makes the system a long term investment rather than a fixed capacity solution.
Whether you are aiming to eliminate electricity bills, secure reliable backup power, or power a fully off grid property, this 11kW system delivers performance, flexibility, and peace of mind.
With Grid Backup Capability
Although this is a true off-grid solar system, it is fully compliant with national grid connection standards and can be connected to the grid as a backup energy source if required. This provides an additional layer of security without compromising your energy independence.
The inverter is configured for non export operation, meaning no electricity is fed back into the grid. As a result, no export licence, approval process, or long term energy supplier contracts are required.
When connected to the grid, the system behaves like any other household appliance. It simply draws power when needed to charge the batteries, for example during low cost night time tariffs, while remaining fully independent during normal operation.

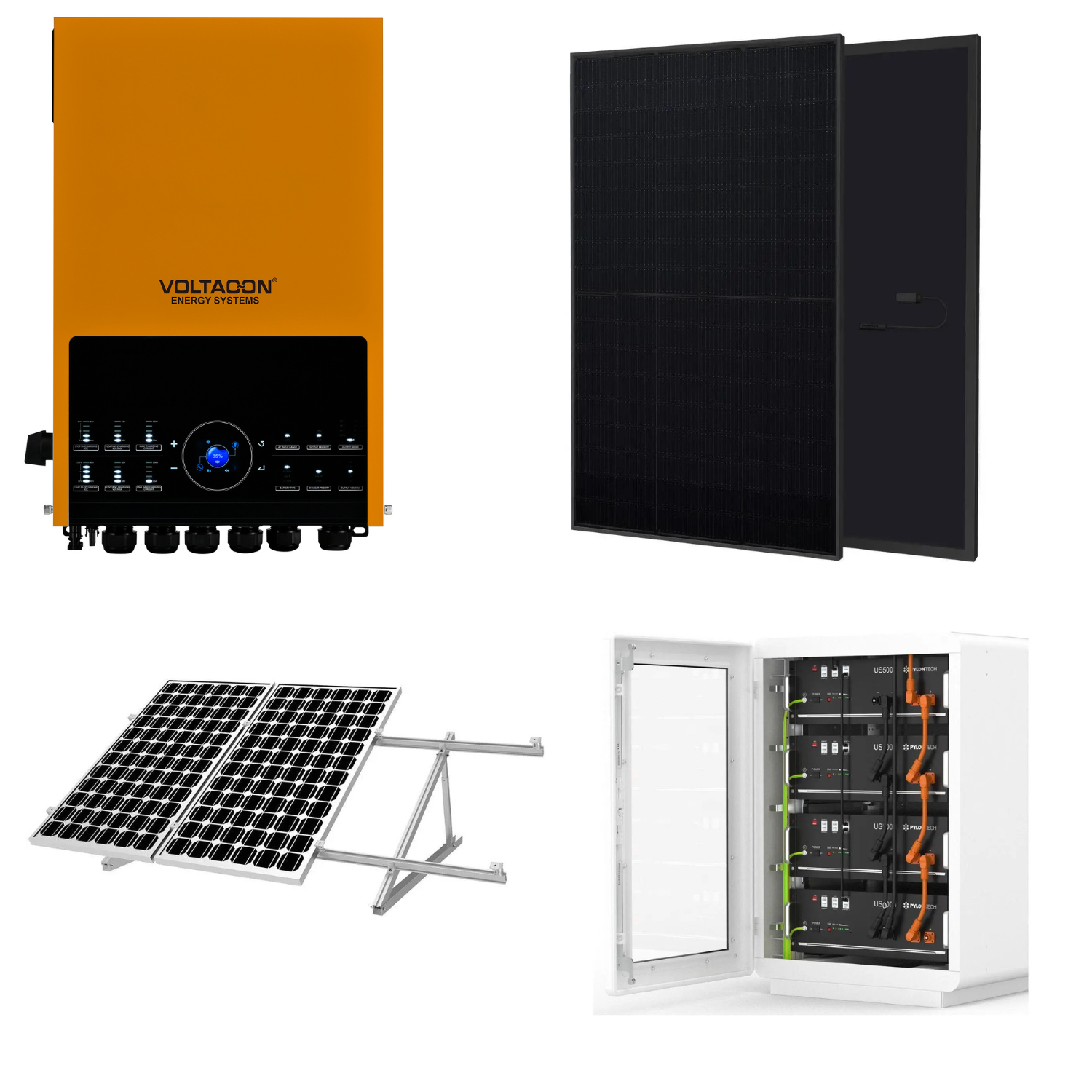

Complete System Components Included
This professional off grid solar kit is supplied as a complete solution, with all critical components carefully selected to ensure reliability, safety, and future expandability.
| Component | Description | Quantity |
| Solar Inverter | Conversol MAX-III 11kW off grid inverter with up to 12,500W maximum PV input | 1 |
| Battery Storage | US5000C lithium batteries installed in a black server cabinet, providing 20kWh total energy storage | 4 |
| DC Power Cables | Red and black 6mm² solar DC cables, 25 metres total length | 1 set |
| Battery Protection | MERSEN fuse disconnector fitted with 250A fuses for battery protection | 1 |
| BMS and Battery Cables | Complete set of BMS communication cables and heavy duty battery power cables | 1 set |
| DC Distribution | Lynx Power In distributor for safe and organised DC power distribution | 1 |
| System Monitoring | Solar Assistant online monitoring platform for live system performance and energy tracking | 1 |
| PV Combiner Box | Solar PV combiner box with 4 inputs and 4 outputs, pre-configured and ready for future expansion | 1 |
| Mounting System | Mounting kit suitable for ground installation or flat roof applications | 1 set |
Specifications
xElectrical Specifications of the MAX-III 11kW Conversol Inverter MPPT Charger
| Model | Axpert MAX III Off-Grid Inverter |
| Rated Inverter Power | 11000 VA / 11000 W |
| Parallel Capability | Yes, up to 6 units |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170 to 280 VAC (Computers), 90 to 280 VAC (Home Appliances) |
| Input Frequency Range | 50 Hz / 60 Hz automatic sensing |
| AC Output Voltage Regulation | 230 VAC ± 5% (Battery mode) |
| Surge Power | 22000 VA |
| Peak Efficiency | 93 percent |
| Transfer Time | 10 ms for computers, 20 ms for home appliances |
| Output Waveform | Pure sine wave |
| No Load Power Consumption | Less than 75 W |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 12000 W (6000 W x 2 MPPT) |
| MPPT Operating Voltage Range | 90 to 450 VDC |
| Maximum PV Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 27 A x 2 (maximum 40 A) |
| Maximum Solar Charge Current | 150 A |
| Maximum AC Charge Current | 150 A |
| Total Maximum Charge Current | 150 A |
| Dimensions | 176.3 x 432.4 x 687 mm |
| Net Weight | 30 kg |
| Communication Interfaces | USB, RS232, RS485, Wi-Fi, dry contact |
| Operating Humidity | 5% to 95% relative humidity, non condensing |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Compliance and Standards | IEC 62109, IEC 61683, EN/IEC 61000-6-2, 61000-6-4, 61000-3-11, 61000-3-12 |
