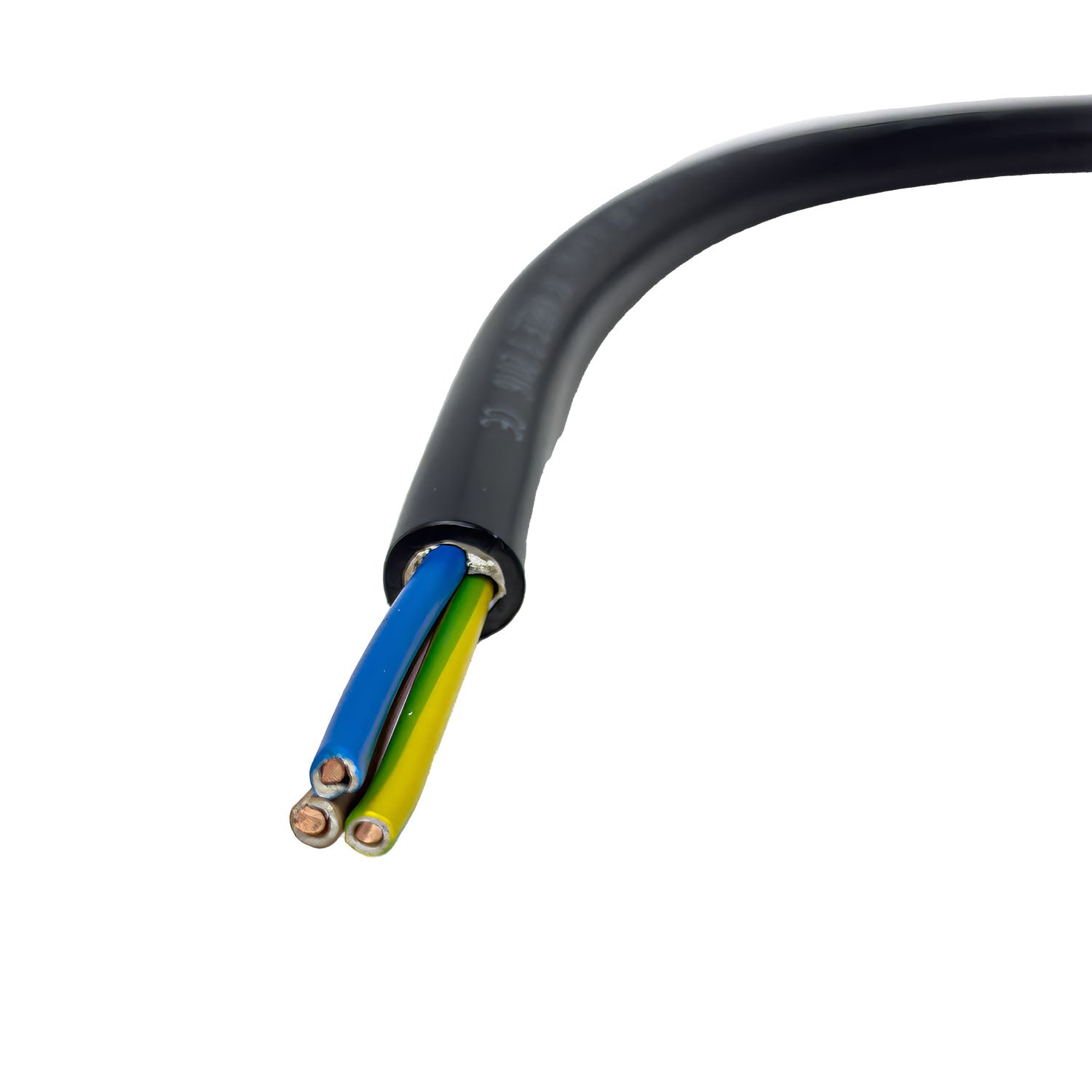

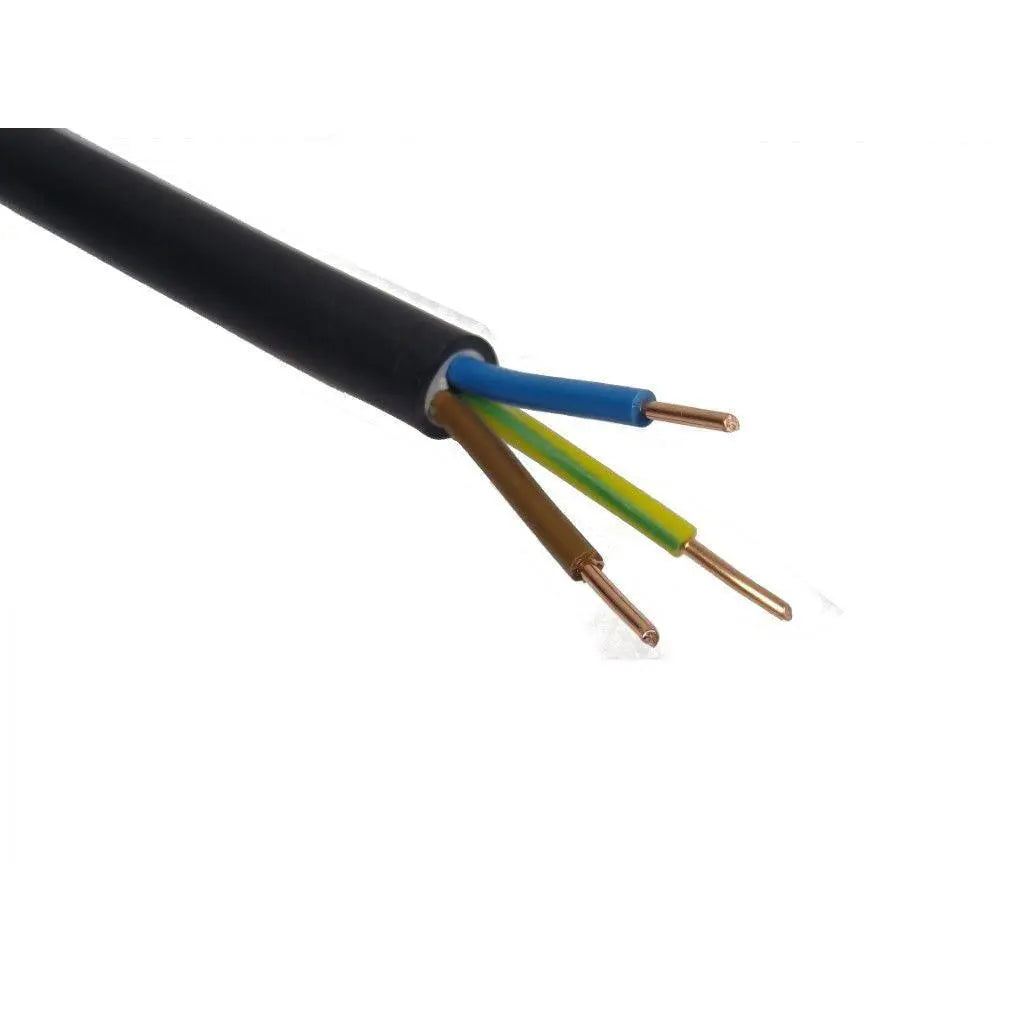

xHelukabel NYY-J Power Cable – 3-Core 4mm² (Black)
NYY-J 3 Core 4mm². Price per meter. Quantity determines the number of meters.
This VDE approved cable is made in Germany with high-quality double PVC insulation. NYY-J cables are versatile and durable, they can be installed outdoors, underground, in brick and concrete walls. This type of cable has exceptional resistance to UV radiation and all weather conditions. The operating temperature is -40°C to +70°C.
APPLICATIONS AND USAGE
It is used a power and control cable. The ideal use is in single-phase power supplies and solar systems. It can be connected as the main AC output cable to all our solar inverters
This high-quality German-made Helukabel NYY-J power cable is designed for both domestic and industrial applications, offering durability and high-performance power distribution. It meets DIN VDE 0276-603 and IEC 60502 standards, ensuring reliable and safe energy transmission. The 4mm² copper conductor provides excellent electrical conductivity, while the robust PVC outer sheath enhances resistance to mechanical stress, UV radiation, and moisture.
Ideal for fixed installations, this cable is suitable for underground, indoor, and outdoor use. With a temperature range of -40°C to +70°C (fixed installation), it performs well in challenging environments. Flame retardant and manufactured without harmful substances, this cable ensures long-term safety and efficiency. Available in cut-to-length options for customised applications.
Specifications
xTechnical Specifications
| Item Details | Specification |
|---|---|
| Part No. | 32089 |
| Item Description | NYY-O Black 1 x 4mm² |
| Outer Ø (mm) | 8.1 |
| Cu Factor per km | 38.0 |
| Weight (kg/km) | 115.0 |
| Copper Base (EUR/100kg) | 0 |
| Metres per Packaging Unit | 100, 500, 1000 |
| Cut-to-Length Service | Yes |
| EAN / GTIN | 4060892263873 |
Technical Data
| Property | Specification |
|---|---|
| Standard Compliance | DIN VDE 0276-603 / HD 603 S1 / IEC 60502 |
| Temperature Range (Flexing) | -5°C to +50°C |
| Temperature Range (Fixed Installation) | -40°C to +70°C |
| Conductor Operating Temp. | +70°C |
| Short Circuit Temp. (≤300mm²) | +160°C |
| Short Circuit Temp. (>300mm²) | +140°C |
| Nominal Voltage (U0/U) | 600/1000 V |
| Test Voltage | 4000 V |
| Highest Permissible Voltage | DC: Conductor/Conductor 1.8 kV, Earth 0.9 kV |
| AC Single Phase (Outer Conductors Insulated) | 1.4 kV |
| AC Single Phase (One Conductor Earthed) | 0.7 kV |
| Three-Phase Systems | 1.2 kV |
| Minimum Bending Radius | Single core: 15x Ø, Multi-core: 12x Ø |
Cable Structure & Properties
- Conductor: Bare copper, single or multi-wire (VDE 0295 cl.1/cl.2)
- Core Insulation: PVC, type DIV4 (HD 603 S1)
- Core Identification: VDE 0293-308 / 0276-603
- Sheath Material: PVC, type DMV5 (HD 603 S1)
- Sheath Colour: Black
- Flame Retardant: IEC 60332-1-2
- Free from: Cadmium, silicone, and substances affecting lacquer adhesion
This premium-quality Helukabel power cable ensures reliable electrical performance and is ideal for demanding installations.
