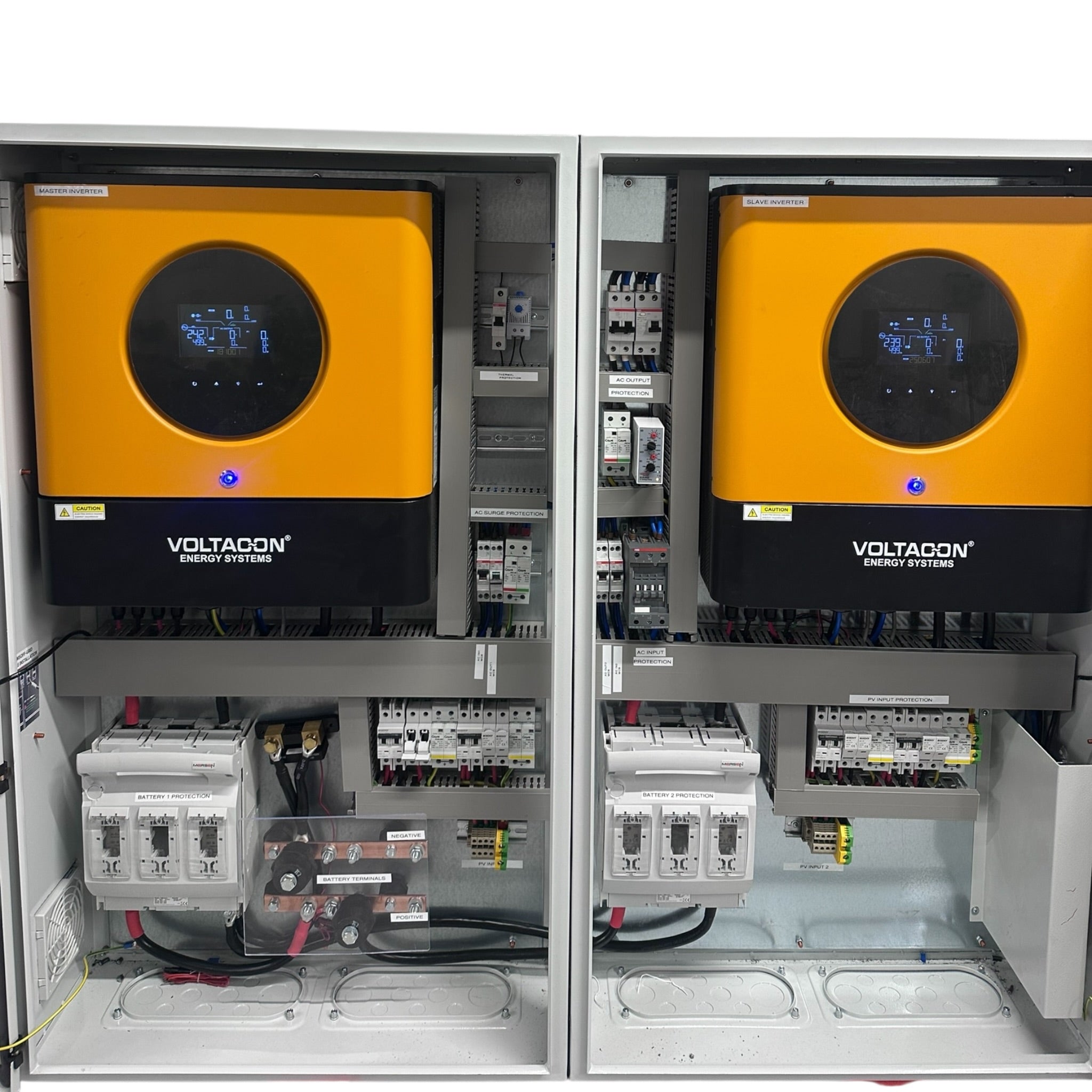

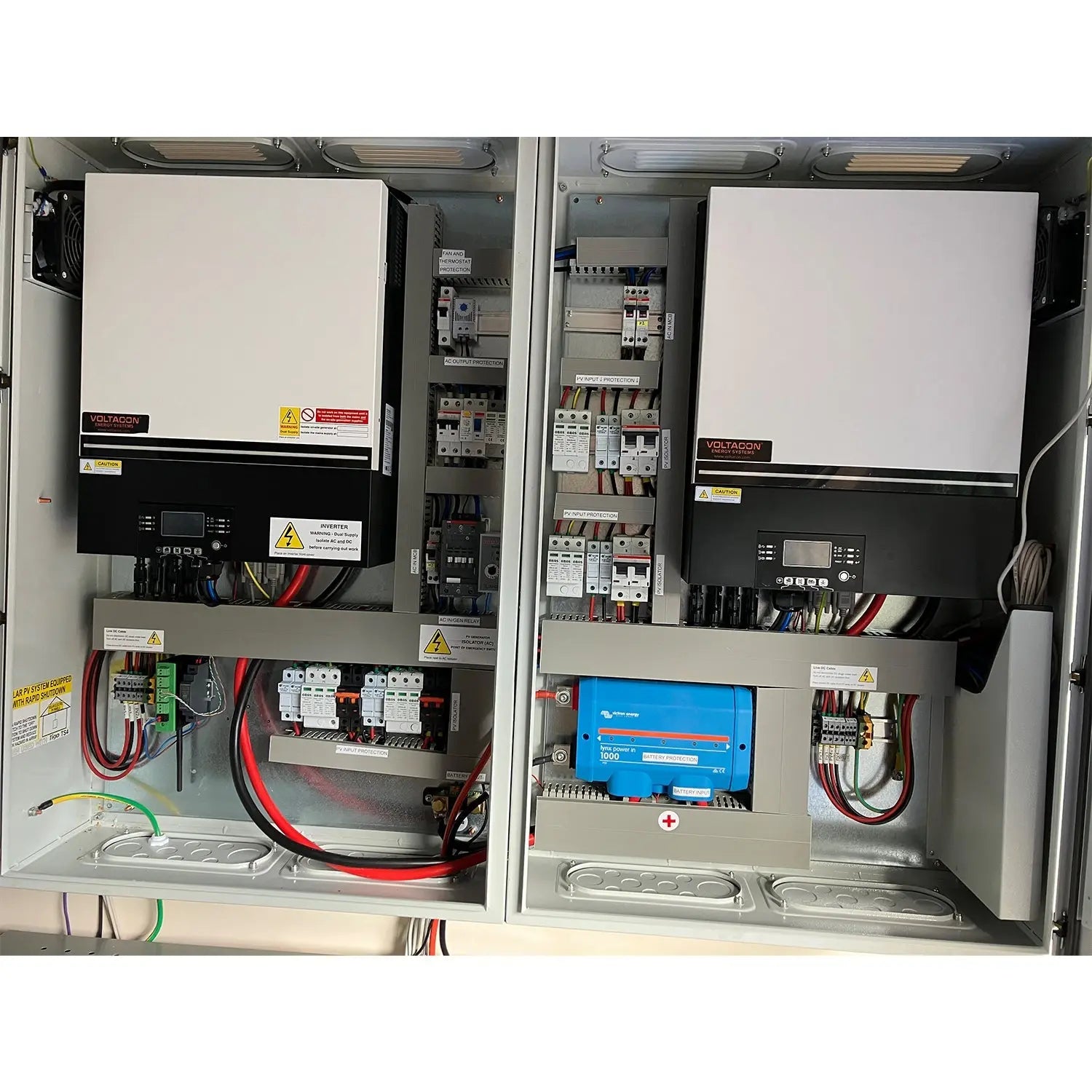

The Voltacon Silent Power Solar Off-Grid Control Cabinet is a complete 22kW single phase energy system designed for domestic and commercial installations. Built with dual parallel Conversol MAX inverter chargers, this cabinet delivers reliable power with support for grid or generator backup.
Each unit is fully wired and tested in the UK for fast installation and dependable performance. The compact cabinet design reduces installation time while keeping all critical components safely integrated in one system.
The system includes advanced monitoring with app access and Bluetooth connectivity, allowing installers and users to track battery temperature, system performance, and energy status from Android devices. Real time visibility helps prevent avoidable battery stress and improves long term system reliability.
This all in one off-grid control cabinet combines strong power output, safety focused DC design, and professional assembly standards. It is ideal for projects that need robust off-grid performance with simple installation and remote oversight.
| MODEL |
Conversol 8kW Max |
|
| Rated Power |
8000Watt / 800VA |
|
|
INPUT |
||
| Voltage | 120 VAC or 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz/60 Hz (Auto-sensing) | |
|
OUTPUT |
||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 15000VA |
|
| Efficiency (Peak) | 90% - 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
|
BATTERY |
||
| Battery Voltage | ||
