Description

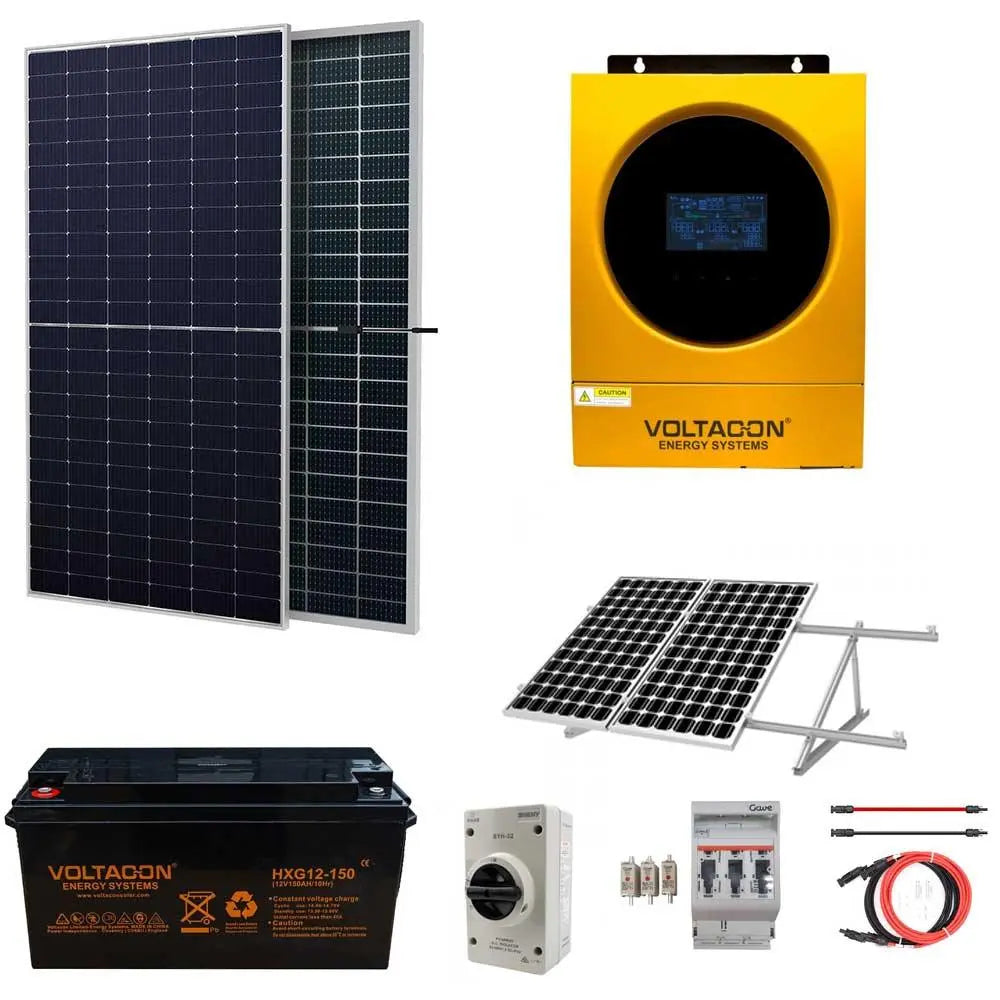

xVoltacon 3.6kW Off-Grid Solar Kit – Inverter, MPPT Charger, Bifacial Panels and GEL Batteries
This complete Voltacon off-grid solar kit provides everything required to power AC loads up to 3kW continuously from a 24V battery bank charged by solar panels. Built around a 3.6kW Conversol off-grid inverter with 80A MPPT charger, six 550W bifacial panels, and four 150Ah GEL batteries, the kit is designed, assembled, and tested in the UK and delivered palletised with wiring instructions and UK technical support.
Key Features
- 3.6kW Conversol off-grid inverter with integrated 80A MPPT solar charger
- 24V battery bank, max PV input 4000W, MPPT range 30–115VDC
- Max solar charge current: 60A, max AC charge current: 60A
- Peak efficiency: 93% (line mode), 90% (battery mode)
- 6x 550W bifacial monocrystalline panels (3,300W total PV)
- 4x 150Ah 12V GEL batteries with 12-year design life
- Triangle adjustable mounting structure for flat surface installation
- 15m red and 15m black 4mm solar flexible cable
- 80A battery fuse and disconnector
- 15A panel fuses and DC isolator for panels
- Battery cables 2.5 metres
- Small consumer unit
- 5m AC 3-core 6mm power cable for 230VAC output
- All components delivered palletised with wiring instructions
Product Overview
The system is designed to run domestic and light commercial AC loads up to 3,000W from stored solar energy. The 24V GEL battery bank provides 7.2kWh of gross energy storage, with the bifacial panel configuration capable of adding rear-side generation from reflected light, improving total daily yield in suitable installation conditions.
The MPPT charger accepts up to 4,000W of solar input with up to 10% overload tolerance, and can also charge the batteries from a mains or generator AC source at up to 60A. The system supports generator auto-start via the auxiliary contact when battery charge falls below a set threshold.
The mounting structure included is a triangular adjustable bracket suitable for flat roof or ground installations. If you require a different mounting arrangement, contact us before ordering and we will swap the mounting kit at no extra cost.
Applications
- Domestic off-grid properties and cabins
- Backup power for homes and small commercial premises
- Remote site power where grid connection is unavailable or impractical
- Generator-backup off-grid systems
Installation and Safety Notes
This kit must be installed by a qualified electrician. Battery connections, DC fusing, AC output wiring, and earthing must comply with IET Wiring Regulations. GEL batteries must be installed and charged within the manufacturer's specified temperature and voltage ranges. Do not attempt DIY installation of inverter or battery systems.
