Description
xThis 3-phase solar hybrid kit is suitable for large residential properties, warehouses, and factories. It functions as a stand-alone storage solution and provides seamless connection with grid-tied PV systems. This innovative product is manufactured with quality materials and advanced components, and it's been tested and validated in the UK.
This system utilises high-voltage batteries to unlock new levels of power and performance. The market is currently dominated by 48V systems, with this solution offering more power for demanding projects. This product meets new industry standards for electric vehicles, which operate with high-voltage batteries at 600-1000V.
Key benefits include:
- Longer life expectancy — over 15 years compared to 10-12 years with 48V batteries.
- Smaller and lighter components — making them easier to install.
- Thinner cables — for easier management and better aesthetics.
- Lower current (amps) — enabling a fanless cooling system with zero noise.
How can I benefit from this system?
Interconnection between existing PV grid installations
If you have already a grid-tied photovoltaic system that exports energy back to the grid, you can install the 3-phase ESS to control and store the energy from your existing PV installation. The energy will be used on demand when it is required without affecting your payments form the feed-in tariff.
As a stand-alone energy storage with solar panels
Second scenario, the inverter will be connected to a solar PV array and the energy will be fed to the consumer unit of the property while any excessive power will be diverted back to the batteries.
In a simple diagram that is generated by Solis Cloud, it is apparent how the system works with the contribution of the batteries and the grid. We do not export any power back to the grid, if it is necessary the settings can be altered to export any power from 0w to 10000W.
Solis Online monitoring: Battery and grid supply simultaneously the industrial loads.

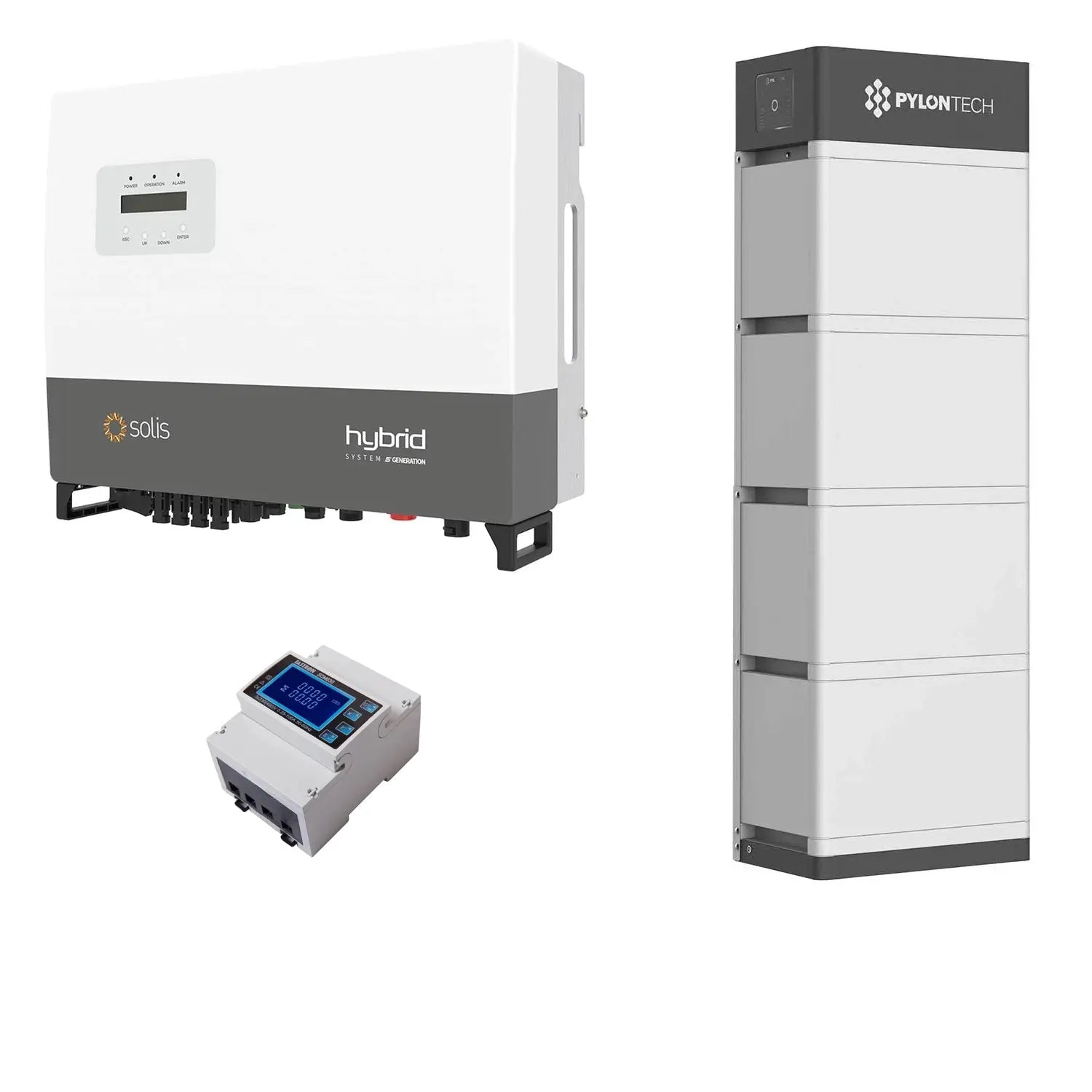

Content of the package
-
SOLIS 10kW RHI-3P10K-HVES-5G
-
Wi-Fi monitoring for the inverter
-
3-phase Eastron SDM630 CT Modbus
-
3 CT current transformers 100/5A
-
Control unit for Force H2 FC0500M-40S - FH2
-
4x Pylontech battery modules 96V each
-
Battery cables
-
BMS and data communication cables.
-
Energy meter ethernet cable (10m included)
Specifications
xSpecification for a tower of 4 batteries
* Up to 6 identical groups of batteries can be paralleled.
| Battery Parameters | |
| Battery Module | FH9637M |
| Battery Module Voltage(Vdc | 96V |
| Battery Module Capacity(Ah) | 37A |
| Battery Module Qty. (Optional) | 4 |
| Battery System Voltage (V) | 384 |
| Battery System Capacity(Ah) | 37 |
| Battery System Capacity(kWh) | 14.21 |
| Dimension (W*D*H mm) | 450X296X1414 |
| Weight(kg) | 152 |
| Depth of Discharge | 95% |
| Charge/ Discharge Current(A) | 18.5 / 40A |
| Multi-group | Max 6 systems in parallel |
| Communication | CANBUS / Modbus RTU |
| IP rating | IP55 |
| Working Temperature/ ℃ | 0-50 |
| Shelf Temperature/ ℃ | from -20deg to 60 deg |
| Humidity | 5% to 95% |
| Altitude | <2000 |
| Design Life | 15+ years at 25 deg |
| Cycle Life | >8000 at 25 deg |
| Certification | VDE-AR-E 2510-50/ IEC62619/IEC63056/IEC62040-1/CEC/CE |
