Description

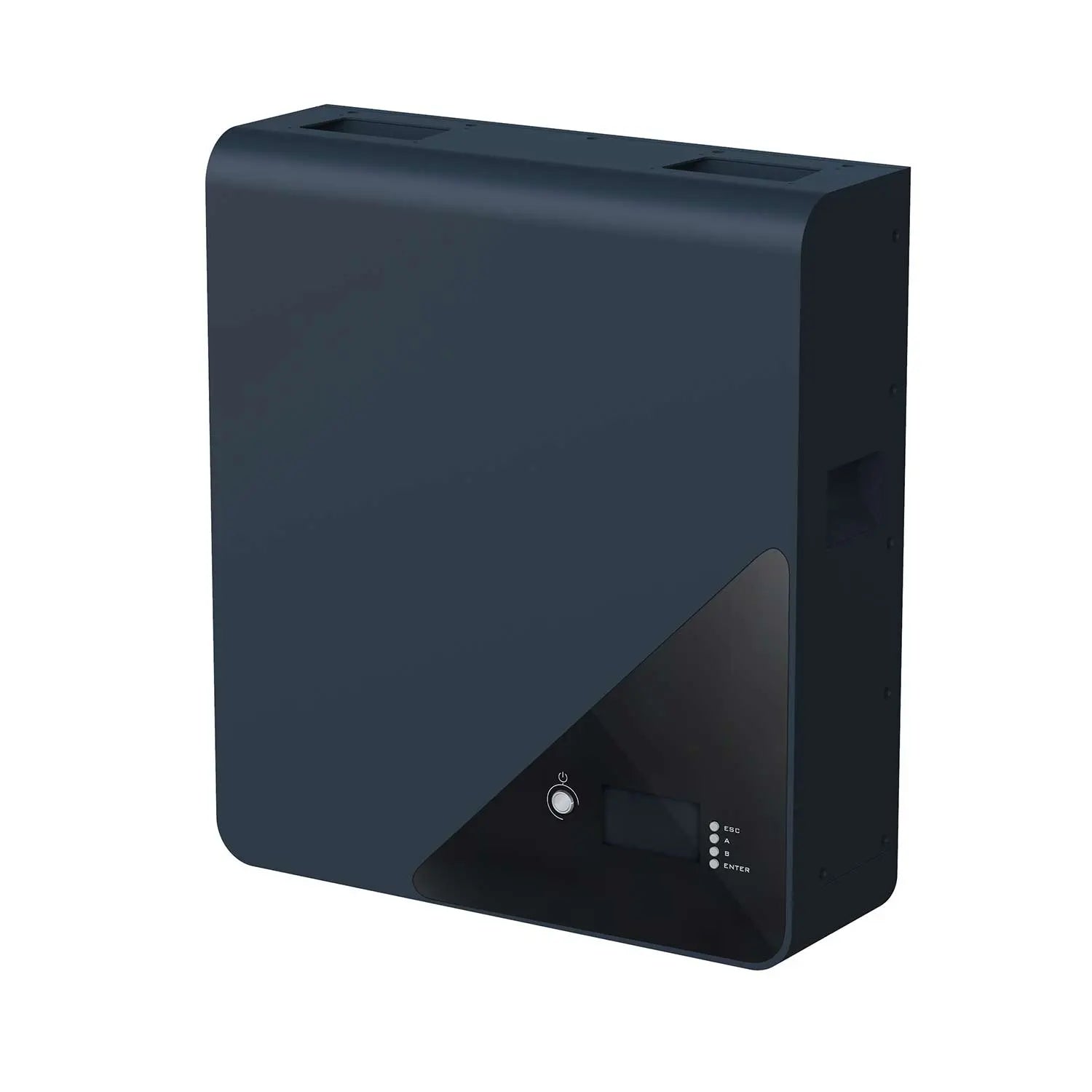

xACE-Lithium Ion Battery Active Cell Balancing 5kWh 48V - IP65
The ACE-Lithium Ion Battery is a high-performance energy storage solution designed to work seamlessly with our Voltacon off-grid inverters and BESS systems, including the 5500W hybrid inverters. Offering a cost-effective energy solution, this battery is the perfect complement to your off-grid setup. For a complete system, simply add the Conversol 5kW VM-II premium inverter to your basket.
Key Features:
- Built-in Active Cell Balancing: Ensures optimal battery performance and longevity by equalising energy across all cells.
- Wall-Mounted Design: Space-efficient, this battery can be easily installed on both indoor and outdoor walls.
- Scalable: Expand your energy storage with up to 16 units connected in parallel to meet your energy needs.
- IP65 Enclosure: Dust-tight and waterproof, making it ideal for robust and outdoor applications.
- Compatible: Works seamlessly with all Voltacon off-grid solar inverters in the 48V range, from 5kW to 11kW.
Product Details:
- Battery Type: Lithium Iron Phosphate (LiFePO4), providing superior stability and longer cycle life.
- Rated Voltage: 51.2V, ideal for off-grid applications.
- Rated Capacity: 100 Ah, providing 5.12kWh of energy storage.
- Discharge Voltage Range: 43.2V to 51.2V for reliable performance.
- Maximum Charging Current: 50A, ensuring efficient charging.
- Maximum Continuous Discharge Current: 100A for substantial power output.
- Cycle Life: Over 4000 cycles at 80% Depth of Discharge (DOD), offering long-lasting performance.
Additional Features:
- Built-in Battery Management System (BMS): Monitors and manages voltage, current, and temperature, ensuring safe operation and optimised performance.
- Temperature Range: Can operate between 0°C to +60°C when charging and -20°C to +60°C during discharge.
- Long Service Life: Over 15 years of design life with minimal self-discharge and no memory effect, perfect for long-term energy storage.
- Enhanced Performance in Extreme Conditions: The battery performs well in both high and low temperatures, maintaining good discharge performance even in cold environments (down to -20°C).
- Parallel Connectivity: Supports up to 15 units in parallel, offering scalable energy storage for larger systems.
Specifications
xLIO II-4810E Lithium-ion Battery Specifications
| Battery Cell Technology | Lithium Iron Phosphate |
| Nominal Voltage | 51.2 V |
| Battery Capacity | 100Ah |
| Max. Continuous Charging / Discharging Current | 100A @ 0.2C, 25°C |
| Max. Charging Voltage | 57.6 V |
| Max. Discharging Voltage | 43.2 V |
| Max. Parallel Unit | 16 |
| Dimension,D X W X H (mm) | 140 x 450 x 500 |
| Net Weight (kg) | 43 |
| Operation Temperature Charge | 0°C~45°C |
| Operation Temperature Discharge | -20°C~60°C (>45°C derating) |
| Operation Humidity | 5% ~ 95% RH (non-condensing) |
| Operation Air Pressure | 61 kPa~ 113 kPa |
| Lifecycle | ≧ 5000 cycles @25ºC 0.5C, 80% DOD |
| IP Protection | IP65 |
| BMS Communication | RS485, RS232, CAN |
| Safety Standard | EN IEC 61000-6-3, EN IEC 61000-6-1, EN IEC 61000-3-2, IEC 61000-3-3, UN38.3 |
