xAdjustable Triangle Solar Panel Mounting Kit for Flat Roof and Ground Installation
The Adjustable Triangle Solar Panel Mounting Kit is a complete factory-made solution for installing solar panels on flat roofs, concrete bases, timber structures, metal frames and ground-mounted surfaces. Designed for flexibility, strength and easy installation, the mounting angle can be adjusted from 15 degrees to 35 degrees to suit different locations, roof layouts and solar panel positioning requirements.
This kit is ideal for residential, commercial, off-grid and DIY solar PV installations where a strong and adjustable mounting frame is required. The aluminium triangle supports provide a stable structure for solar panels, while the stainless steel fixings offer long-lasting resistance against outdoor weather conditions.
Adjustable Angle from 15 to 35 Degrees
The triangle mounting brackets can be adjusted between 15 degrees and 35 degrees, allowing the installer to optimise the solar panel angle depending on the installation site and geographical location. This helps improve solar exposure and supports better energy generation throughout the year.

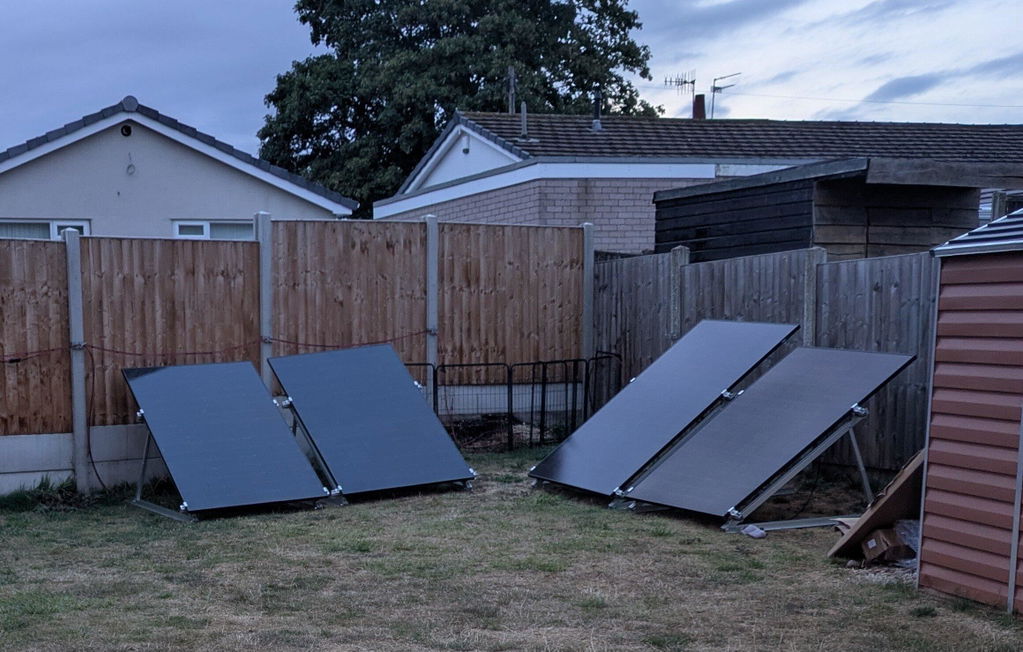

Suitable for Flat Roof, Ground and Ballasted Installations
The aluminium triangle frames can be fixed directly onto concrete roofs, timber beams, steel frames or other suitable mounting surfaces. Where drilling or roof penetration is not possible, heavy-duty concrete blocks can be used as ballast to hold the system securely in place.
Strong Aluminium and Stainless Steel Construction
The main mounting structure is manufactured from durable aluminium, with stainless steel accessories included for secure installation. This makes the system lightweight, strong and suitable for long-term outdoor use.
Compatible with Small and Large Solar Panels
The mounting system is suitable for a wide range of framed solar panels, from compact 100W modules to large modern solar panels up to 715W, with panel sizes up to approximately 2.4 metres in height.
Portrait and Landscape Installation
The mounting kit can be used for both portrait and landscape panel orientation. For most installations, portrait orientation is recommended for better support and easier fitting.
Universal Adjustable Solar Panel Clamps
The included end clamps and middle clamps are adjustable and suitable for most framed solar panels with frame thicknesses of 30mm, 35mm and 40mm. This makes the kit suitable for many standard solar panels available on the market.
Expandable Solar PV Mounting System

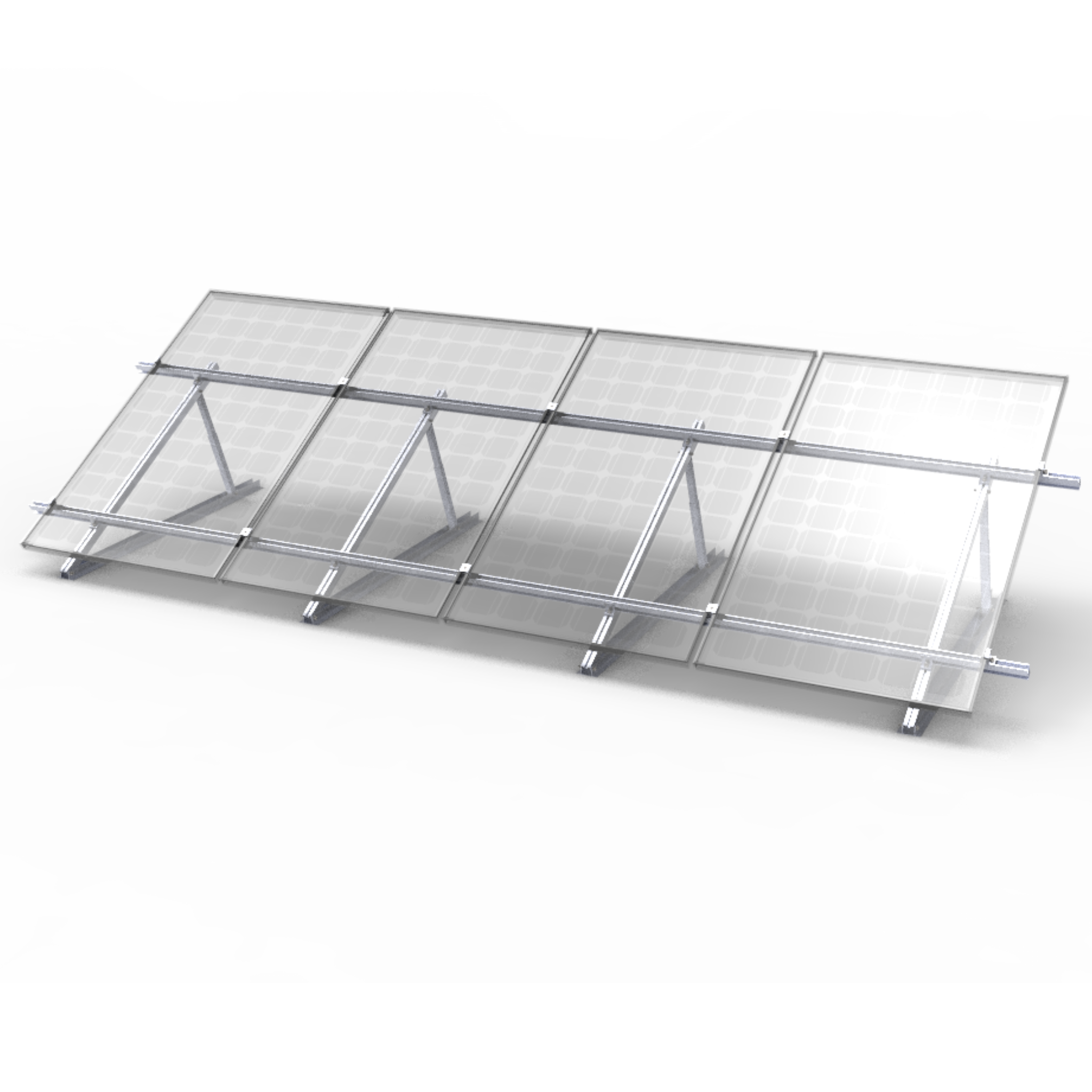

Pre-made kits are available for 1, 2, 3 and 4 solar panels. Multiple kits can also be combined to create larger solar PV arrays, making this system suitable for both small solar projects and larger ground or roof-mounted installations.
Key Features
- Adjustable mounting angle from 15 degrees to 35 degrees
- Suitable for flat roof, ground, concrete, timber and metal surfaces
- Can be fixed directly or installed using concrete ballast blocks
- Made from aluminium and stainless steel components
- Suitable for portrait and landscape solar panel installation
- Recommended installation orientation: portrait
- Compatible with solar panels from 100W up to 715W
- Suitable for large panels up to approximately 2.4 metres in height
- Universal clamps for 30mm, 35mm and 40mm solar panel frames
- Available in kits for 1, 2, 3 and 4 solar panels
- Kits can be combined for larger solar PV arrays
- Installation instructions included in the box
Technical Specifications
| Product Type | Adjustable triangle solar panel mounting kit |
| Installation Type | Flat roof, ground mount, concrete base, timber or metal surface |
| Adjustable Angle | 15 degrees to 35 degrees |
| Material | Aluminium frame with stainless steel accessories |
| Panel Orientation | Portrait or landscape |
| Recommended Orientation | Portrait |
| Solar Panel Compatibility | 100W to 715W framed solar panels |
| Maximum Panel Height | Up to approximately 2.4 metres |
| Clamp Compatibility | 30mm, 35mm and 40mm frame thickness |
| Available Kit Sizes | 1, 2, 3 and 4 solar panel kits |
| Instructions | Installation instructions included |
Typical Applications
- Flat roof solar panel installations
- Ground-mounted solar PV systems
- Off-grid solar systems
- Garden buildings and outbuildings
- Commercial rooftops
- Concrete base installations
- Ballasted solar panel mounting where drilling is not possible
What Is Included
Each kit includes the required aluminium triangle mounting brackets, adjustable fixing accessories, solar panel clamps and installation instructions. Kit contents may vary depending on whether the selected version is for 1, 2, 3 or 4 solar panels.
