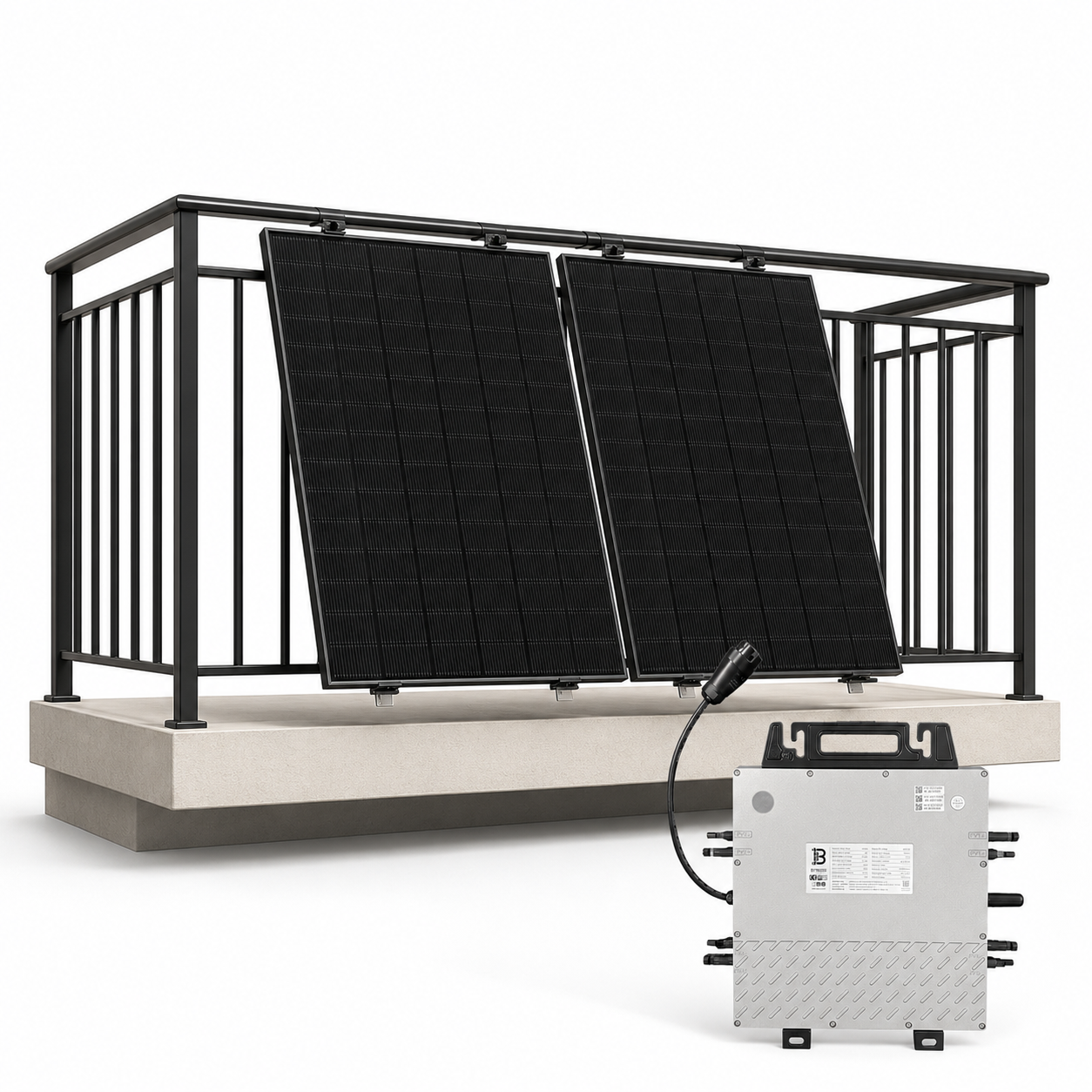

xJA Solar 930W Balcony and Garden Solar Kit with 1000W Micro Inverter
Create a compact solar power system for a balcony, garden, patio, garage, outbuilding or other suitable outdoor area with this complete JA Solar panel and micro inverter package.
The kit includes two premium 465W JA Solar full-black solar panels, providing a combined solar-panel capacity of 930W. Their full-black appearance makes them particularly suitable for residential locations where performance and appearance are both important.
The included BYM1000 micro inverter provides two independent MPPT inputs. Each solar panel connects to its own MPPT tracker, allowing the inverter to optimise the performance of each panel individually. This is particularly useful where the panels experience different levels of sunlight, orientation or partial shading.
FREE DELIVERY ON THIS ITEM
Complete 930W Solar Panel Kit
- 2 x JA Solar 465W full-black solar panels
- 930W total solar-panel capacity
- 1000VA dual-input micro inverter
- Two independent MPPT trackers
- 230V single-phase AC output
- Solar-panel mounting brackets included
- Low-voltage DC connection between panels and inverter
- IP67 weather-resistant inverter enclosure
- Optional Wi-Fi or PLCC monitoring, depending on the selected inverter version
Two Independent MPPT Controllers
The BYM1000 micro inverter contains two independent Maximum Power Point Tracking controllers. Each 465W solar panel is connected to a separate MPPT input.
This module-level arrangement allows each solar panel to operate at its own optimum voltage and current. If one panel receives less sunlight or is affected by partial shading, the second panel can continue operating independently instead of being restricted by the lower-performing panel.
Premium JA Solar Full-Black Panels
The two JA Solar 465W panels provide a combined rated output of 930W. Their full-black design offers a clean and modern appearance for balconies, patios, garden installations and residential buildings.
Solar generation will vary according to geographical location, panel direction, mounting angle, shading, weather conditions and the amount of electricity being consumed while the panels are generating.
Suitable Applications
- Garden solar installations
- Ground-mounted solar systems
- Patios and terraces
- Balconies with structurally suitable mounting points
- Garages and workshops
- Outbuildings and garden offices
- Small residential grid-connected solar systems
Packing List
- 2 x JA Solar 465W full-black solar panels
- 1 x BYM1000 1000VA dual-input micro inverter
- 1 x AC connection cable, supplied according to the selected destination and installation method
- Solar-panel mounting brackets
- Required panel-to-inverter connection components
If you require a different mounting arrangement, please contact us before ordering. Depending on availability, the mounting brackets may be changed to suit a garden, wall, balcony, flat-roof or ground-mounted installation.
Important UK Installation Information
This package contains a 1000VA micro inverter. It is not within the new 800VA UK plug-in microgenerator category and must not be connected to a standard UK wall socket under the plug-in solar regulations.
For installations in Great Britain, the system must be installed and connected in accordance with the applicable electrical, building, planning and Distribution Network Operator requirements. Installation by a suitably qualified solar PV electrician is recommended.
Customers outside Great Britain must check the grid-connection, electrical and installation requirements applicable in their own country before connecting the system.
Safety and Installation
Solar panels must be secured using mounting equipment suitable for the installation surface, panel dimensions and local wind and snow loading conditions.
Balcony installations must only be carried out where the railing, wall or supporting structure is capable of safely supporting the panels and mounting equipment. Additional permission may be required from a landlord, freeholder, building manager or local planning authority.
Electrical and grid connection work must comply with the regulations applicable in the installation country. Do not connect the system to the grid until the required electrical and network checks have been completed.
Specifications
xBYM1000 Micro-Inverter Technical Specifications 1000Watt
| Parameter | Value |
|---|---|
| Model | BYM1000 |
| Micro Inverter Type | Dual-input micro inverter |
| Number of MPPT Trackers | 2 |
| Suitable Number of Solar Panels | 2 panels |
| Recommended PV Input Power | 450W to 750W x 2 |
| MPPT Voltage Range | 24V to 50V |
| Operating Voltage Range | 16V to 60V |
| Maximum Input Voltage | 60V |
| Maximum Short-Circuit Current | 20A x 2 |
| Maximum Continuous Input Current | 18A x 2 |
| Rated Output Power | 1000VA |
| Rated Output Voltage | 230V AC |
| AC Voltage Range | 176V to 265V |
| Rated Frequency | 50Hz / 60Hz |
| Frequency Range | 46.5Hz to 62Hz |
| Maximum Continuous Output Current | 4.55A |
| Power Factor | Greater than 0.99 |
| Total Harmonic Distortion | Less than 4% |
| Peak Efficiency | 96.5% |
| MPPT Efficiency | Greater than 99.8% |
| Static MPPT Efficiency | 99.80% |
| Night-Time Power Consumption | Less than 100mW |
| Communication | PLCC / optional Wi-Fi |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0% to 98% |
| Electrical Isolation | High-frequency transformer, electrically isolated |
| Dimensions | 272.9 x 260.9 x 34.5mm |
| Weight | 2.39kg |
| Warranty | Up to 25 years, subject to the supplied warranty option and manufacturer terms |
