Description

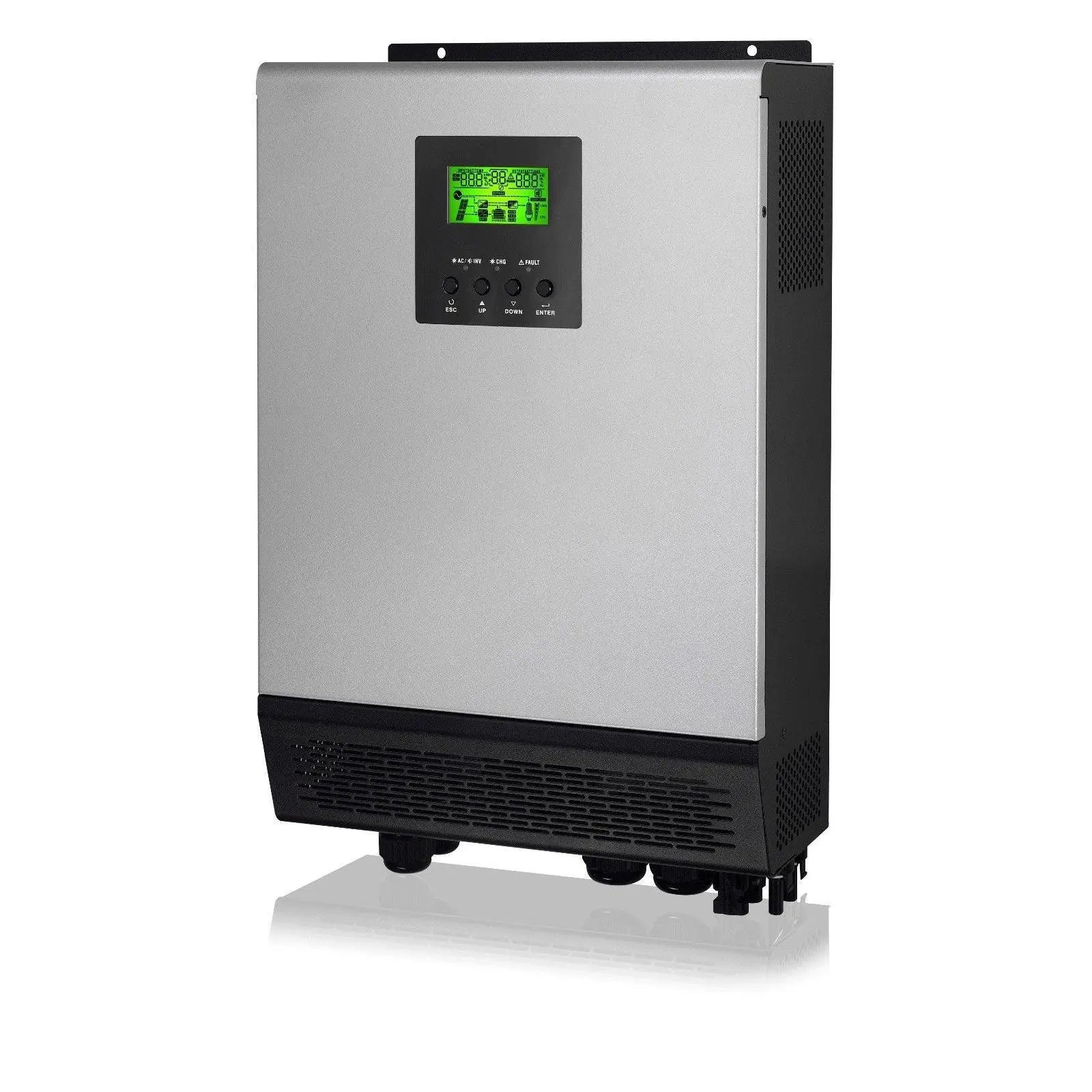

xThis is our entry photovoltaic inverter with a battery voltage of 12V. The integrated battery charger uses the latest MPPT technology (Maximum Power Point Tracking).
Conversol is the most cost-effective, easy-to-use, and versatile solar inverter in the solar industry. With an integrated battery charger and an advanced microprocessor that allows for easy digital control implementation, Conversol provides reliable power conversion in a compact but robust unit. Thanks to its low “no load” current, the inverter offers a relatively long battery life that exceeds that of other products of its kind. Extreme peak power capability enables high loads to start up easily without power dips or light flickering. What’s more, Conversol has been designed to operate in a wide range of temperature conditions, from -20°C to +50°C, which makes it a superior solar inverter that’s unmatched in the industry.
The inverters come along with an unbeatable 1-year warranty, plus accessories.
Conversol is part of Voltacon’s complete off-grid solutions that includes solar panels, cables, fuses, automation, and — of course — the widest range of solar off-grid inverters known to the solar industry.
Conversol is an intelligent combi solar inverter that comes with an integrated battery charger that is enclosed within a robust quality unit that’s easy to install. Control is easily implemented digitally thanks to its advanced microprocessor, while its transformerless design ensures of reliable power conversion. Designed for a wide range of operating temperatures, from -20°C to +50°C, Conversol works even in the most demanding conditions, which makes it the most easy-to-use and cost-effective solar inverter on the market.
Conversol offers a low “no load” current that prevents the battery from draining fast. Extreme power peak capability allows high current loads to start up easily without power dips or light flickering.!
The Conversol is equipped with an MPPT solar charge controller. It can be connected directly to various motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tools and battery chargers. Thanks to the sophisticated control algorithm, the Conversol starts up all types of domestic motor loads.
Main Features:
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible with mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
Specifications
x| MODEL | Conversol 1.5KVA Duo MPPT | |
| Rated Power | 1500VA/1200W | |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 3000VA | |
| Efficiency (Peak) | 90% - 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 12 VDC | |
| Floating Charge Voltage | 13.5 VDC | |
| Overcharge Protection | 16 VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 1000 W | |
| MPPT Range @ Operating Voltage | 15 VDC ~ 80 VDC | |
| Maximum PV Array Open Circuit Voltage | 100 VDC | |
| Maximum Solar Charge Current | 40 A | |
| Maximum AC Charge Current | 60 A | |
| Maximum Charge Current | 100 A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 100 x 272 x 355 | |
| Net Weight (kgs) | 7.0 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -20℃ to 55℃ | |
| Storage Temperature | -30℃ to 60 | |
Operation of the Autonomous/Off Grid System with Voltacon's combi Inverter/Charger.
