Description
xNEW FEATURES: OPERATION WITH OR WITHOUT BATTERY
The new ECO line of solar inverters can now feed the power from the solar panels to the AC loads (domestic appliances) without storing the power. The energy produced by the solar panels will be directly consumed from the home loads as long as the power is equal or less than the PV power

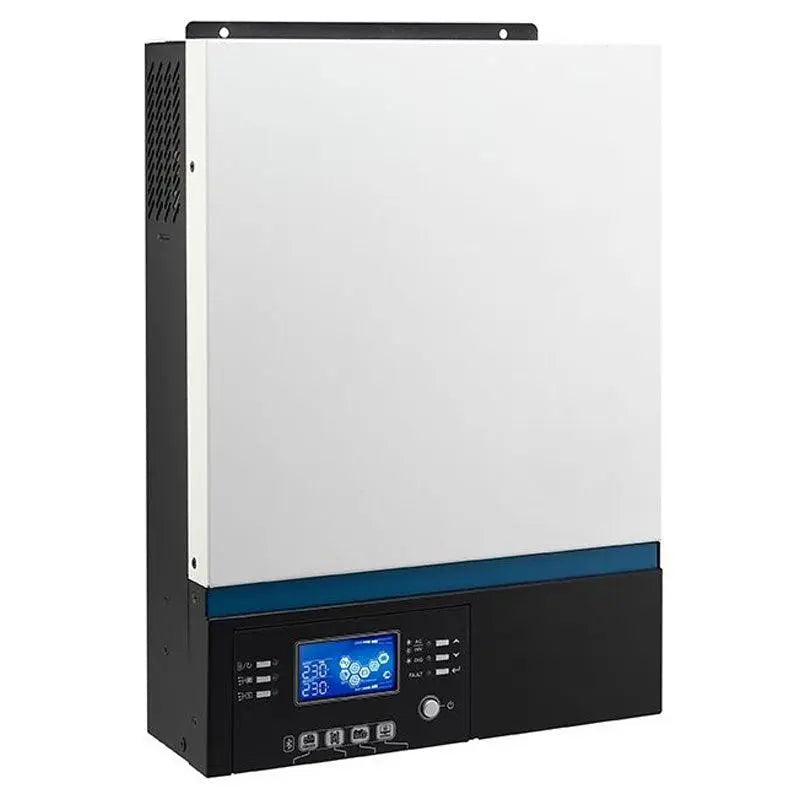

Conversol is the most cost-effective, easy-to-use, and versatile solar inverter in the solar industry. With an integrated battery charger and an advanced microprocessor that allows for easy digital control implementation, Conversol provides reliable power conversion in a compact but robust unit. Thanks to its low “no-load” current, the inverter offers a relatively long battery life that exceeds that of other products of its kind. Extreme peak power capability enables high loads to start up easily without power dips or light flickering. What’s more, Conversol has been designed to operate in a wide range of temperature conditions, from -20°C to +50°C, which makes it a superior solar inverter that’s unmatched in the industry.
Conversol is part of Voltacon’s complete off-grid solutions that include solar panels, cables, fuses, automation, and — of course — the widest range of solar off-grid inverters known to the solar industry.
Conversol is an intelligent combi solar inverter that comes with an integrated battery charger that is enclosed within a robust quality unit that’s easy to install. Control is easily implemented digitally thanks to its advanced microprocessor, while its transformerless design ensures of reliable power conversion. Designed for a wide range of operating temperatures, from -20°C to +50°C, Conversol works even in the most demanding conditions, which makes it the most easy-to-use and cost-effective solar inverter on the market.
FEATURES
- Pure sinewave inverter
- Configurable input voltage range for home appliances and personal computers via LCD setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC/Solar Charger priority via LCD screen
- Compatible to mains voltage or generator (diesel/gasoline)
- Auto restart while AC is recovering
- Overload / Over temperature / short circuit protection
- Smart battery charger design for optimised battery performance
- Cold start function
- The removable LCD control module
- Reversed communication port for BMS (RS485, CAN-BUS, RS232)
- Built-in Bluetooth for mobile monitoring (download from App store)
- Configurable AC/PV output usage timer and prioritization.
The Conversol is equipped with an MPPT solar charge controller. Conversol Is equipped with an MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Transformerless design provides reliable power conversion in a compact size.
The Conversol is equipped with an MPPT solar charge controller. It can be connected directly to various motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tools and battery chargers. Thanks to the sophisticated control algorithm, the Conversol starts up all types of domestic motor loads.
Specifications
x| MODEL | Conversol 1.5KVA | |
| Rated Power | 1500VA/1500W | |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 3000VA | |
| Efficiency (Peak) | 90% - 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | |
| Floating Charge Voltage | 27 VDC | |
| Overcharge Protection | 33VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 2000Watt | |
| MPPT Range @ Operating Voltage | 120 VDC ~ 380 VDC | |
| Maximum PV Array Open Circuit Voltage | 400VDC | |
| Maximum Solar Charge Current | 60A | |
| Maximum AC Charge Current | 40A | |
| Maximum Charge Current | 60A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 100 x 280 x 390 | |
| Net Weight (kgs) | 8.5 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
Communication interface: USB/RS232/RS485/Bluetooth/Dry Contact
Product specifications are subject to change without further notice
