Description
x

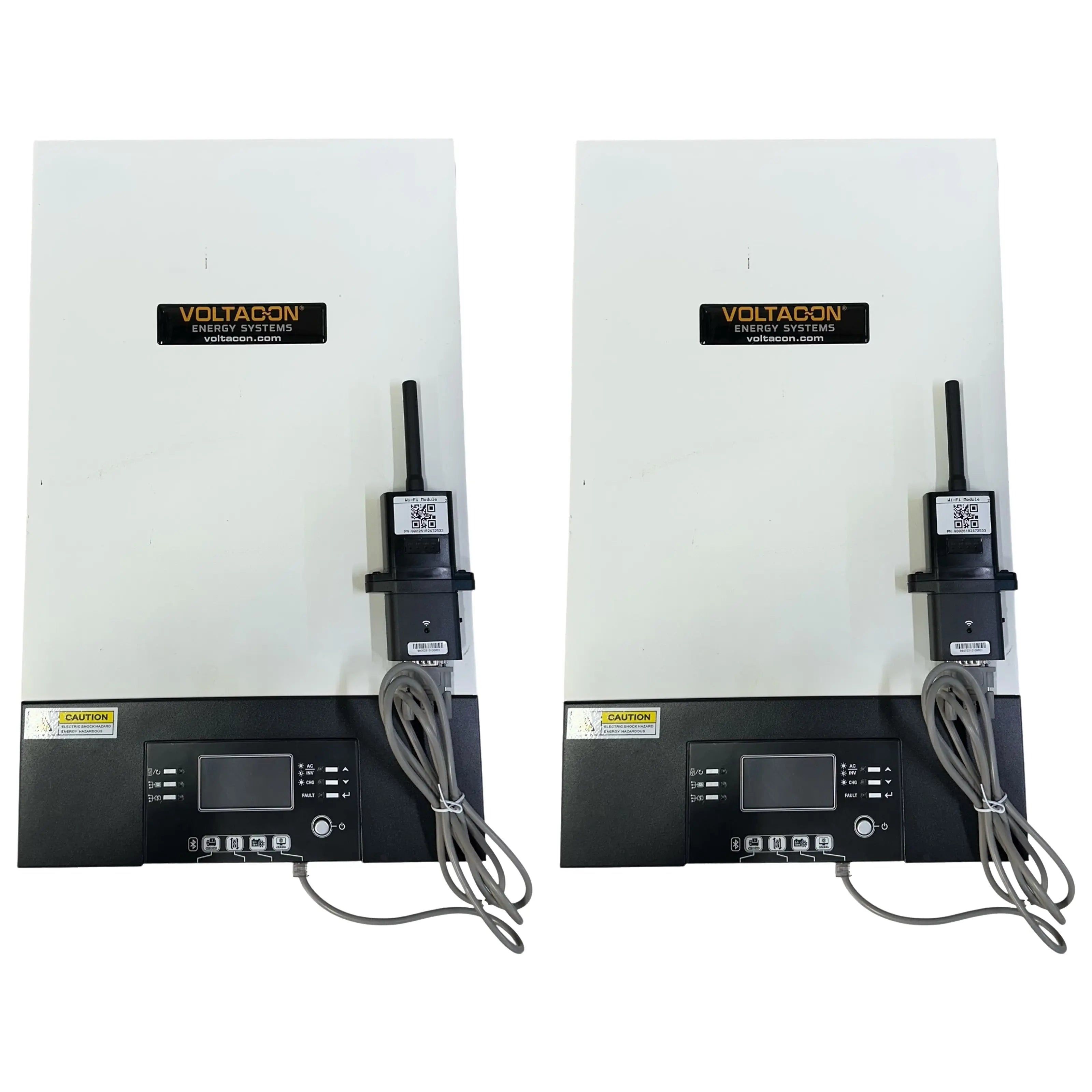

2x AXPERT KING 5KW 48Vdc 60A, with anti-dust filter.
MPPT.60-145VDC, PV Max: 10000W. VDC - Bluetooth - Slightly Used - Wi-Fi
Super Deal with full kit and parallel ready - 10000Watt AC Output - Single Phase.
Notice: This is an ex display unit, all the functions are available, it works without any issues. We added free of charge the WIFI module to monitor the inverters online using WatchPower.
- A Parallel Communication Card is installed you can connect more inverters in parallel
- The latest Firmware is installed (2024 November)
- Buy two inverters to save 5%
- Both units are tested in our lab and work very well.
- Max PV Input power 10000Watt
- Max AC Output Power 10000Watt
This advanced power inverter makes it easy to get the most out of your solar panel installation with up to nine inverters running in parallel. Whether you are planning to go fully off-grid or just want to reduce your reliance on traditional energy sources, this inverter can help you monitor your energy production and usage in real-time.
The system integrates with your mobile device through Bluetooth communication. You can use the associated mobile app from anywhere in the world, so long as you have an internet connection. The control module supports USB On-the-Go functionality and BMS ports as well. It can be placed anywhere within 20 meters of the inverter so you can set up the control module in a location that is most convenient for you.
Technical Features
- Zero transfer time - Ideal for UPS function
- Detachable LCD control module with multiple communication
- Built in Bluetooth for mobile monitoring
- Support USB on the go function
- Reserved communication port for BMS
- Operational parallel operation up to 9
- 80A MPPT Solar Charger
- 60A AC Charger
The V5 Series is designed to be able to work with a connected battery. If it isn't sunny out, the system can pull power from the main energy grid or from a generator, depending on what suits your preference. When a battery is connected, you'll be able to store excess energy from your solar panels to use when you need it most. Within the control module, you can prioritise PV or AC power and select voltage ranges to suit your needs and preferences.
A wider range of batteries are compatible with this inverter since the floating charge can reach 64V. The standard bulk charge value is 56.4V but for some special battery banks it is possible to reach 64V in bulk charge.
Technical Specifications of a Single Inverter 5000W/5000VA
| MODEL |
Conversol V5 5kVA Off Grid |
|
| Rated Power |
5000VA/5000W |
|
|
INPUT |
||
| Voltage | 230 VAC ± 5% | |
| Selectable Voltage Range | 110-280 VAC | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
|
OUTPUT |
||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 10000VA for 5 sec | |
| Efficiency (Peak) | 93% Line mode, 90% Battery mode | |
| Transfer Time | 0 ms | |
| Waveform | Pure sine wave | |
|
BATTERY |
||
| Battery Voltage |
48 VDC |
|
| Floating Charge Voltage |
54 VDC (up to 64VDC) |
|
| Overcharge Protection |
66 VDC |
|
|
SOLAR CHARGER & AC CHARGER |
||
| Maximum PV Array Power |
4000 W |
|
| MPPT Range @ Operating Voltage |
60-115 V |
|
| Maximum PV Array Open Circuit Voltage |
145 VDC |
|
| Maximum Solar Charge Current | 80 A | |
| Maximum AC Charge Current | 60 A | |
| Maximum Charge Current | 140A | |
| Maximum Efficiency | 98% | |
| Standby Power Consumption | 2W | |
|
PHYSICAL |
||
| Dimension, D X W X H (mm) | 140 x 300 x 512 | |
| Net Weight (kgs) | 12.2 | |
|
OPERATING ENVIRONMENT |
||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
* There are charging current selection only available for 230VAC system.
Product specifications are subject to change without further notice
Specifications
x| MODEL | Conversol 3K-24 Super S3 | |||
| Rated Power | 3000VA/3000W | |||
| INPUT | ||||
| Voltage | 120 VAC or 230 VAC | |||
| Selectable Voltage Range | 95-140 VAC or 170-280 VAC (For Personal Computers) 65-140 VAC or 90-280 VAC (For Home Appliances) |
|||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
| OUTPUT | ||||
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC ± 5% (User selectable) or 230VAC ± 5% | |||
| Surge Power | 6000VA | |||
| Efficiency (Peak) | 90% - 93% | |||
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|||
| Waveform | Pure sine wave | |||
| BATTERY & AC CHARGER | ||||
| Battery Voltage | 24 VDC | |||
| Floating Charge Voltage | 27VDC | |||
| Overcharge Protection | 34VDC | |||
| Maximum Charge Current | 80A +60A from AC Generator | |||
| SOLAR CHARGER | ||||
| Maximum PV Array Power | 1500 W | |||
| MPPT Range @ Operating Voltage | 30 ~ 115 VDC | |||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||
| Maximum Charging Current | 60A | |||
| Maximum Efficiency | 98% | |||
| Standby Power Consumption | 2 W | |||
| PHYSICAL | ||||
| Dimension, D X W X H (mm) | 140 x 300 x 512 | |||
| Net Weight (kgs) | 11.5 | |||
| OPERATING ENVIRONMENT | ||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
| Operating Temperature | 0℃ to 55℃ | |||
| Storage Temperature | -15℃ to 60℃ | |||
