Description

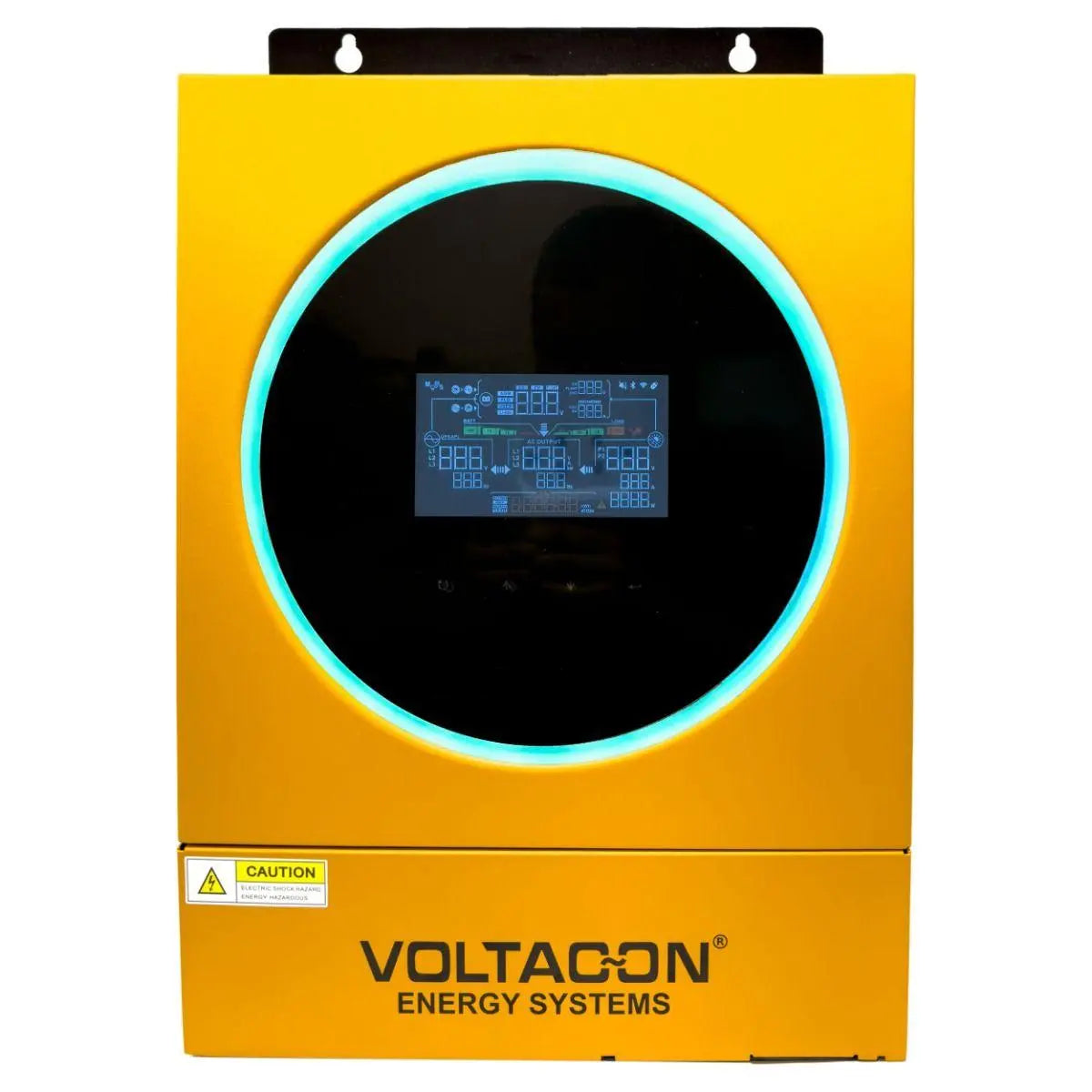

xVOLTACON is a well-established brand that leads the energy sector with high-tech equipment that can improve your living. Home and businesses alike are looking to cut down on electricity costs and choose more sustainable energy options for their place. For managing, converting, and storing electricity 24h/day, our off-grid battery inverter is the right option for virtually any household size. With many years of experience working with photovoltaic systems, control algorithms, energy management systems, and energy storage devices, our team has developed a sustainable dual charger that can withstand harsh conditions.
The built-in Wi-Fi function enables remote monitoring using the mobile phone. Data can be accessed and recorded in the inverter which is convenient for tracking the operation status. USB on the go offers to rewrite internal parameters, uploading new firmware or data download for further diagnostics.
BMS is Compatible with Pylontech batteries (US5000, US2000C, US3000C)
The battery-independent technology gives more flexibility to the user to generate and use solar power directly without energy storage. That means you can be up and running a solar off-grid kit at a very low cost.
Manage, Convert, and Store Electrical Energy: The VOLTACON off-grid power inverter is a high-tech product designed to help maximize energy storage at a minimum cost. It can be used off-grid through solar panels or connected to a generator or grid and operated in an off-grid mode to supply AC power for large appliances or schedule charging to store electricity at a lower cost.
High-Tech Features: Our solar inverter features integrated wi-fi communication, Bluetooth connection. The RGB light strip acts as a status indicator for an easy check-up.
Safety and Security: The 48v inverter pure sine wave ensures acts as a fast and reliable charger for a wide range of lead-acid, lithium-ion, and LifePO4 batteries. Although very compact, lightweight, and easy to install even without batteries, this device ensures 8kW pure sinewave output that can power a whole house.
Connection to DC Loads: We have installed direct connections to DC loads that allow you to power up fans, bulbs, your router, and many other gadgets. The inverter has a battery-independent design that allows it to operate without a 48V battery bank, which can be installed later on.
Easy Maintenance: To make sure that our battery inverter 56000w will pass the test of time, we have designed anti-dust filters that increase its reliability in any type of environment. The low-noise, brushless cooling fans are made to run continuously to keep the electronics at optimum temperature.
PRODUCT FEATURES - 4TH GENERATION CONVERSOL
- Customizable status LED ring with RGB lights
- Touched 4.3 inc coloured screen
- Built-in WiFi for mobile monitoring
- Supports USB On the Go function
- Data log event stored in the inverter
- Reserved communication port (RS485, CAN-BUS, RS232) for BMS
- Battery independent design
- Battery equalization for extending the lifecycle
- New improved MPPT charger with an enhanced algorithm.
- Built-in anti dust kit
- User-defined operating modes, select power source priority.
Specifications
x| MODEL |
Conversol VM 5 5kVA Off-Grid |
|
| Rated Power |
5600VA/5600W |
|
|
INPUT |
||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
|
OUTPUT |
||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 11200VA | |
| Efficiency (Peak) | 90% - 93% | |
| Transfer Time | 15 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
|
BATTERY |
||
| Battery Voltage |
48 VDC |
|
| Floating Charge Voltage |
54 VDC |
|
| Overcharge Protection |
63 VDC |
|
|
SOLAR CHARGER & AC CHARGER |
||
| Maximum PV Array Power |
6000 W |
|
| MPPT Range @ Operating Voltage |
120-450 VDC |
|
| Maximum PV Array Open Circuit Voltage |
500 VDC |
|
| Maximum Solar Charge Current | 120 A | |
| Maximum AC Charge Current | 100 A | |
| Maximum Charge Current | 120 A | |
| Maximum Efficiency | 98% | |
| Standby Power Consumption | - | |
|
PHYSICAL |
||
| Dimension, D X W X H (mm) | 119 x 313.6 x 422 | |
| Net Weight (kgs) | 12 | |
|
OPERATING ENVIRONMENT |
||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
* There are charging current selection only available for 230VAC system.
Product specifications are subject to change without further notice
