Description

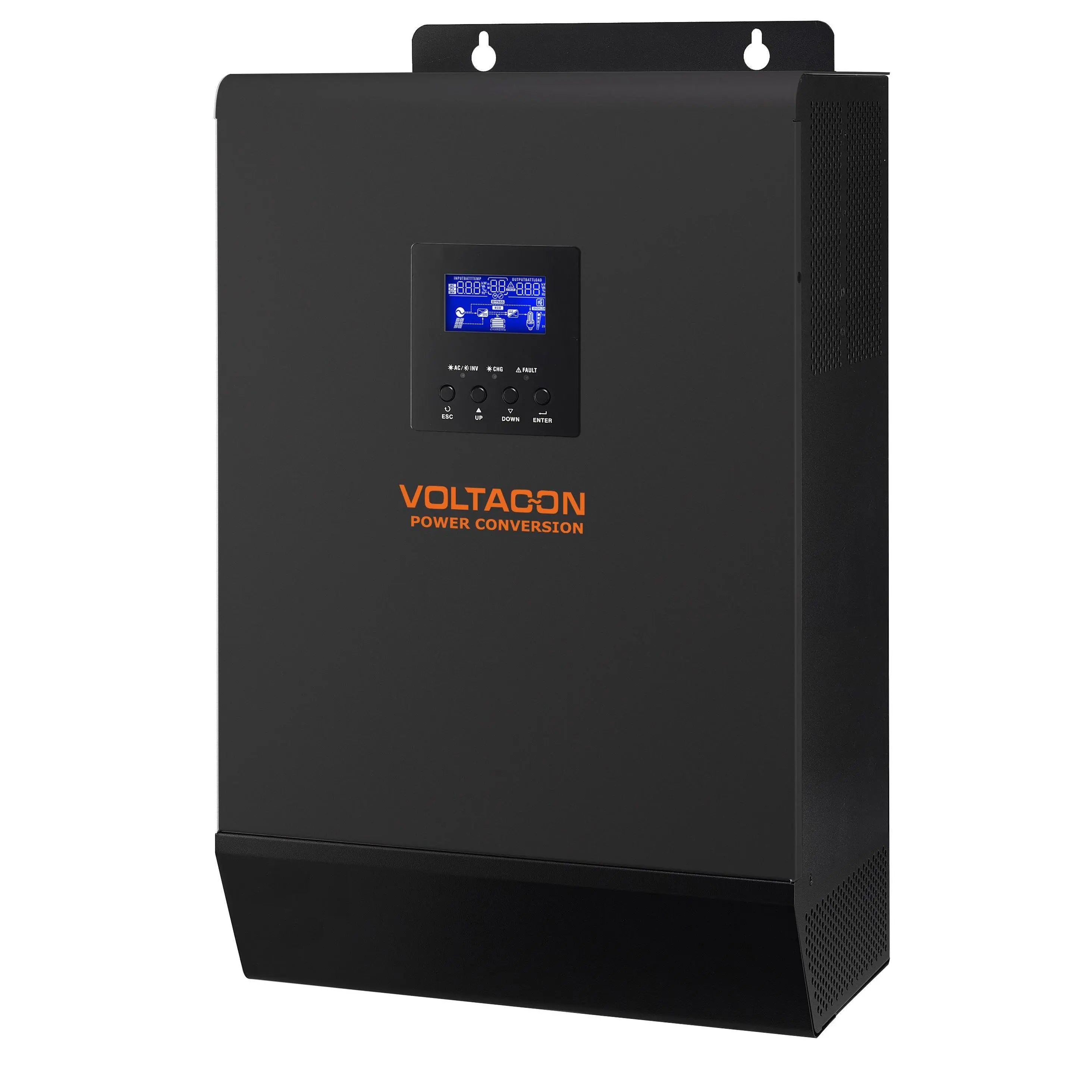

xAfter the successful development of the renowned 5kVA MPPT off grid inverter which is connected to a single string of photovoltaics, Voltacon Solar has put in full production one of the fastest off grid inverters in the market. This is the largest 24V solar inverter that is equipped with a single MPPT input.
Using digital MPPT (maximum power point tracking) algorithms, the inverters offers ultra fast battery charging at 80A only from the solar panels. The combined charging current from solar and external source (diesel generator or national grid) can reach 140A. The power factor correction is now unity (PF:1.0) increasing the active power output to 5000Watt
The exceptional value for money makes the 5kVA 24Vdc autonomous inverter the preferred solution for the most demanding solar applications.
Using digital MPPT (maximum power point tracking) algorithms, the inverters offers ultra fast battery charging at 80A only from the solar panels. The combined charging current from solar and external source (diesel generator or national grid) can reach 140A. The power factor correction is now unity (PF:1.0) increasing the active power output to 5000Watt
The exceptional value for money makes the 5kVA 24Vdc autonomous inverter the preferred solution for the most demanding solar applications.
- Pure sine wave AC output
- Integrated 1 strings of MPPT solar charge controller
- Adjustable input voltage range for home appliances and personal computers
- Adjustable high power charging current
- Configurable AC/Solar input priority via LCD setting
- It is compatible to mains voltage or other AC power generator
- Auto restart while AC is recovering
- Overload over current and short circuit protection
- Suitable for indoor use only (IP20 rated)
- The (originally known as Axpert M-5K-24) Conversol 5VA has the following key features:
- 24V dc input from battery bank
- Maximum PV Array 145V
- Maximum solar charger current 80A
- Maximum AC charge current 60A
- Parallel function up to 9 units
Specifications
x| Model |
CONVERSOL M-5K-24, 5000VA/5000W |
|
| Rated Power |
5000VA/5000W |
|
| INPUT | ||
| Voltage | 120 VAC or 230 VAC | |
| Selectable Voltage Range | 95-140 VAC or 170-280 VAC (For Personal Computers) 65-140 VAC or 90-280 VAC (For Home Appliances) |
|
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
|
OUTPUT |
||
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC ± 5% (User selectable) or 230VAC ± 5% | |
| Surge Power | 10000VA | |
| Efficiency (Peak) | 90% - 93% | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) |
|
| Waveform | Pure sine wave | |
|
BATTERY |
||
| Battery Voltage | 24VDC | |
| Floating Charge Voltage | 30VDC | |
| Overcharge Protection | 40VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 2000 W | |
| MPPT Range @ Operating Voltage | 30 VDC ~115 VDC | |
| Maximum PV Array Open Circuit Voltage | 145 VDC | |
| Maximum Solar Charge Current | 80 A | |
| Maximum AC Charge Current | 60 A | |
| Maximum Charge Current | 140A | |
| Maximum Efficiency | 98% | |
| Standby Power Consumption | 2W | |
|
PHYSICAL |
||
| Dimension, D X W X H (mm) | 180 x 310 x 475 | |
| Net Weight (kgs) | 12.5 | |
|
OPERATING ENVIRONMENT |
||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
