Description

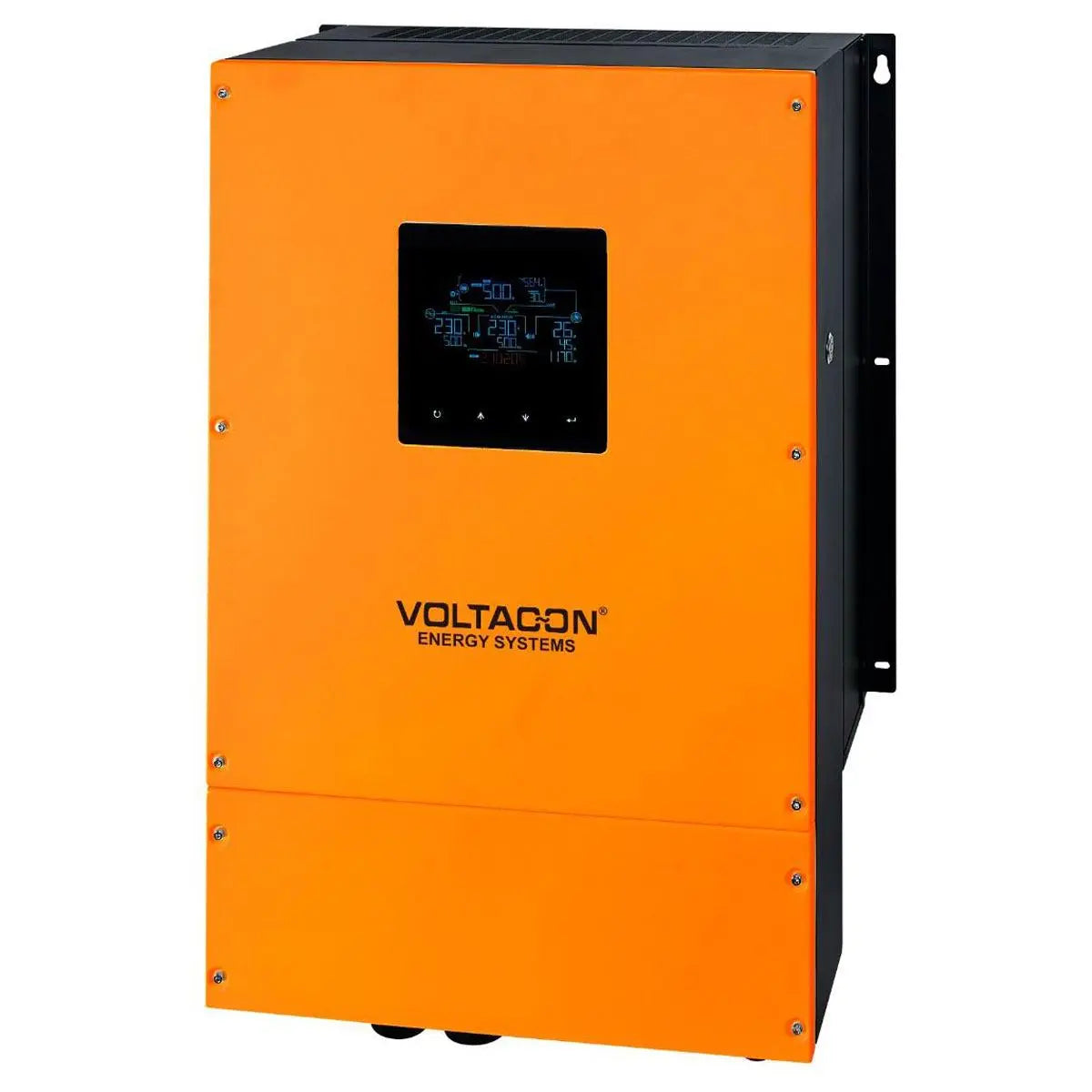

x8000W Solar Converter IP65 - MAX-II Dual Output AC Terminals Battery Charger 48V MPPT
Introducing the next generation of solar inverters. The Convesol 8kW Max is ideal for off-grid use, allowing you to produce fast and reliable energy directly from the sun using up to 8kW of solar panels. This inverter is compatible with both monocrystalline and polycrystalline technology.
Suitable for indoor and outdoor use
Conversol 8kW Max features a water and dust-proof design, so you can generate electricity whenever, wherever. Up against space issues in your utility room? No problem. This inverter is safe to install outdoors and can operate at peak performance in demanding conditions from -25°C to 50°C. Plus, it can connect near your panels, reducing the long runs of DC cables.
A clear LED display provides all the data you need to manage your solar photovoltaic system, giving you total control over your electricity. Becoming self-reliant has never been easier.
MAIN TECHNICAL FEATURES
- IP65 weatherproof enclosure (with IP65 design fans)
- 2 AC output load terminals for smart load control
- Built-in Wi-Fi transmitter (for monitoring on iPhone/Android)
- Built-in BMS communication (select lithium BMS only)
- Dual 2X PV input, max 8KW PV array
- High PV input 500V (Voc)
- Max system charging 150A
- Battery optional mode
- Equalization mode available
- 8KW pure sine wave output, 48V system voltage
- Max utility charging current 120A
- Max solar charging current 150A
- Max Bulk/Float setting 62V
- Suitable for off-grid or with grid input
- Extensive programmable menu
- FREE monitoring software on PC / Mac / Linux
WHAT IP65 MEANS FOR A SOLAR INVERTER?
An IP65-rated enclosure gives protection against low-pressure water jets from any direction, as well as condensation and water spray. It's suitable for most outdoor enclosures that won't encounter extreme weather, such as flooding.
Specifications
x| MODEL | Conversol MAX WP 8000 |
| RATED POWER | 8000VA/8000W |
| PARALLEL CAPABILITY | YES, 6 units |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 16000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | < 75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maxmum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 150A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 1200 x 425 x 665 |
| Net Weight (kgs) | 33 |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| STANDARD | |
| Compliance Safety | CE |
