Description

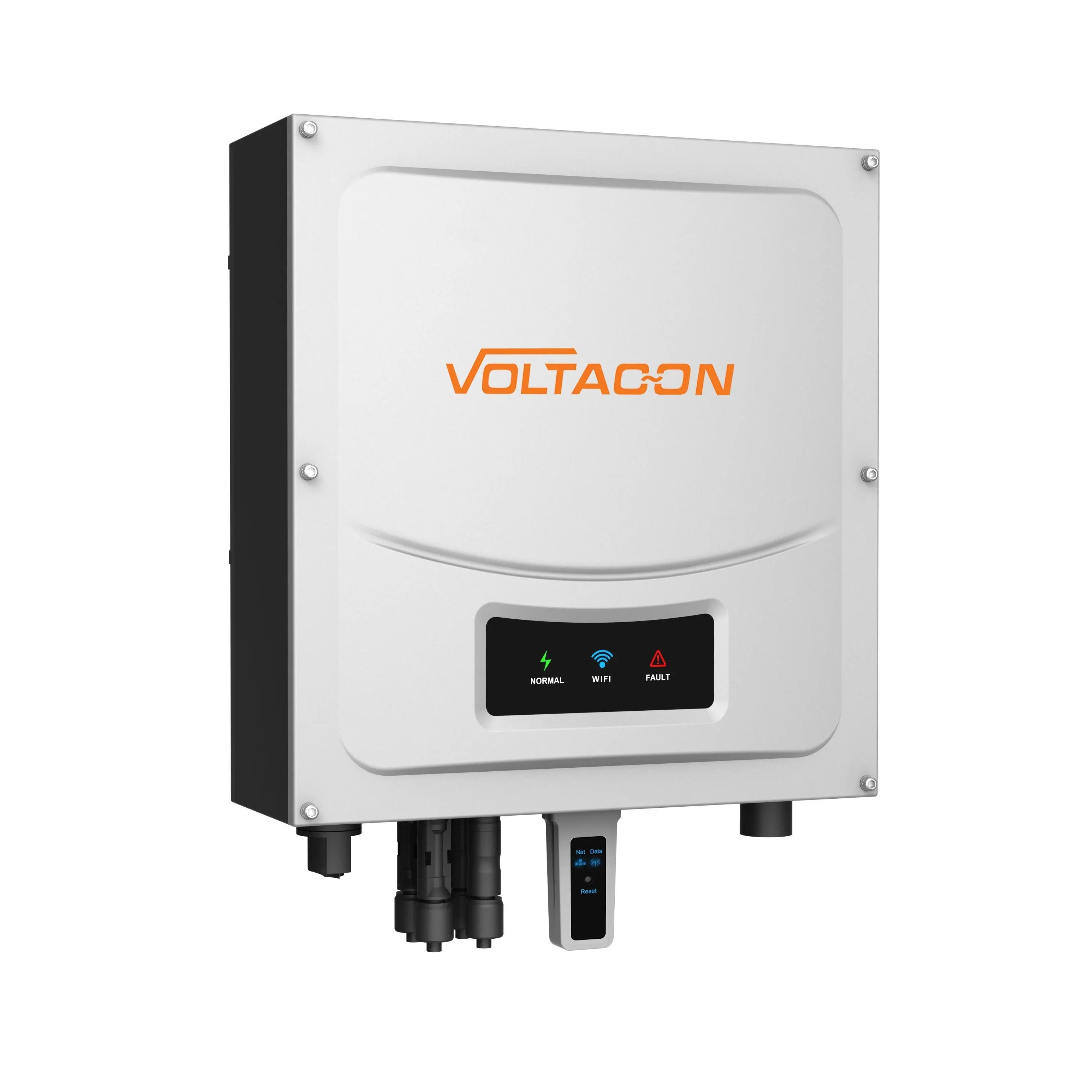

xA solar inverter is a crucial step in maintaining a balanced energy flow between your solar grid, your home, and the regular power grid. After all, most solar systems are designed to support and minimize traditional power use, not to replace it completely.
Your solar inverter monitors the flow of power between your solar grid and your home, and your home and regular power grid. When your solar grid is generating enough power, it doesn’t pull from the traditional grid; when power drops, it pulls in the power needed to run your home.
Remember that when it comes to solar grids, bigger is not automatically better. Carefully match the wattage of your inverter to your grid, or you will create inefficiency.
This inverter also features anti-islanding protection to ensure energy is not fed back to the grid or the house when the grid fails.
Current Sensor - Why do I need one?
If your DNO (the network operator) requires to limit the exported energy, the clamp current sensor is used to measure the actual energy consumption. Using this information the inverter will export back to the grid or the house from 0W to 5kW. If there is no power demand from the home appliances the inverter can stop the generation from solar. This feature is adjustable and can be switched on or off.
FEATURES
- High Frequency On Grid Solar Inverter
- Pure sine wave output
- Rated power: 5KW
- MPPT efficiency up to 99.50%
- Configurable AC/Solar input priority via LCD setting
- Multiple communications: USB,WIFI etc
- Monitoring inverters freely via mobile phones APP
- Fanless low-noise design
- IP65 waterproof and dust-proof
Specifications
x|
MODEL |
PH50-5000M |
|
RATED POWER(W) |
5000 |
|
Maximum recommended DC power(W) |
5750 |
|
Nominal DC operating voltage(V) |
360 |
|
Maximum DC voltage(V) |
550 |
|
Start voltage(V) |
100 |
|
MPPT voltage range(V) |
80~550 |
|
Maximum input current(A) |
11/11 |
|
No.of MPP tracker |
2 |
|
Strings per MPP tracker |
1 |
|
Nominal AC output power(W) |
5000 |
|
Maximum AC output power(VA) |
5000 |
|
Nominal output voltage(V);range(V) |
220/230/240;180-280 |
|
AC grid frequency(Hz);range(Hz) |
50/60;45~55/55-65 |
|
Nominal output current(A) |
21.8 |
|
Maximum output current(A) |
22.8 |
|
Total harmonic distortion i(THDi) |
<3% |
|
Power factor at rated power |
1 |
|
Displacement power factor |
0.8leading ～ 0.8lagging |
|
AC connection |
Single phase |
|
Maximum efficiency |
97.4% |
|
Euro-efficiency |
97.0% |
|
MPPT efficiency |
99.5% |
|
Self-Consumption night(W) |
<1 |
|
DC reverse polarity protection |
Yes |
|
DC switch rating for each MPPT |
Yes(opt.) |
|
Output over current protection |
Yes |
|
Output overvoltage protection-varistor |
Yes |
|
Ground fault monitoring |
Yes |
|
Grid monitoring |
Yes |
|
Integrated all-pole sensitive leakage current |
Yes |
|
Dimension(W/H/D)(mm) |
355*412*173 |
|
Net weight (kg) |
14.5 |
|
DC connection |
H4/MC4 |
|
AC connection |
Connector |
|
Display |
LED |
|
Communication interfaces |
Wi-Fi/USB/GPRS |
|
Ingress protection rating |
IP65 |
|
Humidity |
0~95% RH (No condensing) |
|
Operating temperature range |
-25℃ ~+60℃ With derating above 45℃ |
|
Cooling concept |
Natural |
|
Noise emission(typical)[dB] |
≤25 |
|
Altitude |
<4000m |
|
Topology |
transformerless |
|
Warranty |
Standard 5years/10 years(opt.) |
|
Certificatesand approvals |
CE / IEC62109 / CQC |
