Description

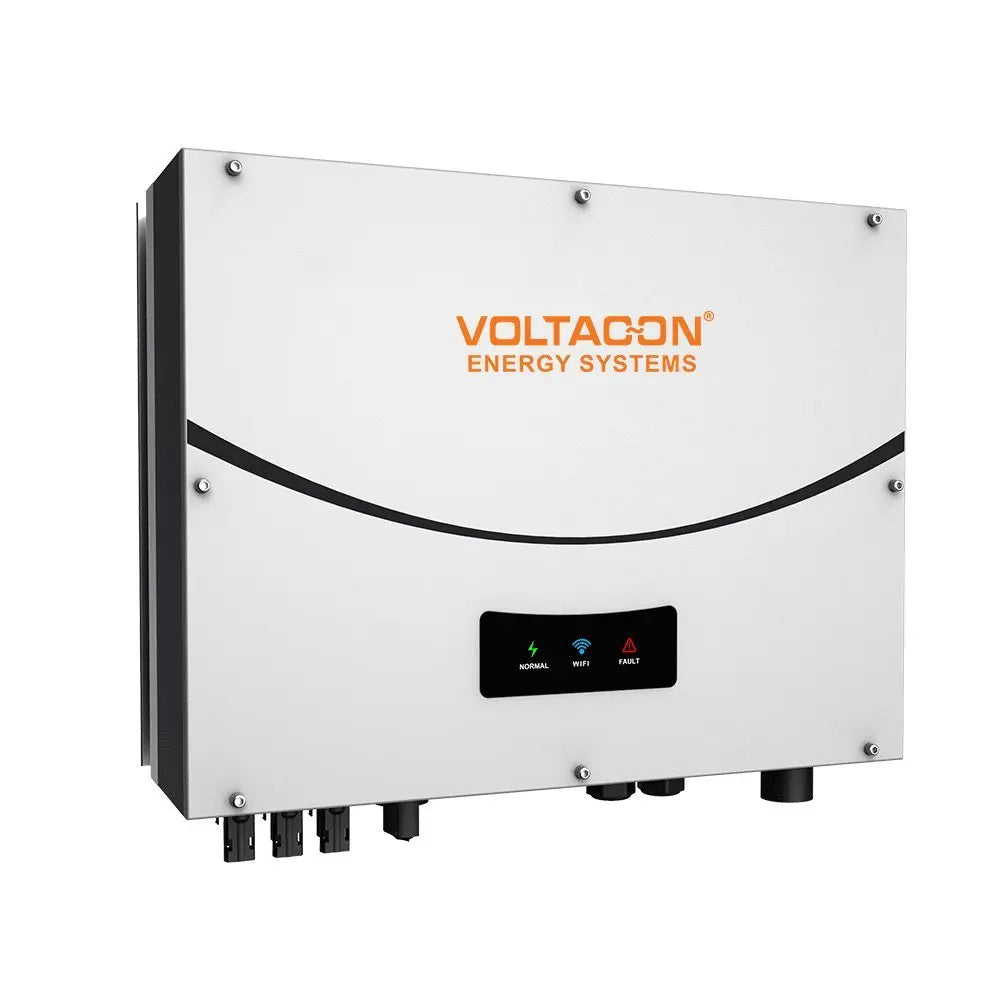

xElios 11kW is a plug-and-play on-grid inverter with three-phase 400VAC output voltage. The inverter complies with the UK and European standards for the protection of islanding mode. It also works with FIT meters and export power limitation by measuring the power flow with current sensors.
Elios 11000Watt Grid Inverter - Self-Consumption and Export Limitation
The inverter works with grid connection and supports export to the national grid or export limitation which is ideal for self-consumption.
If the power is not sold back to the grid, the three-phase current transformer (CT) needs to be installed to measure the energy consumption in the switchboard. Based on the amount of power (in Watt), the inverter will feed as much energy as possible directly to the home or warehouse equipment. The surplus energy is exported back to the public power network.
Using the current sensor, it is possible to limit the amount of exported energy to a specific value.
FEATURES
- Wide input voltage range from 160V to 1000Vdc
- IP65 protection, suitable for outdoor installation
- Integrated DC solar switch
- DSP Controller (Digital Signal Processing)
- Peak efficiency at full load 98.3%
- WI-FI Monitoring is integrated
- Easy to install and user friendly set up
Interface and Communication Ports
- Quick diagnostics with LED indicators (green, amber, red)
- WIFI communication
- Error display with red warning sign.
- PV input with MC4 connectors and DC isolation switch
- USB, RS485
- Male and Female AC output plug
Specifications
x| MODEL | PH50- 11000TM | |
| Output (AC) | Rated AC output power | 11000W |
| Max.AC apparent power | 12100VA | |
| Max.output current | 17.5A | |
| Nominal AC Voltage | 230V \ 400V | |
| AC Voltage range | 184Vac-300Vac | |
| AC grid frequency range | 50±5Hz | |
| 60±5Hz | ||
| Power factor at Rated power | 1 | |
| Adjustable displacement power factor | 0.8leading. 0.8lagging | |
| THDi @ Full load%THDv <1% | < 3% | |
| AC grid connection type | 3W+N+PE | |
| Input Data | Max.DC power | 13200W |
| Max.DC voltage | 1000V | |
| Start voltage | 160V | |
| PV voltage range | 160V-1000V | |
| MPP voltage range | 200V-1000V | |
| Full load voltage range | 520V-850V | |
| Max.input current | 20A \ 10A | |
| Number of independent MPP trackers / strings per MPP tracker | \/2+1 | |
| DC connection | H4 \ MC4 | |
| Efficiency | Max.efficiency | 98.40% |
| Euro weighted efficiency | 98% | |
| MPPT efficiency | 99.50% | |
| Protection devices | DC reverse polarity protection, Output over current protection, Output overvoltage protection-varistor, DC reverse polarity protection, DC switch rating for each MPPT(opt.), Ground fault monitoring, Integrated all-pole sensitive leakage current monitoring unit | |
| GENERAL DATA FEATURES | Dimension(W/H/D)(mm) | 500*428*200 |
| Weight (kg) | 22 | |
| Operation temperature range | -25℃ - +60℃ with derating above 45℃ | |
| Noise emission(typical) | ≤35dB(A) | |
| Altitude | 3000m | |
| Self-consumption night | < 1W | |
| Topology | Transformerless | |
| Cooling concept | Natural | |
| Environmental protection Rating | IP65 | |
| Relative humidity | 100% | |
| Features | AC connection | connector |
| Display | LED | |
| Interfaces:USB/WI-FI/GPRS/ RS485 | YES \ YES \ Opt \ YES | |
| Warranty | Standard 5 years \ 10 years (opt.) | |
| Certificates and approvals | CE \ IEC62109 | |
