Description

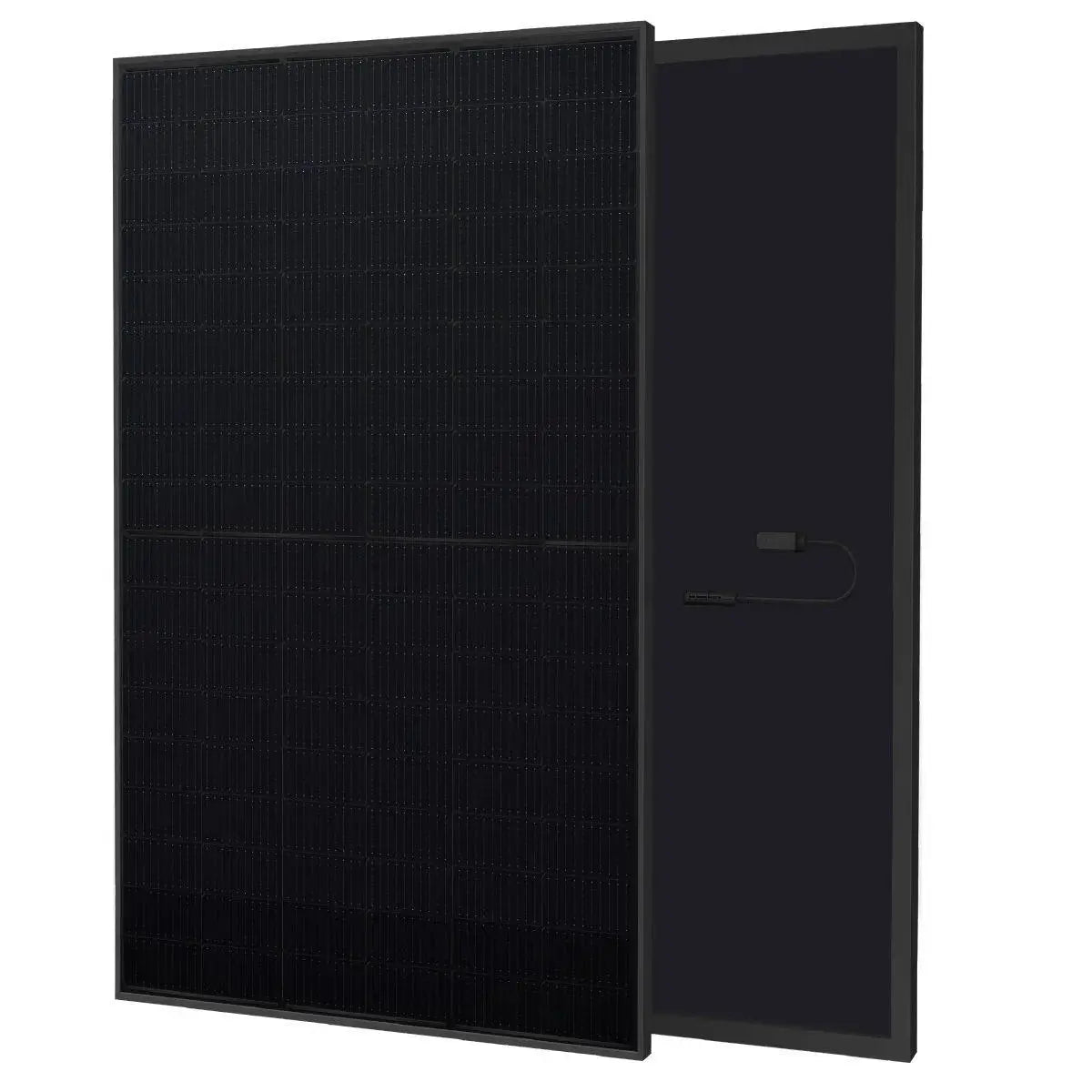

xElite Solar Panels 440W : Power, Performance, and Longevity
Discover the revolutionary Elite 440W Bifacial Solar Panels by ET-Solar, engineered with cutting-edge N-Type half-cut technology. Designed to deliver up to 30% more power generation, these panels set a new standard for solar efficiency in 2024. With an impressive 30-year lifespan and Tier-1 Bloomberg certification, they are the ultimate choice for long-lasting solar investments.
Key Features: Maximum Power Output
- 108-Cell Frame Efficiency: Generates a peak power of 440 watts from a compact 1722x1134mm frame.
- Bifacial Technology: Captures reflected light from the rear side, adding up to 100 watts more power, for a total output of 540 watts.
- Exclusive Partnership with ET-Solar: Voltacon Solar collaborates with ET-Solar, co-developing large-scale solar projects globally.
Why Tier-1 Certification Matters
Tier-1 certification ensures that your solar investment comes from a trusted manufacturer with a proven track record of quality and reliability. This classification is recognised by banks and investors worldwide, offering peace of mind that you’re choosing a product built to last.
Built to Last: Warranty and Performance
- 12-Year Warranty: Covers product materials and workmanship.
- 30-Year Linear Power Output Warranty: Ensures minimal degradation over time.
- After 25 years, your panels will still produce 89% of their nominal power, safeguarding your energy yield for decades.
Advantages of Elite 440W Bifacial Panels
- Bifacial Energy Boost: Generates up to 30% more energy from the rear side.
- Durable Glass-to-Glass Lamination: Extends lifespan to 30 years with annual power degradation of less than 0.4%.
- Hot Spot Risk Mitigation: Reduces early failures, ensuring consistent performance.
- Efficient Power Distribution: Heat and power are evenly distributed across both sides of the panel.
- Low Resistance Losses: Half-cut solar cells reduce internal wiring length by 50%, minimising resistance losses.
- Optimised Sunlight Absorption: Thinner inter-cell busbars allow for increased sunlight capture.
- Versatile Installation Options: Can be installed at various angles, including 90-degree vertical mounting, provided the panels face the equator.
Specifications
x430W ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS
| Maximum power Pmax | 430Watt |
| Power Tolerance | 0- + 5Watt |
| Module Efficiency | 21.76% |
| Maximum Power Current | 13.30A |
| Maximum Power Voltage | 32.33V |
| Short Circuit Current Isc | 14.25A |
| Open Circuit Current Voc | 38.72V |
ELECTRICAL CHARACTERISTICS WITH 21% REAR SIDE POWER GAIN
| Maximum Power | 525Watt |
| Maximum Power Current Imp | 16.43A |
| Maximum Power Voltacon Vmp | 31.96V |
| Short Circuit Current Isc | 17.42A |
| Open Circuit Voltacon Voc | 38.46V |
MECHANICAL CHARACTERISTICS
| Cell Type | Mono N-Type, 182x91mm, 108 (6x18) Half Cut Cells |
| Glass | 2mm+2mm, High Transmission , Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 Rated, with Bypass diodes |
| Dimensions | 1772 x 1134 x 30mm |
| Output cable | 4mm2 |
| Weight | 24kg |
| Installation Hole Location | See drawing in downloads |
Temperature Coefficient of Voc: -0.25%/C
Temperature Coefficient of Isc: +0.046%/C
Temperature Coefficient of Pmax: -0.30%C
Nominal Operating Cell Temperature: 45 deg C
Maximum Series Fuse Rating : 30A
Maximum System Voltage : 1500VDC
