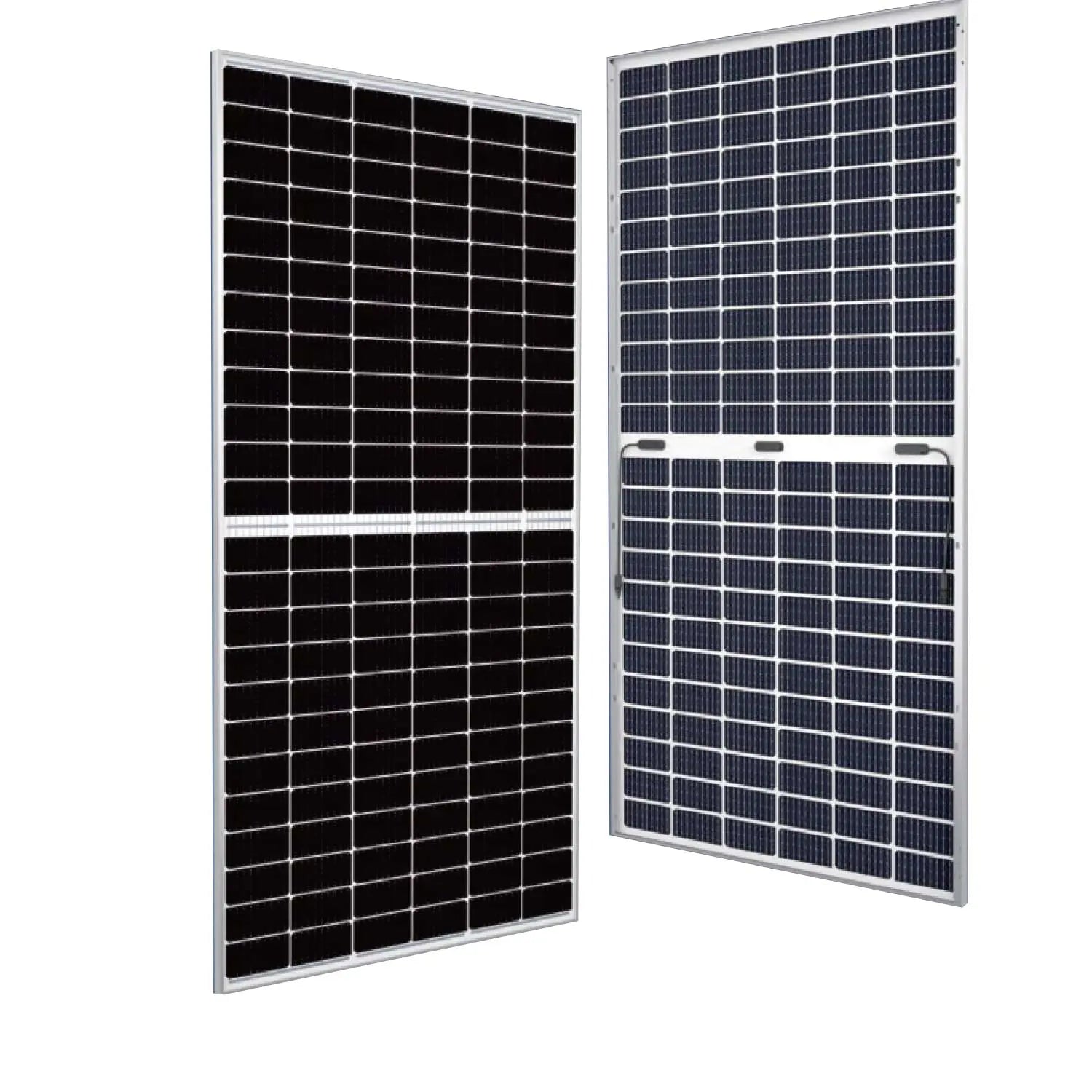

xElite Solar 625W N-Type Bifacial Dual Glass Solar Panel
The Elite Solar ET-NR66TBH625GL is a 625W N-Type bifacial dual glass solar panel delivering 23.1% module efficiency and a 30-year linear power output warranty. Built for commercial, agricultural, and ground-mounted solar projects where high output and long-term reliability are essential, this panel combines advanced N-Type cell technology with durable dual-glass construction for dependable performance in demanding conditions.
For quantities of 6, 8, 10 12, or 36 panels you can visit our dedicated listing with palletised photovoltaic modules
Key Features
- 625W peak power output (STC)
- N-Type mono-crystalline bifacial cell technology
- 23.1% module efficiency
- Dual glass construction (2.0mm front and rear) for improved durability
- Bifacial gain of 5% to 25% depending on installation conditions
- Power tolerance: 0 to +3%
- IP68 junction box with 3 bypass diodes
- Maximum system voltage: 1500VDC
- Operating temperature: -40 to +85°C
- Low annual degradation: first year max 1%, subsequent years max 0.40% per year
- 12-year product and workmanship warranty
- 30-year linear power output warranty
Product Overview
N-Type bifacial technology allows energy generation from both the front and rear of the module. In suitable installation conditions such as ground-mounted arrays, light-coloured roof surfaces, or flat roof systems with reflective material, the bifacial gain can increase total energy output by 5% to 25% compared to a standard monofacial panel of the same rated power.
The dual glass construction replaces the conventional back-sheet with a second glass layer, improving resistance to environmental stress and reducing long-term degradation. Combined with the low annual power loss of 0.40% from year 2, this module retains strong output well into the second decade of service.
The ET-NR66TBH625GL uses SMBB (Super Multi Busbar) cell technology to improve light trapping and current collection, contributing to the high efficiency figure. The panel also demonstrates excellent anti-PID performance through optimised manufacturing processes.
Applications
- Commercial rooftop solar installations
- Ground-mounted utility and agricultural solar arrays
- Warehouse and industrial building rooftop PV systems
- Flat roof installations with reflective surfaces
- Large residential solar projects
Installation and Safety Notes
This panel must be installed by a qualified MCS-accredited solar installer. Mounting structure design, cable sizing, string voltage calculations, and earthing must comply with IET Wiring Regulations and the panel manufacturer's installation instructions. Maximum system voltage is 1500VDC. Do not exceed the maximum series fuse rating of 30A.
Specifications
xElite Solar 625W N-Type Bifacial Dual Glass Solar Panel Specifications
Electrical Specifications - 625W Model
| Specification | STC | NOCT |
|---|---|---|
| Module Type | ET-NR66TBH625GL | ET-NR66TBH625GL |
| Maximum Power - Pmax | 625W | 473W |
| Open Circuit Voltage - Voc | 49.30V | 46.93V |
| Short Circuit Current - Isc | 16.12A | 13.02A |
| Maximum Power Voltage - Vmp | 40.99V | 38.43V |
| Maximum Power Current - Imp | 15.25A | 12.32A |
| Module Efficiency | 23.1% | - |
Electrical Ratings and Temperature Coefficients
| Specification | Value |
|---|---|
| Power Tolerance | 0 to +3% |
| Pmax Temperature Coefficient | -0.30%/°C |
| Voc Temperature Coefficient | -0.22%/°C |
| Isc Temperature Coefficient | +0.042%/°C |
| Fire Performance | Type 29 UL |
| STC Conditions | AM1.5, 1000W/m², 25°C |
| NOCT Conditions | AM1.5, 800W/m², 20°C, 1m/s |
| Test Uncertainty for Pmax | ±3% |
Mechanical Specifications
| Specification | Value |
|---|---|
| External Dimensions | 2382 x 1134 x 30mm / 93.78 x 44.65 x 1.18 inch |
| Weight | 33kg / 72.75lbs |
| Solar Cells | N-Type mono-crystalline, 132 cells |
| Front Glass / Back Glass | 2.0mm / 2.0mm, 0.08 inch |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 diodes |
| Cable Length Including Connector | 4.0mm², 12AWG, portrait 200mm positive / 400mm negative, or customised |
| Connector | CD2 / MC4 compatible |
| Power Bifaciality | 80% ±10% |
Application Conditions
| Specification | Value |
|---|---|
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 30A |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temperature | 45 ±2°C |
| Maximum Mechanical Load | 5400Pa / 2400Pa |
Warranty and Performance
| Warranty / Performance Item | Value |
|---|---|
| Product Material and Workmanship Warranty | 12 years |
| Linear Power Output Warranty | 30 years |
| First Year Degradation | ≤1% |
| Annual Degradation From Year 2 to Year 30 | ≤0.40% per year |
Technology Features
| Feature | Description |
|---|---|
| SMBB Technology | Uses advanced technology to improve light trapping and current collection, helping to enhance module power output and reliability. |
| PID Resistance | Designed for excellent anti-PID performance through optimised mass production processes and material control. |
| Increased Power Output | Module power can increase approximately 5% to 25% from bifacial gain, depending on installation conditions. |
Manufacturer Rear Side Power Gain Reference
The data sheet rear side power gain table is printed for ET-NR66TBH620L. It is included below as a manufacturer reference only.
| Power Gain | 10% | 15% | 20% | 25% |
|---|---|---|---|---|
| Maximum Power - Pmax | 682W | 713W | 744W | 755W |
| Open Circuit Voltage - Voc | 49.10V | 49.10V | 49.10V | 49.10V |
| Short Circuit Current - Isc | 17.84A | 18.66A | 19.47A | 20.28A |
| Maximum Power Voltage - Vmp | 40.82V | 40.82V | 40.82V | 40.82V |
| Maximum Power Current - Imp | 16.71A | 17.47A | 18.23A | 18.99A |
Packaging Information
| Specification | Value |
|---|---|
| Container | 40ft HQ |
| Pieces Per Pallet | 36 panels |
| Packing Size | 2400 x 1130 x 1264mm / 94.49 x 44.49 x 49.76 inch |
| Packing Weight | 1231kg / 2713.89lbs |
| Pieces Per Container |
