Description

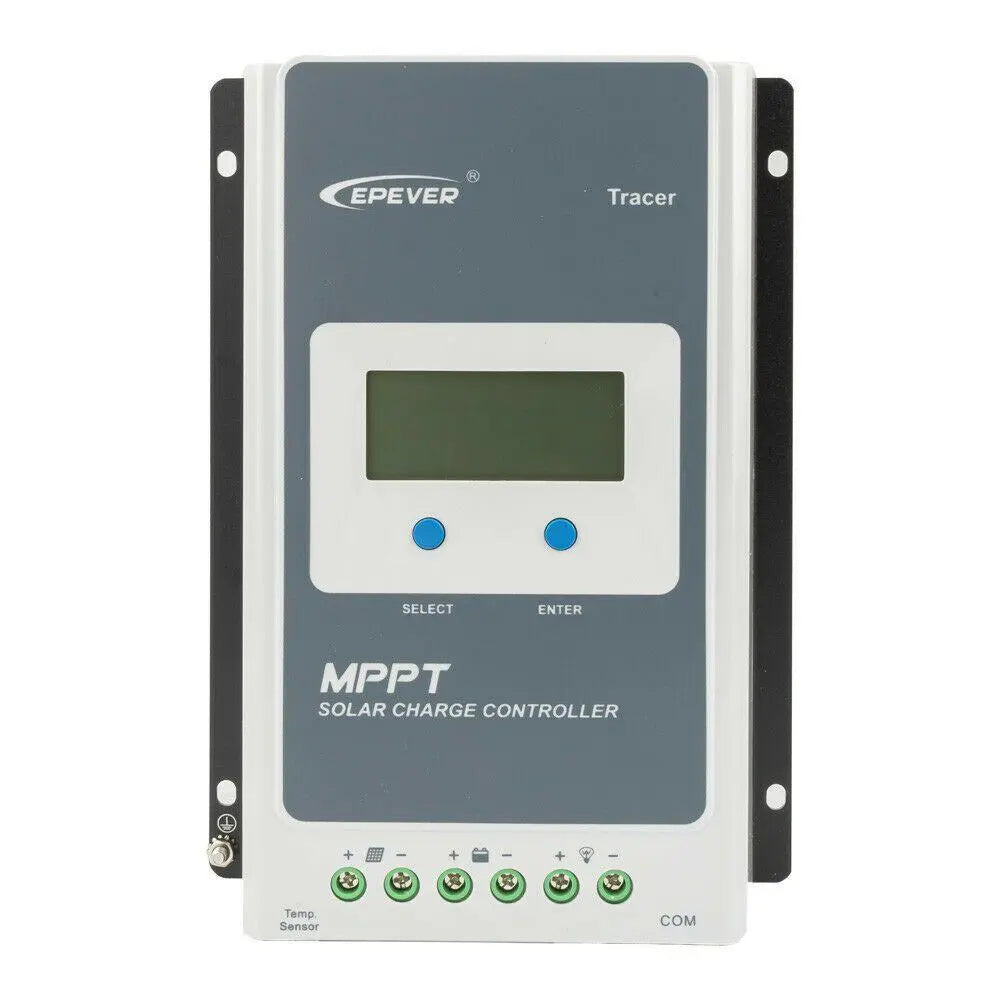

xSmart charging directly from the sun with Epever tracer2206. Enhanced 20A MPPT charger with easy interface and communication.
Maximum Power 520Watt. Works with 12V and 24V batteries including Lithium Ion
The core technology of the Trace chargers is based on the multiphase synchronous rectification technology (MSRT) and efficient MPPT algorithm that tracks the maximum power point of the solar panels with great accuracy. The dual-core processor ensures fast response time to sudden changes (sun, cloud, shadowing). That improves the conversion efficiency from the captured solar power to the energy that is stored in the batteries.
Features
- Constant voltage output function
- Maximum DC/DC conversion efficiency 98%
- Advanced MPPT technology MAX tracking efficiency higher than 99.5%
- Supports multiple battery types including lithium
- Battery temperature compensation, stable self-activation function
- LCD screen for battery parameter settings
- Comprehensive electronic protection
- Self-consumption lower than 10mA
- Multiple load work modes
- RS485 communication interface
Tracking the current and voltage of the PV array is critical to obtain the maximum energy yield.
With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life cycle of the battery and significantly improve the system's performance.
The Tracer from Epever consists of a sophisticated control system that protects all the electronics from overcharging, over-discharging, and PV reverse polarity connection.
There is also an RS485 interface with standard MODBUS communication protocol. The parallel function is standard in all EPEVER chargers, up to 6 identical devices will expand your system without any risk.
Applications: RV, campervans, small off-grid solar kits, weather stations, CCTV systems and many more.
Specifications
x|
Model |
Tracer2206AN |
|
Nominal system voltage |
12/24V auto work |
|
Rated battery current |
20A |
|
Rated load current |
20A |
|
Max. PV open circuit voltage |
60V |
|
Max. PV input power |
260W (12V) |
|
520W (24V) |
|
|
Equalize charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|
Float charging voltage |
Gel /Sealed /Flooded: 13.8V |
|
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V |
|
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V |
|
Self-consumption |
≤20mA(12V) ≤16mA(24V) |
|
Grounding |
Negative ground |
|
Temp. compensation |
-3mV/℃/2V |
|
Communication Port |
RS485 / RJ45 interface |
|
Working temperature |
-25℃～+45℃ |
|
Storage temperature |
-35℃～+80℃ |
|
Humidity |
≤95% N.C. |
|
Enclosure |
IP30 |
