Description

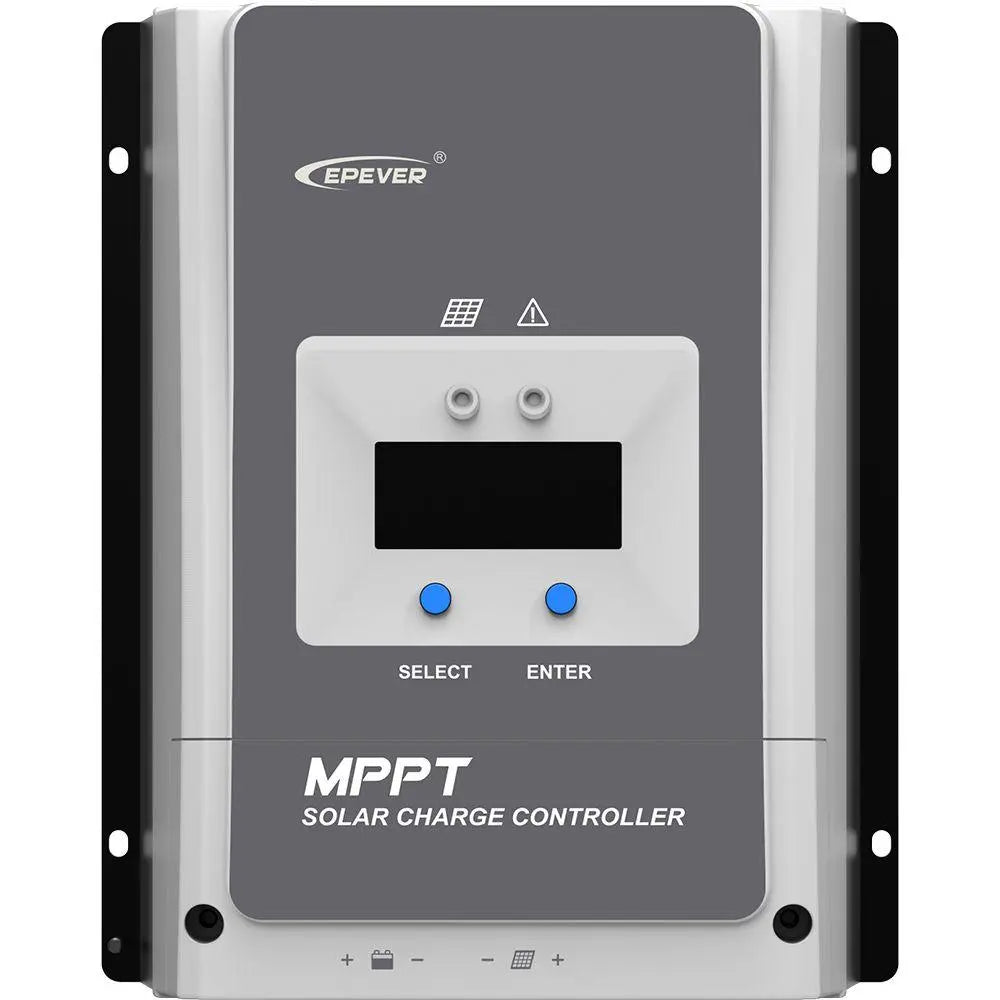

xSmart charging directly from the sun with Epever tracer5415. Enhanced 50A MPPT charger with easy interface and communication.
The core technology of the Trace chargers is based on the multiphase synchronous rectification technology (MSRT) and efficient MPPT algorithm that tracks the maximum power point of the solar panels with great accuracy. The dual-core processor ensures fast response time to sudden changes (sun, cloud, shadowing).
That improves the conversion efficiency from the captured solar power to the energy that is stored in the batteries.
Tracking the current and voltage of the PV array is critical to obtain the maximum energy yield.
With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life cycle of the battery and significantly improve the system's performance.
The Tracer from Epever consists of a sophisticated control system that protects all the electronics from overcharging, over-discharging, and PV reverse polarity connection.
There is also an RS485 interface with standard MODBUS communication protocol. The parallel function is standard in all EPEVER chargers, up to 6 identical devices will expand your system without any risk.
Applications: RV, campervans, small off-grid solar kits, weather stations, CCTV systems, canal boats and sailing boats.
50A MPPT TRACER5415AN .
EAN CODE: 6974241250491
Specifications
x|
Model |
Tracer5415AN |
|
|
Nominal system voltage |
12/24V/36V/48V auto-detected |
|
|
Rated battery current |
50A |
|
|
Rated load current |
50A |
|
|
Max. PV open circuit voltage |
150V |
|
|
Max. PV input power |
625W (12V) |
1875W (36V) |
|
1250W (24V) |
2500W (48V) |
|
|
Battery Input V |
8V - 63V |
|
|
Self Consumption |
98mA (12V), 60mA(24V), 46mA(48V) |
|
|
Battery Type |
Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ Use | |
|
Grounding |
Negative ground |
|
|
Temp. compensation |
-3mV/℃/2V |
|
|
Communication Port |
RS485 / RJ45 interface |
|
|
Working temperature |
-25℃～+45℃ |
|
|
Storage temperature |
-35℃～+80℃ |
|
|
Humidity |
≤95% N.C. |
|
|
Enclosure |
IP30 |
|
