Description

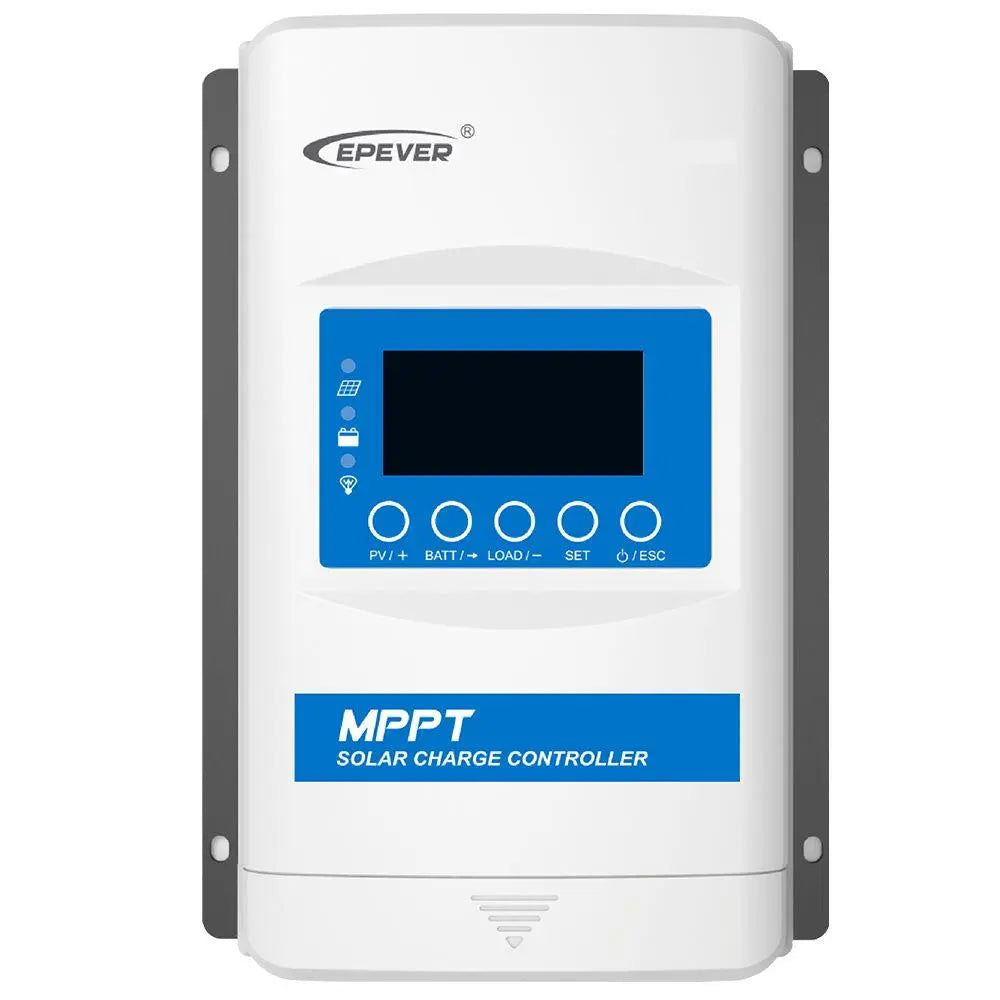

xNew MPPT Charger for small off-grid applications at 20Amps. Epever high tech in a small and compact charger suitable for 12V and 24V lithium and GEL batteries.
The core technology of the Trace chargers is based on the multiphase synchronous rectification technology (MSRT) and efficient MPPT algorithm that tracks the maximum power point of the solar panels with great accuracy. The dual-core processor ensures fast response time to sudden changes (sun, cloud, shadowing). That improves the conversion efficiency from the captured solar power to the energy that is stored in the batteries. Tracking the current and voltage of the PV array is critical to obtain the maximum energy yield.
With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life cycle of the battery and significantly improve the system's performance.
The Tracer from Epever consists of a sophisticated control system that protects all the electronics from overcharging, over-discharging, and PV reverse polarity connection.
There is also an RS485 interface with standard MODBUS communication protocol. The parallel function is standard in all EPEVER chargers, up to 6 identical devices will expand your system without any risk.
Applications: RV, campervans, small off-grid solar kits, weather stations, CCTV systems and many more.
FEATURES AND SPECIFICATIONS
- MPPT tracking efficiency above 99.5%
- Maximum charge conversion efficiency as high as 97.4%
- Support lead-acid and lithium-ion batteries
- Multiple load work modes
- Charging power and current limitation function
- High-temperature charging power derating function
- Standard Modbus communication protocol with isolated RS485 interface. Real-time energy statistics function
- Optional LCD display units (XDB1/XDS1/XDS2) and accessories
- IP33 ingress protection design
- CE(LVD IEC62109,EMC EN3/1-6-61000)and ROHS,ETL(UL-1741:2010 and Canadian CSA
- C22.2-No.107.1.01),FCC Class B Part 15 Compliant,IEC62509:2010
(XDB1/XDS1/XDS2). It is designed according to the international standard with higher quality, reliability, and safety. The limitation function of the charging power, charging current, and automatic power reduction function fully ensure stability when working with oversized PV modules(max.1.5 times of rated power) and operating under a high-temperature environment.
Specifications
x|
Model |
XTRA2210N |
|
|
Nominal system voltage |
12/24V auto work |
|
|
Rated battery current |
20A |
|
|
Rated load current |
20A |
|
|
Max. PV open circuit voltage |
MPPT : Battery Voltage +2V to 72V 100V (At minimum operating environment temperature) 92V (At 25℃ environment temperature |
|
|
Max. PV input power |
260W (12V) |
|
|
520W (24V) |
||
|
Equalize charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|
|
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V |
|
|
Float charging voltage |
Gel /Sealed /Flooded: 13.8V |
|
|
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V |
|
|
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V |
|
|
Self-consumption |
≤20mA(12V) ≤16mA(24V) |
|
|
Grounding |
Negative ground |
|
|
Temp. compensation |
-3mV/℃/2V |
|
|
Communication Port |
RS485 / RJ45 interface |
|
|
Working temperature |
-25℃～+45℃ |
|
|
Storage temperature |
-35℃～+80℃ |
|
|
Humidity |
≤95% N.C. |
|
|
Enclosure |
IP30 |
|
Dimensions: 217×158 x56.5mm Weight 0.96kg
