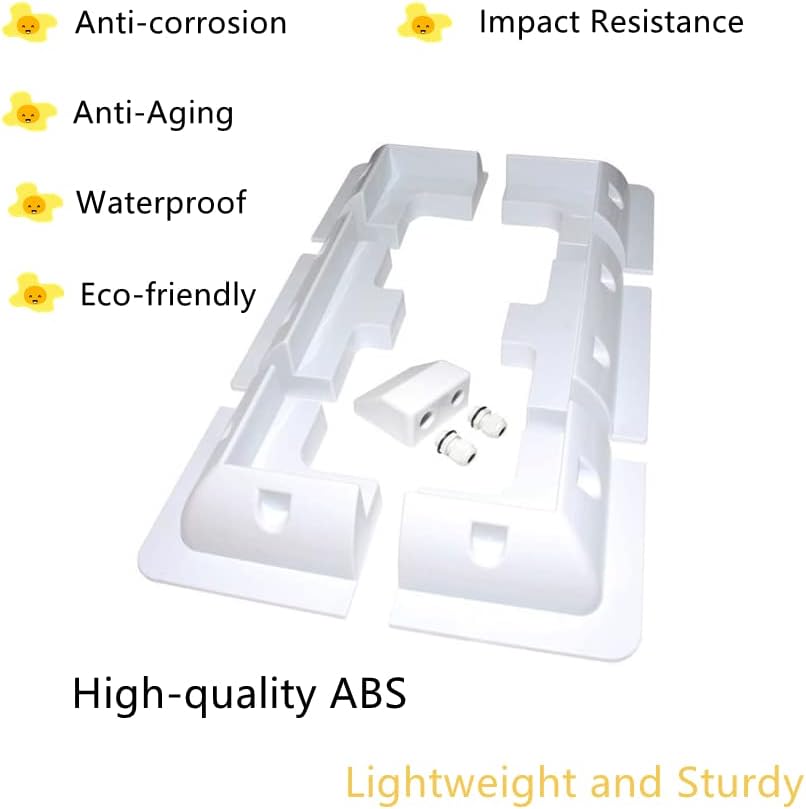

xSolar Panel ABS Mounting Bracket Kit | Drill-Free | 7-Piece
A 7-piece ABS plastic mounting kit for fixing solar panels to flat surfaces without drilling. Designed for caravans, motorhomes, vans, boats, sheds, garages, and flat roofs. Panels are bonded using a strong structural adhesive (not included). No roof penetration required.
Key Features
- No drilling required: brackets are bonded to the surface using structural adhesive

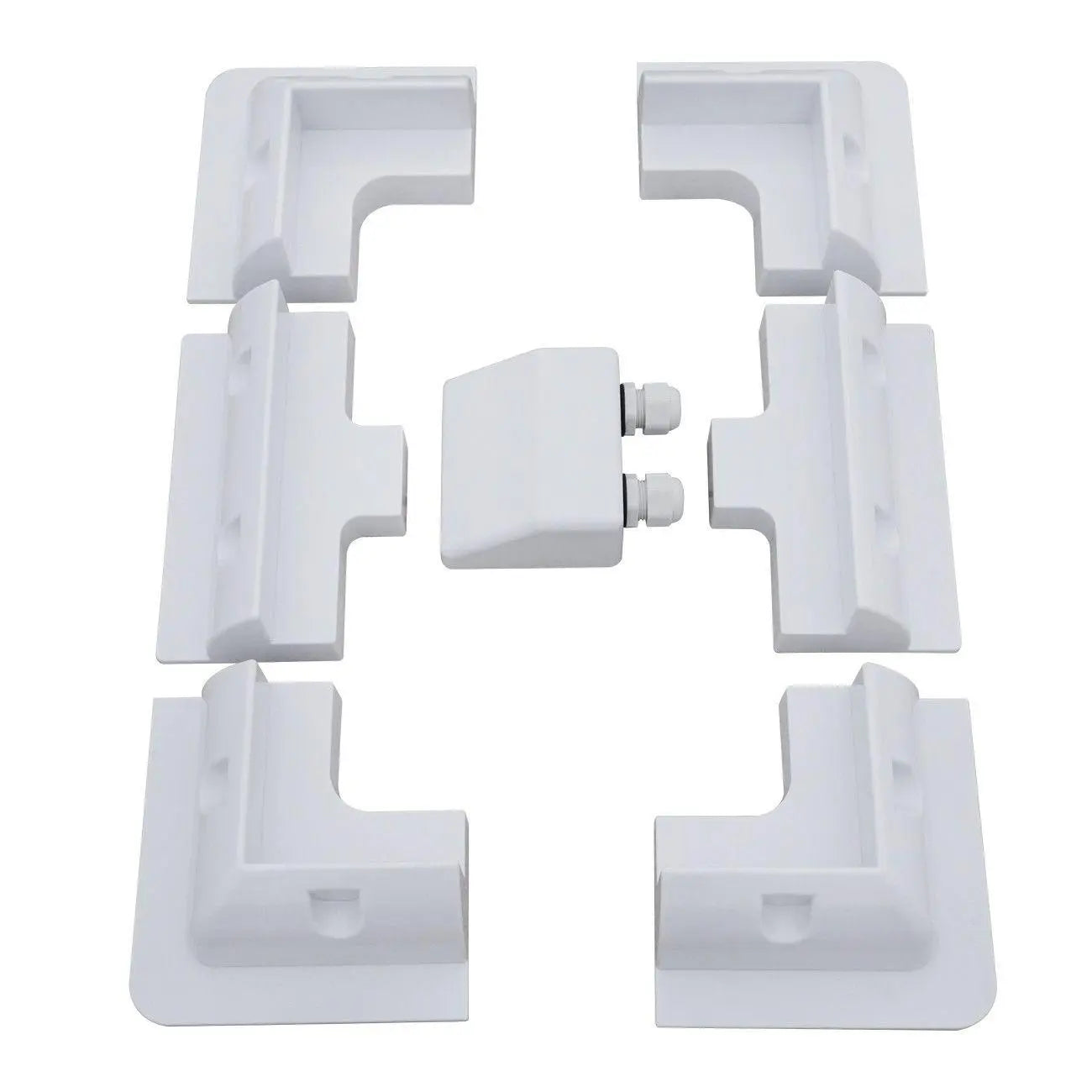

- 7-piece kit: 4 corner mounting brackets, 2 side spoiler brackets, 1 cable entry gland
- Compatible with any standard aluminium-framed solar panel
- Each bracket pre-drilled to align with standard solar panel frame fixing holes
- Brackets are fixed to the panel using self-tapping screws (not included)
- Raises the panel above the surface for airflow and optimum operating temperature
- White ABS plastic construction
- Bracket size: 15 x 15 x 6.5cm per unit
Product Overview

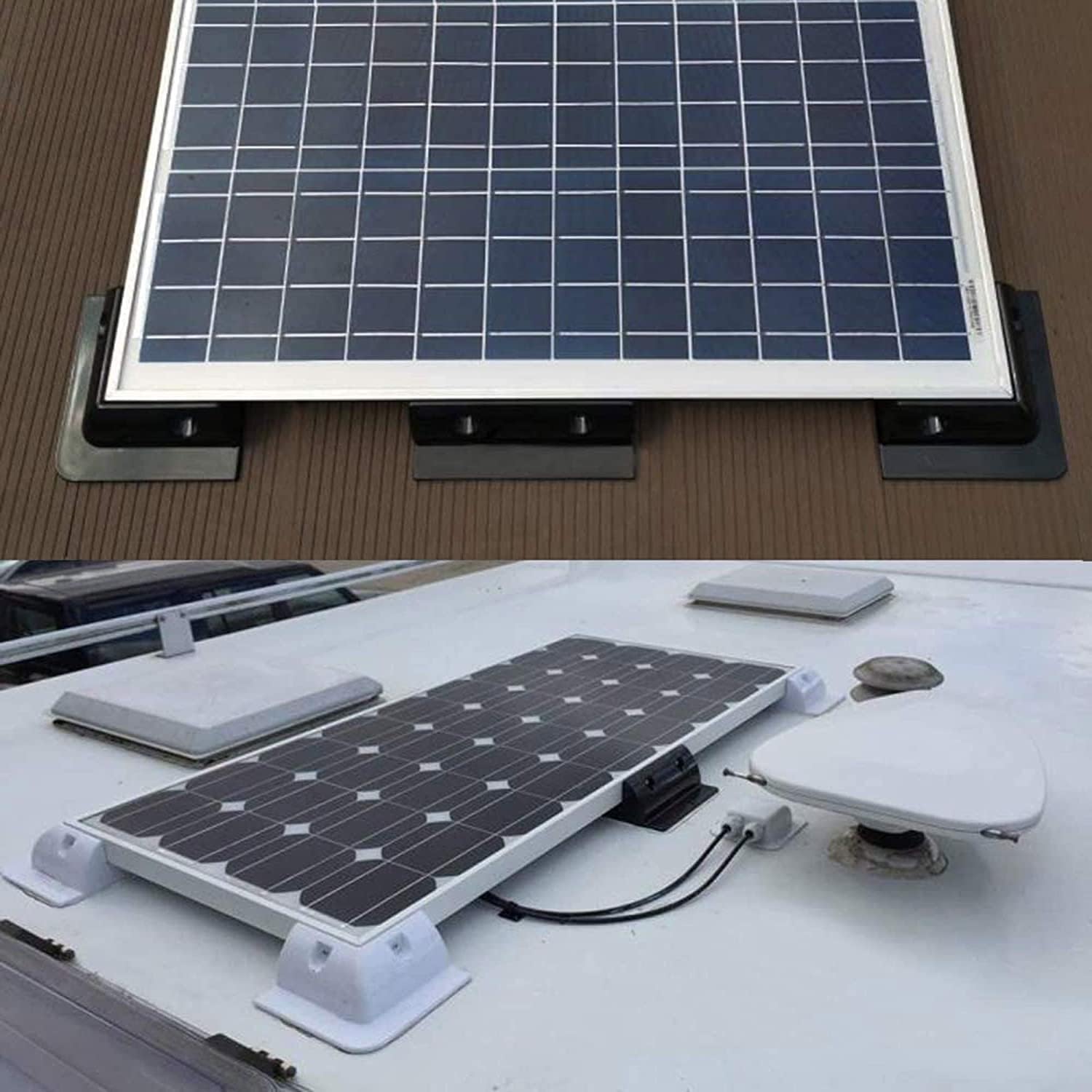

This ABS mounting kit is the simplest way to fix a solar panel to any flat surface without making holes. The four corner brackets attach to the solar panel frame using self-tapping screws, then the entire assembly is bonded to the roof or surface using a high-strength structural sealant such as Sikaflex 252 or Sikaflex 521 UV. No drilling into the vehicle body, roof skin, or surface is required.
The two side spoiler brackets provide additional lateral support, which is particularly important for larger panels and for high-speed vehicle applications. The cable entry gland provides a clean and weatherproof route for the PV cable from the panel into the vehicle or enclosure.
For larger panels (100W and above) fitted to high-speed vehicles, an additional pair of side brackets or a six-bracket kit is recommended for extra security.
Technical Specifications
| Parameter | Value |
| Material | ABS plastic |
| Colour | White |
| Bracket dimensions | 15 x 15 x 6.5cm (per bracket) |
| Kit contents | 4x corner brackets, 2x side spoilers, 1x cable gland |
| Fixing method | Structural adhesive (not included) |
| Screws included | No (self-tapping screws required separately) |
Applications
- Caravans, motorhomes, and campervans
- Vans, lorries, and buses
- Boats and yachts
- Flat roofs on sheds, garages, and outbuildings
- Any flat surface where drilling is not possible or desirable
What Is Included
- 4x ABS corner mounting brackets
- 2x ABS side spoiler brackets
- 1x PV cable entry gland
Installation and Safety Notes
Use a structural adhesive rated for the surface material (such as Sikaflex 252 or Sikaflex 521 UV). Allow full cure time before exposing to wind or movement. For panels 100W and above on high-speed vehicles, additional side brackets are strongly recommended. Self-tapping screws and adhesive are not included. If in doubt, consult a qualified installer or vehicle converter.
