Description

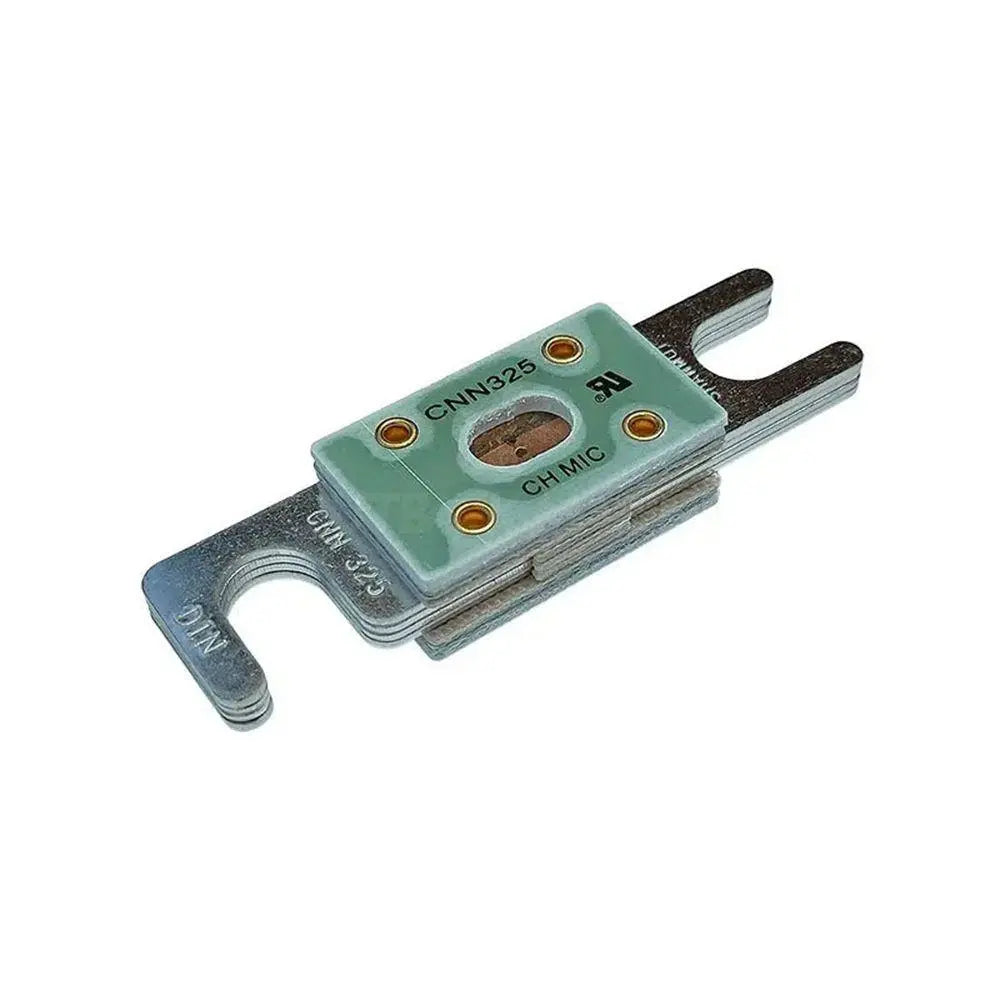

xFuse CNN 325A/80V for Victron Lynx Shunt (1 pc)
This is the OEM replacement CNN fuse rated at 325A and 80V DC, designed specifically for use with the Victron Lynx Shunt. It provides overcurrent protection within the Lynx busbar system and is a direct fit for the Lynx Shunt fuse holder. Suitable for professional installers maintaining or commissioning Victron Lynx-based battery systems.
Key Features
- Rated at 325A continuous current and 80V DC, matched to the Lynx Shunt specification.
- CNN fuse format, designed for direct installation into the Victron Lynx Shunt fuse holder.
- Provides overcurrent protection for the DC busbar and connected battery circuits.
- OEM Victron Energy part, ensuring correct fit and electrical rating without modification.
- Supplied as a single fuse (1 pc), suitable for replacement or commissioning stock.
- Lightweight at 58g, compact for storage as a spare on-site or in a service kit.
Product Overview
The Lynx Shunt is a current measurement and fuse module within the Victron Lynx busbar system. The CNN 325A/80V fuse sits inside the Lynx Shunt and protects the DC circuit from overcurrent events. Using the correct OEM fuse ensures the protection threshold is accurate and that the fuse physically seats correctly in the holder without risk of arcing or poor contact.
A blown or degraded fuse in the Lynx Shunt will disable current measurement and interrupt the DC circuit. Keeping a spare on hand is standard practice for any installation using the Lynx Shunt, particularly in off-grid, marine or vehicle systems where access for sourcing parts may be limited. This fuse is the correct replacement part as specified by Victron Energy.
Specifications
- SKU: CIP140325000
- Fuse type: CNN
- Current rating: 325A
- Voltage rating: 80V DC
- Compatible with: Victron Lynx Shunt
- Quantity: 1 piece
- Weight: 0.058 kg (58g)
- GTIN: 8719076021940
Applications
- Replacement fuse for Victron Lynx Shunt installations in off-grid solar systems.
- Spare part stocking for marine and narrowboat DC electrical systems using the Lynx busbar.
- Commissioning and maintenance of vehicle or motorhome battery systems built around the Victron Lynx platform.
- Service and repair work on existing Lynx Shunt installations where the fuse has blown or requires scheduled replacement.
What Is Included
- 1 x CNN 325A/80V fuse for Victron Lynx Shunt
Installation Notes
Always isolate the DC circuit fully before replacing the fuse in a Lynx Shunt. Work on live DC busbars at these current ratings carries a serious risk of arc flash and injury. This replacement should be carried out by a qualified electrician or experienced installer familiar with DC battery systems. Confirm the fault condition that caused the original fuse to blow before fitting a replacement, as fitting a new fuse into a persisting fault will result in immediate failure.
